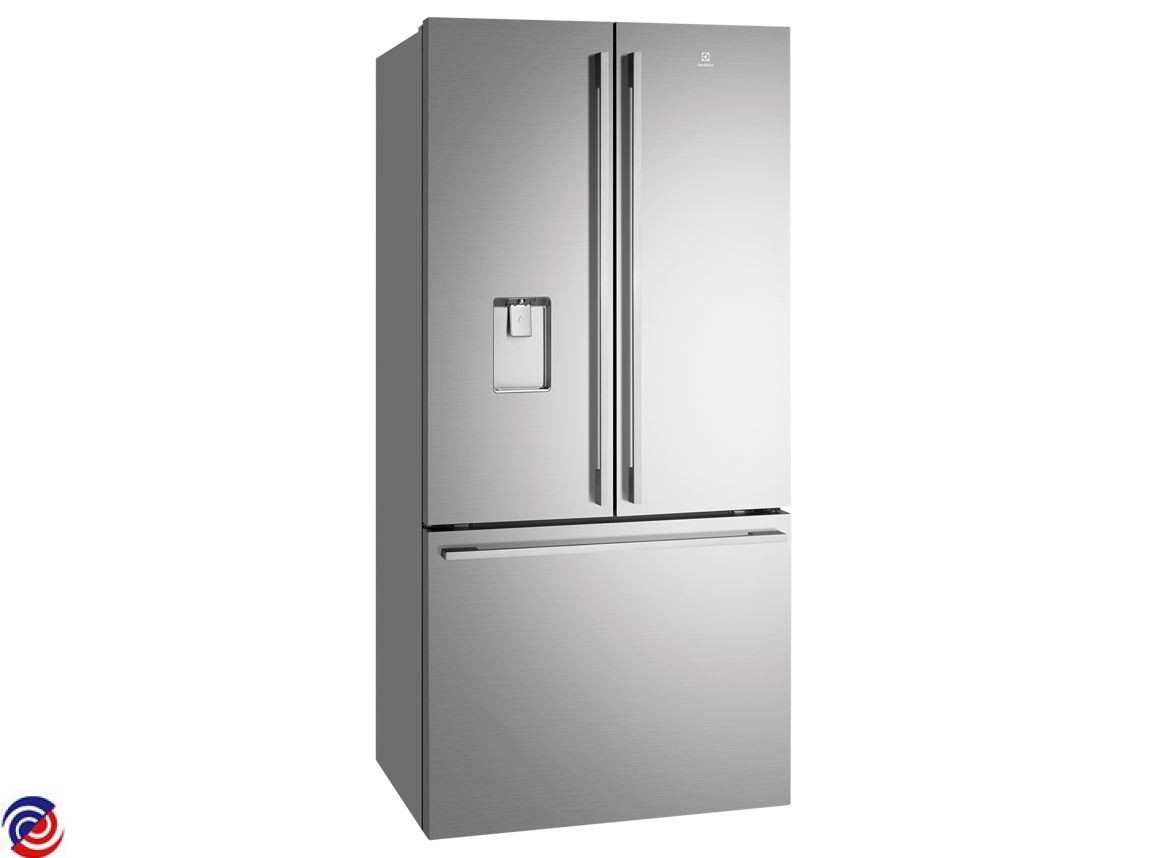

EHE5267SC — 925060826 00
ELECTROLUX — Fridge
Parts for EHE5267SC
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027081 SCREW TRILOB M3X6
$4.50
W0027140 FILTER WATER (PINOT)
W0027222 TUBE PROCESS
$19.15
W0027373 MOTOR FAN DC 3W
W0027550 SHROUD FAN ASSY BF DC 50HZ
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0029558 HEATER RAD DEF R600 240V BF80W
W0029622 ASSEMBLY FLIP MULLION MD
W0029693 RACK BOTTLE TO SUIT 80CM WIDE
$56.90
W0029694 SHAFT ROLLER FRONT WTB4600
$7.60
W0029699 FOOT BASE THREAD
$8.75
W0029700 ROLLER FOOT
$17.10
W0029701 FOOT LEVER
W0029880 ELECTROLUX WESTINGHOUSE FRIDGE WATER VALVE INLET 2-WAY
W0029938 SENSOR MAGNET REED SW
$35.75
W0030498 HARNESS-ASSY SENSOR FZR DEFROS
W0030565 VALVE ASSEMBLY SINGLE
W0154020 PCB MAIN ERF2003 15W _MD
$234.60
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0275768 SCOOP ICE
$6.00
W0018166 GROMMET FAN MOTOR
$16.45
W0018631 LEVER DISPENS I & W -
W0020669 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0027015 DEODORIZER BLOCK THIN
$18.00
W0027119 SCREW TRILOB M6X18
$4.50
W0027138 CONNECTOR FILTER MANIFOLD
$98.65
W0027228 SCREW PF AB 3.5X1.27X19 PFZ PF
$4.50
W0027382 SENSOR + COVER HUMIDITY MD
W0027401 BAFFLE MOTOR FBZA-1750-3D
W0027411 BLADE FAN,NAT
$32.25
W0027413 SEAL FOAM BOTTOM MF PINOT BF-N
$12.65
W0027441 SCREW TRUSS 4.2X13
W0027547 SHROUD FAN BF
W0027553 VALVE DRAIN ASSY BF
$184.20
W0027596 GASKET FC MD80
$135.20
W0027602 GASKET FRZ BF80
$110.10
W0029309 HINGE TOP RIGHT
$8.65
W0029310 HINGE TOP LEFT
$6.40
W0029358 MULTIFLOW ASSY BF EAU
W0029375 SEALING MFLOW BACK BF 1725
$12.15
W0029416 BIN DOOR FC SHAL MD80 1-HOTFO
$55.45
W0029434 TRAY EGG 70W
W0029448 SHELF FC TF80 EAU ASSY
$85.10
W0029473 DRAWER PASTRY BODY BF 80
$40.90
W0029476 COVER GRID AIR RETURN BF
$4.50
W0029479 EPS EVAPORATOR BF 80
$149.15
W0029480 COVER SCREW MULTIFLOW LH
$4.50
W0029481 COVER SCREW MULTIFLOW RH
$4.50
W0029483 EVAPORATOR COVER BF80 ASY 2-Z
$79.25
W0029536 BEARING AUTO CLOSER R TF SL
W0029538 BEARING AUTO CLOSER L TF SL
W0029553 DRAWER FZR UPPER ASY 80 WH
$66.00
W0029554 EXTENSION SLIDE ASSY LH 300MM
W0029555 EXTENSION SLIDE ASSY RH 300MM
W0029566 BEARING HINGE FZR TOP OPEN
$6.30
W0029573 TRAY EVAP DRAIN BM/SD 80W
$38.45
W0029576 BRACKET ADJUSTMENT BF IDP RH
$29.05
W0029577 BRACKET ADJUSTMENT BF IDP LH
$29.05
W0029579 COVER TOP HINGE IW RH GR
$11.00
W0029596 DRAIN PAN SD
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$164.80
W0029635 SPRING FLIP MULLION MD
W0029640 EXTENSION SLIDE INSERT FZR LH
$9.40
W0029641 EXTENSION SLIDE INSERT FZR RH
W0029659 COMPRESSOR EMBRACO VESD7C
$504.95
W0029660 PCBA DRIVE EMBRACO VESD7C
$214.50
W0029674 HINGE CENTRE BASE ASSY
$37.75
W0029676 CENTRE HINGE PIN DRAWER DOOR
$4.50
W0029690 COVER MAGNET ENDCAP MD80 GR
$4.50
W0029697 COVER FOOT LEFT HINGE GREY
$12.95
W0029707 COVER TOP HINGE IW LH GR
$4.00
W0029708 FOOT LEFT ASSY
$20.10
W0029709 FOOT RIGHT ASSY
$20.10
W0029731 SCREW TRILOBULAR M4X12
$4.00
W0029761 BRACKET ICE MAKER
$14.50
W0029762 ICE MAKER COVER ELUX ARTWORK
$11.75
W0029764 SUPPORT PASTRY SLIDE LH
$18.35
W0029785 HOUSING TELESCOPIC RAIL LH
W0029786 HOUSING TELESCOPIC RAIL RH
W0029787 SLIDER TELESCOPIC RAIL LH ASY
W0029788 SLIDER TELESCOPIC RAIL RH ASY
W0029791 DRAWER TELESCOPIC RAIL WH80
$56.80
W0029792 SHAFT TELESCOPIC RAIL WH80
W0029799 GROMMET FAN PANA DC FAN
$16.05
W0029814 SUPPORT PASTRY SLIDE RH
$14.00
W0029817 RETAINER CLIP
$4.50
W0029818 BEARING PAD
$19.85
W0029820 EPS FZ AIR STOPPER
$5.00
W0029844 TUBE CORRUGATE SD
$4.50
W0029850 DRAWER DELI BODY ASSY 80 EAU
$54.90
W0029856 DRAWER DELI FRONT 80 EAU ASSY
$78.30
W0029894 BIN DR DAIRY FOLDABLE 70EL ASY
$94.55
W0029903 GEAR
W0029971 DRAWER FZR FR PAS ASY 80 ELUX
$68.20
W0029973 DRAWER FZR FR MID ASY 80 EAU
$72.00
W0029990 TUBE COIL ADD WATER TRAY ABOVE
$25.20
W0029996 MAT DOOR BIN FLEX 1/2 TF70
W0030008 COVER LID SINGLE VALVE
$115.05
W0030024 BADGE ELECTROLUX ELECTROFORMED
W0030040 I&W INSTALLATION KIT BF MD RF
W0030100 POWERCORD INVERTER REF AU/NZ
$25.00
W0030112 HEATER TUBE DRAIN PAN SD
$91.30
W0030113 SPACER 3 TURN HEATER
$4.50
W0030288 EVAPORATOR FF BF80
$144.45
W0030343 CRISPER DIVIDER BF EAU
$16.70
W0030356 SEAL FOAM EPDM BF 80
$8.75
W0030585 CONNECTOR QUICK5/16 PPM220808
$13.15
W0030627 CONNECTORCHECK VAL 5/16'- 1/4
W0030629 COVER WATER TANK BF/MD ASSY
W0087406 SCREW-HINGE/CAM-BTM ETM3600WB
$4.50
W0087750 WASHER SLINGER NYLON
W0088556 SWITCH PUSH I&W LEVER
W0096127 TUBE IM & SUPPLY TUBE ESE6077S
W0096155 ICE MAKER ASSY (FLEX ARM)
W0147552 ROLLER REAR WTB4600WA RAYONG
$7.20
W0147553 SHAFT ROLLER
W0154011 BIN DOOR FLEX 70 1-HOTFOIL
$63.80
W0154025 HARNESS-ASSY M/FLOW BF EAUO
W0274872 PCBA # LED CLUSTEER GALGA
$23.20
W0275431 SCREW 6X20 SELF TAPPING
$4.50
W0275538 BIN ICE AIM BF ELUX
W0275544 EXTENSION SLIDE ASSY LH 300MM
W0275545 EXTENSION SLIDE ASSY RH 300MM
W0275560 TANK & WATERLINE ASSY WHE5260
$140.00
W0283305 COVER DEO BAFFLE SILVER-ART TG
$20.00
W0283317 SUPPORT DRAWER ELUX LH
$24.70
W0283318 SUPPORT DRAWER ELUX RH
$24.70
W0283477 LENS 3 LEDS CLUSTER GALAGA
$19.75
W0283652 PEDESTAL HANDLE BLACK
W0283654 PEDESTAL HANDLE BLACK
W0283679 MEMBRANE TYVEK
$4.70
W0283680 MEMBRANE HUMIDITY CTRL ASSY
$11.00
W0283681 DRAWER FRONT BF80 ELUX ASSY
$77.50
W0283708 CRISPER GASKET 80
$7.25
W0283863 DOOR SPARE FC L+R EHE5267SB-D
$580.55
W0284057 SCREW MOUNTING HANDLE MD36
W0284630 DOOR SPARE FZR EHE5267SB-D
$420.55
W0284665 HANDLE & PEDISTAL KIT
$309.90
W0296470 BIN DOOR BOTTLE DEEP FINGER
$15.55
W0296486 CRISPER BODY BF 80
$99.00
