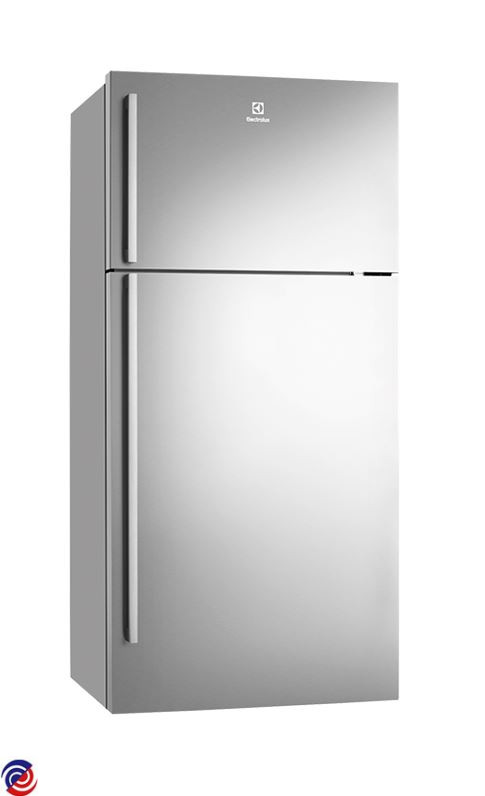

ETE5407SA — 925060097 00
ELECTROLUX — Fridge
Parts for ETE5407SA
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027081 SCREW TRILOB M3X6
$4.50
W0027222 TUBE PROCESS
$19.15
W0027373 MOTOR FAN DC 3W
W0027439 SCREW TRILOB M5X16
$4.50
W0027460 BIN ICE
W0027522 COVER SCREW
$4.50
W0027540 SHROUD FAN
$55.00
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0029435 TRAY EGG 80W
W0029461 DRAWER CRISPER BODY TF80
.jpg)
W0029560 HEATER RAD DEF R600 240V TF80W
W0029667 DOOR BIN FC BOTTLE TF80 EL
W0029694 SHAFT ROLLER FRONT WTB4600
$7.60
W0029699 FOOT BASE THREAD
$8.75
W0029700 ROLLER FOOT
$17.10

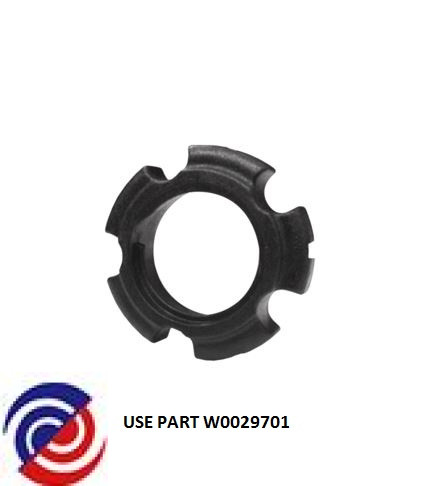

W0029701 FOOT LEVER
W0029739 HANDLE KIT TF/BF EAU ELINE
W0030498 HARNESS-ASSY SENSOR FZR DEFROS
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0274123 ELECTROLUX FRIDGE MOTORISED BAFFLE 241518501
$88.00
W0284066 FOOT STABILIZER ETE4607
W0018166 GROMMET FAN MOTOR
$16.45
W0020669 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0027015 DEODORIZER BLOCK THIN
$18.00
W0027119 SCREW TRILOB M6X18
$4.50
W0027228 SCREW PF AB 3.5X1.27X19 PFZ PF
$4.50
W0027410 BOTTLE CADDY PINOT
W0027411 BLADE FAN,NAT
$32.25
W0027441 SCREW TRUSS 4.2X13
W0027528 FAN SHROUD ASSY TF BIC
W0027553 VALVE DRAIN ASSY BF
$184.20
W0027602 GASKET FRZ BF80
$110.10
W0027604 GASKET FC BF80
$159.55
W0029310 HINGE TOP LEFT
$6.40
W0029332 DUCT EVAPORATOR
$30.45
W0029336 COVER EVAP ASSY TF80 AU
$56.00
W0029340 MULTIFLOW ASSY TF AU
W0029351 COVER DEO BAFFLE SILVER-ART
$18.45
W0029373 SUPPORT EVAPORATOR LEFT TF
$6.20
W0029408 DOOR BIN FLEX 1/2 TF70W EL
$85.00
W0029411 BIN DOOR FC SHALL 80 2-HOTFOIL
$55.45
W0029424 BIN DOOR DAIRY BODY TF80 EL
$54.90
W0029425 BIN DOOR DAIRY LOW LID TF80 EL
$13.30
W0029426 BIN DOOR DAIRY UP LID TF80W EL
W0029441 SHELF FZR TF80 EL ASSY
$71.35
W0029442 SUPPORT ICE T&S SHELF TF
W0029448 SHELF FC TF80 EAU ASSY
$85.10
W0029456 BARRIER DRAWER CRISPER TF80W
$5.00
W0029465 COVER TOP HINGE RIGHT GR
$4.50
W0029476 COVER GRID AIR RETURN BF
$4.50
W0029480 COVER SCREW MULTIFLOW LH
$4.50
W0029481 COVER SCREW MULTIFLOW RH
$4.50
W0029527 PCB PROGRAMMED ETE4607
W0029536 BEARING AUTO CLOSER R TF SL
W0029556 EXTENSION SLIDE ASSY LH 250MM
$39.50
W0029557 EXTENSION SLIDE ASSY RH 250MM
$39.50
W0029586 FRAME T & S TRAY ASSY WHITE
$33.50
W0029596 DRAIN PAN SD
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$164.80
W0029613 DRAWER C/COVER TF70 EAU ASY
$145.05
W0029618 DRAWER CRISPER FR TF80 EAU ASY
W0029659 COMPRESSOR EMBRACO VESD7C
$504.95
W0029660 PCBA DRIVE EMBRACO VESD7C
$214.50
W0029674 HINGE CENTRE BASE ASSY
$37.75
W0029675 HINGE CENTRE PIN SWING DOOR
$8.15
W0029703 HINGE BASE LEFT ASSY
$29.00
W0029752 COVER DELI ASSY BF80 EAU
$125.25
W0029799 GROMMET FAN PANA DC FAN
$16.05
W0029817 RETAINER CLIP
$4.50
W0029830 SUPPORT EVAPORATOR RIGHT TF
$6.20
W0029844 TUBE CORRUGATE SD
$4.50
W0029850 DRAWER DELI BODY ASSY 80 EAU
$54.90
W0029895 BIN DR DAIRY FOLDABLE 80EL ASY
$99.80
W0029926 CRISPER GASKET 80
$22.00
W0029996 MAT DOOR BIN FLEX 1/2 TF70
W0030000 MAT DOOR BIN BOTTLE TF80
W0030024 BADGE ELECTROLUX ELECTROFORMED
W0030100 POWERCORD INVERTER REF AU/NZ
$25.00
W0030112 HEATER TUBE DRAIN PAN SD
$91.30
W0030277 DOOR SPARE FZR+FC ETE5407SA-L
$622.45
W0030295 DISPLAY UI STD ELUX INTL ASSY
$264.00
W0030346 BIN DOOR FZR TF70 2-HF-ART5303
W0087750 WASHER SLINGER NYLON
W0282345 HARNESS-ASSY M/FLOW
