EGC627S — 944031488 15
CHEF — Cooker Electric
Parts for EGC627S
.JPG)
W0011297 BLADE FAN
W0011995 NUT M6 LH FAN MOTOR
W0012254 ELEMENT C/HEAT 1800W SS321
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0013750 LENS INDICATOR LIGHT
$11.20
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0014032 SCREW #8 X 45 PAN QUADREX
.JPG)
W0022966 HINGE DOOR
.JPG)
W0046406 CLIP MOUNTING ELEMENT
.JPG)
W0050309 LAMP
_1.JPG)

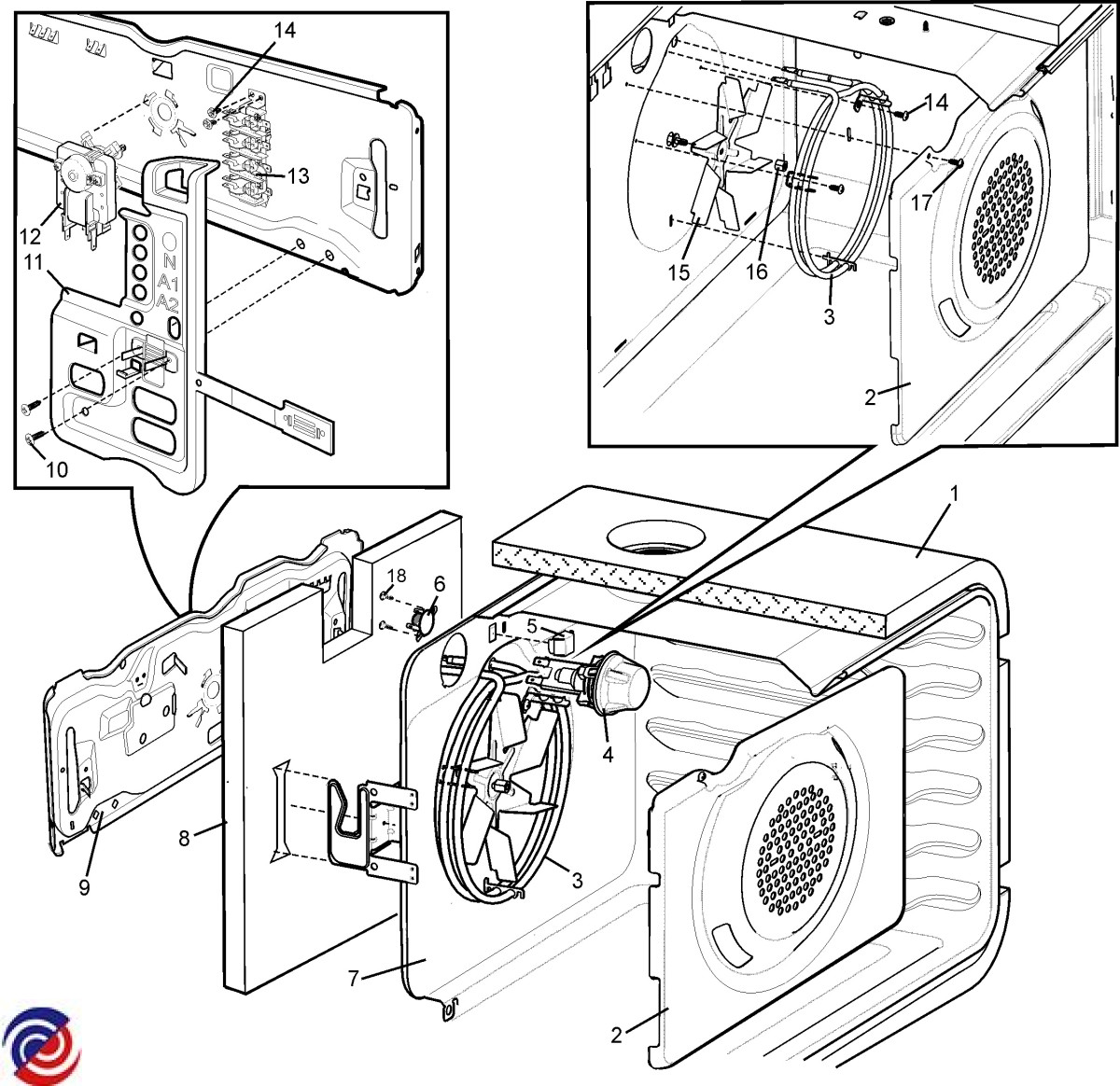

W0050403 MOTOR FAN OVEN
W0052258 DOOR OVEN INNER GLASS
.JPG)

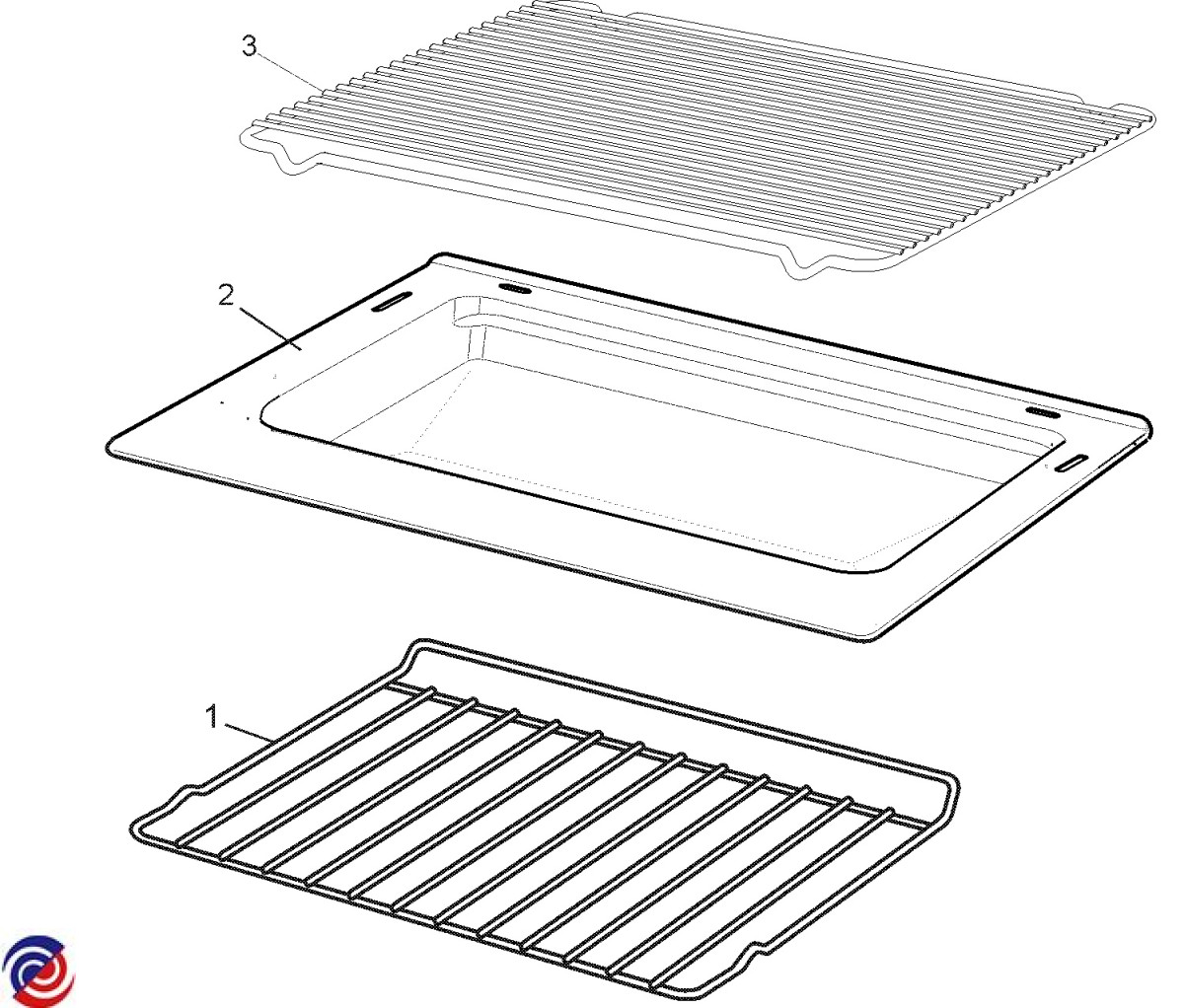

W0053487 SHELF OVEN 473 X 378MM
.JPG)
W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101
.JPG)
W0057210 SWITCH AUXILIARY T/STAT
.JPG)
W0057771 THERMOSTAT OVEN
W0058493 TRIM DOOR UPPER VENTED
.JPG)
W0060746 TIMER 60MIN 360 ACTION PEAPSA
W0147339 SEAL OVEN MODULAR PROFILE
W0166032 LAMP 25W SES E14 300C CLEAR
$10.00
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011260 PLATE MOUNTING SWITCH
$14.95
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011289 SLIDE GRILL ASSY DOUBLE ACTION
W0011346 BRACKET DOOR RUNNER GRILL
$79.90
W0011423 DOOR GRILL INNER
$99.00
W0011437 PNL SGUB OUT ASS SS CHEF NGD
$132.00
W0011486 PANEL SIDE SGUB L/H NGD
$49.50

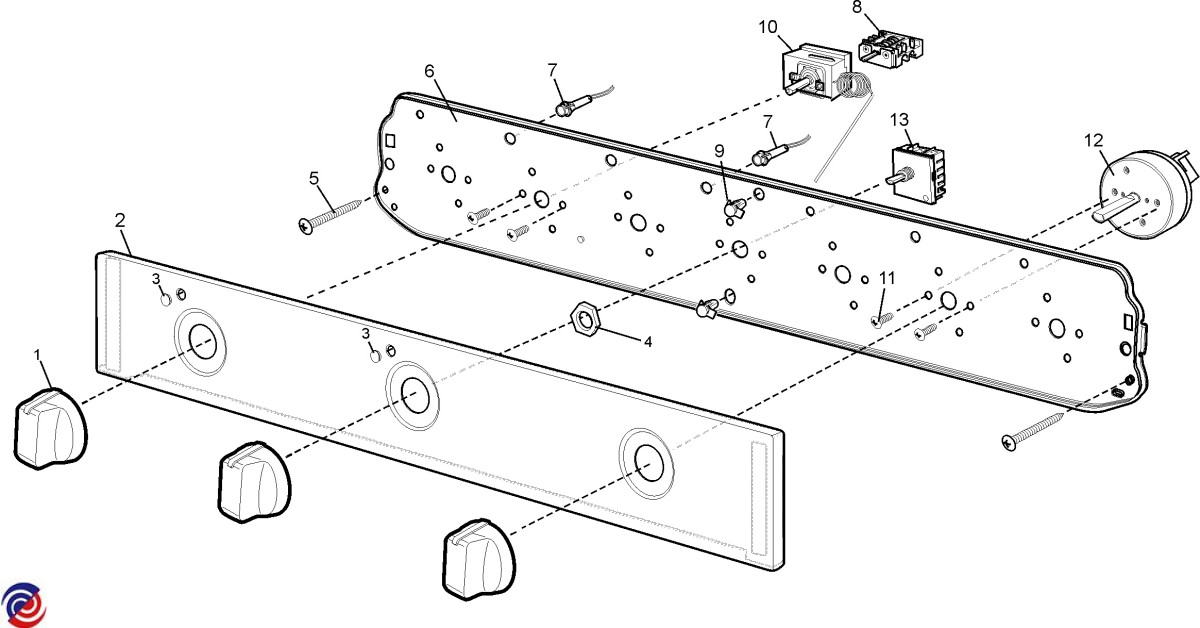

W0011562 PANEL CONTROL & CLIPS
$132.95
W0011666 COVER FAN & ELEMENT
$95.75
W0011915 HANDLE DOOR CHEF SILVER NGD
$29.65
W0011993 NUT METRIC M10 X 0.75MM
$4.50
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012562 MOUNT CAP F/FRAME R/H NGD
$5.80
W0012563 MOUNT CAP F/FRAME L/H NGD
$7.55
W0012972 SPACER HANDLE GLS DR SOD BIOS
W0013260 SHIELD WIRING
$11.95
W0013625 FRAME CONTROL PANEL
W0013730 BUMPER STOP BLK
$6.55
W0013732 BUMPER STOP MAGNET
$4.50
W0013733 STOP RUNNER
$8.15
W0013937 MAGNET GRILL DOOR
$8.80
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014021 SCREW #10 X 14.5 PAN PH 'Z' PT
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014079 BUSH MOUNT F/FRAME NGD
$7.25

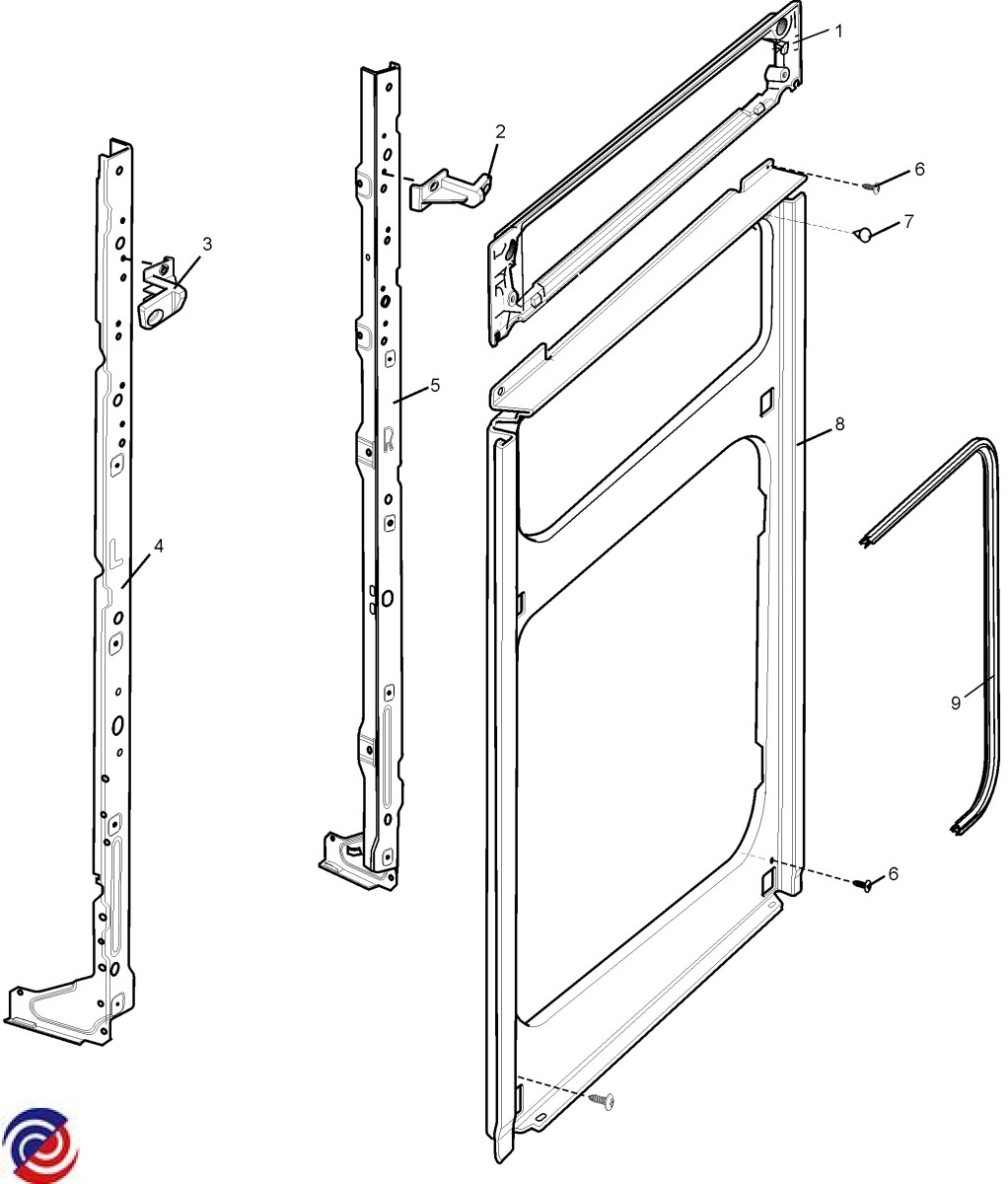

W0027195 FRAME FRONT PAINT ELE SGUB NGP
W0027330 KNOB CHEF STRONG SILVER NGD
W0036213 SUPPORT ELEMENT GRILL
W0039212 DISH GRILL ENAM BIOS
$81.60

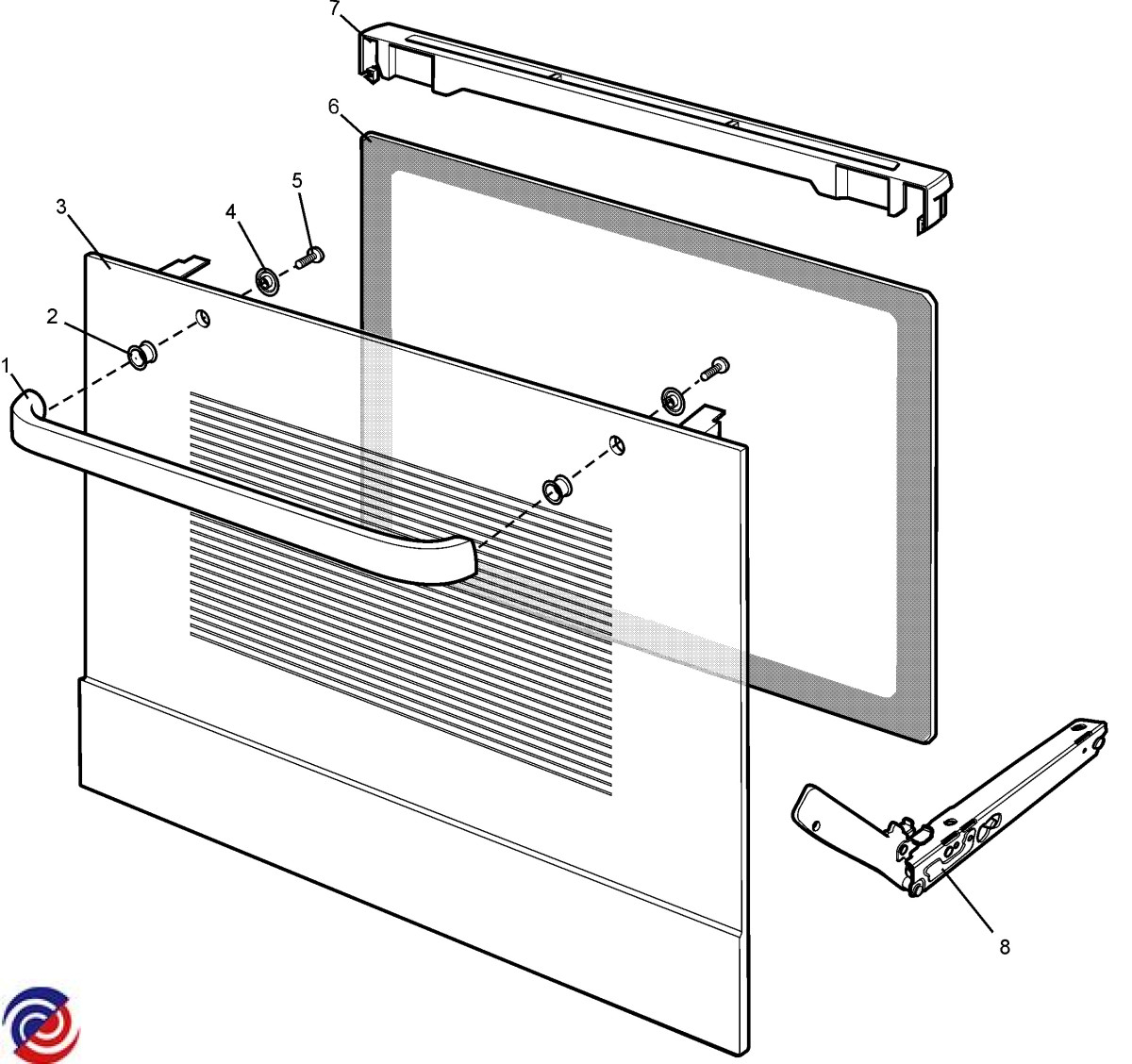

W0039575 DOOR OVEN OUTER SS

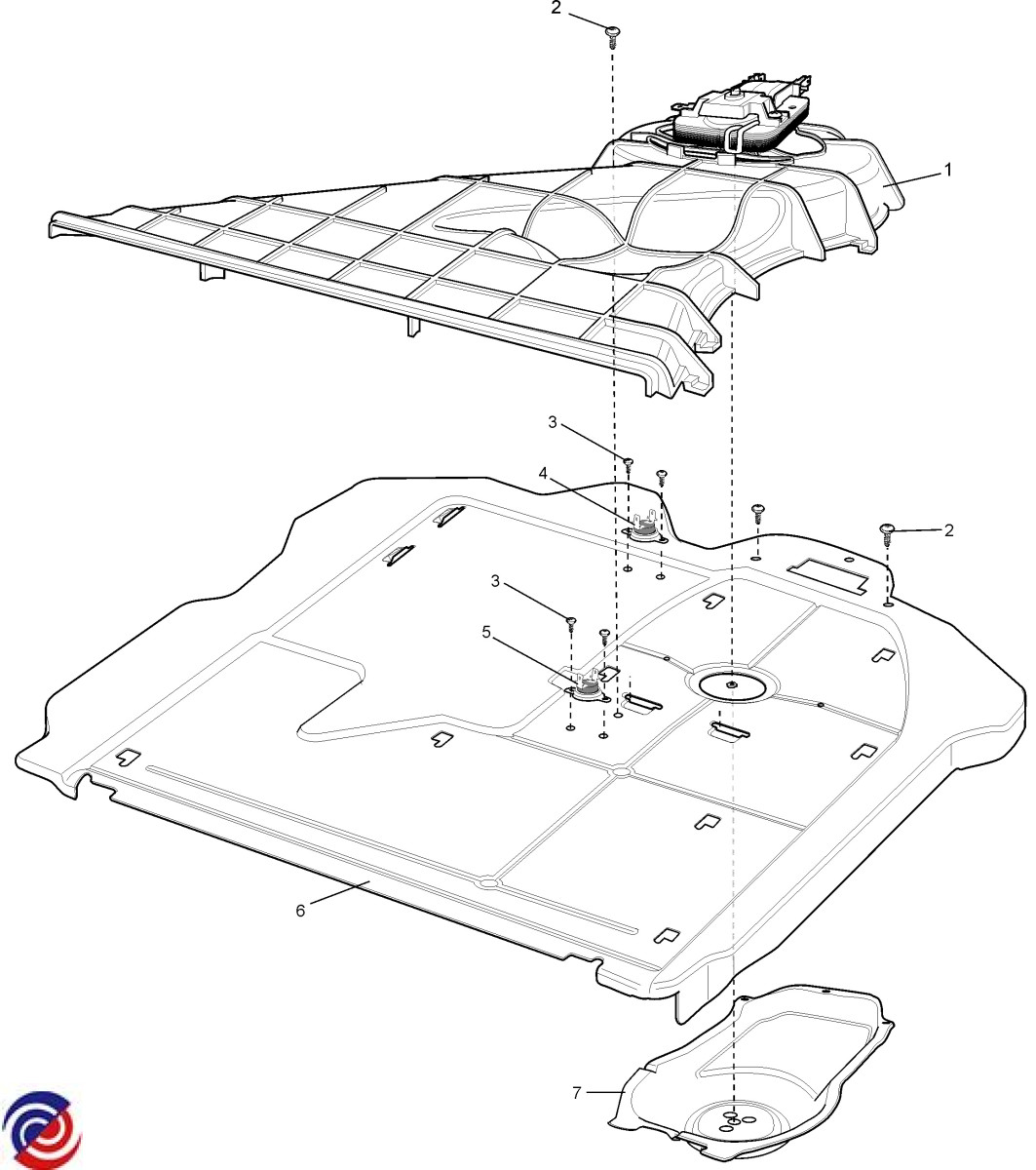

W0039639 BASEPLATE
W0039640 PANEL UPPER

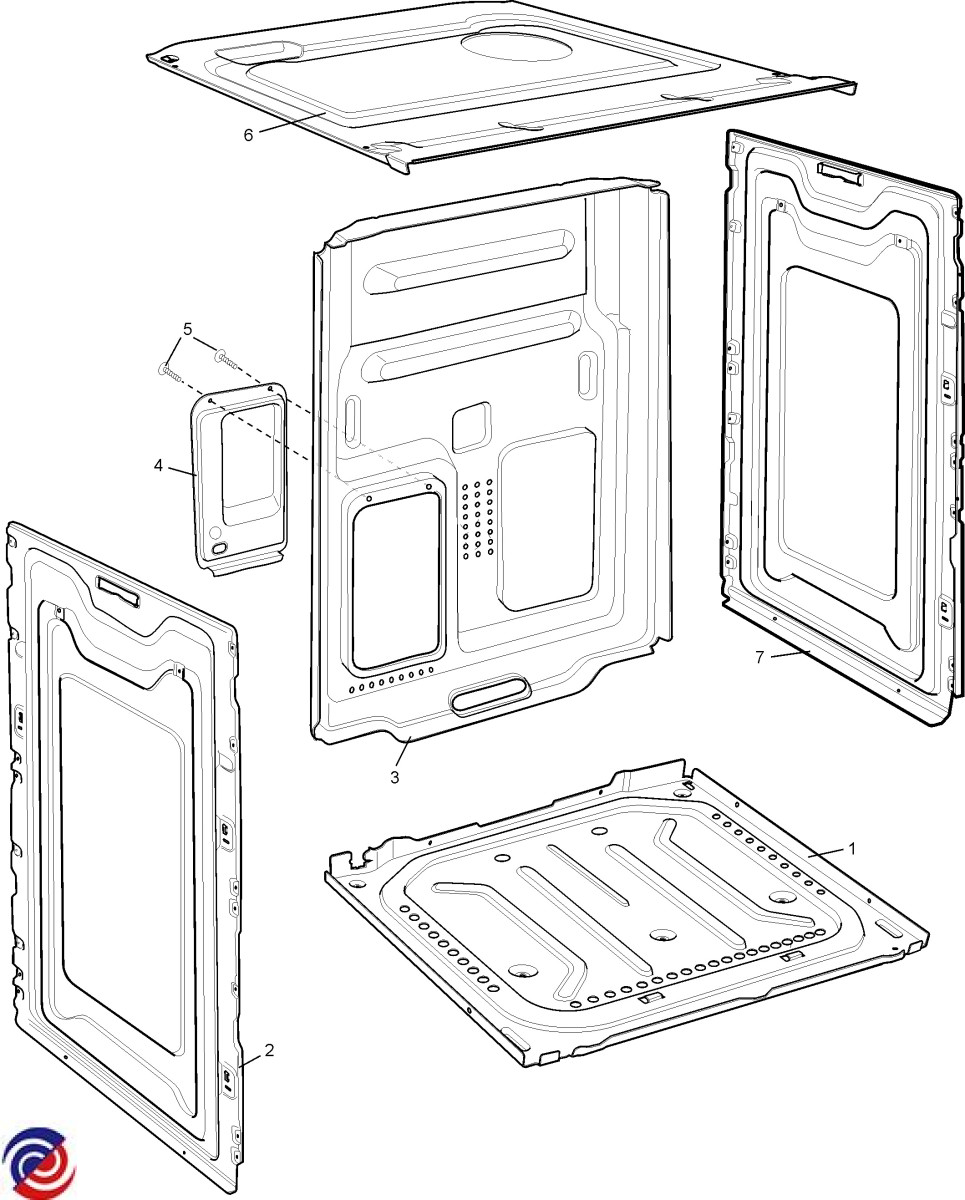

W0039686 PANEL CHASSIS TOP
$27.50

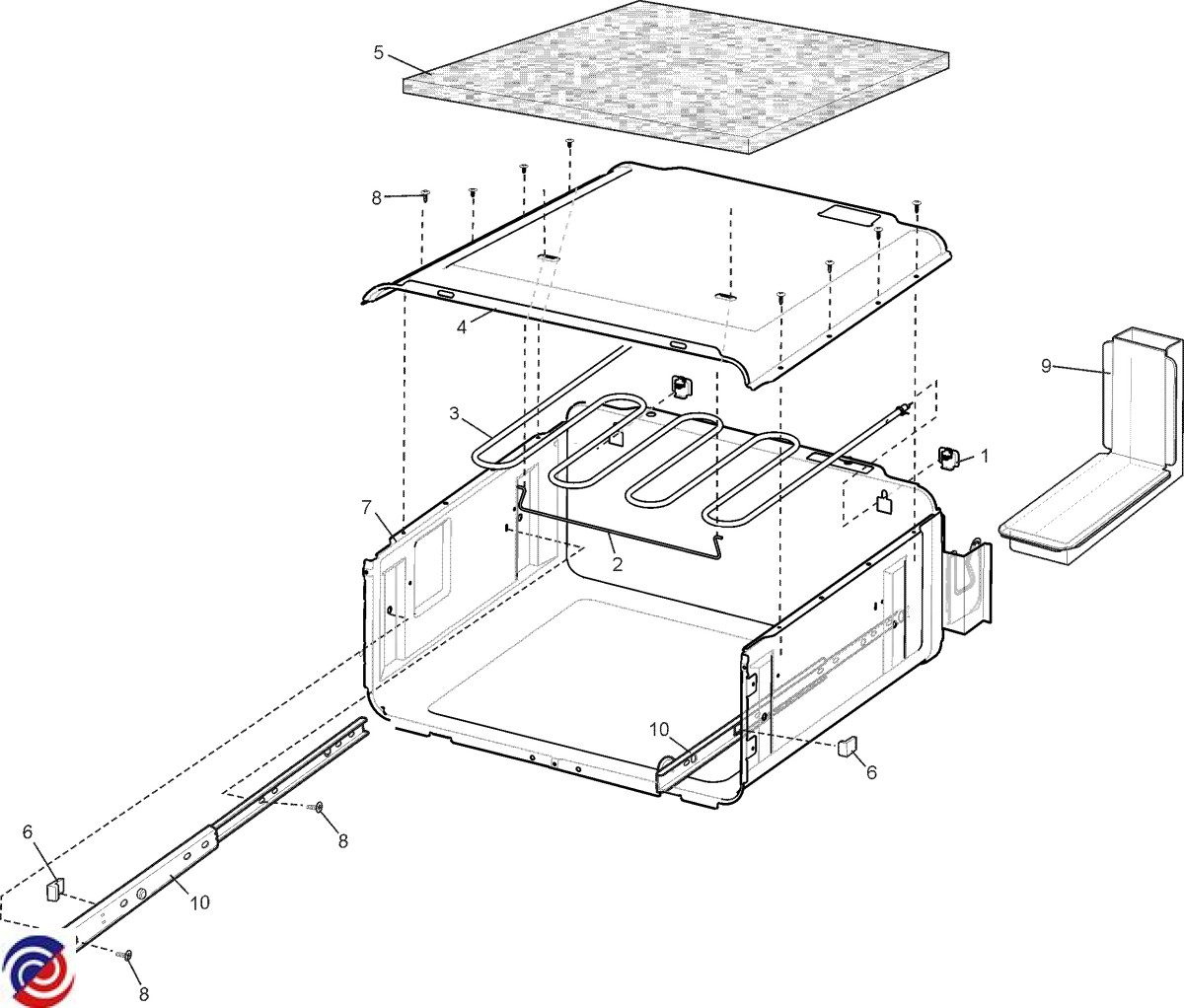

W0039690 PNL GRILL TOP SGUB ALUM BIOS
W0039799 PANEL SIDE RH
W0039895 PANEL CABINET REAR
W0042643 CHANNEL FRONT SGUB RH NGD
W0042645 CHANNEL FRONT SGUB LH NGD
W0043827 LIGHT INDICATOR RED
$14.90
W0044829 FLUE DUCT OVEN SGUB BIOS
W0047143 INSULATOR HANDLE GLASS SIMPSON
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0049225 SEAL DOOR INNER GLASS
W0052586 CANOPY FAN ASSY SGUB NGD
W0052948 SPACER CONTROL PANEL BIOS
$6.00
W0053490 RACK GRILL INSERT
W0054645 INSULATION OVEN CABINET
W0054665 INSULATION GRILL SGUB BIOS
W0054669 INSULATION DOOR SGUB NGD
W0054671 INSULATION OVEN REAR
$18.70
W0054973 OVEN ENAM ELE FRM FAN NGD
W0056174 GRILL BOX ENAM SHALLOW BIOS
W0056272 BRACE OVEN REAR BI BIOS
W0057758 THERMAL CUTOUT 100 DEG N.O.
W0059839 DUCT OVEN SGUB ASSY BIOS-ELECT
W0065129 RIVET - 4.8MM X 9.65MM
