T97689IH — 916097788 00
AEG — Clothes Dryer
Parts for T97689IH
W0015463 FAN COOLING COMPRESSOR
$74.00
W0016685 HOSE DRAIN KIT DRYER 2.5M
W0016701 BUSH SUPPORT ROLLER
$8.00
W0017346 SIDE PANEL,INSULATED,RIGHT
$126.20
W0017357 RACK DRYING SAHARA
$65.00
W0017380 HUMIDITY SENSOR
$37.00
W0017385 LAMP LED
$29.00
W0017397 HOSE, PUMP,TANK, L=770
$17.45
W0017408 SPRING, DOOR, PLINTH
$13.00
W0017409 PIVOT DOOR HINGE
$10.00
_1.png)
W0017421 DRUM, LIFTER
$14.95
W0017435 DOOR LOCK
$30.00
.png)
W0017445 MICROSWITCH, FLOAT
$31.00
W0017447 MOTOR

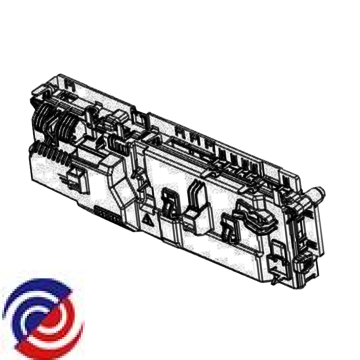

W0017461 USER INTERFACE BOARD
W0017476 AEG ELECTROLUX DRYER DOOR HINGE
W0017477 HINGE BUSHING
$8.00
W0017485 PLINTH
$50.00
W0017498 FILTER,BASEMENT,SMALL,HP
$40.00
W0017521 CONTROL PANEL & INSERT
W0017666 INVERTER BOARD COMPRESSOR
$447.00
W0023781 HANDLE DOOR WHITE
$34.00
W0027033 FLUFF FILTER
W0028957 BOARD PCB EDR12831 HP INV LOW
$384.00
W0049534 PULLEY IDLER
W0074438 THERMISTOR NTC PROBE LOWER
W0074439 THERMISTOR NTC PROBE
W0074659 ROLLER CLAMPING ASSY
W0074941 AEG DRYER CONDENSATION PUMP
$87.00
W0076579 AEG ELECTROLUX CONDENSOR DRYER DRUM ROLLER
$39.00
W0076582 GASKET DRUM BACK
$35.00
W0076610 GASKET FRONT, LARGE OPENING
$37.00
W0076617 DOOR SWITCH
$37.00
W0076689 GASKET FRONT
W0150019 LEG ADJUSTABLE
W0273973 AEG ELECTROLUX DRYER DRIVE BELT 1971MM
$33.00
W0274382 TAPPET DOOR GW
$17.00
W0276265 MOTOR,HP,PMM,P10
W0016656 BUFFER (MOTOR)
$8.00
W0016657 BUSH MAIN MOTOR
W0017235 KNOB COVER S/S
$133.85
W0017331 COVER ELECTRONIC BOARD
$44.00
W0017345 SIDE PANEL,WITH INSULATION
$170.05
W0017359 DUCT, AIR, FRONT
$121.00
W0017363 PANEL REAR
$170.50
W0017368 REINFORCEMENT TOP
$15.40
W0017369 REINFORCEMENT, MIDDLE,TOP
$27.50
W0017370 SUPPORT, TANK
$58.00
W0017371 TANK, UPPER
$51.00
W0017376 SUPPORT,BUTTON, DOOR
$9.00
W0017379 TANK. CONNECTOR
$22.90
W0017383 BELT DRIVE L=1791
W0017384 TUBE HOLDER
$14.30
W0017389 BRACKET FIXING MOTOR FRONT
$19.00
W0017392 BRACKET HARNESS
$27.50
W0017399 SEALING,BASEMENT,AIR DUCT
$21.00
W0017401 SUPPORT, HUMIDITY SENSOR
$20.00
W0017406 BUSH TANK
$10.00
W0017412 COVER, PLATE, DOOR LOCK
$5.50
W0017434 CLAMP CABLE
$7.15
W0017440 BUTTON WHITE ON/OFF
$16.00
W0017442 WORKTOP
$158.00
W0017466 CONE, BASE
$36.00
W0017470 BRACKET BOARD MOUNTING
$27.50
W0017473 DOOR FRAME SILVER BLACK INSERT
$166.00
W0017478 GASKET,INTERNAL,GREY
$5.50
W0017480 TAPPET DOOR
W0017481 SUPPORT, PUMP
$32.00
W0017482 COVER, PUMP, FLOAT
$46.45
W0017483 FAN WHEEL, FRONT
$55.00
W0017487 OUTER DOOR, PLINTH
$30.00
W0017489 SUPPORT INNER DOOR
$14.30
W0017493 GASKET, DOOR, BASEMENT
$35.00
W0017495 DOOR, BASEMENT,HP,GREY
$98.00
W0017497 KNOB LOCK,DOOR,BASEMENT,7801
$24.20
W0017501 BRACKET WIRING
$9.90
W0017503 COVER, BACK,AIR DUCT
$46.00
W0017520 TENSION SPRING, MOTOR
$13.00
W0017526 CONE
$34.00
W0017536 COVER ELECTRONIC BOARD, INV
$44.00
W0017537 BRACKET WIRING HP
$17.00
W0017803 DOOR INNER PLASTIC
$94.00
W0023730 BUTTON PUSH
$12.60
W0023836 HANDLE DOOR SILVER
$52.00
W0025696 BUSH KIT (MOTOR)
W0026944 ANTI INTERFERENCE FILTER
$86.90
W0027102 GASKET FILTER
$37.00
W0027162 ANTI INTERFERENCE FILTER
$31.00
W0027164 ANTI INTERFERENCE FILTER
$24.60
W0072033 HINGE PIN
$17.60
W0074343 SCREW MOTOR 5.5 X 38 EWF1092
W0074344 SCREW. MOTOR
$13.20
W0074818 ASSEMBLY. ROLLER.CHANNEL DRAIN
W0076588 PANEL FRONT HP NIAGRA P10
$133.00
W0076599 DRUM, COMPLETE
$197.65
W0076604 OVERFLOW HOSE, L=640
$30.00
W0076619 POWER CABLE, AUS, 2600MM
$57.00
W0076620 KNOB
$24.85
W0076624 KNOB, COVER, GREY
$43.00
W0076643 DIFFUSER, LUMINOUS DIODE,KNOB
$13.15
W0076645 DIFFUSER DISPLAY
$4.00
W0076650 HINGE,PORTHOLE,REINFORCEMENT
$20.00
W0076652 RING LOCKING DOOR
$14.90
W0076655 FIXING BRACKET, MOTOR, REAR
$14.00
W0116695 FRAME DOOR OUTER WHT/BLK INC G
$195.00
W0274378 TANK, CONNECTOR
$6.00
W0274380 HINGE PORTHOLE REINFORCEMENT
$29.00
