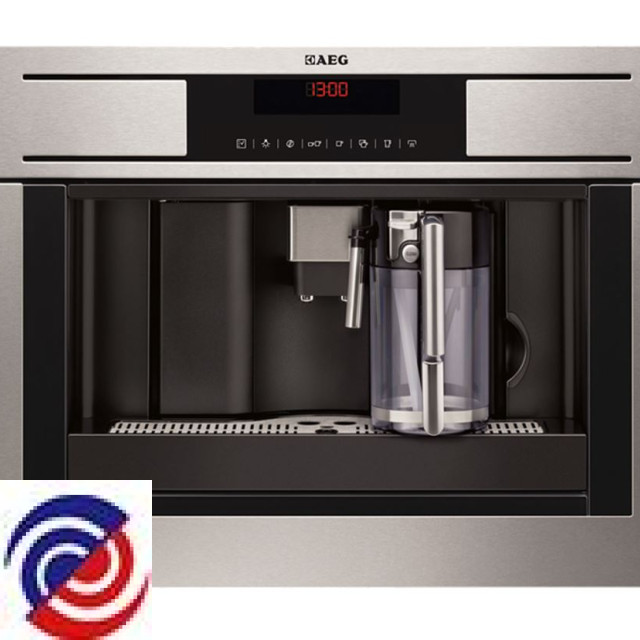

PE4551-M — 94240121000
AEG — Coffee Machine

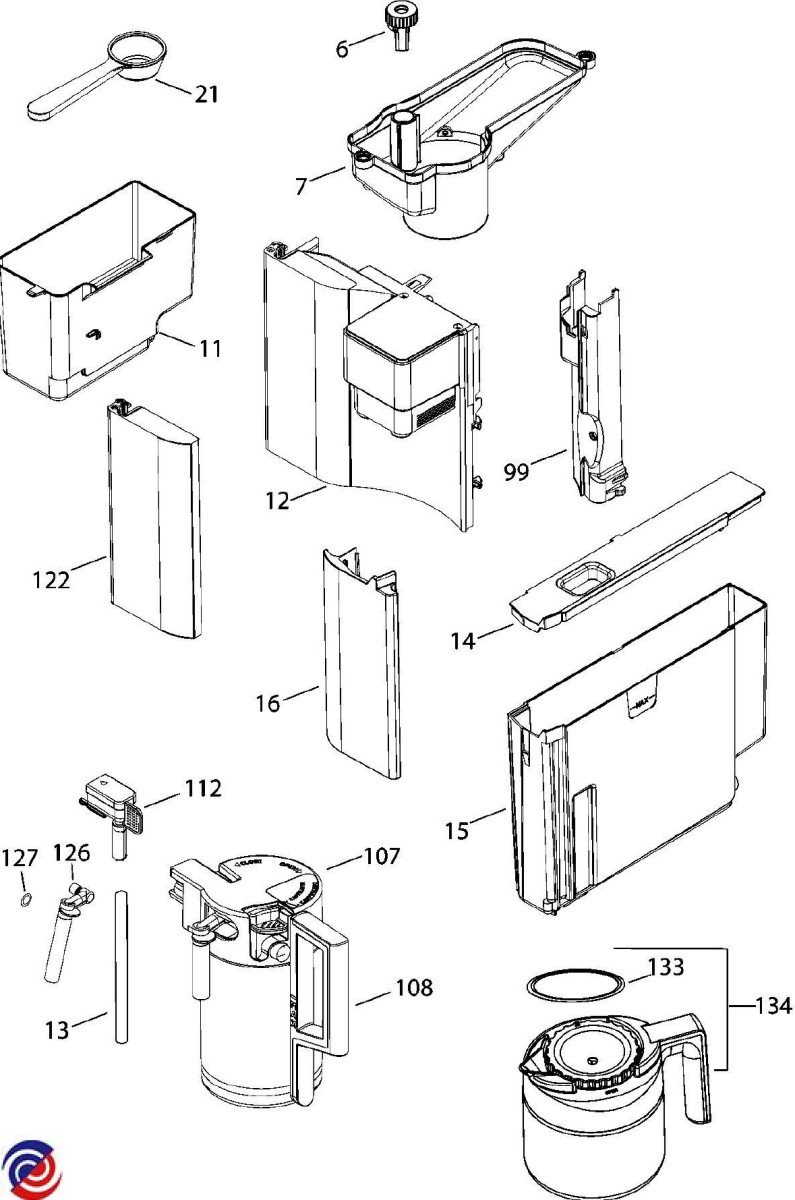

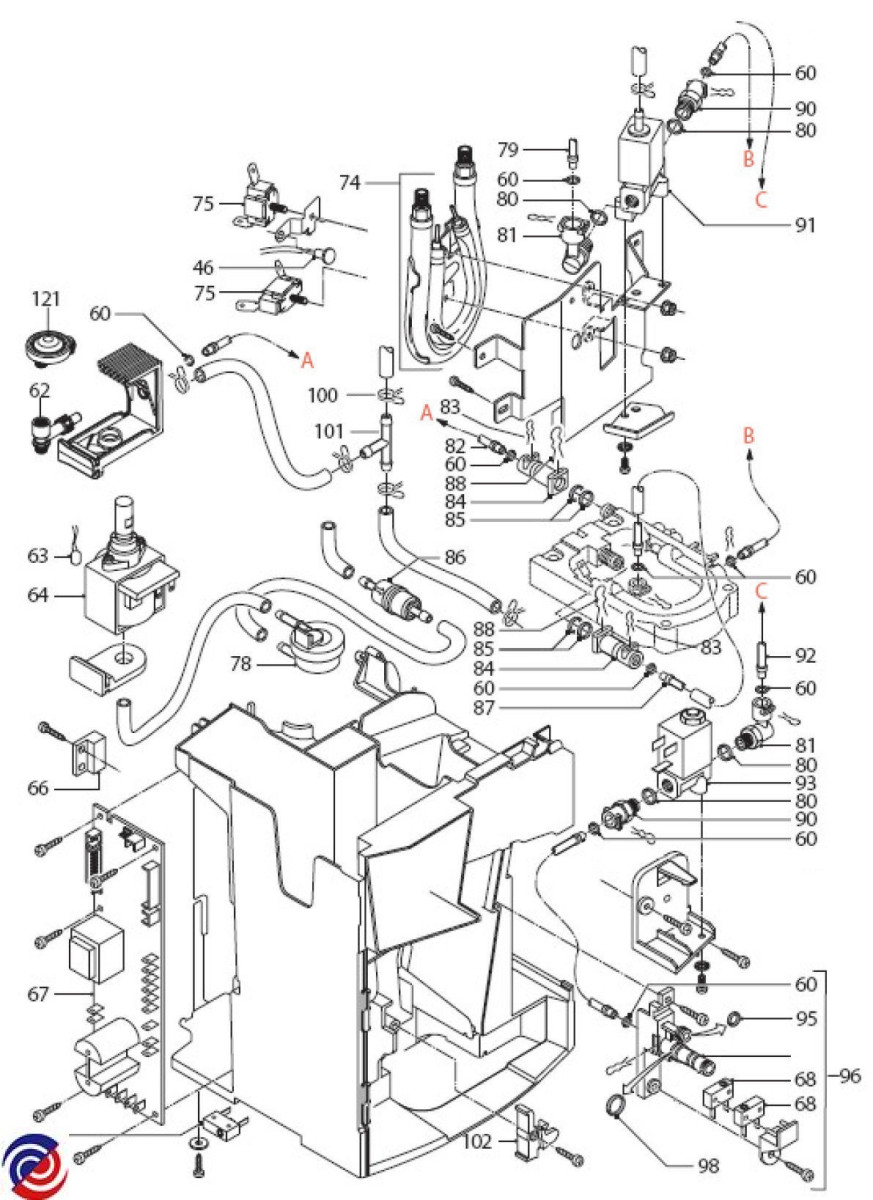

Parts for PE4551-M
W0023476 DOOR LOCK EBA63810X
$49.50
W0023478 TANK EBA63810X
W0023481 PROFILE EBA63810X
W0023486 VENTILATOR EBA63810X
W0023487 CONTAINER CUP EBA63810X
W0023488 CONTAINER CUP EBA63810X
W0023489 RAIL, RIGHT EBA63810X
$260.00
W0023490 RAIL, LEFT EBA63810X
$260.00
W0023491 BOARD DISPLAY
$246.55
W0023492 KIT, DIFFUSER EBA63810X
$130.00
W0023493 THERMAL FUSE EBA63810X
$24.20
W0023494 GENERATOR HEAT & STEAM ASSY
$966.00
W0023505 PIPE UNION, VALVE, SOLENOID
$6.65
W0023506 CONNECTION EBA63810X
$10.00
W0023508 SPRING EBA63810X
W0023509 PIPE UNION, VALVE, SOLENOID
$40.00
W0023513 HOSE CLAMP EBA63810X
W0023515 MICROSWITCH EBA63810X
$44.00
W0023516 SUPPORT EBA63810X
W0023517 SPRING EBA63810X
W0023518 PUSH BUTTON, ON/OFF EBA63810X
$7.70
W0023519 SCREW EBA63810X
W0023521 FRONT PIECE EBA63810X
$10.00
W0023523 O-RING EBA63810X
$8.00
W0023528 SUPPORT EBA63810X
$4.50
W0023530 ADJUSTER EBA63810X
$47.05
W0023535 JUG COMPLETE INOX
$182.30
W0023537 SEALING PE3820-M
$24.95
W0023553 O-RING PE3820-M
$8.85
W0023554 BELT DRIVE MOTOR
$31.00
W0023555 O-RING PE3820-M
$11.85
W0023557 GAUGE WATER
$59.40
W0023558 O-RING PE3820-M
W0023559 O-RING PE3820-M
$11.00
W0023560 COVER PE3820-M
W0023561 PIPE UNION PE3820-M
W0023562 COVER MILK JUG
$153.00
W0023567 FEED PIPE PE3820-M
$42.00
W0023664 TRAY DRIP ASSY
$137.50
W0023760 TUBE PTFE 150 DL2-4 2BUSH
W0023761 TUBE PTFE D12-DE4 135 1B
W0023877 VALVE
$24.85
W0023879 TUBE WITH BUSH PTFE D12-D14
W0023883 JOINT, JUG ASSEMBLY
$35.05
W0023892 CONTAINER, NEW, GROUNDS
W0023894 PCB, FILTER, MOTOR, GDS 230V
W0023944 TRANSMISSION KIT
$322.30
W0023952 PCB POWER BOARD
$458.00
W0024201 TUBE, DISTRIBUTION
$44.10
W0024203 FRAME ASSEMBLY
W0024204 TUBE WITH BUSH L=170 D12 DE4
W0024586 HOOK EBA63810X
$7.70
W0024587 SPRING, CLAMP EBA63810X
W0024588 TEMPERATURE FUSE EBA63810X
$15.90
W0024589 SUPPORT EBA63810X
W0024590 MICROSWITCH EBA63810X
$47.00
W0024591 SPRING EBA63810X
W0024592 SENSOR EBA63810X
$81.05
W0024593 PUMP
W0024594 FUSE, TEMPERATURE LIMITER
$12.10
W0024598 FILTER WATER
$14.90
W0024599 SENSOR, REED EBA63810X
$19.80
W0024601 SHAFT EBA63810X
W0024602 SEALING EBA63810X
$5.50
W0024603 FILTER
$7.70
W0024604 VALVE EBA63810X
$11.00
W0024605 SPRING EBA63810X
W0024606 BUSH EBA63810X
W0024607 BUSH, SHORT EBA63810X
W0024609 O-RING EBA63810X
$10.00
W0024612 SIEVE, DIFFUSER EBA63810X
$35.20
W0024617 SLIDE EBA63810X
W0024626 GRINDER COMPLETE
$384.00
W0024634 MICROSWITCH EBA63810X
$50.00
W0024638 PIPE JUG
$9.00
W0024652 FUSE TEMPERATURE
$30.00
W0024653 ELEMENT ASSY STEAM
$86.90
W0024655 BEZEL, CENTRAL, NARROW
W0024656 COVER, COFFEE EBA63810X
W0024658 MEASURING TUBE EBA63810X
$22.00
W0026083 O-RING, GREEN, JOINT PE3820-M
$9.60
W0116440 KNOB EBA63810X
$18.00
W0116441 DOOR ASSY
$121.00
W0116445 SEAL
W0116501 BOARD MAIN
W0116583 TUBE WITH BUSH PTFE D12-DE4
W0116590 POWER CORD BLK NEW AU PLUG
$45.00
W0116593 SENSOR HALL
$44.00
W0116648 VALVE. SOLENOID
W0116649 VALVE. SOLENOID
W0116651 CONTAINER, MILK
$135.05
W0116652 BOARD DISPLAY LCD
W0116885 LID TANK EBA63810X
$11.00
W0116886 TANK WATER
$60.50
W0116958 SWITCH EBA63810X
$60.50
