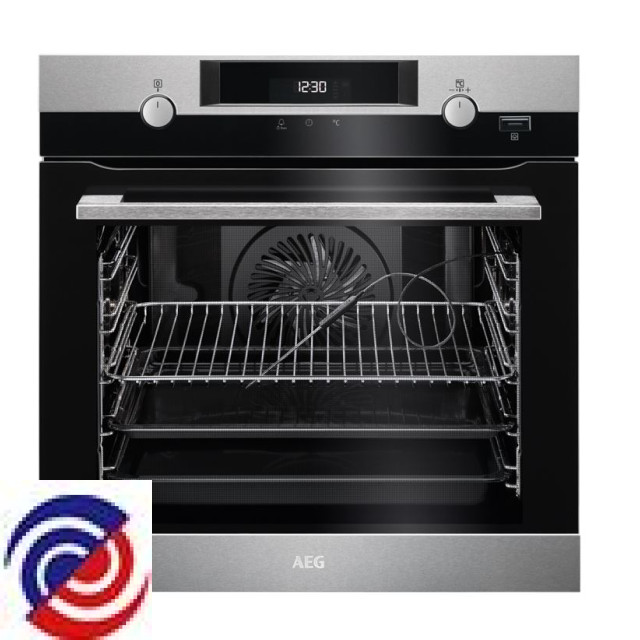

BEK556320M — 944188070 01
AEG — Cooker Electric
Parts for BEK556320M

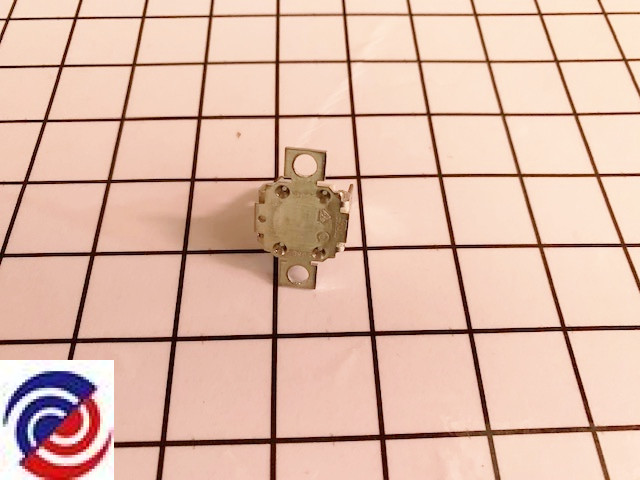

W0017827 OVER HEAT PROTECTION THEMO130C
$27.00
W0026431 SPRING DAMPER MOTOR
$12.55
W0026435 OVEN WIRE SHELF CLIP
$5.50
W0027372 SWITCH ROTARY SELECTOR
$23.00
W0030821 TRAY BAKING
W0114534 ELEMENT ROUND 240V 2400W
W0134447 RACK SIDE OVEN RIGHT
$45.90
W0134448 RACK SIDE OVEN LEFT
$40.00
W0147345 LAMP 40W HALOGEN G9 230V
$19.95
W0274530 HANDLE INOX
$132.00
W0274631 ELEMENT HEATING LOWER STEAM
$116.00
W0274688 OVEN GRILL SHELF 466MM x 385MM
$64.00
W0275423 MEAT THERMOMETER BLACK 480MM
$47.00
.jpg)
W0275444 OVEN LAMP ASSY TOP 40W G9
$22.00
W0017741 STOPPER DOOR RUBBER HIGH-TEMP
$7.00
W0022180 SPRING
$11.55
W0022365 HOSE
$23.10
W0022948 HEXAGONNUT,CAPNUT
$14.30
W0022953 BEZEL KNOB BLACK H=6.5MM
$17.60
W0023155 FAN WHEEL CONVECTION FAN
W0023193 GRILL INSERT 415X330X39.5MM
$51.00
W0023211 CLAMP CABLE 22 MM
$4.50
W0023219 SOCKET MEAT THERMOMETER BLACK
$77.00
W0023912 SCREW DOOR HAND M4 X 50 PKT 5
$12.00
W0024074 KIT SCREW PKT 4
$23.00
W0026383 HARNES UI -BOARD SELECTOR
$41.00
W0026385 NUT FAN
$6.00
W0026423 HARNESS USER INTERFACE BOARD X
$184.00
W0027120 SHIELD BOTTOM HEATER STEAM
W0027301 GLASS COVER OVEN LAMP TOP
$64.00
W0101122 CABLE HOLDER
W0105621 CLIP.FIXING.ELECTRONIC.I=22.9M
W0105622 CLIP FIXING ELECTRONIC1=12 7MM
$4.50
W0114504 DOOR OVEN INNER GLASS
W0114505 DOOR OVEN INNER GLASS
$105.00
W0134398 RUNNER TELESCOPIC PKT 6
W0150372 CONVECTION MICRO-MOTOR.230V
W0274104 TERMINAL BLOCK 3 POL
$18.25
W0274436 PANEL BACK OVEN
$171.70
W0274460 BUTTON PUSH STEAM
$21.00
W0274461 BUTTON PUSH COVER STEAM
$6.55
W0274462 PAN DRIP 466X385X40 MM
$58.00
W0274472 POWER BOARD OVC5000
W0274484 PANEL SIDE LH
$189.20
W0274485 PANELSIDE RH
$189.20
W0274486 PANEL BOTTOM
$174.00
W0274487 PANEL TOP
$210.00
W0274514 GLASS FRONT INOX 594 X 471MM
$242.00
W0274517 UPPER ELEMENT UPPER 2300W
$100.00
W0274546 GASKET , OVENDOOR NON PIRO
$34.00
W0274555 ADAPTOR DOOR HANDLE
$5.50
W0274613 FRAME FRONT
$60.05
W0274617 COVER FAN
$64.00
W0274619 SWITCH ASSY DOOR
$68.00
W0274666 GLASS INNER SILKSCND 524 X402
$57.00
W0274679 HOLDER HEATING ELEMENT
$5.15
W0274695 FAN COOLING ASSY 10W
$84.00
W0274702 HARNESS OVEN LAMP
$12.15
W0274705 KNOB FUNCTION INOX
$31.40
W0274734 PANEL CONTROL INOX 60CM
$357.00
W0275054 SELECTOR SWITCH, FUNCTION,0-10
$54.00
W0275338 SENSOR PT500 370MM
$65.00
W0275340 KNOB INDEX INOX
$19.90
W0275450 HARNESSPUSH BUTTON TO PB
W0275499 CONFIGURED ELECTRONIC U I
$355.05
W0282109 DOOR COVER TOP BLACK NON PYRO
$23.30
W0282745 HINGE 8.8- 9.5 KG
$74.00
W0282749 HINGE 8.8- 9.5 KG SOFT
$137.00
W0282818 FLANGE
$4.00
W0283087 BUSH FRONT PANEL
$7.00
