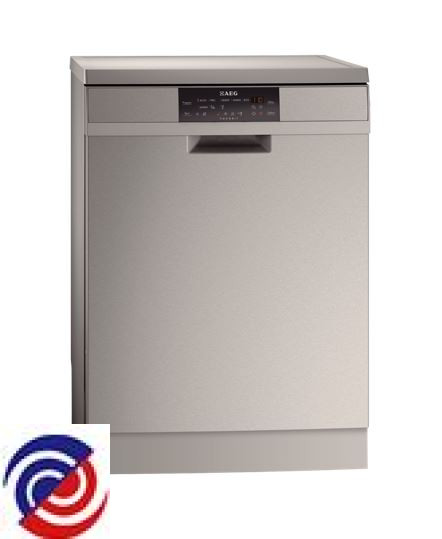

F88009M0P — 911417037 01
AEG — Dishwasher
Parts for F88009M0P
W0015209 BOARD USER INTERFACE EDW1950
$258.00
W0015364 AEG ELECTROLUX WESTING DISHWASHER DRAIN FILTER ASSEMBLY
$64.00
W0015383 BASKET CUTLERY GREY COMPLETE
$87.00
W0015778 GASKET DOOR 1800MM
$45.00
W0015826 WORKTOP COMPLETE SILVER
$368.00
W0015843 GASKET DOOR LOWER BLK
.JPG)
W0046302 ELEMENT IN-LINE KIT
$104.00
W0071617 BOARD MOTOR ELECTRONIC EDW3000
$305.00
W0071643 AEG DISHLEX ELECTROLUX DISHWASHER ON OFF SWITCH 1113337024
$46.00
W0071930 SUMP WATER ASSEMBLY
$74.00

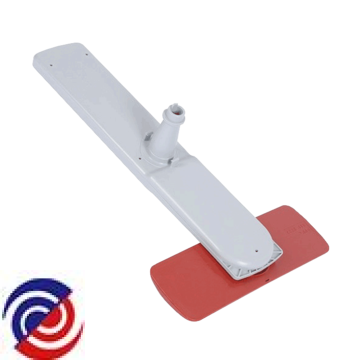

W0071944 SPRAY ARM LOWER ASSEMBLY
W0072959 HOSE DRAIN - 2.23M LONG
W0072989 SWITCH PRESSURE ANALOGIC COMP
$81.00
W0077052 PUMP DRAIN 50HZ
$103.00
W0149911 STOP BASKET REAR DK GREY
W0153202 BOARD CONFIGURED EDW---
$263.00
W0015189 LOCK DOOR
$70.00
W0015190 CAPAC 0.47UF INTERFERENCE
$40.00
W0015191 REGULATOR FLOW CONTROL
$116.00
W0015192 PUMP CIRCULATION SYNCHRONOUS
$279.00
W0015205 SWITCH TURBIDITY SENSOR
$69.00
W0015218 HARNESS MOTOR MODULE
$24.60
W0015221 HARNESS WIRING MAIN ELECTRONIC
$20.85
W0015362 SPRAY ARM UPPER GREY
$98.00
W0015365 HOSE SUMP HEATER
$49.00
W0015366 HOSE HEATER CIRCULATION PUMP
$72.00
W0015368 O-RING SUMP
$18.00
W0015369 GASKET WATER SOFTENER
$25.00
W0015370 SCREW FAST SATELITE SPRAY RED
W0015373 FILTER FLAT
$42.00
W0015376 BASKET DW UPPER DARK GREY
$278.45
W0015377 TRAY CUTLERY
$46.00
W0015378 SPRAY ARM TOP BEARING
$16.65
W0015380 SPRAY ARM TOP GREY 222MM
$22.00
W0015385 SUPPORT SPIKES RUBBER RUST
$59.00
W0015751 CORD POWER AUST/NZ 10A
$40.00
W0015776 TRAY BOTTOM SPILLAGE
$44.00
W0015777 BRACE FRONT UPPER
$34.55
W0015779 BASEPLATE BASEMENT
$44.00
W0015788 COVER WIRING HARNESS
$9.85
W0015789 CLAMP FIXING PARTITION
$5.50
W0015792 RAIL BASKET UPPER
$17.00
W0015798 FOOT SUPPORT, FRONT - RIGHT
$10.00
W0015804 HOLDER GLASS LONG STEM/SPOON
$10.00
W0015809 RACK FOLD DOWN LH 333MM
$40.00
W0015810 RACK FOLD DOWN RH 333MM
$44.00
W0015811 RACK FOLD DOWN RH 306MM
$30.00
W0015827 ON/OFF BUTTON SILVER
$18.60
W0015828 SPRING ON/OFF BUTTON
$13.00
W0015833 LENS INDICATOR ASSY LEFT
$40.00
W0015839 DOOR OUTER ST/ST INOX
$242.00
W0015842 PLINTH SILVER
$158.00
W0015853 LENS INDICATOR ASSY RIGHT
$16.90
W0015856 CONTROL PANEL SILKSCREENED
$258.00
W0015859 PANEL SIDE LEFT - INOX
$169.00
W0015860 PANEL SIDE RIGHT - INOX
$181.00
W0015861 HARNESS COMPLETE
$176.60
W0015866 MOUNT PUMP DRAIN
$4.00
W0015869 ADJUSTMENT D/WASH BASKET RH
$102.00
W0015870 ADJUSTMENT D/WASH BASKET LH
$97.10
W0015882 CAPAC 1.5UF MOTOR F88009M0P/AU
$38.00
W0015886 GROMMET SIDE MOUNT/DOOR GUIDE
$6.00
W0017587 SEAL CHANNEL DRAINAGE
$13.95
W0017615 SEALING PRESSURE SWITCH
$6.00
W0017652 DISPENSER DETERGENT
$116.00
W0017763 CONTAINER CUP MINI
$26.40
W0018962 STOP BASKET UPPER - FRONT
$20.30
W0018981 FOOT ADJUSTABLE
$18.90
W0018988 LATCH DOOR LOCK
W0019023 VENT VAPOUR OUTLET
$14.90
W0019081 FOOT ADJUSTABLE FRONT 60MM
$18.90
W0023575 HANDLE BASKET COMPLETE
$73.70
W0023584 ROLLER KIT LOWER BSKT PKT 8
$80.00
W0023828 KIT OVERFLOW HOSE
$15.90
W0023902 KIT DOOR HINGE LEFT/RIGHT
$163.00
W0024257 SUPPORT ROLLER KIT (PKT 4)
$58.00
W0024442 MANIFOLD INNER - 699.8MM LONG
$56.00
W0026996 NUT FASTENING TOP SPRAY ARM
$14.00
W0071933 SUPPORT SPRAY ARM LOWER
$30.75
W0071939 WATER SOFTENER ASSEMBLY
W0071940 CAP WATER SOFTENER
$6.00
W0071941 NUT WATER SOFTENER
$4.50
W0072704 CONTAINER CUP SMALL
$100.00
W0072793 COVER TERMINAL
$8.80
W0072862 BRACE FRONT LOWER
$30.00
W0072880 BASKET LOWER INCLUDES ROLLERS
$230.00
W0072894 SUPPORT BRACKET MOTOR RUBBER
W0072906 FUNNEL FILLING D/W SALT TRANS
$6.00
W0072914 BRACE REAR UPPER
W0072919 FOOT SUPPORT, FRONT - LEFT
$10.00
W0072932 RACK FOLD DOWN LH 306MM
$42.75
W0072943 HANDLE GREY
$6.00
W0072944 ON/OFF BUTTON PROTECTION
$18.60
W0077050 CHANNEL DRAINAGE ASSY GREY
$49.00
W0077065 SWITCH & FLOAT ASSY
$42.00
W0090332 BRACKET ROLLER REAR SIFFENING
$10.00
W0090423 NUT SPEED CLIP
W0090627 GROMMET, DECALCIFIER ESL9163
$4.50
W0090637 COVER LATCH HOLE
$11.00
W0090697 ADAPTOR FLANGE DISCHARGE PIPE
$12.00
W0090851 FIXING CLAMP SENSOR
W0103983 CLOSURE FRONT BOTTOM
W0116480 PANEL DOOR INNER COMPLETE
$229.80
W0116544 HOSE INLET WATER BLOCK X1800
W0129222 SEAL AIR CHAMBER
W0147321 HOSE WATER SOFTENER SUMP
$20.00
