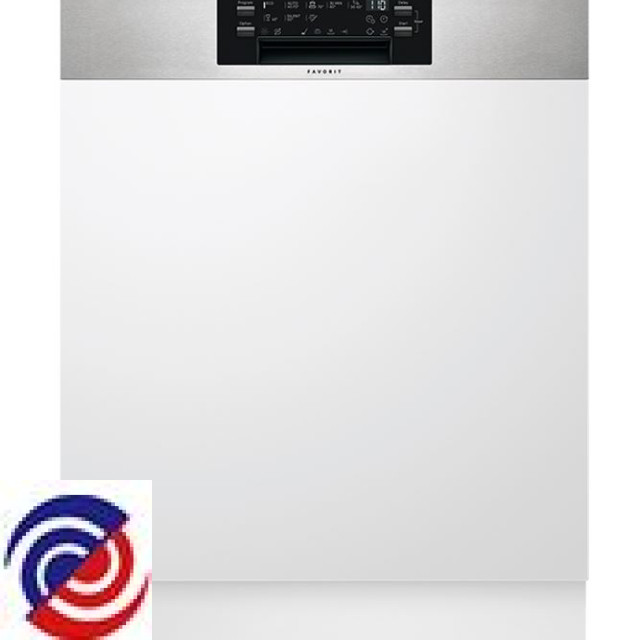

FEE83700PM — 911424414 01
AEG — Dishwasher
Parts for FEE83700PM
W0015778 GASKET DOOR 1800MM
$45.00
W0017620 SCREW ADJUSTING - FOOT CENTRAL
$22.00
W0017624 SENSOR TEMPERATURE TURBIDITY
W0017639 VALVE NON-RETURN FLAP SUMP
$30.00
W0026942 AEG ELECTROLUX DISHWASHER UPPER SPRAY ARM LOCK NUT
$7.00
W0026962 CHANNEL FEED UPPER SPRAY ARM
$49.00
W0027008 CLIP RACK FOLD DOWN BSKT LOWER
$7.00
W0027021 SPRAY ARM UPPER 3RD.
$137.00
W0071643 AEG DISHLEX ELECTROLUX DISHWASHER ON OFF SWITCH 1113337024
$46.00
W0071935 SUPPORT SPRAY ARM LOWER DRK GR
$33.00
W0077255 TRAY CUTLERY
$116.00
W0274333 ARM SPRAY LOW RED/GREY ASSY
$96.00
W0274391 AEG ELECTROLUX DISHWASHER PRESSURE SWITCH
$51.00
W0274397 AEG ELECTROLUX DISHWASHER PUMP RECIRCULATION 90W
$179.00
W0274404 AEG ELECTROLUX DISHWASHER DRAIN HOSE 2340mm LONG
$38.50
W0275190 LATCH DOOR ASSY - AUTO OPENING
W0015367 TRAP SUMP PUMP RECIRC - BLACK
$13.00
W0015368 O-RING SUMP
$18.00
W0015823 ON/OFF BUTTON PROTECTION
$17.00
W0015857 ON/OFF BUTTON INOX
$31.00
W0015863 LEG ADJUSTABLE CENTRAL 129MM
$20.00
W0015886 GROMMET SIDE MOUNT/DOOR GUIDE
$6.00
W0015889 PANEL SIDE RIGHT - ZINC PLATED
$121.00
W0017612 REGULATOR FLOW DIRECTION CNTRL
$85.00
W0017613 FRAME TRAY CUTLERY UPPER
$113.00
W0017614 HOSE SUMP TO TANK X370MM
$11.00
W0017628 RACK CUP HINGED RED-GREY
$15.00
W0017631 GROMMET FEED UPPER SPRAY ARM
$6.00
W0017643 PUMP DRAIN BLDC COMP 50/60HZ
W0017651 COVER PCB METAL REAR
$29.70
W0017660 CLIP RACK FOLD DOWN BSKT UPPER
$5.50
W0017665 CORD SERVICE AU 2.15M
$48.00
W0017668 BRACKET ROLLER REAR SIFFENING
$10.00
W0017677 HEATER WITH O-RING 230V/1800W
W0017679 COVER HEATER
$20.00
W0017681 RACK FOLD DOWN BSKT LOWER
$38.00
W0017701 BASKET DISH LOWER SILVER
$195.00
W0017704 BASKET UPPER DISH WASHER
$384.00
W0017717 KIT MOUNTING BUILT IN
$12.90
W0017917 SEAL O-RING HEATER-PUMP RECIRC
$16.00
W0018984 TRIM TUB CABINET X 609MM
$34.00
W0019024 VENT VAPOUR OUTLET
$21.00
W0019054 COG LEG ADJUSTABLE CENTRAL
W0023584 ROLLER KIT LOWER BSKT PKT 8
$80.00
W0023828 KIT OVERFLOW HOSE
$15.90
W0024438 SCREW SUPPORT SPRAY ARM LOWER
$5.50
W0024439 SCREW FIXRAIL ROLLER PACK X 8
$18.00
W0026953 HANDLE BASKET REAR
$27.65
W0026956 RACK FOLD DOWN BSKT UPPER LH
$36.00
W0026957 RACK FOLD DOWN BSKT UPPER RH
$44.00
W0026961 HANDLE FRAME UPPER FRONT
$41.80
W0026966 TUBE FEED SPRAY ARM UPPER&3RD
$111.00
W0026989 PLUG DRAIN HOSE
$12.10
W0026996 NUT FASTENING TOP SPRAY ARM
$14.00
W0026999 SUPPORT CUP WIRE - SILVER
$40.00
W0027041 SUPPORT SPIKES RUBBER RED
$26.00
W0027129 CLAMP DRAIN HOSE Ï30MM
$9.00
W0027130 CLAMP CIRC PUMP FLOW REG Ï36MM
$21.00
W0027131 CLAMP CIRCULATION PUMP-SUMP
$11.00
W0027237 FILTER FLAT + INDICATOR
$69.00
W0072863 BRACE FRONT LOWER
$14.50
W0072868 PANEL DOOR OUTER ZINC PLATED
$273.25
W0072894 SUPPORT BRACKET MOTOR RUBBER
W0072915 BRACE REAR UPPER
$21.00
W0072937 BRACKET FIXING TOP
$10.00
W0072984 PANEL SIDE LEFT - ZINC PLATED
$121.00
W0077065 SWITCH & FLOAT ASSY
$42.00
W0090332 BRACKET ROLLER REAR SIFFENING
$10.00
W0090612 CLAMP HOSE
W0090645 LEG ADJUSTABLE FRONT 121MM
W0129222 SEAL AIR CHAMBER
W0147302 FILTER DRAIN ASSEMBLY - FINE
W0274335 TANK SIDE AIR BREAK/FILL
$80.00
W0274337 BRACE FRONT UPPER
$46.45
W0274390 SUMP HYDRAULICS ASSY
$34.00
W0274480 TAPE STEAM PROTECT PLAS x750mm
$16.05
W0274494 STRIKER DOOR - DIAMOND
$7.00
W0274547 ROLLER SUPP RAIL TRAY CUTLERY
$33.00
W0274548 SUPPORT FRAME TRAY CUTLERY L/R
$39.00
W0274609 HARNESS PCB - PUMP ( A )
$96.00
W0274629 RAIL COMFORT TRAY CUTLERY
$126.00
W0274630 RAIL COMFORT BASKET UPPER
W0274648 GASKET DOOR LOWER BLACK-546mm
$45.00
W0274690 HARNESS PCB - DOOR ( B )
$63.00
W0274921 PANEL KICK FRONT LOWER
$37.00
W0274923 HOSE INLET AQUA CONTROL 1800MM
W0275166 HINGE KIT DOOR LH & RH
$189.00
W0275436 HARNESS PCB . HEATER ( C )
$44.00
W0275437 SPRAY ARM BASKET UPPER GREY
W0284076 BRIDGE LOWER BASKET RIGHT
$4.00
W0284077 BRIDGE LOWER BASKET LEFT
$4.00
W0284121 TEMPLATE BUILT IN FEE83700PM
$11.00
W0284236 SUPPORT RAIL BASKET
$23.00
W0284275 TRAY BOTTOM BLACK
$58.00
W0284282 HANDLE BASKET FRONT ELECTROLUX
$40.00
W0284283 HANDLE BASKET FRONT
$40.00
W0284285 HANDLE BASKET REAR
$40.00
W0284303 BASEMENT
$44.95
W0284331 ADJUSTMENT KIT UPPER BASKET
$65.00
W0284382 DISPENSER DETERGENT
W0284525 USER INTERFACE BOARD EDW1850
$160.60
W0284605 PANEL CONTROL INOX FUE83700PM
$636.00
W0284606 PANEL DOOR INNER DOROTEA 60
$310.00
W0284651 BOARD PCB PROGRAMMED PB101
$462.00
