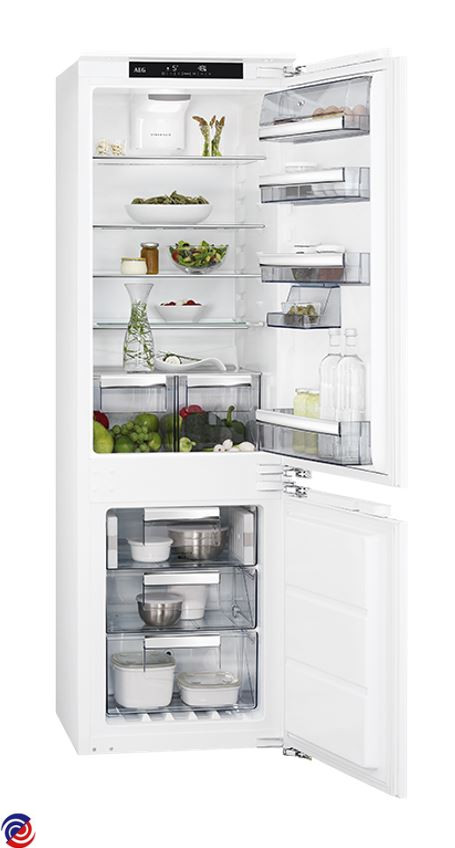

SCE81826TC — 925516070 00
AEG — Fridge
Parts for SCE81826TC
W0017916 POWER CORD
$40.00
W0019993 BLADE FAN
$30.00
W0020502 BRACKET FIXING COMPRESSOR
$24.95
W0020503 FIXING BRACKET BOTTOM DOD
$20.00
W0020504 SCREW ADJUSTING DOD
$5.50
W0020515 COVER HOLE MIDDLE HINGE 17 78
$4.35
W0020520 BUFFER COMPRESSOR 13X11.6MM
$4.00
W0020524 HOSE DRAINAGE L 0.8M
$7.00
W0020526 LEG
$4.95
W0020533 TRIMMING SIDE L=1790MM
$29.55
W0020544 PAN DRAIN TRAY WATER ZEM
$14.95
W0020546 COVER BRACKET STIRRUP DOD
$18.00
W0020547 HINGE COVER UPPER 7801
$14.85
W0020555 MAGNET DOOR .8X15MM
$11.00
W0020557 SEALING HINGE HETTICH
$5.50
W0020566 GASKET WHITE 7801 MAGNETIC
$100.05
W0020567 GASKET FC DOOR MAGNETIC WHITE
$135.05
W0020569 MOUNT FAN RUBBER
$10.00
W0020570 GLASS COVER FREEZER 402X210MM
$54.95
W0020571 GLASS FREEZER 402X255MM
$84.35
W0020576 TEMPLATE DOOR OUTER DOD
$7.00
W0020580 ACCUMULATOR COLD 213X132MM
$44.95
W0020582 CUT-OUT THERMAL FUSE
$152.00
W0020598 STARTING DEVICE MOTOR PROT
$60.05
W0020673 COMPRESSOR COMPLETE HXK95AA
$539.00
W0020686 BEZEL TERMINAL 82X44MM
$30.00
W0020688 PCB LED LIGHT 1.9W 12V
$50.00
W0020700 COVER DIFFUSER NEUTRAL 7801
$44.95
W0020701 SUPPORT LED PCB
$11.95
W0020702 SUPPORT DIFFUSER FAN
$14.95
W0020703 HOLDER CARBON FILTER DIFF COVE
$20.00
W0020704 FILTER CARBON AIR 40X40MM
$54.95
W0020888 PEG AIR CHANNEL 34MM
$4.95
W0020904 COVER AIR CHANNEL TOP FAN
$30.00
W0020914 BRACKET FAN
$24.95
W0020917 COVER POWER BOARD
$30.00
W0020936 EVAPORATOR VERTICAL ASS
$250.00
W0020937 CONDENSER 467X1320.8MM
$130.00
W0025347 MOUNT COMPRESSOR RUBBER
$10.00
W0025348 ICE TRAY 105X225MM
$10.00
W0025366 PLUG DRAIN DEVICE
$7.00
W0027016 COVER CONTROL PANEL FULL 7801
$46.00
W0027017 COVER CONTROL PANEL RIGHT 7801
$46.00
W0027018 COVER CONTROL PANEL LEFT 7801
$6.20
W0027061 TRIMMING UPPER
$26.60
W0027072 DOOR FREEZER COMPLETE WHITE
$538.95
W0027074 FIXING BRACKET DOOR
$30.00
W0027105 HINGE UPPER
$157.90
W0027106 HINGE LOWER
$221.95
W0027165 COVER TOP DOOR MAGNET DOD
$46.05
W0027166 COVER TOP DOOR DOD
$24.95
W0027167 SUPPORT MAGNET DOOR WHITE
$11.00
W0027234 DOOR FRIDGE COMP BUILT-IN
$715.20
W0095857 TRAY EGG TRANSPARENT 7902
W0096147 VALVE ELECTRIC ASS STRAINER
W0096148 MOTOR FAN DAC 1600RPM 12V
W0096150 FAN MES 2000RPM 12V
W0282696 RUNNING CAPACITOR 4?F
$50.60
W0282731 GLASS SHELF ASSEMBLY FOLDING 4
$100.80
W0282841 GLASS NEUTRAL 458.5 X 282MM
$27.45
W0283033 STRIP EDGE GLASS SHELF FRONT A
$6.75
W0283035 SUPPORT CONTROLS POWER BOARD P
$16.90
W0283036 DOOR SHELF SLIDING TYPE NEUTRA
$19.80
W0283037 DOOR SHELF COMPLETE NEUTRAL 29
$77.35
W0283038 GLASS SHELF COMPLETE NEUTRAL 4
$55.60
W0283040 AIR CHANNEL WITH FAN
$262.85
W0283193 TUBE DE = 6.0 L = 150MM
$5.95
W0283194 FILTER-DRYER 3 WAYS
$14.00
W0284052 SCREW 4.2 X 19MM
$4.00
W0284069 FIXING FOR TUBE
$4.00
W0284087 SPONGE VENTILATOR 12 X 8 X 4MM
$5.00
W0284123 TUBE DE = 6.0 L = 50
$10.00
W0284202 BUTTER SHELF LID AEG 296 439.7
$21.00
W0284320 BOTTLE SHELF COMPLETE NEUTRAL
$63.30
W0284349 BUTTER SHELF COMPLETE NEUTRAL
$58.00
W0284376 BUILT-IN KIT DOD
$67.05
W0284390 CONTROL PANEL ASSEMBLY AEG 780
$75.00
W0284402 BOX FREEZER COMPLETE NEUTRAL 2
$110.00
W0284404 BOX FREEZER COMPLETE NEUTRAL 2
$104.20
W0284420 VEGETABLE BOX COMPLETE NEUTRAL
$84.00
W0284556 DISPLAY PCB
$194.35
W0284622 CONFIGURED ELECTRONIC ERF2002
$320.00
