SKD81800C0 — 923584018 00

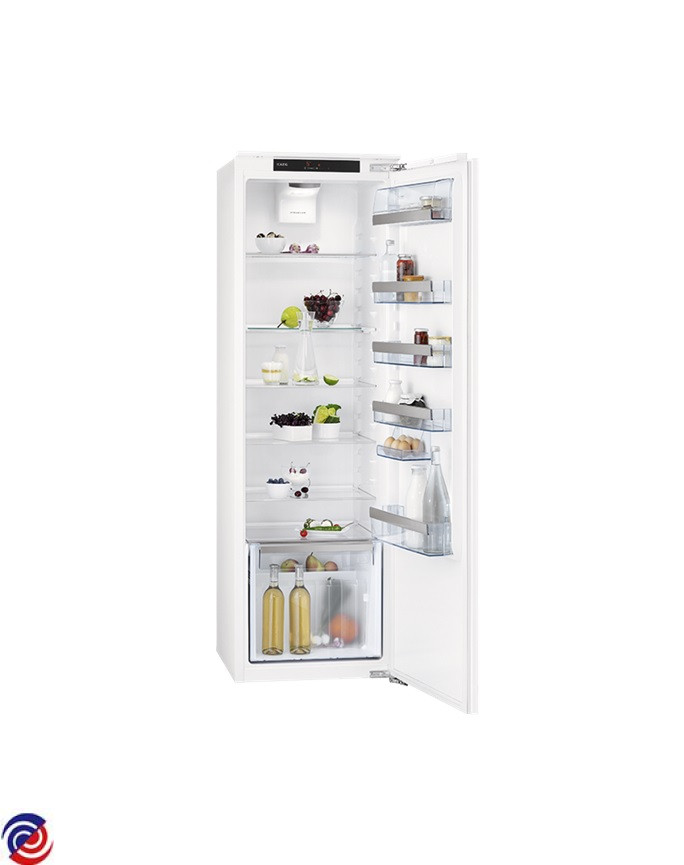

AEG — Fridge
Parts for SKD81800C0
W0017800 DOOR FRIDGE 538X1684MM
$321.85
W0017872 MAGNETIC SEAL,7801, 514.5X1662
$137.00
W0020502 BRACKET FIXING COMPRESSOR
$24.95
W0020503 FIXING BRACKET BOTTOM DOD
$20.00
W0020504 SCREW ADJUSTING DOD
$5.50
W0020520 BUFFER COMPRESSOR 13X11.6MM
$4.00
W0020526 LEG
$4.95
W0020532 EGG TRAY
$10.00
W0020533 TRIMMING SIDE L=1790MM
$29.55
W0020547 HINGE COVER UPPER 7801
$14.85
W0020555 MAGNET DOOR .8X15MM
$11.00
W0020557 SEALING HINGE HETTICH
$5.50
W0020576 TEMPLATE DOOR OUTER DOD
$7.00
W0020577 SUPPORT RAIL,ASSEMBLY,RIGHT,40
$73.60
W0020578 SUPPORT RAIL,ASSEMBLY,LEFT
$73.60
W0020583 DRAWER,COMPLETE,NEUTRAL,7902,
$249.90
W0020596 MOUNTING KIT INTEG DOOR,COMP
$66.00
W0020684 CORD POWER ,EURO 2.45X0.75
$34.95
W0020688 PCB LED LIGHT 1.9W 12V
$50.00
W0020689 COMPRESSOR,HXD35AA
$790.00
W0020690 PROTECTOR TERMINAL BOARD
$123.35
W0020691 TERMINAL COVER,SMALL,41X50MM
$46.00
W0020692 CAPACITOR,1.5.F
$34.95
W0020698 PCB DISPLAY PCB
$206.45
W0020699 PAN DRAIN
$30.00
W0020700 COVER DIFFUSER NEUTRAL 7801
$44.95
W0020701 SUPPORT LED PCB
$11.95
W0020702 SUPPORT DIFFUSER FAN
$14.95
W0020703 HOLDER CARBON FILTER DIFF COVE
$20.00
W0020704 FILTER CARBON AIR 40X40MM
$54.95
W0020888 PEG AIR CHANNEL 34MM
$4.95
W0020889 SUPPORT ,GUIDANCE RAIL,CABINET
$14.95
W0020890 SUPPORT,DRAWER,LEFT,
$14.95
W0020891 SUPPORT,DRAWER,LEFT,SNAP
W0020892 SUPPORT,DRAWER,RIGHT
$14.95
W0020893 SUPPORT,DRAWER,RIGHT,SNAP
W0020894 TRIM EDGE DOOR SHELF 405.6MM
$15.00
W0020895 TRIM EDGE DOOR SHELF 401.3MM
$25.00
W0020896 TRIM EDGE FRONT 459MM
$16.00
W0020897 TRIM EDGE GLASS SHELF FRONT
$15.00
W0020899 TRIM EDGE GLASS SHELF BACK
$21.40
W0020900 TRIM EDGE GLASS SHELF BACK
$15.00
W0020901 PARTITION,DRAWER,TRANSPARENT,7
$33.20
W0020905 TRIM EDGE GLASS SHELF RIGHT 78
$30.00
W0020906 TRIM EDGE GLASS SHELF LEFT 780
$30.00
W0020916 SUPPORT CONTROLS POWER BOARD
$22.95
W0020917 COVER POWER BOARD
$30.00
W0020920 PARTITION BOTTLE
$24.95
W0020921 DOOR SHELF SLIDING TYPE NEUT
$54.95
W0020922 SHELF GLASS 458.5X365MM
$54.95
W0020923 GLASS SHELF FRONT 432.5 X129MM
$82.95
W0020925 GLASS SHELF BACK 453X145MM
$130.00
W0020926 SHELF BUTTER NEUTRAL 738
$54.95
W0020927 DOOR SHELF NEUTRAL 738
$89.00
W0020928 SHELF BOTTLE NEUTRAL 738
$77.35
W0020930 CONTROL PANEL, ASSEMBLY, AEG
$49.00
W0020939 CONDENSER,512X1321MM
$175.00
W0020940 DIFFUSER,COVER,SILKSCREENED
$59.95
W0020941 DOOR DAIRY AEG
$40.00
W0025347 MOUNT COMPRESSOR RUBBER
$10.00
W0025366 PLUG DRAIN DEVICE
$7.00
W0026152 SCREW HINGE M5X16MM
$5.50
W0027016 COVER CONTROL PANEL FULL 7801
$46.00
W0027017 COVER CONTROL PANEL RIGHT 7801
$46.00
W0027018 COVER CONTROL PANEL LEFT 7801
$6.20
W0027061 TRIMMING UPPER
$26.60
W0027074 FIXING BRACKET DOOR
$30.00
W0027105 HINGE UPPER
$157.90
W0027106 HINGE LOWER
$221.95
W0027165 COVER TOP DOOR MAGNET DOD
$46.05
W0027167 SUPPORT MAGNET DOOR WHITE
$11.00
W0027279 TRAY DRAIN WATER SIDE
$10.00
W0028974 PCB CONFIGURED ,ERF2002
$323.75
W0096148 MOTOR FAN DAC 1600RPM 12V
W0096539 GLASS SHELF 458.5X280MM
