LF8C8412A — 914550695 01

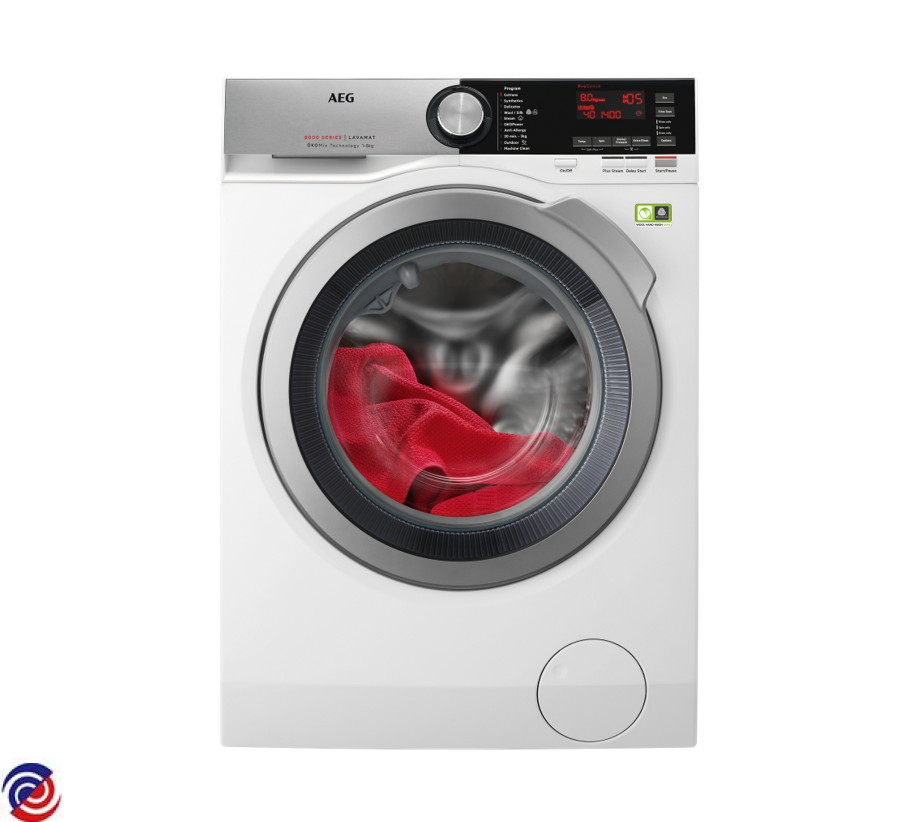

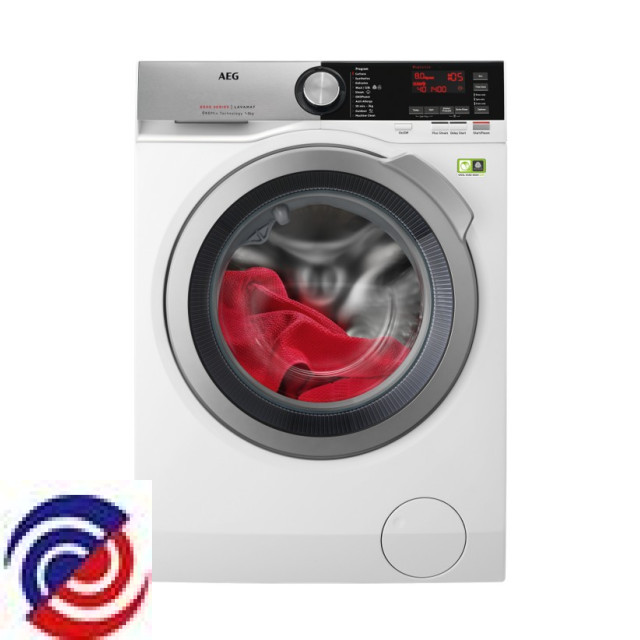

AEG — Washing Machine
Parts for LF8C8412A
W0016933 PIPE UNION, CONVEYOR, 3VIE
$50.00
W0016966 PUMP ASSY RECIRCULATION
$98.00
W0017173 SPRING, SUSPENSION, TUB
$17.00
W0017178 RECIRCULATION HOSE, INTAKE
$37.00
W0017188 AEG ELECTROLUX FRONT LOADER WASHING MACHINE DRAIN HOSE ASSY L=2540MM
$68.00
W0075952 BELT DRIVE
W0274400 AEG FRONT LOAD WASHING MACHINE DOOR GASKET G60 JET
$99.00
W0274454 AEG FRONT LOADER WASHER AQUASTOP CONTROL INLET HOSE & HOOK
W0274504 DOOR LOCK FILTER PUMP BODY
$21.00
W0274532 SPRING BUTTON ON/OFF
$4.80
W0373334 PUMP DRAIN ASKOLL
$77.00
W0016928 LEG ASSY
$18.90
W0016944 CAP REAR PANEL
$16.00
W0016957 SCREW,4,9X15 TTL TORX
$13.20
W0016977 SPACE COMPENSATOR, FIXING, PUM
$27.50
W0016983 VALVE 3 WAY. FLOWMETER
$168.00
W0017027 CAP SUPPORT
$11.00
W0017052 DISPENSER ASSY
$34.00
W0017057 TUBE, PRESSURE SWITCH
$17.00
W0017153 BRACKET SHOCK ABSORBER LH
$8.75
W0017154 BRACKET SHOCK ABSORBER RH
$6.60
W0017170 HOSE CLAMP, DRAIN,BACK PANEL
$6.00
W0017181 COUNTER WEIGHT FRONT,G60W35L
$81.00
W0026940 COVER INVERTER BOARD
$15.00
W0070003 CLAMP HOSE
W0074344 SCREW. MOTOR
$13.20
W0075936 CLAMP,DOMETO PUMP HOSE D=52.5
$18.00
W0075991 POWER CORD WITH PLUG
$34.00
W0076019 CHAMBER WATER ASSY
$47.00
W0076022 CONVEYOR. BOTTOM. HEC
W0076044 SEALING HOSE.CIRCULATION.RECIR
W0076136 SPRING BELLOW. TUB.G33
W0076219 COUNTER WEIGHT UPPER
$53.75
W0076222 PANEL, BACK, HIGH
$47.00
W0076224 CHAMBER AIR
W0128341 KIT, PULLEY, PLASTIC
$86.00
W0274364 RING LOCKING 3XL
$7.00
W0274365 HOSE, RECIRCULATION
$51.00
W0274367 WORKTOP ASSY
$126.00
W0274420 PANEL FRONT P-ONE
$106.65
W0274490 SIPHONE ADDITIVE
$7.00
W0274531 BUTTON WHITE RECTANGULAR
$16.00
W0274535 KNOB SELECTOR CHROME
$49.00
W0274539 SUPPORT HANDLE CONTROL PANEL
$18.45
W0275188 PUMP BODY KIT CW2.0 JET
$19.00
W0275425 BOX HOUSING MAIN BRD
$24.85
W0282314 BOLT SHOCK ABSORBER
$9.00
W0282623 DIVIDER SEPARATOR DET DRAWER
$8.00
W0282758 GUTTER DRAIN
W0282761 FILTER ASSEMBLY DIAPHRAGM
$21.00
W0282762 FRONT COVER PUMP BODY
$12.50
W0284152 FLOAT SWITCH
W0361303 COVER HINGE GREY WD
$5.50
W0361310 COVER DRAIN PUMP
$4.60
W0363114 PANEL CONTROL HANDLE LF8C8412A
$337.00
W0363629 PCBA USER INTERFACE + SELECTOR
$305.00
W0363895 HOSE FILLER & CLAMPS KIT
$8.55
W0364135 DOOR FILTER PUMP BODY
$11.00
W0364138 BOX SELECTOR HOUSING
$19.00
W0364200 DIFFUSER, LUMINOUS DIODE, S8
$29.00
W0364223 HEATING ELEMENT 230V 1950W
$76.00
W0365697 Motor AL PM HP
$284.00
W0365768 LOW FREQENCY ANALOG PRESSUR
W0366765 PUMP CW RECIRC DETERGENT
$56.00
W0366766 Aqua-control bottom G60 UIMC
$17.70
W0366838 PCBA MOTOR CTRL EMC18EVO 800W
W0367444 Hose detergent circulation CW
$9.00
W0368016 PEG, FRONT PANEL, CATCH
$4.00
W0368207 HOOK OUTLET HOSE
$10.05
W0368913 DOOR ASSEMBLY WELDED GREY
$258.00
W0369060 CLAMP, HOSE CLAMP, .65.5MM
$4.00
W0369070 HARNESS, USER INTERFACE BOARD,
$31.55
W0369073 DRAIN TUB, G60
W0369076 HARNESS, VALVE, PCB, J7,960+87
W0369078 HARNESS, PRESSURE SWITCH, PCB,
$57.45
W0369109 CLUSTER, WELDED, ASSEMBLY, G60
$472.35
W0369140 SCREW, COUNTERWEIGHT, FRONT, 5
$6.75
W0369141 SCREW, COUNTERWEIGHT, TOP, 3PC
$11.40
W0369142 HOSE, ELECTRIC VALVE, WATER DI
$11.55
W0369143 HOSE, ELECTRIC VALVE, WATER DI
$9.75
W0369144 HOSE, ELECTRIC VALVE, WATER DI
$11.40
W0369147 SHOCK ABSORBER, WITH PIN, 90N
W0369151 DETERGENT DRAWER, KIT, ONE
$38.00
W0369155 TRANSIT STRAPS, SCREWS, KIT
$21.00
W0369202 SCREW, DOOR HINGE, 2 PCS., 4.8
$5.50
W0369872 CLAMP, ELECTRIC VALVE, 16.26-1
$4.00
W0369873 CLAMP, HOSE CLAMP, 18.7-18.7MM
$4.00
W0369883 LEVER, DOOR LOCK, OPENING, 397
$5.50
W0369888 COVER, DOOR LOCK, LATCH
W0369900 HARNESS, DOOR SAFETY INTERLOCK
W0369902 HARNESS, HEATING ELEMENT, MAIN
$27.70
W0370052 HARNESS, VALVE, MAIN ELECTRONI
$12.45
W0370053 HARNESS, MOTOR CONTROL, MAIN E
$17.90
W0370055 HARNESS, MOTOR CONTROL, MOTOR,
$23.00
W0370160 HARNESS, RECIRCULATION PUMP, D
W0370281 HARNESS, MOTOR CONTROL, MAIN E
$22.75
W0373653 PCBA MAIN EWX14931 FULL RAW
$172.00
W0374805 PIPE CLAPM 22,1MM
$4.00
W0374842 HOSE CLAMP ID=20.5
$4.40
W0382547 LIFTERS
W0382700 DOOR LOCK
