BES900

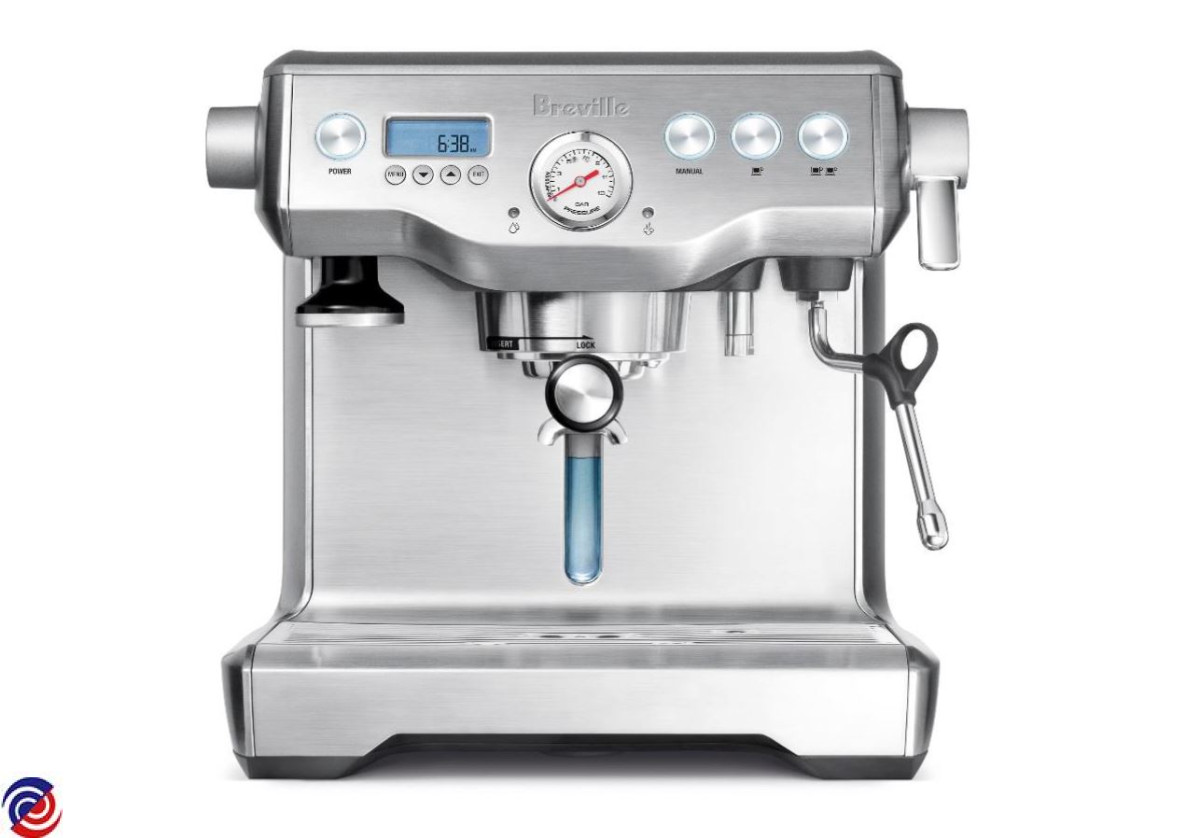

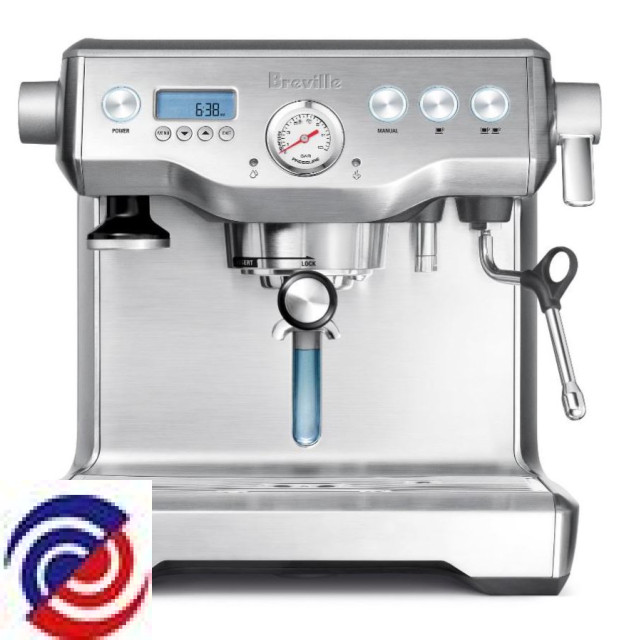

BREVILLE — Coffee Machine

W0217859 SCREW FOR SOLENOID VALVE ASSEMBLY

$11.20

W0217862 BREVILLE COFFEE MACHINE U-CLIP FOR STEAM SAFETY VALVE

$11.00

W0217894 SCREW FOR SHOWER HEAD

$11.20

W0217896 O RING FOR STEAM WAND NOZZLE

$11.20

W0217971 O-RING FOR STEAM PROBE BES900/920/980/990

$6.60

W0217987 ORING FOR STEAM PUMP ACTUATOR

$11.20

W0217988 HOLDER FOR BALL VALVE ASSEMBLY

$12.00

W0217989 O RING FOR HOT WATER BODY

$11.00

W0218002 O RING FOR BALL JOINT NUT

$11.20

W0218036 BREVILLE COFFEE MACHINE O-RING FOR HOSE CONNECTOR

$4.95

W0218125 BRACKET FOR BALL VALVE

$11.00

W0218852 SPRING LOCK FOR TOP COVER

W0219006 COFFEE GROUNDS CONTAINER

$20.00

W0219089 COFFEE PROBE X 2

W0219090 CLEANING TOOL

$15.02

W0219126 STEAM DIAL ACTUATOR

$17.00

W0219191 58MM CLEANING DISC BES980/920/900

$25.55

W0219364 FUSE + WIRES FOR STEAM BOILER

W0219532 T-TUBE SHOWER HEAD TO NEEDLE VALVE

$13.00

W0219570 OBLONG FILTER HOLDER - FILTER MESH

W0219600 GASKET PLUS EYELET KIT FOR SOLENOID VALVE

$16.20

W0219671 58MM OUTER SHOWER SCREEN

$15.00

W0219739 BREVILLE GROUP HEAD SEAL 58MM SUIT BES900 BES920 BES980

$16.95

W0219885 RESIN FILTER - WATER TANK

W0219886 RESIN WATER FILTER

$15.97

W0219939 THERMOSTAT+WIRES FOR STEAM BOILER

$20.00

W0219977 COFFEE VALVE SAFETY KIT

$26.00

W0220022 WATER OUTLET HOLDER ASSEMBLY

$17.00

W0220301 BREVILLE COFFEE MACHINE NTC WITH WIRES FOR SHOWER HEAD

$24.00

W0220313 BREVILLE NTC + WIRES FOR STEAM BOILER

$24.00

W0220380 58MM ONE CUP - SINGLE WALL FILTER

W0220525 TWO CUP SINGLE WALL FILTER

W0220655 58MM ONE CUP - DUAL WALL FILTER

$28.74

W0220741 58MM TWO CUP - DUAL WALL FILTER

$29.50

W0220877 SHIBAURA NTC+WIRES FOR COFFEE BOILER

$36.00

W0221013 FLOW METER LOWER

$41.00

W0221139 PROBE SET - 3 PIECES

$23.00

W0221175 PRESSURE GAUGE

W0221202 TRIAC PCB ASSEMBLY

$49.00

W0221469 CONTROL PCB COMPLETE ASSEMBLY

$60.00

W0221616 NEEDLE VALVE COMPLETE KIT

$86.00

W0221690 BREVILLE BALL VALVE COMPLETE KIT

$98.95

W0221704 BREVILLE COFFEE PUMP WITH THERMOSTAT

$95.00

W0221830 GROUPHEAD COLLAR SERVICE KIT - NEW VERSION

$271.98

W0273367 BREVILLE CLEANING TABLETS

$16.95

W0293298 BREVILLE COFFEE MACHINE 58MM INNER SHOWER SCREEN - FROM PDC1736

$24.50

W0295333 MILK JUG ASSEMBLY

$34.00

W0358845 FILTER HOLDER CONNECTOR KIT FROM PDC 1709

$17.00

W0359680 STEAM WAND + HOT WATER WAND ASSEMBLY

$114.00

W0365417 BREVILLE COFFEE ACCESSORY CLEANING PACK

$91.02

W0217828 NUT FOR PRESSURE GAUGE

$11.20

W0217829 PRESS PLATE FOR SHOWER HEAD FUSE

$11.20

W0217830 SCREW FOR STEAM DIAL ACTUATOR

$12.00

W0217831 SCREW FOR STEAM DIAL LEVER

$11.20

W0217832 SPRING WASHER

$11.20

W0217833 SCREW FOR STEAM WAND HOLDER

$11.20

W0217834 SCREW FOR NEEDLE VALVE BRACKET

$11.20

W0217835 SCREW FOR STEAM WAND HOLDER

$11.20

W0217836 SPRING WASHER FOR STEAM WAND HOLDER

$11.20

W0217837 SCREW FOR FOOT HOLDER

$11.20

W0217840 BRACKET FOR BOILER THERMOSTAT

$11.20

W0217843 SPRING WASHER FOR PRESSURE GAUGE

$11.20

W0217857 SCREW FOR WATER INLET COVER

$11.20

W0217858 O-RING FOR COFFEE NTC SHIBAURA

$11.20

W0217860 O-RING FOR PISTON

$11.20

W0217861 U-CLIP FOR ELBOW

$11.20

W0217873 SCREW FOR PRESSURE GAUGE

$4.50

W0217884 O-RING FOR PISTON SEAT

$11.20

W0217885 SEAL FOR BALLJOINT BEARING UPPER

$11.20

W0217895 CLIP FOR HOSE

$11.20

W0217906 SPRING WASHER FOR NEEDLE VALVE

$11.20

W0217925 O-RING FOR VACUUM VALVE

$11.20

W0217926 O-RING FOR HOT WATER NOZZLE

$11.20

W0217986 SEAL RING FOR PUMP

$11.20

W0218001 WASHER FOR STEAM WAND

$11.20

W0218037 BRACKET FOR NEEDLE VALVE

$11.20

W0218038 FOOT HOLDER REAR

$11.20

W0218071 LOCK PIECE FOR HOT WATER WAND

$4.50

W0218072 WASHER FOR NEEDLE VALVE

$11.20

W0218086 DIAL CAP

$11.20

W0218126 FOOT HOLDER FRONT

$11.20

W0218130 BRACKET FOR PRESSURE GAUGE

$4.50

W0218166 PORTA FILTER SPRING

$4.50

W0218220 SPRING FOR STEAM WAND

$11.20

W0218331 CONNECTOR FOR PRESSURE GAUGE

$7.33

W0218332 ELBOW

$11.20

W0218336 WASHER FOR PUMP

$11.20

W0218357 DRAINAGE TUBE LOWER

$11.20

W0218358 RUBBER FOOT LEFT REAR

$11.20

W0218359 RUBBER FOOT RIGHT REAR

$11.20

W0218373 CABLE CLIP

$11.20

W0218395 SEAL FOR WATER INLET

$11.20

W0218432 DRAINAGE TUBE UPPER

$11.20

W0218433 MESH FILTER

$11.20

W0218434 RUBBER FOOT LEFT FRONT

$11.20

W0218435 RUBBER FOOT RIGHT FRONT

$11.20

W0218455 NUT FOR NEEDLE VALVE

$11.20

W0218483 HOLDER FOR NEEDLE VALVE

$11.20

W0218500 WATER CHANNEL SEALING

$11.20

W0218525 COVER FOR TRIAC PCB

$11.20

W0218526 STEAM PUMP ACTUATOR SUBSTITUTE BES980/09.68

$16.20

W0218573 BALL JOINT BEARING LOWER

$11.20

W0218622 ELBOW FOR FLOW METER OUTLET

$5.39

W0218639 COVER-TOP FOR MAIN PCB

$11.20

W0218755 CAM DIAL

$11.20

W0218833 ALLEN KEY TOOL

$11.20

W0218853 LOWER COVER FOR MAIN PCB

$16.20

W0218902 INDICATOR FLOAT ASSEMBLY

$16.20

W0218977 FINGER GRIP

$12.00

W0218978 HOT WATER DIAL ACTUATOR

$11.20

W0219007 REAR WHEEL - COMPLETE ASSEMBLY

$11.20

W0219041 STEAM DIAL COVER

$17.00

W0219042 HOT WATER DIAL COVER

$16.20

W0219064 HOUSING FOR MAIN PCB

$16.20

W0219163 FILTER HOLDER CONNECTOR

W0219362 FUSE+WIRES FOR COFFEE BOILER

$16.20

W0219363 FUSE FOR SHOWER HEAD

$16.20

W0219365 BALL JOINT BEARING UPPER

$16.20

W0219456 TOOL STORAGE TRAY pre PDC1315

$12.55

W0219457 TOOL STORAGE TRAY PDC 1315 & UP

$16.20

W0219531 T-TUBE SHOWER HEAD TO PRESSURE GAUGE

$20.10

W0219609 RUBBER MOUNT x2 FOR COFFEE PUMP

$12.90

W0219610 RUBBER MOUNT X2 FOR STEAM PUMP

$16.20

W0219611 T-TUBE COFFEE S-VALVE TO STEAM BOILER

$16.20

W0219642 T-TUBE STEAM BOILER TO COFFEE BOILER

W0219674 T-TUBE STEAM S-VALVE TO STEAM BOILER

$13.68

W0219706 T-TUBE NEEDLE VALVE TO W-HOLDER

$20.10

W0219725 T-TUBE STEAM BOILER TO BALL VALVE

$16.20

W0219757 REED SWITCH ASSY

$20.10

W0219820 STEAM SWITCH & HOLDER ASSEMBLY

$20.10

W0219821 HOT WATER SWITCH & HOLDER ASSEMBLY

$20.10

W0219822 COFFEE SPOON

$11.20

W0219866 SHOWER SCREEN - INNER

$11.15

W0219892 LED & PCB COMPLETE FOR WATER TANK

$20.10

W0219902 WATER FILTER HOLDER

$16.13

W0219937 THERMOSTAT+WIRES FOR COFFEE BOILER

$20.10

W0219938 THERMOSTAT+WIRES FOR SHOWER HEAD

$20.10

W0220023 NOZZLE FOR HOT WATER

$20.10

W0220140 STEAM WAND NOZZLE

$20.10

W0220211 DRAINAGE TRANSFER AND TUBE ASSEMBLY

$20.10

W0220243 WATER CHANNEL & COVER

$16.20

W0220256 BALL JOINT NUT

$20.10

W0220295 SHOWER SCREEN - INNER

W0220346 REAR BOTTOM PANEL - COMPLETE

$24.55

W0220479 INSTRUCTION BOOK

$27.33

W0220511 POWER CORD

$20.10

W0220618 BODY FOR HOT WATER

$22.35

W0220631 STEAM DIAL LEVER

$27.00

W0220634 BASE TRAY

$22.35

W0220637 REAR PANEL TOP COMPLETE

$27.95

W0220697 58MM TAMPER ASSEMBLY

$22.35

W0220766 VACUUM VALVE KIT COMPLETE

$22.35

W0220876 NTC + WIRES FOR COFFEE BOILER

$36.66

W0220994 DRIP TRAY GRILLE

$30.00

W0221014 FLOW METER UPPER

$44.14

W0221176 PRESSURE GAUGE - DOWNWARD INLET

$42.00

W0221219 CONTROL FRONT PANEL ASSEMBLY

$53.20

W0221257 CONTROL FRONT PANEL ASSEMBLY

$48.20

W0221311 WHEEL CARRIAGE COMP ASSEMBLY

$54.10

W0221426 DRIP TRAY COMPLETE ASSEMBLY PDC 1315 & UP

$22.35

W0221449 WATER INLET - COVER COMP ASSY

$77.86

W0221586 LCD PCB COMPLETE ASSEMBLY

W0221600 STEAM PUMP WITH THERMOSTAT

W0221625 WATER TANK COMPLETE ASSEMBLY

$70.75

W0221667 TOP COVER

$120.83

W0221716 SOLENOID VALVE ASSEMBLY

W0221784 MAIN PCB COMP ASSY -ORIG VERS -stock from Service-REFER NOTE

W0221785 MAIN PCB COMP FOR SHIBAURA NTC - LATEST VERSION

W0221829 COFFEE BOILER+FUSE+THERM

$134.20

W0271157 SHOWER HEAD COMPLETE ASSEMBLY

$84.39

W0271160 GROUP HEAD & COLLAR KIT

$153.00

W0295854 STEAM SAFETY VALVE KIT

$22.35

W0359395 STEAM SAFETY VALVE KIT PDC1938

$52.06

W0359678 PLASTIC INSERT FOR 58MM PORTAFILTER

$11.20

W0359679 ST BOILER FUSE THERM VALV ASSY-STOCK FROM SERVICE-REFER NOTE

$183.90

W0360715 BREVILLE ONE-WAY VALVE ASSEMBLY FOR STEAM PUMP PDC1938

$8.60

W0360719 SCREW FOR SHOWER HEAD M5X17

$11.20
