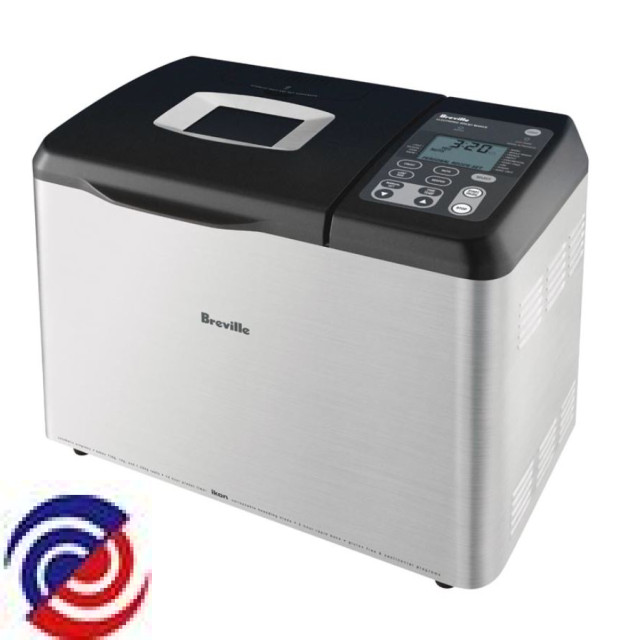

BBM600
BREVILLE — Small Appliance

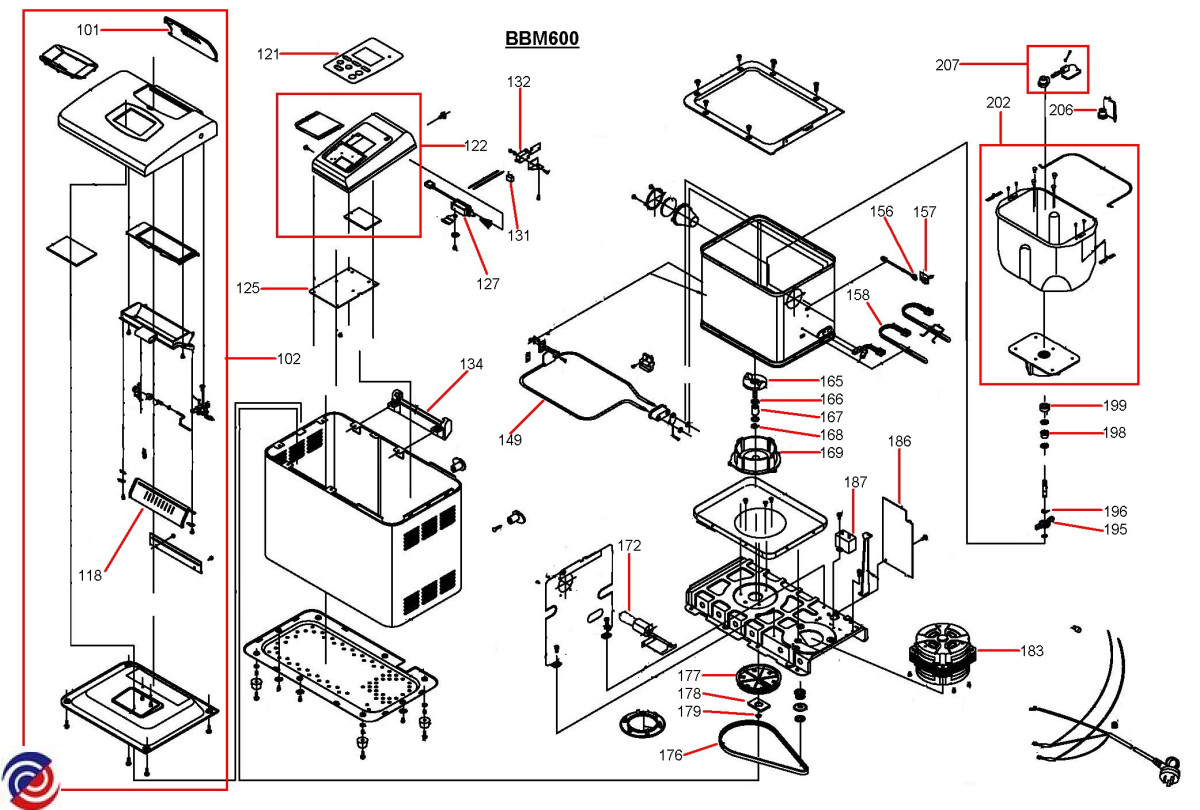

Parts for BBM600
W0218149 E RING FOR PAN SHAFT
$12.00
W0218341 FIBRE WASHER- PAN
W0218648 C RING FOR PULLEY WASHER
$12.00
W0218721 DRIVEN COUPLING - SILVER
$11.20
W0220042 SEAL FOR PAN
$16.00
.JPG)
W0220250 PLASTIC MIXING BLADE
$25.00
W0221048 COLLAPSIBLE BLADE
W0221164 HEATER 240V 710W
$43.00
W0221797 BREAD PAN
$104.00
W0218148 U-RING
$4.50
W0218429 WASHER-PULLEY BIG
$4.50
W0218430 SENSOR HOLDING PLATE
$4.50
W0218804 HINGE
$7.56
W0218900 CAPACITOR 1UF K275V
$9.03
W0219238 SHAFT BEARING B FOR PAN
$12.00
W0219398 SHAFT BEARING A
$12.55
W0219884 MICROSWITCH
$16.00
W0219942 DISPENSER LID
$20.10
W0220035 LAMP
$17.83
W0220129 CONTROL PANEL LABEL
$19.28
W0220136 DISPENSER DOOR
$19.40
W0220200 LARGE PULLEY
$20.10
W0220309 THERMOFUSE COMPLETE
$23.33
W0220374 DRIVE COUPLING WITH SHAFT
$24.88
W0220736 SOLENOID ASSY
$22.35
W0220775 SENSOR ASSEMBLY
$22.35
W0220961 INSTRUCTION BOOK
$41.48
W0221194 HOLDER BASE COMPLETE
$56.30
W0221260 BELT
$61.08
W0221303 CONTROL PANEL WITH LCD LENS
$64.64
W0221435 CAPACITOR FOR MOTOR
$76.66
W0221656 LID COMPLETE
$113.28
W0221736 POWER PCB
$63.80
W0221794 CONTROL PCB
$194.74
W0221835 MOTOR 240V 90W 50HZ
$304.76
W0295256 SOLENOID ASSY
W0295257 HEATING ELEMENT
W0295431 BREAD PAN ASSEMBLY
W0295432 PLASTIC MIXING BLADE
W0295433 COLLAPSIBLE BLADE ASSY
W0295438 LARGE PULLEY
W0295439 FIBRE WASHER - PAN
