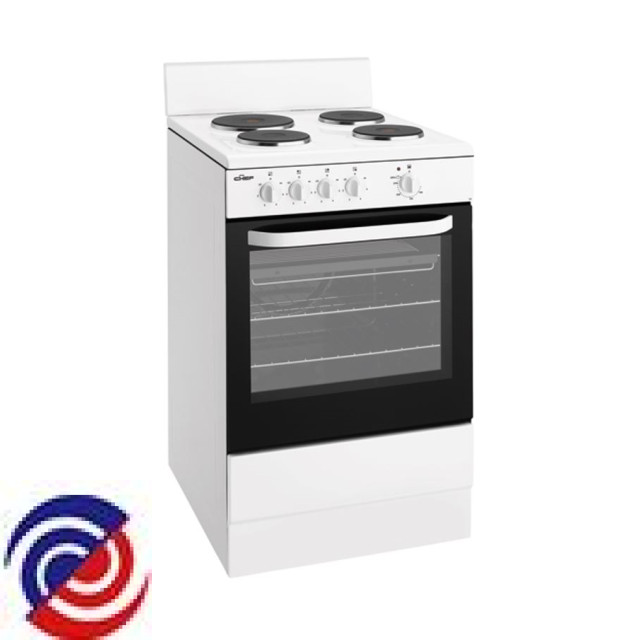

CFE532WA — 940001790 15
CHEF — Cooker Electric
Parts for CFE532WA
W0011916 HANDLE DOOR
.JPG)
W0012256 ELEMENT GRILL/BOOST 3000W
.JPG)
W0012259 ELEMENT EGO 2000W 180DIA (HI)
.JPG)
W0012260 ELEMENT EGO 1000W 145DIA (HI)
$96.00
.jpg)
W0012990 SPACER HANDLE BLK FRESCO
$10.25
.JPG)
W0013556 SWITCH GANG 7 POSITION EGO
W0013577 SWITCH MULTI 4
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0013627 TRIM DOOR UPPER VENTED
W0013750 LENS INDICATOR LIGHT
$11.20
W0013858 KIT INDICATOR LIGHT FRESCO
W0014032 SCREW #8 X 45 PAN QUADREX
W0022807 HINGE DOOR OVEN
W0027342 GRILL DISH GIO ENAMEL
$105.45
W0046262 ELEMENT EGO 1500W 145DIA (HI)
W0046266 ELEMENT 1000W CL/HEAT + EARTH
.JPG)
W0046406 CLIP MOUNTING ELEMENT
.JPG)
W0053487 SHELF OVEN 473 X 378MM
.JPG)
W0057771 THERMOSTAT OVEN
W0147339 SEAL OVEN MODULAR PROFILE
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011280 PLATE MTG SWITCH MULTI 7 FRESC
$16.50
W0011334 BRACKET ASSY ELEMENT 145MM
$12.60
W0011335 BRACKET ASSY ELEMENT 180MM
$18.00
W0011366 BRACKET HOB SUPPORT FRESCO
$9.90
W0011367 BRACKET COUNTER WEIGHT FRESCO
$6.60
W0011460 DOOR OVEN OUTER NO TRIM
W0011513 PANEL SIDE WHITE FRESCO
$89.30
W0011566 PANEL CONTROL SCREEN CFE532WA
$119.00
W0011687 PANEL KICK
$77.00
W0011690 PANEL SPLASHBACK 540 SS FRESCO
W0011693 PANEL SPLASHBACK 540 WHT FRESC
W0011873 CHANNEL SPILL VENT 540 GIO
$22.00
W0011994 NUT METRIC M12 X 1.00
$32.90
W0012127 BLOCK COUNTERWEIGHT FRESCO
$9.90
W0012166 WASHER LEAF SPRING 1/4
$4.00
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012417 SUPPORT COUNTER FRESCO
$7.05
W0012629 HARNESS 7 POS SW UR540 200MM
$17.15
W0012630 HARNESS 7 POS SW UR540 270MM
$18.00
W0012641 HARNESS 7 POS SW 710MM FRESCO
$18.00
W0012853 GLASS OV DR IN REFL FRESCO
W0013260 SHIELD WIRING
$11.95
W0013460 BRACE OVEN REAR 540 BIOS
$27.50
W0013663 DUCT OVEN WELDED 540 GIO ELEC
W0013768 HOB SOLID ENAMEL
$224.90
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014022 SCREW #10-16X5/8 PAN PH2 BLK
$4.50
W0014026 SCREW #8 X 5/16 CSK #2PH AB BK
$4.50
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014041 SCREW #8 x1/2 PH2 MUSH WASHER
$4.50
W0022171 FOOT LEVELING
$16.35
W0027188 F/FRONT PAINT 540 GIO FRESCO
$68.20
W0029350 540 LOWER REAR BRACE
$12.60
W0029662 ANTI TILT PLATE
$15.65
W0036213 SUPPORT ELEMENT GRILL
W0036951 KNOB CONTROL WHT
W0037481 PLATE CVR TERM GAS 540 BIOS
W0038121 COVER CLEAN HEAT FULL GALV BIO
W0038745 BRACKET ANTI ROTATE SOLID UC20
W0039903 PANEL CABINET REAR (NO HOLE)
$28.00
W0045532 BOLT STABILISING
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0048099 END CAP CONTROL PANEL FRESCO L
W0048100 END CAP CONTROL PANEL FRESCO R
W0048312 HARNESS 7 POS SW 540MM FRESCO
W0052926 SPACER FOOT UC20
W0053490 RACK GRILL INSERT
W0054085 SHIELD WIRING HOB 540 GIO BIOS
W0054645 INSULATION OVEN CABINET
W0054671 INSULATION OVEN REAR
$18.70
W0056768 LEG LEVELLING
$18.90
W0065458 NUT HEX M6
$4.50
W0154014 RACK CARRIER GRILL DISH
