CFE536SA — 940001792 22

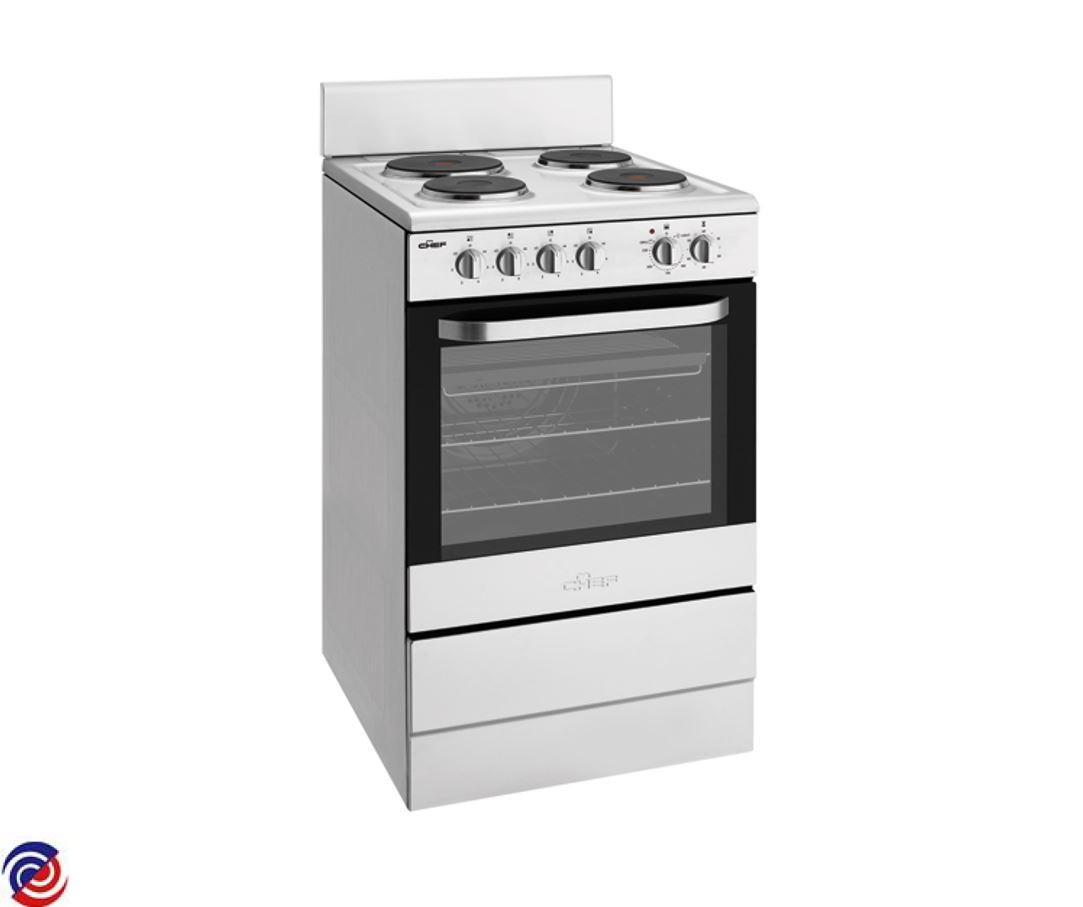

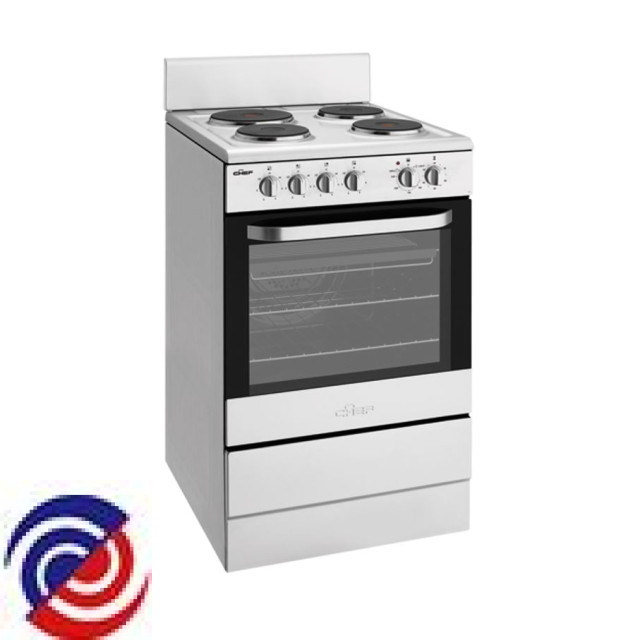

CHEF — Cooker Electric

W0011297 BLADE FAN

W0011455 DOOR OVEN OUTER SS

W0011995 NUT M6 LH FAN MOTOR

W0012255 ELEMENT GRILL 2200W SS321

W0012259 ELEMENT EGO 2000W 180DIA (HI)

W0012260 ELEMENT EGO 1000W 145DIA (HI)

$96.00

W0012262 ELEMENT FAN RING 2200W

W0012990 SPACER HANDLE BLK FRESCO

$10.25

W0013577 SWITCH MULTI 4

W0013596 SWITCH THERMAL CUT OUT 190 DEG

W0013627 TRIM DOOR UPPER VENTED

W0022807 HINGE DOOR OVEN

W0023201 HOLDER LAMP REAR HALOGEN BIOS

W0027342 GRILL DISH GIO ENAMEL

$105.45

W0032275 LAMP 25W 240V G9 PYRO HALOPIN

W0046262 ELEMENT EGO 1500W 145DIA (HI)

W0046406 CLIP MOUNTING ELEMENT

W0050403 MOTOR FAN OVEN

W0053487 SHELF OVEN 473 X 378MM

W0057771 THERMOSTAT OVEN

W0060755 TIMER 60 MINUTE WESTLAKE

W0147339 SEAL OVEN MODULAR PROFILE

W0011114 TERMINAL BLOCK W/EARTH BIOS

W0011334 BRACKET ASSY ELEMENT 145MM

$12.60

W0011335 BRACKET ASSY ELEMENT 180MM

$18.00

W0011366 BRACKET HOB SUPPORT FRESCO

$9.90

W0011367 BRACKET COUNTER WEIGHT FRESCO

$6.60

W0011513 PANEL SIDE WHITE FRESCO

$89.30

W0011514 PANEL SIDE SS VINYL FRESCO

$125.30

W0011573 PANEL CONTROL SCREEN CFE536SA

$140.95

W0011666 COVER FAN & ELEMENT

$95.75

W0011688 PANEL KICK

$110.65

W0011690 PANEL SPLASHBACK 540 SS FRESCO

W0011873 CHANNEL SPILL VENT 540 GIO

$22.00

W0011920 HANDLE DOOR CHEF S/S FRESCO

$78.90

W0012127 BLOCK COUNTERWEIGHT FRESCO

$9.90

W0012166 WASHER LEAF SPRING 1/4

$4.00

W0012315 CLIP THERMOSTAT BIOS

$9.00

W0012417 SUPPORT COUNTER FRESCO

$7.05

W0012853 GLASS OV DR IN REFL FRESCO

W0013260 SHIELD WIRING

$11.95

W0013460 BRACE OVEN REAR 540 BIOS

$27.50

W0013663 DUCT OVEN WELDED 540 GIO ELEC

W0014018 SCREW #6 X 9.5MM PAN PHIL ZC

$4.50

W0014019 SCREW #6X3.5X28 HILO PAN PH

$4.50

W0014022 SCREW #10-16X5/8 PAN PH2 BLK

$4.50

W0014026 SCREW #8 X 5/16 CSK #2PH AB BK

$4.50

W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK

W0014030 SCREW #8 X 8MM HEX/MULTI

$4.50

W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK

$4.50

W0021318 SCREW M4X5 PHIL HZ

W0021772 PLATE MTG SWITCH MULTI 7 FRESC

$14.30

W0022171 FOOT LEVELING

$16.35

W0027188 F/FRONT PAINT 540 GIO FRESCO

$68.20

W0029350 540 LOWER REAR BRACE

$12.60

W0029662 ANTI TILT PLATE

$15.65

W0030575 HARNESS EGO 7 POS - LH

$19.60

W0030576 HARNESS EGO 7 POS - RH

$19.60

W0036213 SUPPORT ELEMENT GRILL

W0036952 KNOB CHEF SILVER FRESCO

W0037481 PLATE CVR TERM GAS 540 BIOS

W0038745 BRACKET ANTI ROTATE SOLID UC20

W0039903 PANEL CABINET REAR (NO HOLE)

$28.00

W0045532 BOLT STABILISING

W0048099 END CAP CONTROL PANEL FRESCO L

W0048100 END CAP CONTROL PANEL FRESCO R

W0052926 SPACER FOOT UC20

W0053490 RACK GRILL INSERT

W0054085 SHIELD WIRING HOB 540 GIO BIOS

W0054645 INSULATION OVEN CABINET

W0054671 INSULATION OVEN REAR

$18.70

W0056768 LEG LEVELLING

$18.90

W0062090 HOB 540F S/S SOLID FRESCO

W0065458 NUT HEX M6

$4.50

W0109724 COLOUR INSERT SIGNAL LAMP RED

W0109832 INDICATOR LIGHT NEON FRESCO

W0114312 SWITCH 7 POSITION

W0154014 RACK CARRIER GRILL DISH
