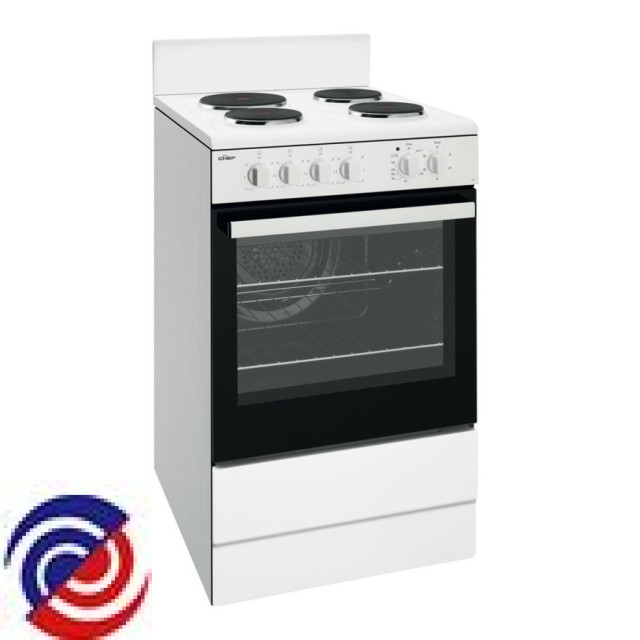

CFE536WB — 940001885 00
CHEF — Cooker Electric
Parts for CFE536WB
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011995 NUT M6 LH FAN MOTOR
.JPG)
W0012255 ELEMENT GRILL 2200W SS321
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0013199 SHELF OVEN
W0013577 SWITCH MULTI 4
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0022807 HINGE DOOR OVEN
W0030434 SEAL OVEN MODULAR PROFILE
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0057771 THERMOSTAT OVEN
.JPG)
W0060755 TIMER 60 MINUTE WESTLAKE
W0271174 IMPELLER OVEN FAN 160 MM
W0273798 ENDCAP HANDLE JONAH
W0275063 LAMP OVEN ROUND PYRO BIOS
W0275653 ELEMENT EGO 2000W 180DIA (HI)
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011334 BRACKET ASSY ELEMENT 145MM
$12.60
W0011335 BRACKET ASSY ELEMENT 180MM
$18.00
W0011367 BRACKET COUNTER WEIGHT FRESCO
$6.60
W0011387 BRACKET ANTIROTATE SOLID FRSCO
W0011513 PANEL SIDE WHITE FRESCO
$89.30
W0011666 COVER FAN & ELEMENT
$95.75
W0011693 PANEL SPLASHBACK 540 WHT FRESC
W0011701 SPALSHBACK 540S/S FRESCO
$28.00
W0011873 CHANNEL SPILL VENT 540 GIO
$22.00
W0012127 BLOCK COUNTERWEIGHT FRESCO
$9.90
W0012166 WASHER LEAF SPRING 1/4
$4.00
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012417 SUPPORT COUNTER FRESCO
$7.05
W0012853 GLASS OV DR IN REFL FRESCO
W0013260 SHIELD WIRING
$11.95
W0013663 DUCT OVEN WELDED 540 GIO ELEC
W0013768 HOB SOLID ENAMEL
$224.90
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014026 SCREW #8 X 5/16 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0021318 SCREW M4X5 PHIL HZ
W0021772 PLATE MTG SWITCH MULTI 7 FRESC
$14.30
W0022171 FOOT LEVELING
$16.35
W0022696 COVER LAMP SIGNAL RED
$15.00
W0027188 F/FRONT PAINT 540 GIO FRESCO
$68.20
W0030004 SUPPORT ELEMENT GRILL BIOS
$7.00
W0030031 BRACKET HOB SUPPORT 540 BENCHL
W0030575 HARNESS EGO 7 POS - LH
$19.60
W0030576 HARNESS EGO 7 POS - RH
$19.60
W0030606 INSULATION OVEN BACK - KNAUF
$15.55
W0030633 BRACE OVEN REAR 540 BIOS
W0037481 PLATE CVR TERM GAS 540 BIOS
W0037482 PLATE ANTI TILT UPRIGHTS
W0039903 PANEL CABINET REAR (NO HOLE)
$28.00
W0041113 PANEL LOWER BRACE 540
W0045532 BOLT STABILISING
W0048099 END CAP CONTROL PANEL FRESCO L
W0048100 END CAP CONTROL PANEL FRESCO R
W0052926 SPACER FOOT UC20
W0053490 RACK GRILL INSERT
W0054085 SHIELD WIRING HOB 540 GIO BIOS
W0054672 INSULATION OVEN WRAP - KNAUF
$63.85
W0056768 LEG LEVELLING
$18.90
W0056772 LEG LEVELLING 600UR MK2
W0065458 NUT HEX M6
$4.50
W0109724 COLOUR INSERT SIGNAL LAMP RED
W0109832 INDICATOR LIGHT NEON FRESCO
W0114312 SWITCH 7 POSITION
W0275651 ELEMENT EGO 1500W 145DIA (HI)
W0275652 ELEMENT EGO 1000W 145DIA (HI)
W0275667 KNOB CHEF WHITE JONAH ELECT
$21.60
W0275694 HANDLE 54CM JONAH WHITE
W0275698 CAP TOP LH DOOR JONAH
W0275699 CAP TOP RH DOOR JONAH
W0275705 PANEL ASSY OVEN DR OTR NO TRIM
W0275708 SCREW PF K40X 20 T20 ROUND
W0275736 PNL CONTROL SCREEN CFE536WB
$129.75
W0275744 PANEL KICK 540 GIO WHT FRESCO
$177.80
W0275746 F/FRONT 540 GIO FRESCO
$50.60
