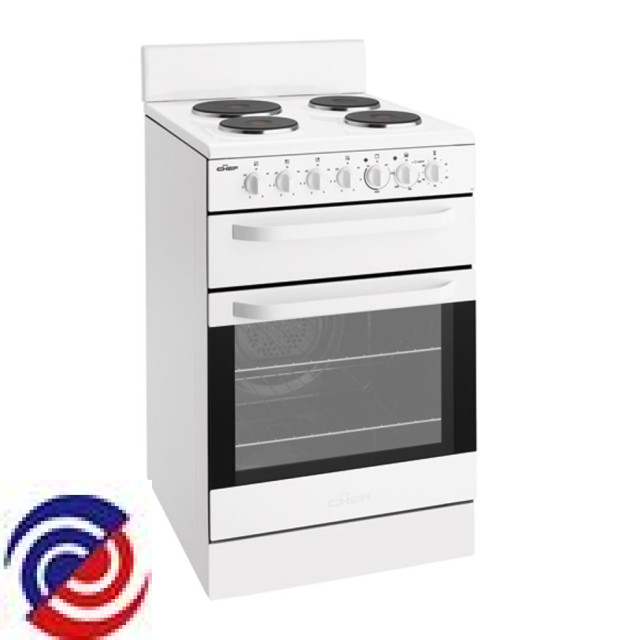

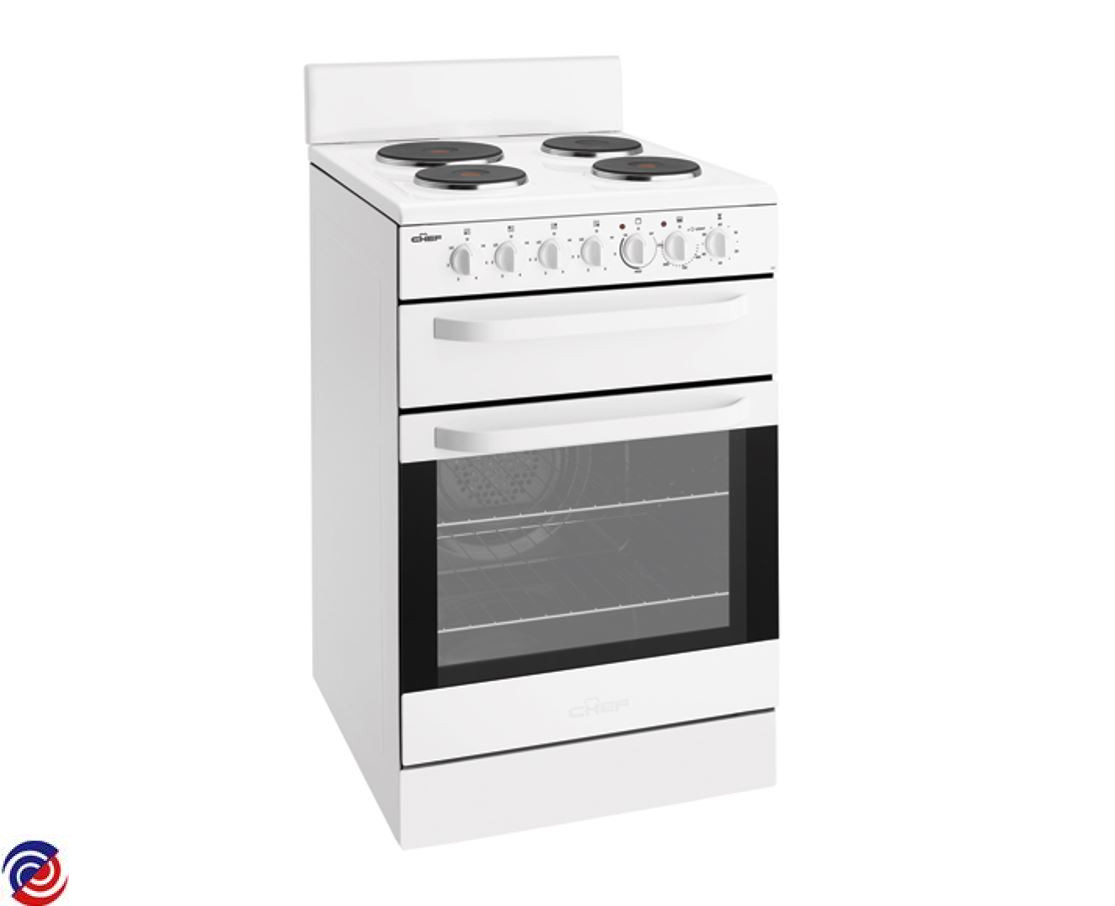

CFE537WA — 940001793 18
CHEF — Cooker Electric

W0011297 BLADE FAN

W0011400 DISH GRILL ENAM SEP GRILL

$68.20

W0011404 TRAY SCONE

$19.90

W0011909 HANDLE GRILL DISH

$9.90

W0011916 HANDLE DOOR

W0012254 ELEMENT C/HEAT 1800W SS321

W0012259 ELEMENT EGO 2000W 180DIA (HI)

W0012260 ELEMENT EGO 1000W 145DIA (HI)

$96.00

W0012262 ELEMENT FAN RING 2200W

W0012861 DOOR OVEN INNER GLASS

W0012990 SPACER HANDLE BLK FRESCO

$10.25

W0013556 SWITCH GANG 7 POSITION EGO

W0013596 SWITCH THERMAL CUT OUT 190 DEG

W0013627 TRIM DOOR UPPER VENTED

W0013750 LENS INDICATOR LIGHT

$11.20

W0013858 KIT INDICATOR LIGHT FRESCO

W0014032 SCREW #8 X 45 PAN QUADREX

W0022807 HINGE DOOR OVEN

W0046262 ELEMENT EGO 1500W 145DIA (HI)

W0046406 CLIP MOUNTING ELEMENT

W0050403 MOTOR FAN OVEN

W0053461 RACK GRILL INSERT

W0053487 SHELF OVEN 473 X 378MM

W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101

W0057210 SWITCH AUXILIARY T/STAT

W0057771 THERMOSTAT OVEN

W0060746 TIMER 60MIN 360 ACTION PEAPSA

W0147339 SEAL OVEN MODULAR PROFILE

W0166032 LAMP 25W SES E14 300C CLEAR

$10.00

W0011114 TERMINAL BLOCK W/EARTH BIOS

W0011334 BRACKET ASSY ELEMENT 145MM

$12.60

W0011335 BRACKET ASSY ELEMENT 180MM

$18.00

W0011366 BRACKET HOB SUPPORT FRESCO

$9.90

W0011513 PANEL SIDE WHITE FRESCO

$89.30

W0011575 PANEL CONTROL SCREEN CFE537WA

$100.00

W0011666 COVER FAN & ELEMENT

$95.75

W0011693 PANEL SPLASHBACK 540 WHT FRESC

W0011845 HINGE GR DOOR 540 FRESCO PH2

$7.70

W0011846 HINGE GR DOOR 540 FREE FRESCO

$53.85

W0011993 NUT METRIC M10 X 0.75MM

$4.50

W0011994 NUT METRIC M12 X 1.00

$32.90

W0012166 WASHER LEAF SPRING 1/4

$4.00

W0012315 CLIP THERMOSTAT BIOS

$9.00

W0012417 SUPPORT COUNTER FRESCO

$7.05

W0012629 HARNESS 7 POS SW UR540 200MM

$17.15

W0012630 HARNESS 7 POS SW UR540 270MM

$18.00

W0012641 HARNESS 7 POS SW 710MM FRESCO

$18.00

W0012778 CORD SERVICE 10A

$10.05

W0012911 CANOPY GRILL ELEC FRESCO

$27.50

W0012986 INSULATOR HANDLE CHEF NGD

W0013260 SHIELD WIRING

$11.95

W0013263 SHIELD SPILLAGE

$17.45

W0013329 INSUL GRILL CANOPY TOP FRESCO

$10.95

W0013460 BRACE OVEN REAR 540 BIOS

$27.50

W0013731 BUMPER STOP GREY

$5.05

W0013768 HOB SOLID ENAMEL

$224.90

W0014019 SCREW #6X3.5X28 HILO PAN PH

$4.50

W0014022 SCREW #10-16X5/8 PAN PH2 BLK

$4.50

W0014026 SCREW #8 X 5/16 CSK #2PH AB BK

$4.50

W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK

W0014030 SCREW #8 X 8MM HEX/MULTI

$4.50

W0014033 SCREW #8 X 12 UNDERCUT PAN BLK

$4.50

W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK

$4.50

W0014041 SCREW #8 x1/2 PH2 MUSH WASHER

$4.50

W0021595 WIRE HARNESS 537 FRESCO

W0022171 FOOT LEVELING

$16.35

W0027187 F/FRONT PAINT 540FC SEP GRILL

$67.90

W0029350 540 LOWER REAR BRACE

$12.60

W0029662 ANTI TILT PLATE

$15.65

W0030106 PNL OUT GR DR ASSY 540 SMALL P

W0030107 PNL OUT OV DR ASS 540 CHEF WHT

$78.90

W0035788 DEFLECTOR HEAT GRILL UC20

W0036207 RACK SIDE GRILL

W0036951 KNOB CONTROL WHT

W0037481 PLATE CVR TERM GAS 540 BIOS

W0037493 PLT MTG SWTCH MULTI 7 SGO FRES

W0038745 BRACKET ANTI ROTATE SOLID UC20

W0039903 PANEL CABINET REAR (NO HOLE)

$28.00

W0041132 PANEL KICK WHITE

W0043118 PANEL REFLECTOR GRILL TOP

W0044064 NUT M6 LH FAN MOTOR ECM

W0044830 FLUE DUCT OVEN ELEC 540 BIOS

W0045532 BOLT STABILISING

W0047180 SUPPORT GRILL ELEMENT

W0047469 SCREW M4 X 5 PAN #2 PH SML HD

$4.50

W0048099 END CAP CONTROL PANEL FRESCO L

W0048100 END CAP CONTROL PANEL FRESCO R

W0048312 HARNESS 7 POS SW 540MM FRESCO

W0052926 SPACER FOOT UC20

W0054645 INSULATION OVEN CABINET

W0054646 INSULATION OVEN BACK BIOS

W0054654 INSULATION GRILL BACK ELEVATED

W0056177 GRILL BOX ENAM 540 BIOS

W0056768 LEG LEVELLING

$18.90

W0064527 SCREW NO 8 X 12 MM PD

$4.50

W0065458 NUT HEX M6

$4.50

W0114680 HOLDER LAMP ASSY BIOS
