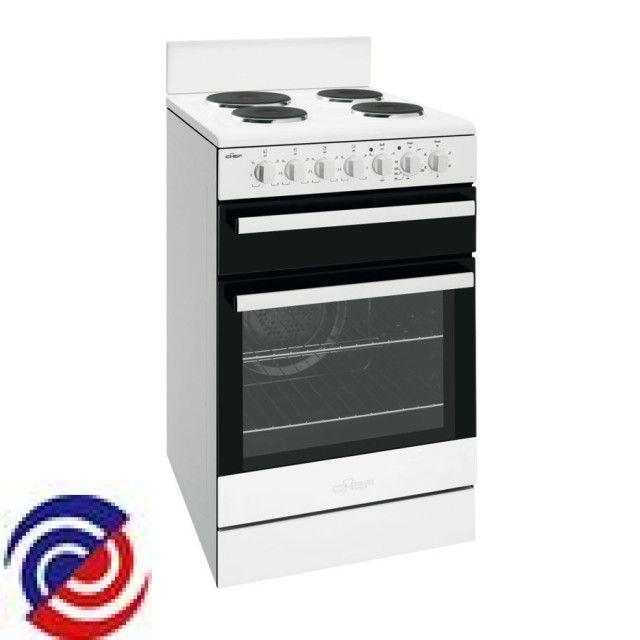

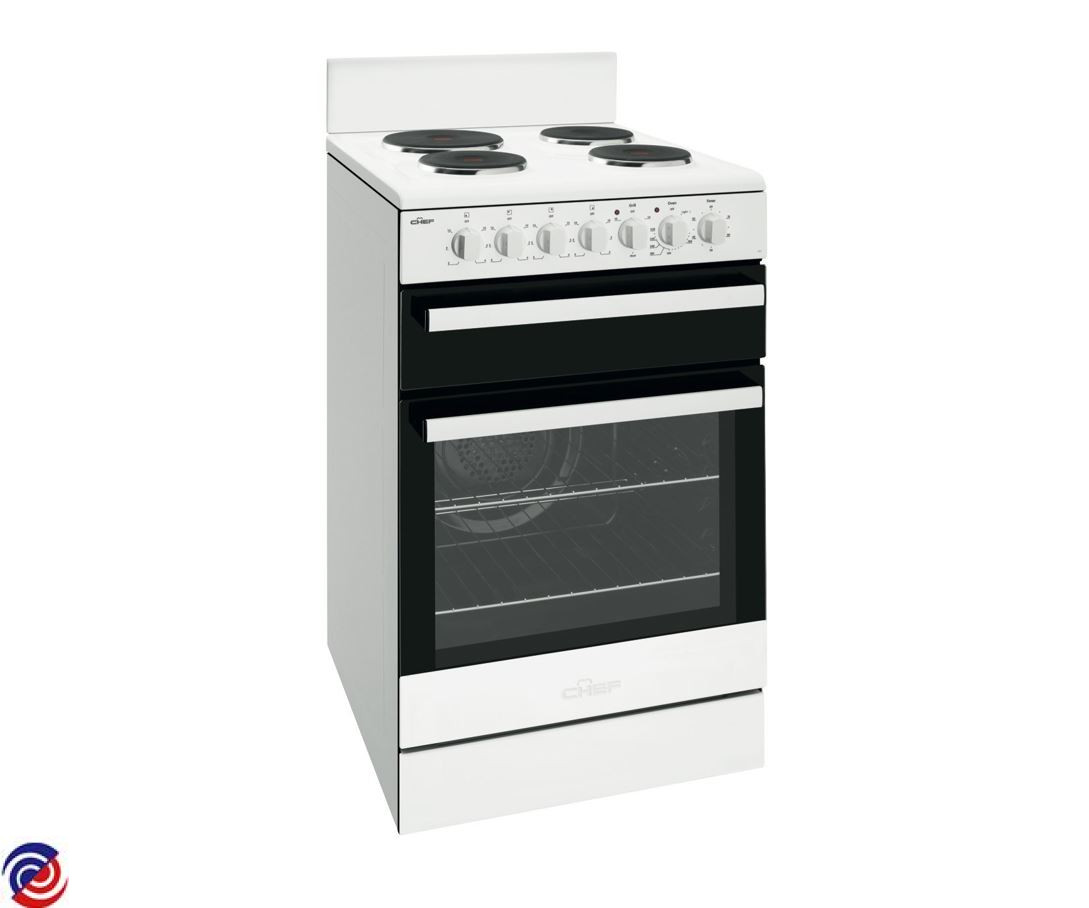

CFE537WB — 940001888 01
CHEF — Cooker Electric

W0011400 DISH GRILL ENAM SEP GRILL

$68.20

W0011909 HANDLE GRILL DISH

$9.90

W0012254 ELEMENT C/HEAT 1800W SS321

W0012262 ELEMENT FAN RING 2200W

W0012326 CLIP MOUNTING ELEMENT

W0012990 SPACER HANDLE BLK FRESCO

$10.25

W0013199 SHELF OVEN

W0013596 SWITCH THERMAL CUT OUT 190 DEG

W0022807 HINGE DOOR OVEN

W0030434 SEAL OVEN MODULAR PROFILE

W0032275 LAMP 25W 240V G9 PYRO HALOPIN

W0050403 MOTOR FAN OVEN

W0053461 RACK GRILL INSERT

W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101

W0057210 SWITCH AUXILIARY T/STAT

W0057771 THERMOSTAT OVEN

W0060755 TIMER 60 MINUTE WESTLAKE

W0271174 IMPELLER OVEN FAN 160 MM

W0273798 ENDCAP HANDLE JONAH

W0275063 LAMP OVEN ROUND PYRO BIOS

W0275653 ELEMENT EGO 2000W 180DIA (HI)

W0011114 TERMINAL BLOCK W/EARTH BIOS

W0011334 BRACKET ASSY ELEMENT 145MM

$12.60

W0011335 BRACKET ASSY ELEMENT 180MM

$18.00

W0011387 BRACKET ANTIROTATE SOLID FRSCO

W0011513 PANEL SIDE WHITE FRESCO

$89.30

W0011575 PANEL CONTROL SCREEN CFE537WA

$100.00

W0011666 COVER FAN & ELEMENT

$95.75

W0011693 PANEL SPLASHBACK 540 WHT FRESC

W0011845 HINGE GR DOOR 540 FRESCO PH2

$7.70

W0011846 HINGE GR DOOR 540 FREE FRESCO

$53.85

W0011993 NUT METRIC M10 X 0.75MM

$4.50

W0012166 WASHER LEAF SPRING 1/4

$4.00

W0012315 CLIP THERMOSTAT BIOS

$9.00

W0012417 SUPPORT COUNTER FRESCO

$7.05

W0012853 GLASS OV DR IN REFL FRESCO

W0012911 CANOPY GRILL ELEC FRESCO

$27.50

W0013260 SHIELD WIRING

$11.95

W0013263 SHIELD SPILLAGE

$17.45

W0013336 INSULATION GRILL BACK ELEVATED

$14.30

W0013342 INSUL GRILL CANOPY TOP FRESCO

$14.30

W0013731 BUMPER STOP GREY

$5.05

W0013768 HOB SOLID ENAMEL

$224.90

W0014019 SCREW #6X3.5X28 HILO PAN PH

$4.50

W0014026 SCREW #8 X 5/16 CSK #2PH AB BK

$4.50

W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK

W0014030 SCREW #8 X 8MM HEX/MULTI

$4.50

W0014033 SCREW #8 X 12 UNDERCUT PAN BLK

$4.50

W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK

$4.50

W0021318 SCREW M4X5 PHIL HZ

W0021773 PLT MTG SWTCH MULTI 7 SGO FRES

$14.30

W0022171 FOOT LEVELING

$16.35

W0022696 COVER LAMP SIGNAL RED

$15.00

W0029306 PLATE CVR TERM GAS 540 BIOS

$13.05

W0029350 540 LOWER REAR BRACE

$12.60

W0029662 ANTI TILT PLATE

$15.65

W0029771 BRKT HOB MOUNT REAR 540FC ASSY

$15.10

W0030575 HARNESS EGO 7 POS - LH

$19.60

W0030576 HARNESS EGO 7 POS - RH

$19.60

W0030606 INSULATION OVEN BACK - KNAUF

$15.55

W0030633 BRACE OVEN REAR 540 BIOS

W0035788 DEFLECTOR HEAT GRILL UC20

W0036207 RACK SIDE GRILL

W0039904 PANEL CABINET REAR (WITH HOLE)

$27.50

W0041126 PANEL SEALING GAS 540 BIOS

W0043118 PANEL REFLECTOR GRILL TOP

W0044064 NUT M6 LH FAN MOTOR ECM

W0044830 FLUE DUCT OVEN ELEC 540 BIOS

W0045532 BOLT STABILISING

W0047180 SUPPORT GRILL ELEMENT

W0048099 END CAP CONTROL PANEL FRESCO L

W0048100 END CAP CONTROL PANEL FRESCO R

W0052926 SPACER FOOT UC20

W0054672 INSULATION OVEN WRAP - KNAUF

$63.85

W0064527 SCREW NO 8 X 12 MM PD

$4.50

W0064625 SCREW #8X20 TYP 17 PT TORX BLK

W0065458 NUT HEX M6

$4.50

W0109724 COLOUR INSERT SIGNAL LAMP RED

W0109832 INDICATOR LIGHT NEON FRESCO

W0114312 SWITCH 7 POSITION

W0275651 ELEMENT EGO 1500W 145DIA (HI)

W0275652 ELEMENT EGO 1000W 145DIA (HI)

W0275667 KNOB CHEF WHITE JONAH ELECT

$21.60

W0275694 HANDLE 54CM JONAH WHITE

W0275698 CAP TOP LH DOOR JONAH

W0275699 CAP TOP RH DOOR JONAH

W0275708 SCREW PF K40X 20 T20 ROUND

W0275710 PNL OUT GR DR ASSY 540 SMALL J

W0275718 PANEL ASSLY OV DR OUT JONAH WH

$150.85

W0275742 PANEL KICK 540 SML WHT PREPAIN

$25.05

W0275749 F/FRONT 540FC SEP GRILL

$46.05
