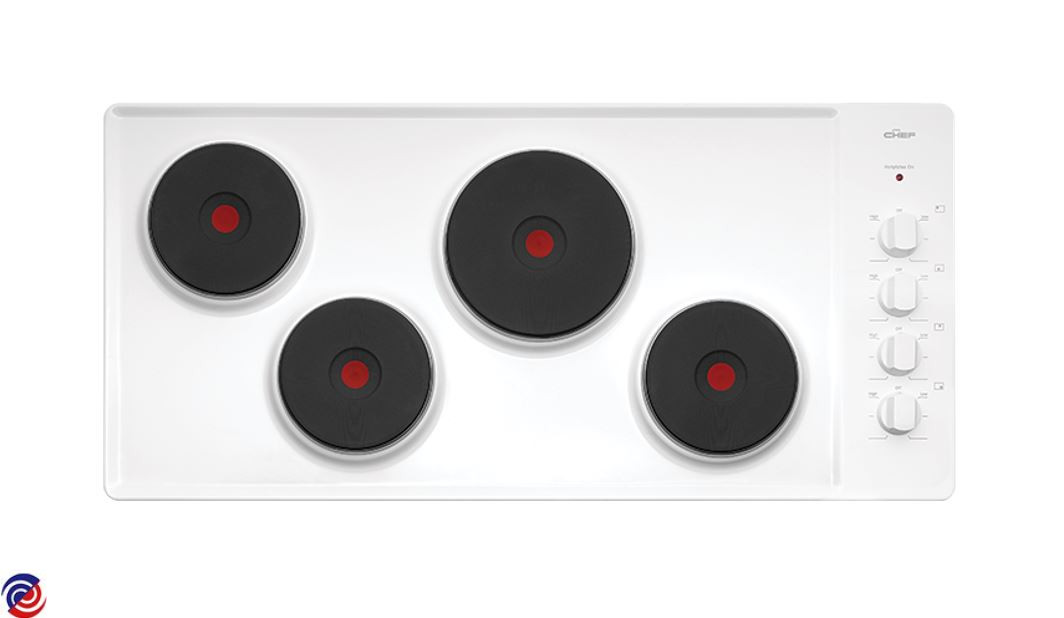

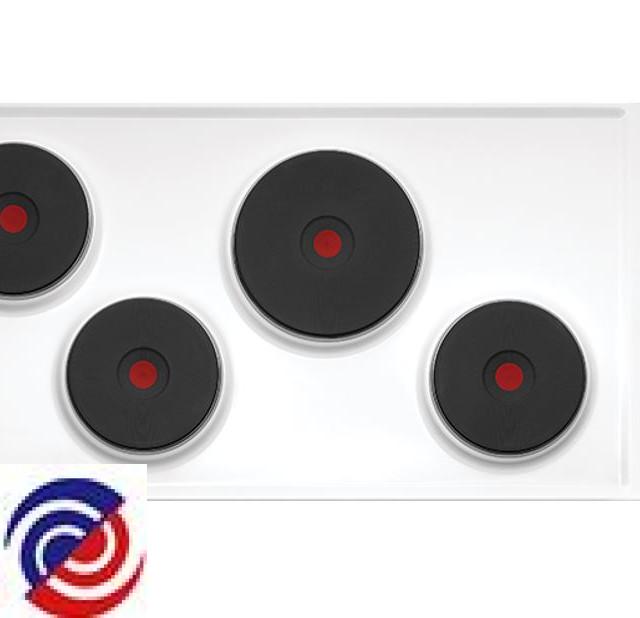

CHS942WA — 949163311 00
CHEF — Cooker Electric

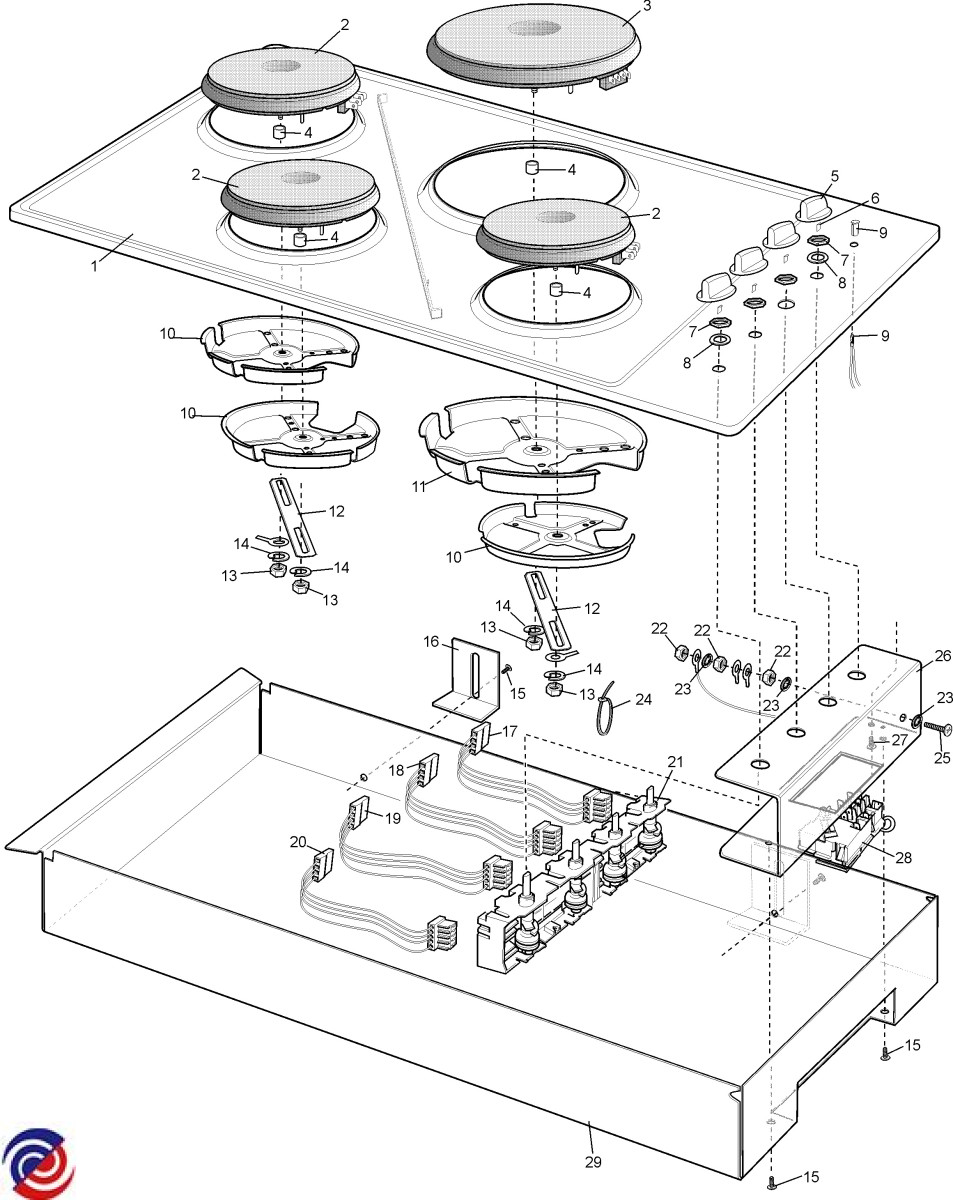

Parts for CHS942WA
.JPG)
W0012259 ELEMENT EGO 2000W 180DIA (HI)
.JPG)
W0013556 SWITCH GANG 7 POSITION EGO
W0046262 ELEMENT EGO 1500W 145DIA (HI)
W0062420 LIGHT INDICATOR INC LENS
W0011994 NUT METRIC M12 X 1.00
$32.90
W0012627 HARNESS WIRE 7POS FR 150MM WHT
$17.65
W0021497 BRACKET GAS VALVE MOUNTING
$9.90
W0023042 TERMINAL MAINS
$26.40
W0024896 SPACER ALUMINIUM TUBE 6MM
$9.65
W0024934 WASHER SPRING
$4.50
W0029919 KNOB WHITE ELUX ELEC CTOP
W0030560 ENAMEL TOP PLATE
$218.00
W0035568 CLAMP PAN 180MM ELUX EGO
W0035569 CLAMP PAN 145MM ELUX EGO
$6.25
W0038106 COVER UNIT 900 ELECTRIC
W0038669 BRACKET INSTALLATION
$20.10
W0038776 BRACKET ANTI-ROTATE SOLID C/T
W0048290 HARNESS WIRE 7POS FL 400MM RED
W0048292 HARNESS WIRE 7POS 550MM YEL
W0048293 HARNESS WIRE 7POS 650MM GREEN
W0064367 SCREW 3/16 X 1 PAN PHIL NI
W0064446 SCREW #10 X 3/4' PAN PH ZC AB
W0064527 SCREW NO 8 X 12 MM PD
$4.50
W0064747 NUT HEX 3/16 BSW
$4.50
W0064939 WASHER 3/16 INT S/P ZC
$4.50
W0065223 TIE CABLE
$4.50
W0065458 NUT HEX M6
$4.50
W0065482 WASHER NYLON EGO 7 POS SWITCH
