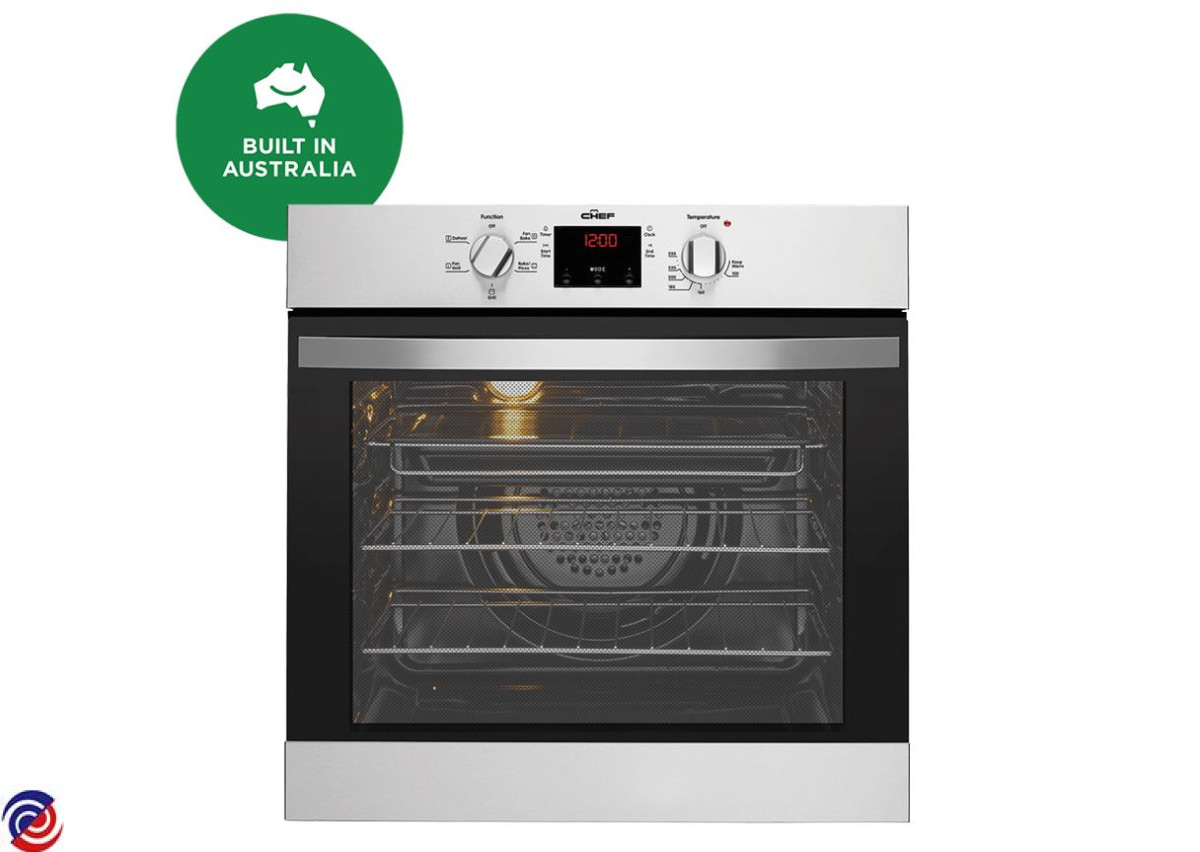

CVE614SA — 944031739 32
CHEF — Cooker Electric
Parts for CVE614SA
W0011297 BLADE FAN
W0011995 NUT M6 LH FAN MOTOR
W0012256 ELEMENT GRILL/BOOST 3000W
W0012262 ELEMENT FAN RING 2200W
W0012326 CLIP MOUNTING ELEMENT
W0012886 GLASS OV DR IN WEST FORTE
W0013564 SWITCH MULTI 5
W0013590 SWITCH THERMAL CUT OUT 145 DEG
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0022966 HINGE DOOR
W0022997 SET TIMER ASSY COMPUTIME (RED)
W0023201 HOLDER LAMP REAR HALOGEN BIOS
W0030130 TRIM DOOR TOP CAP NGD
W0030434 SEAL OVEN MODULAR PROFILE
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
W0050403 MOTOR FAN OVEN
W0053487 SHELF OVEN 473 X 378MM
W0057771 THERMOSTAT OVEN
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011321 COVER BASE PANEL SHIELD BIOS
$29.70
W0011479 PANEL TOP PYRO NGP
$43.20
W0011515 PANEL COVER WIRE UB 40MM
$24.20
W0011666 COVER FAN & ELEMENT
$95.75
W0011856 SUPPORT ELEMENT
W0011882 CHANNEL FRONT NGP UB RH
$16.90
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0013260 SHIELD WIRING
$11.95
W0013328 INSULATION OVEN BACK - KNAUF
$20.30
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013730 BUMPER STOP BLK
$6.55
W0013868 LIGHT IND RED 240V 600 KIT
$11.20
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014031 SCREW #8 X 3/8 MUSH #2PH TC BK
$4.50
W0014079 BUSH MOUNT F/FRAME NGD
$7.25
W0022643 SCREW M4 X 4
W0027190 FRAME FRONT PAINTED ELE UB NGP
$62.95
W0029921 KNOB CHEF SELECT STRONG SILVER
W0030166 PANEL BASE BIOS 0.5MM
W0030316 LENS CLOCK DIGITAL CHEF SELECT
W0030318 PNL OV DR OUTR ASY SS CHEF SEL
W0030352 FAN COOLING ASSY RADIAL 11W
W0030357 PANEL CONTRL SCREENED CVE614SA
$155.05
W0030457 PANEL SIDE UB BIOS RH
$49.15
W0030458 PANEL SIDE UB BIOS LH
$49.15
W0030478 PAD HANDLE DOOR CHEF SELECT
W0030493 DISH ROASTING DEEP ENAM
W0030548 SCREW 4.5X16 TRILOB PAN T20
$4.50
W0030604 HANDLE DOOR CHEF SELECT SILVER
W0038118 COVER RETAINING LATCH
$10.95
W0042653 CHANNEL FRONT NGP UB LH
W0042768 PLUG DOME MDP16
W0053490 RACK GRILL INSERT
W0054672 INSULATION OVEN WRAP - KNAUF
$63.85
W0054972 OVEN ENAM ELEC MF5 FRM NGD
W0060744 BUTTON BLK
$12.60
W0154014 RACK CARRIER GRILL DISH
W0154077 ENDCAP CONTROL PANEL CHEF LHS
W0154078 ENDCAP CONTROL PANEL CHEF RHS
W0283441 COVER CLEAN HEAT
$9.65
W0284441 ELEMENT BASE 1000W E100
