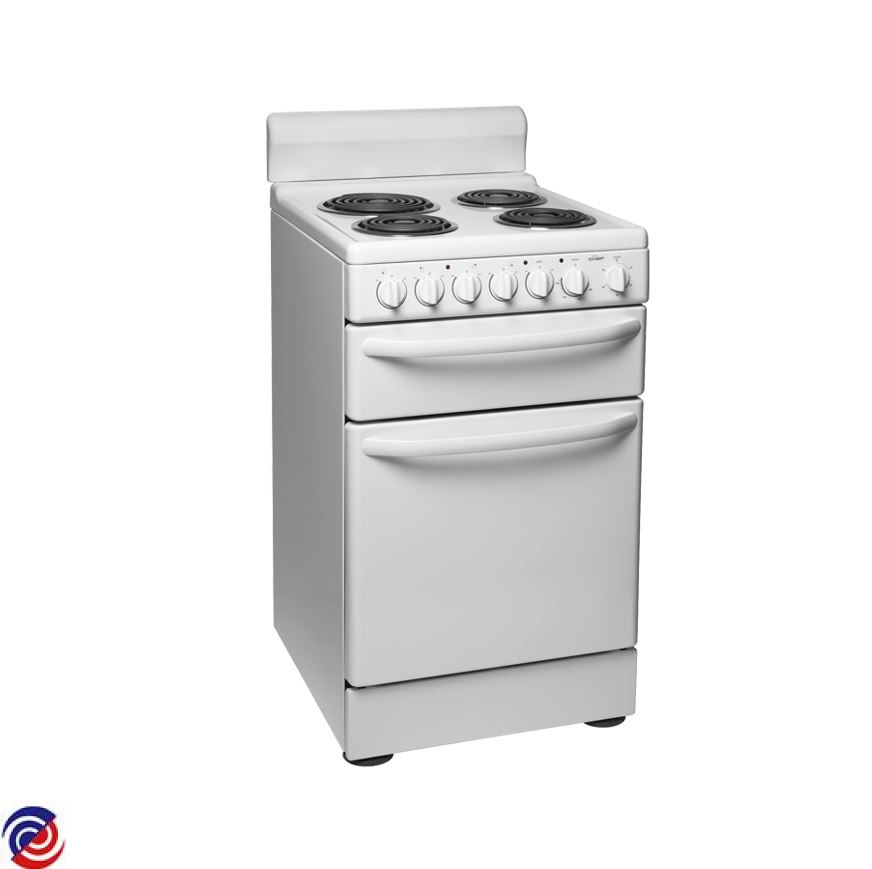

EBC5241W*53
CHEF — Cooker Electric
Parts for EBC5241W*53
.JPG)
W0011400 DISH GRILL ENAM SEP GRILL
$68.20
W0011404 TRAY SCONE
$19.90
.JPG)
W0011909 HANDLE GRILL DISH
$9.90
W0012254 ELEMENT C/HEAT 1800W SS321
.JPG)
W0012255 ELEMENT GRILL 2200W SS321
W0012312 CLIP KICK PANEL
W0036947 KNOB CONTROL WHT 7803
$22.10
W0046253 ELEMENT RAD SML 6MM 1250W ZIM
W0046254 ELEMENT RAD LGE 8MM 2050W ZIM
.JPG)
W0046406 CLIP MOUNTING ELEMENT
W0046876 SUPPORT HINGE DOOR LH
W0046877 SUPPORT HINGE DOOR RH
$18.30
W0050006 GASKET CAVITY OVEN
W0053461 RACK GRILL INSERT
.JPG)
W0053487 SHELF OVEN 473 X 378MM
.JPG)
W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101
.JPG)
W0057771 THERMOSTAT OVEN
.JPG)
W0058476 RING DRESS SML
W0058477 RING DRESS LARGE
.JPG)
W0060746 TIMER 60MIN 360 ACTION PEAPSA
W0062420 LIGHT INDICATOR INC LENS
W0100889 CLIP SPRING KNOB
$9.15
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011344 BRACKET STABILITY BOLT 540
$12.60
W0011672 PANEL KICK WHITE 540
W0011993 NUT METRIC M10 X 0.75MM
$4.50
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012558 END CAP HANDLE WHT
W0013260 SHIELD WIRING
$11.95
W0013317 INSULATION GRILL CANOPY
$11.00
W0013730 BUMPER STOP BLK
$6.55
W0013731 BUMPER STOP GREY
$5.05
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0035788 DEFLECTOR HEAT GRILL UC20
W0036207 RACK SIDE GRILL
W0037466 PLATE ANTI TILT ASSY 540
$22.00
W0038121 COVER CLEAN HEAT FULL GALV BIO
W0038764 BRACKET INSULATION OVEN DOOR
W0039279 TRAY SPILL
$65.95
W0039453 DOOR OVEN INNER SOLID
$189.90
W0039516 PANEL OUTER OV/DOOR SOLID A/W
W0039803 PANEL SIDE
$58.55
W0039903 PANEL CABINET REAR (NO HOLE)
$28.00
W0040565 PNL CNT FRONT SCR 5241 BIOS
$121.00
W0040940 PANEL SPLASHBACK WHT PLAIN
W0041114 PANEL LOWER BRACE ASSY 540
W0042919 HANDLE DOOR WHT
W0043118 PANEL REFLECTOR GRILL TOP
W0044569 FRAME FRONT
$79.20
W0044830 FLUE DUCT OVEN ELEC 540 BIOS
W0045532 BOLT STABILISING
W0047144 INSULATOR SPILL/SWITCH 7 POS
W0047180 SUPPORT GRILL ELEMENT
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0052926 SPACER FOOT UC20
W0054077 SHIELD VENT SPILLAGE GAS UC20
W0054643 INSUL GRILLCANOPY FRONT UC20
W0054645 INSULATION OVEN CABINET
W0054668 INSULATION OVEN BACK 80 BIOS
W0054944 OVEN ENAMELE FRM CON N/L BIOS
W0056177 GRILL BOX ENAM 540 BIOS
W0056283 OVEN BRACE 540 ASSY
$24.85
W0056768 LEG LEVELLING
$18.90
W0056770 FOOT LEVELLING UPRIGHT
W0062079 HOB SOLID ENAMEL
W0064447 SCREW #10 X 11.5 PAN PH 'Z' P
W0064532 SCREW #8 X 9/16 B/HD S/PT BKOX
$4.00
W0064625 SCREW #8X20 TYP 17 PT TORX BLK
W0064868 WASHER 3/16 X 3/8 ALUM
W0065427 SCREW M5 X 9MM CSK (BLK ZC)
