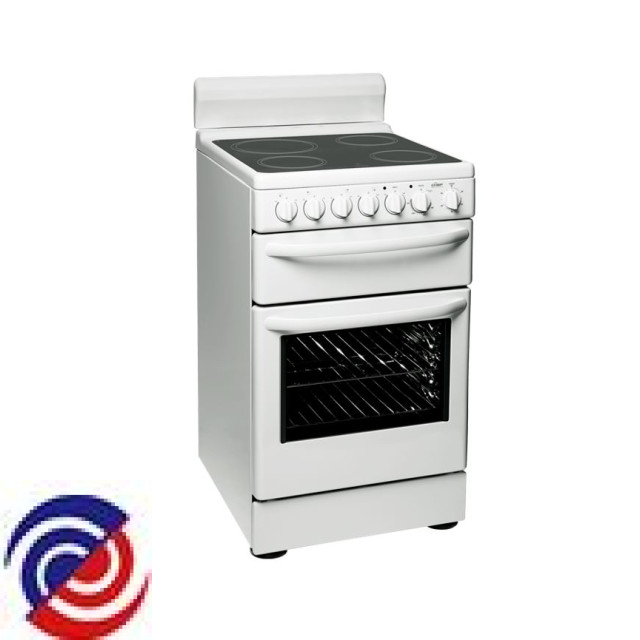

EBC5481W*40
CHEF — Cooker Electric
Parts for EBC5481W*40
.JPG)
W0011297 BLADE FAN
.JPG)
W0011400 DISH GRILL ENAM SEP GRILL
$68.20
.JPG)
W0011830 HINGE DOOR GRILL
W0011831 HINGE DOOR GRILL
.JPG)
W0011909 HANDLE GRILL DISH
$9.90
.JPG)
W0012255 ELEMENT GRILL 2200W SS321
W0012262 ELEMENT FAN RING 2200W
W0012312 CLIP KICK PANEL
W0013611 TRIM OV/DOOR AIRWASH
.JPG)
W0039452 DOOR OVEN INNER
.JPG)
W0046406 CLIP MOUNTING ELEMENT
W0046876 SUPPORT HINGE DOOR LH
W0046877 SUPPORT HINGE DOOR RH
$18.30
_1.JPG)
W0050403 MOTOR FAN OVEN
W0052112 GLASS OUTER OV/DOOR A/W SCR
W0053461 RACK GRILL INSERT
.JPG)
W0053487 SHELF OVEN 473 X 378MM
.JPG)
W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101
.JPG)
W0057210 SWITCH AUXILIARY T/STAT
.JPG)
W0057771 THERMOSTAT OVEN
.JPG)
W0060746 TIMER 60MIN 360 ACTION PEAPSA
W0062420 LIGHT INDICATOR INC LENS
W0100889 CLIP SPRING KNOB
$9.15
W0154308 SCRAPER CERAM GLASS + 5 BLADES
W0154310 PROTECTOR CERASEAL GLASS CT
$9.90
W0154311 CLEANER CERAMIC CERAPOL 250ML
$9.90
W0166032 LAMP 25W SES E14 300C CLEAR
$10.00
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011336 BRACKET INSULATION OVEN DOOR
W0011344 BRACKET STABILITY BOLT 540
$12.60
W0011416 DOOR GRILL INNER
$99.00
W0011666 COVER FAN & ELEMENT
$95.75
W0011672 PANEL KICK WHITE 540
W0011993 NUT METRIC M10 X 0.75MM
$4.50
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012558 END CAP HANDLE WHT
W0012725 SEAL CLIP GLASS OV/DOOR
W0013260 SHIELD WIRING
$11.95
W0013317 INSULATION GRILL CANOPY
$11.00
W0013730 BUMPER STOP BLK
$6.55
W0013731 BUMPER STOP GREY
$5.05
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0021285 LABEL DOOR GRILL
$4.50
W0035578 CLAMP GLASS DOOR
W0035788 DEFLECTOR HEAT GRILL UC20
W0036207 RACK SIDE GRILL
W0036928 KNOB CHEF ELEC WHITE 7801 UC01
W0037466 PLATE ANTI TILT ASSY 540
$22.00
W0039515 PANEL OUTER OV/DOOR ENAM A/W
W0039549 DOOR GRILL OUTER
$99.90
W0039791 PANEL SIDE UPRIGHT BIOS MK2
W0039903 PANEL CABINET REAR (NO HOLE)
$28.00
W0040532 PNL CNT FRONT SCR 5481 BIOS
W0040940 PANEL SPLASHBACK WHT PLAIN
W0041086 PANEL BOTTOM CERAMIC
W0041113 PANEL LOWER BRACE 540
W0042919 HANDLE DOOR WHT
W0043116 REFLECTOR GRILL ELEC F/C UC20
W0043816 LIGHT INDICATOR HOTZONE
W0044064 NUT M6 LH FAN MOTOR ECM
W0044569 FRAME FRONT
$79.20
W0044830 FLUE DUCT OVEN ELEC 540 BIOS
W0045532 BOLT STABILISING
W0046407 CLIP ELEMENT CERAM SECURING
$9.00
W0046534 SLEEVE VIDAFLEX 16ID CUT 200MM
W0047144 INSULATOR SPILL/SWITCH 7 POS
W0047180 SUPPORT GRILL ELEMENT
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0050003 SEAL OVEN BIOS
W0052067 GLASS INNER OV/DOOR A/W
W0052578 CANOPY GRILL ELEC UC20
W0052926 SPACER FOOT UC20
W0054077 SHIELD VENT SPILLAGE GAS UC20
W0054643 INSUL GRILLCANOPY FRONT UC20
W0054645 INSULATION OVEN CABINET
W0054646 INSULATION OVEN BACK BIOS
W0054962 PANEL OVEN LINING REAR
W0056177 GRILL BOX ENAM 540 BIOS
W0056274 BRACE OVEN REAR 540 BIOS
W0056768 LEG LEVELLING
$18.90
W0056770 FOOT LEVELLING UPRIGHT

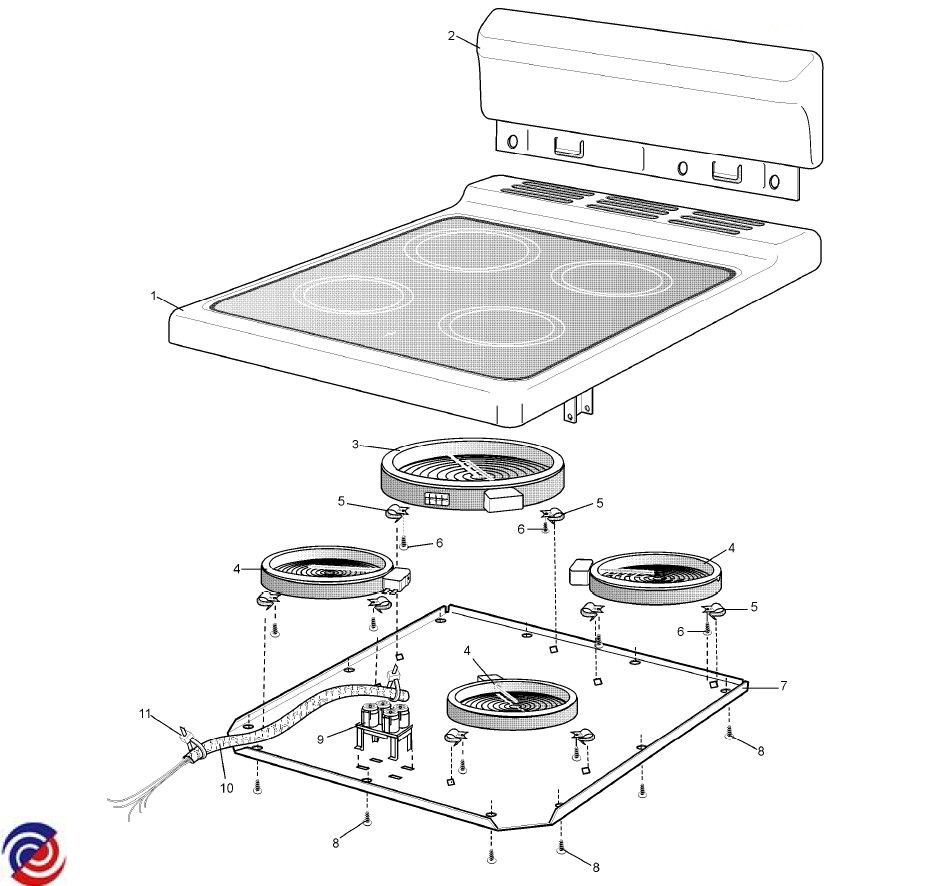

W0061894 HOB & GLASS CERAM FLAT SIMP
W0064447 SCREW #10 X 11.5 PAN PH 'Z' P
W0064527 SCREW NO 8 X 12 MM PD
$4.50
W0064625 SCREW #8X20 TYP 17 PT TORX BLK
W0064868 WASHER 3/16 X 3/8 ALUM
W0065223 TIE CABLE
$4.50
W0065404 SCREW M5 X 16MM SS
W0065427 SCREW M5 X 9MM CSK (BLK ZC)
W0114641 ELEM CERAM 165 DIA 1200W EGO
W0114659 ELEM CERAM 215DIA 2000W EGO
W0114680 HOLDER LAMP ASSY BIOS
