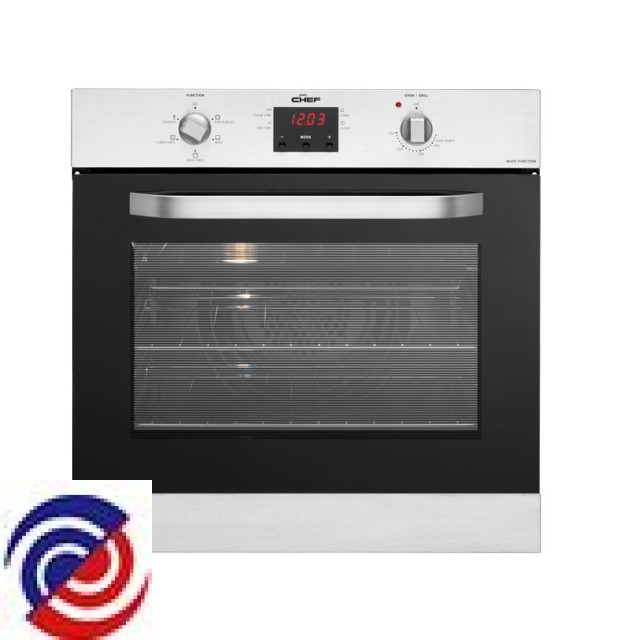

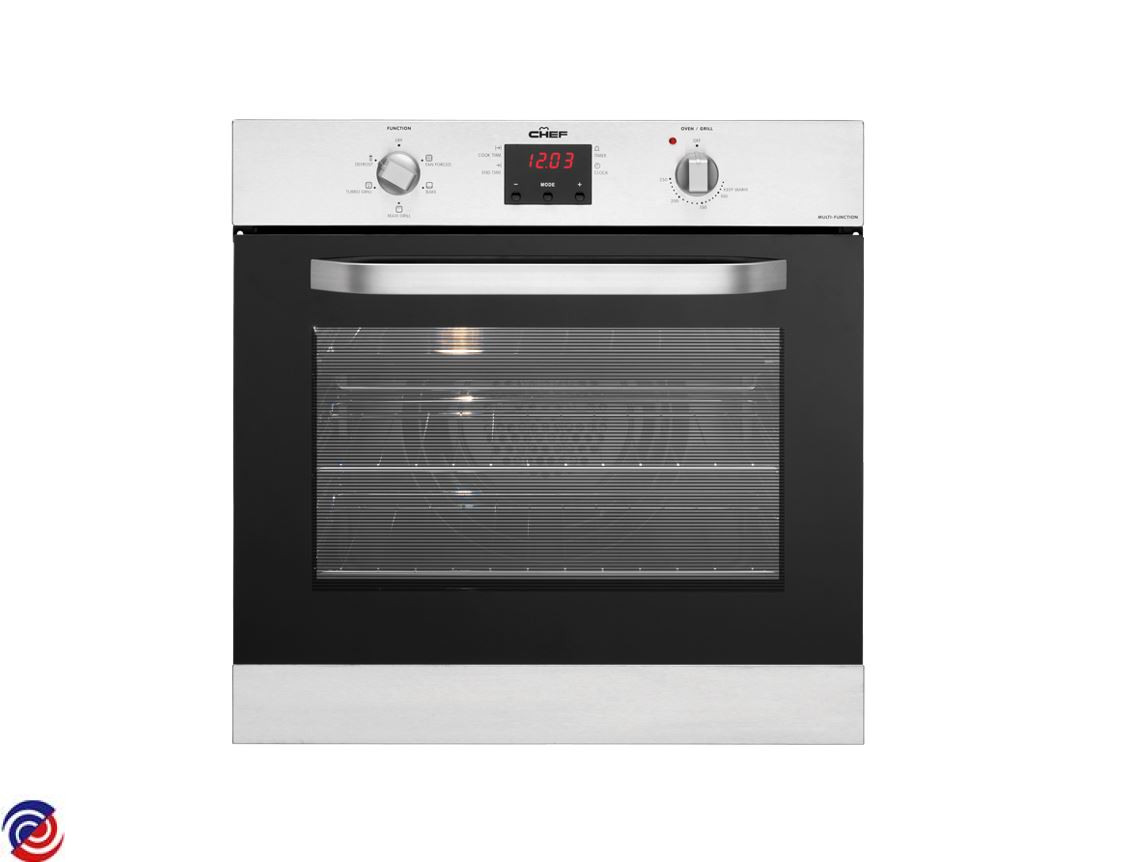

EOC647S*01
CHEF — Cooker Electric
Parts for EOC647S*01
.JPG)
W0011297 BLADE FAN
W0011995 NUT M6 LH FAN MOTOR
.JPG)
W0012256 ELEMENT GRILL/BOOST 3000W
W0012262 ELEMENT FAN RING 2200W
W0012263 ELEMENT C/HEAT 1800W NO EARTH
$95.00
W0013564 SWITCH MULTI 5
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0013750 LENS INDICATOR LIGHT
$11.20
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0014032 SCREW #8 X 45 PAN QUADREX
.JPG)
W0022966 HINGE DOOR
.JPG)
W0046406 CLIP MOUNTING ELEMENT
.JPG)
W0050309 LAMP
_1.JPG)
W0050403 MOTOR FAN OVEN
W0052258 DOOR OVEN INNER GLASS
.JPG)
W0052585 CANOPY FAN ASSY U/B NGD
.JPG)
W0053487 SHELF OVEN 473 X 378MM
.JPG)
W0057771 THERMOSTAT OVEN
W0058493 TRIM DOOR UPPER VENTED
.JPG)
W0114261 CLOCK 3 BUTTON 3 W/RELAY
W0166032 LAMP 25W SES E14 300C CLEAR
$10.00
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011262 PLATE MOUNTING SWITCH
$14.90
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011321 COVER BASE PANEL SHIELD BIOS
$29.70
W0011484 PANEL SIDE RH
$28.00
W0011485 PANEL SIDE LH
$27.50
W0011558 PANEL CONTROL & CLIPS
$99.00
W0011666 COVER FAN & ELEMENT
$95.75
W0011856 SUPPORT ELEMENT
W0011915 HANDLE DOOR CHEF SILVER NGD
$29.65
W0012083 FLUE OVEN VENT ELEC U/B NGD
$16.50
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012562 MOUNT CAP F/FRAME R/H NGD
$5.80
W0012563 MOUNT CAP F/FRAME L/H NGD
$7.55
W0012972 SPACER HANDLE GLS DR SOD BIOS
W0013260 SHIELD WIRING
$11.95
W0013625 FRAME CONTROL PANEL
W0013730 BUMPER STOP BLK
$6.55
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014021 SCREW #10 X 14.5 PAN PH 'Z' PT
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014079 BUSH MOUNT F/FRAME NGD
$7.25
W0036950 KNOB CONTROL SILVER
W0038118 COVER RETAINING LATCH
$10.95
W0038121 COVER CLEAN HEAT FULL GALV BIO
W0039208 DISH GRILL ENAM 540 BIOS
W0039575 DOOR OVEN OUTER SS
W0039639 BASEPLATE
W0039640 PANEL UPPER
W0039686 PANEL CHASSIS TOP
$27.50
W0039894 PANEL CABINET REAR
$27.50
W0042634 CHANNEL FRONT UB RH NGD
W0042636 CHANNEL FRONT UB LH NGD
W0042768 PLUG DOME MDP16
W0043827 LIGHT INDICATOR RED
$14.90
W0044572 FRAME FRONT PAINTED ELE UB NGD
W0047143 INSULATOR HANDLE GLASS SIMPSON
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0050008 GASKET CAVITY OVEN NOTCHED
W0053490 RACK GRILL INSERT
W0053492 RACK GRILL DISH
W0054645 INSULATION OVEN CABINET
W0054671 INSULATION OVEN REAR
$18.70
W0054972 OVEN ENAM ELEC MF5 FRM NGD
W0056272 BRACE OVEN REAR BI BIOS
W0057755 SWITCH THERMAL CUT OUT 120 DEG
W0060744 BUTTON BLK
$12.60
