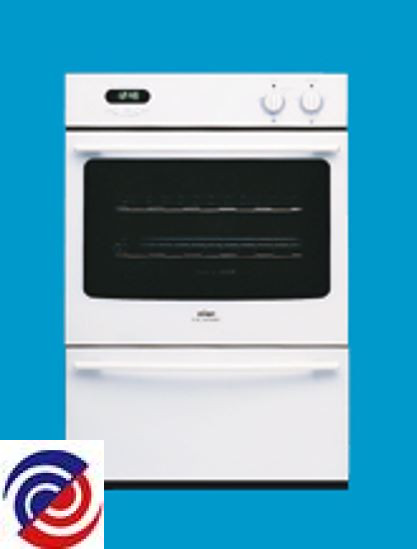

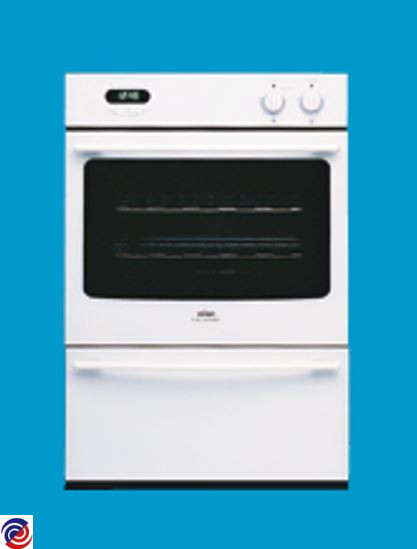

EXC640W
CHEF — Cooker Electric
Parts for EXC640W
W0022792 LIGHT INDICATOR NEON
$16.50
.JPG)
W0103358 CLIP SPRING NO 596 FALSE BACK
$11.70
.JPG)
W0111767 ELEMENT OVEN F/F 2400W
$69.00
.JPG)
W0124048 HINGE DOOR LH/RH N/STAR
.JPG)
W0124491 HINGE DOOR LH/RH N/STAR
W0129541 SUPPORT HINGE LH/RH N/STAR
.JPG)
W0134202 THERMOSTAT OVEN
W0011993 NUT METRIC M10 X 0.75MM
$4.50
W0103359 NUTSERT 3/16BSW UPO30/5111_053
W0103395 INSULATION AP GR1 495X457X25
W0111726 PLATE MTG ALUM FAN MOTOR
$13.50
W0117954 NUT F/BLADE (PLASET F/MOTOR)
W0122771 SUPPORT BASE
W0122876 SCREW-8AB X 1/2-S/TAPER
W0122877 SCREW-8AB X 3/8'-MUSH S/TAPER
W0122898 SCREW-#6 X 1/4'-PAN HD-ZP
W0122903 SCREW-M5 X 16MM-C/SUNK
$4.00
W0124070 NUT KNURL RACK OVEN SIDE
W0124108 RACK SIDE OVEN LH/RH 5 POS
W0124238 BLADE FAN
W0124460 SCREW M5 X 8 PAN BLK OXD NSTAR
W0124488 BRACKET COOLING FAN DBL W/O
W0125033 MOTOR FAN OVEN PLASET 240V
W0127086 LEAD 20AMP 1_8MT (PLUG&LEAD)
W0129548 LAMP & HOLDER 40W 77_704_3409_
W0129549 LAMP 40W SES OVEN 240V LONG
W0130022 GUARD FAN BAFFLE
W0130180 PANEL BOTTOM
W0130181 PANEL TOP W/O
W0130200 PANEL-BACK-U/BENCH
W0132702 HINGE LH/RH GRILL N/S 6215320
W0132710 BUFFER RUBBER O/D G/D
W0132785 DEFLECTOR HEAT PAINTED
W0133506 TRIM BTM W/O
W0133564 MOTOR FAN COOLING
W0133565 BLADE FAN COOLING 100DIA
W0133592 SHELF OVEN 600MM ELEC ONLY
W0133600 INSULATION WRAP TYPE 350 UR/WO
W0133638 SPACER-HANDLE
W0133639 HANDLE-CURVED BAR-WHITE
W0133642 SUPPORT-HANDLE-WHITE
W0133647 TRIM-BOTTOM-BLACK
W0133780 PANEL INNER GRILL DOOR ENAMEL
W0133785 PANEL-CONTROL INNER
W0133884 END CAP-HANDLE-WHITE
W0134124 GLASS INNER OV/DOOR
W0134125 SEAL GLASS INNER OV/DOOR
W0134126 PANEL-CONTROL COVER
W0134147 PANEL-SIDE
W0134152 KNOB-CONTROL-WHITE/CHROME
W0134158 PANEL OUTER BACK BOTTOM
W0134165 NUT-M5-MACHINED
W0134166 SCREW-M5 X 30MM-PAN HEAD
W0134167 SCREW-#10 X 3/4'-C/SUNK PH
W0134168 DISH-BAKING/GRILL-ENAMEL-OVEN
W0134172 TRAY-SCONE ENAMEL
W0134177 ELEMENT-GRILL-2400W
W0134178 SHELF BAKING/GRILL DISH
W0134179 RACK INSERT BAKING DISH
W0134191 RACK SIDE GRILL LH/RH 3 POS
W0134192 SWITCH THERMAL CUT OUT 130 DEG
W0134211 SUPPORT WIRE-GRILL ELEMENT
W0134220 TRIM SIDE BLK RH ENAM (ROLL)
W0134221 TRIM SIDE BLK LH ENAM (ROLL)
W0134237 CLOCK-2 BUTTON-DIEHL 240V
W0134239 BUTTON-TIMER-SINGLE-WHITE
W0134242 SWITCH INF/HEAT NZC SPLT/GRILL
W0134258 SCREW CLAMP INNER GLASS BLACK
W0134266 SEAL-OVEN-1 PCE
W0134289 CLIP-THERMOSTAT
W0134294 SHIELD HEAT MOTOR OVEN/FAN
W0134295 TRIM-TOP-BLACK
W0134304 INSULATION OVEN BACK
W0134307 BRACKET THERMAL CUTOUT
W0134314 FILTER-TIMER-BLACK-50 X 120
W0134316 CLAMP-CABLE
W0134317 SCREW-#6 X 5/8'-PAN Z/P
W0134459 CLAMP RETAINER GLASS PLATED
W0155732 PANEL-FAN BAFFLE-600MM
W0155734 GLASS OUTER OV/DOOR WHITE
W0155737 PANEL INNER OV/DOOR ENAMEL
W0155746 GLASS OUTER GR/DOOR WHITE
W0155749 PANEL-CONTROL-GLASS-WHITE
