EC820.B — 0132104131
DELONGHI — Coffee Machine

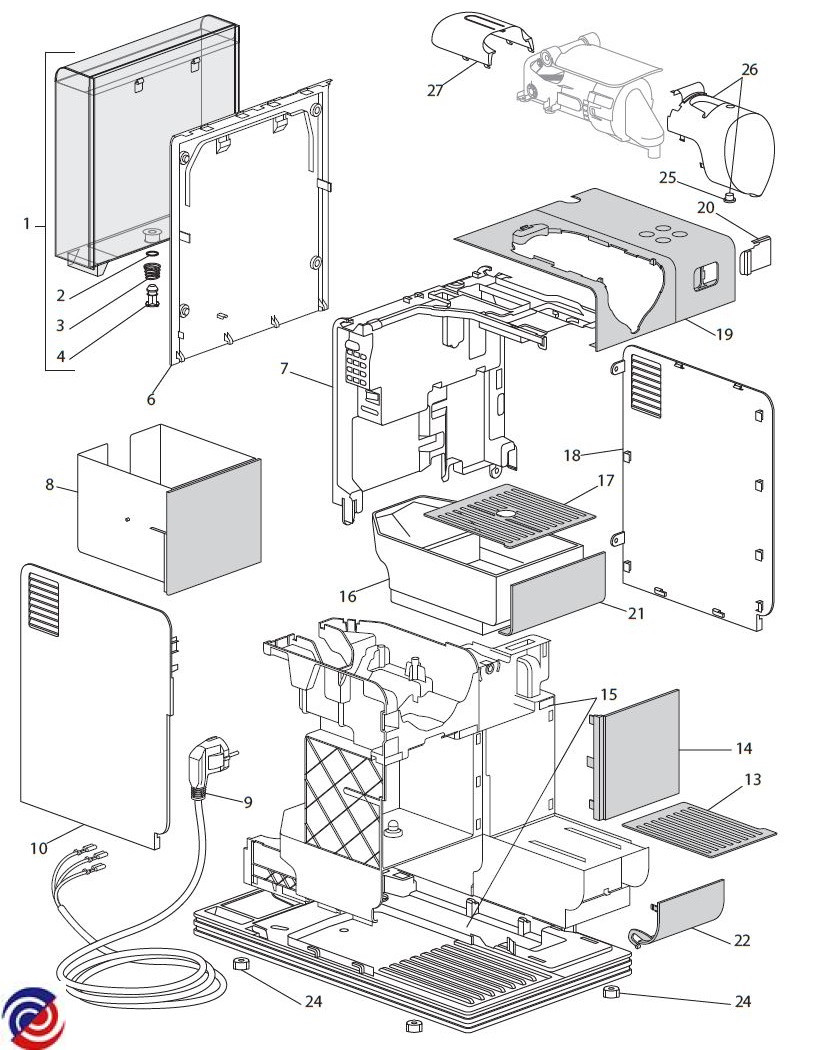

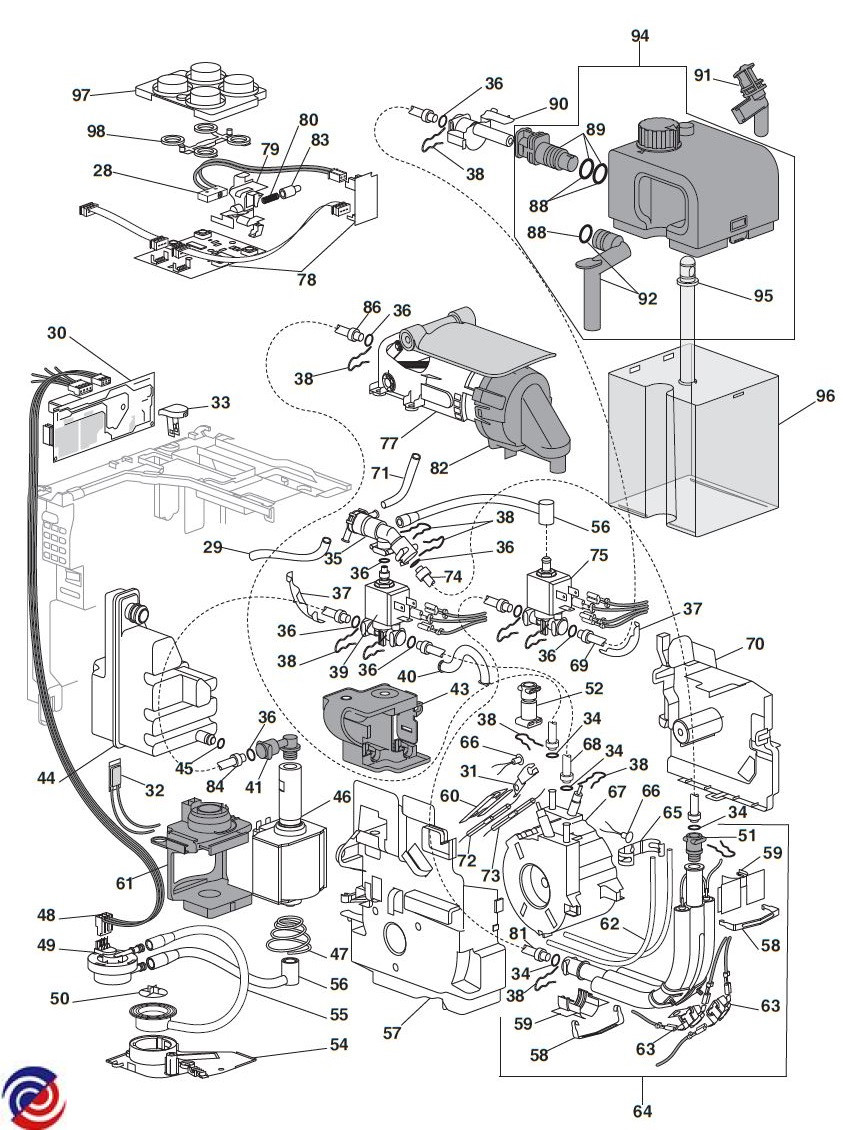

Parts for EC820.B
W0276925 SWITCH
$24.30
W0276946 LOWER TUBE
$13.00
W0276947 DELONGHI COFFEE MACHINE FROTHER
$20.00
W0276958 SCREW (3.5X12)
$11.70
W0276995 O-RING (D=3.85 T=2)
$12.00
W0276996 SPRING
$12.00
W0276999 PUMP PROTECTOR
$24.80
W0277000 PUMP (ULKA 230V 48W)
$36.00
W0277006 ROUND GENERATOR (230V 1400W F6.3)
W0277008 SPACER
$12.20
W0277012 CONNECTOR
$12.00
W0277075 WATER TANK FILTER
$11.70
W0277078 DELONGHI COFFEE MACHINE GASKET
$12.00
W0277091 CONNECTOR
$28.00
W0277132 GENERATOR GASKET
$11.70
W0277182 COFFEE MEASURING SPOON
$14.00
W0277183 ONE CUP EASY CLEAN FILTER
$18.75
W0277184 DELONGHI 2 CUPS EASY CLEAN FILTER
$21.50
W0277196 MICROSWITCH
$13.00
W0277197 STEAM VALVE
$16.00
W0277200 BALL JOINT
$12.90
W0277213 SPRING
W0277214 VALVE
$6.60
W0277215 RING
$11.90
W0277216 GASKET
$11.70
W0277217 CLOSURE GASKET
$12.88
W0277218 BREWING GASKET SUPPORT
$12.70
W0277219 BOTTOM GASKET
W0277220 DIFFUSER
$12.80
W0277223 SENSOR (NTC L400)
$16.50
W0277225 WIRING WITH CONNECTORS
$16.20
W0277229 CLIP
$12.00
W0277232 TCO (192°)
$13.40
W0277236 TUBE WITH 1 BUSH (L135)
$13.20
W0277238 SPRING
$12.80
W0277239 3-WAY VALVE CONNECTOR
$17.00
W0277240 PORTABLE DIGITAL THERMOMETER, -50 +150°C
$88.90
W0277731 SLIDING BLOCK BLACK(PA66)
W0277733 GASKET FOR HEATING ELEMENT
$5.00
W0277750 SUPPORT
$12.30
W0277930 TUBE WITH 2 BUSHES (L170)
$12.30
W0326093 DELONGHI SAFETY ANTI-DRIP VALVE
$19.00
W0307851 TUBE
W0311496 POWER SUPPLY CORD WITH PLUG (AU)
$16.10
W0313012 CONTROL BOARD (230V)
$22.10
W0315008 RIGHT ANGLE AND 45° GENERATOR CONNECTION
$11.90
W0315060 TUBE (L170)
$12.80
W0315127 CONTROL KNOB SUPPORT
W0315128 STEAM KNOB SUPPORT
W0315130 WATER TANK COVER
$11.70
W0315132 GENERATOR COVER
W0315133 DELONGHI LOGO
W0315134 FLOAT
W0315136 FROTHER RIGHT PROFILE
W0315141 KEY SUPPORT
W0315142 LED COVER
W0315165 BALL JOINT BLOCK
W0315166 TRAY CONNECTOR
W0315170 CONNECTOR COVER
W0315171 DRIP TRAY
$15.20
W0315172 REAR COVER
W0315212 RUBBER FOOT PAD
W0315243 RIGHT ANGLE TUBE
$11.70
W0315286 CUP HOLDER GASKET
$13.00
W0317805 O-RING (D=6)
$12.00
W0319549 BREWING UNIT BODY ASSEMBLY
$20.00
W0319557 WATER TANK ASSEMBLY
W0320078 FROTHER
$16.30
W0321494 RIGHT FRONT COVER
W0321495 CONTROL PANEL
W0321496 ON/OFF PUSH BUTTON
W0321498 CENTRAL COVER
W0323079 CUP HOLDER
$19.10
W0323281 FILTER SPRING
W0323283 FILTER RETAINING SPRING (AISI 302)
$13.00
W0323294 SPRING
W0324196 STEAM KNOB
W0326201 UPPER COVER
W0326302 POWER BOARD (SW1.07 230V)
$37.00
W0345174 DLSC402 FILTER E.S.E POD
$17.05
