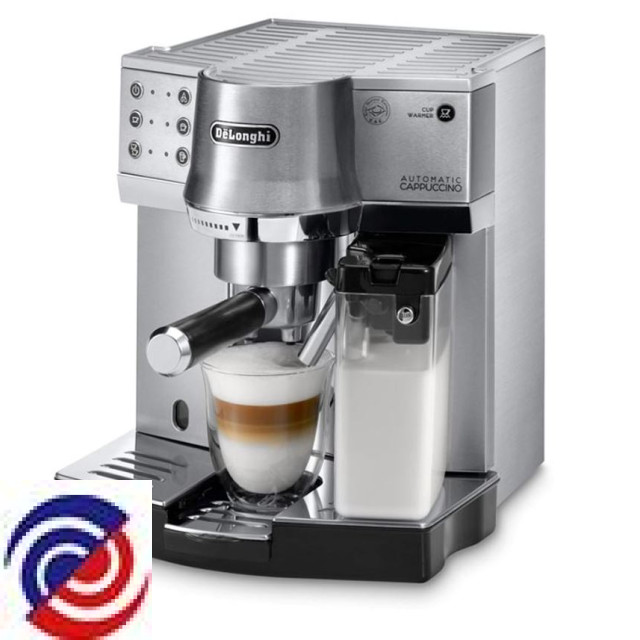

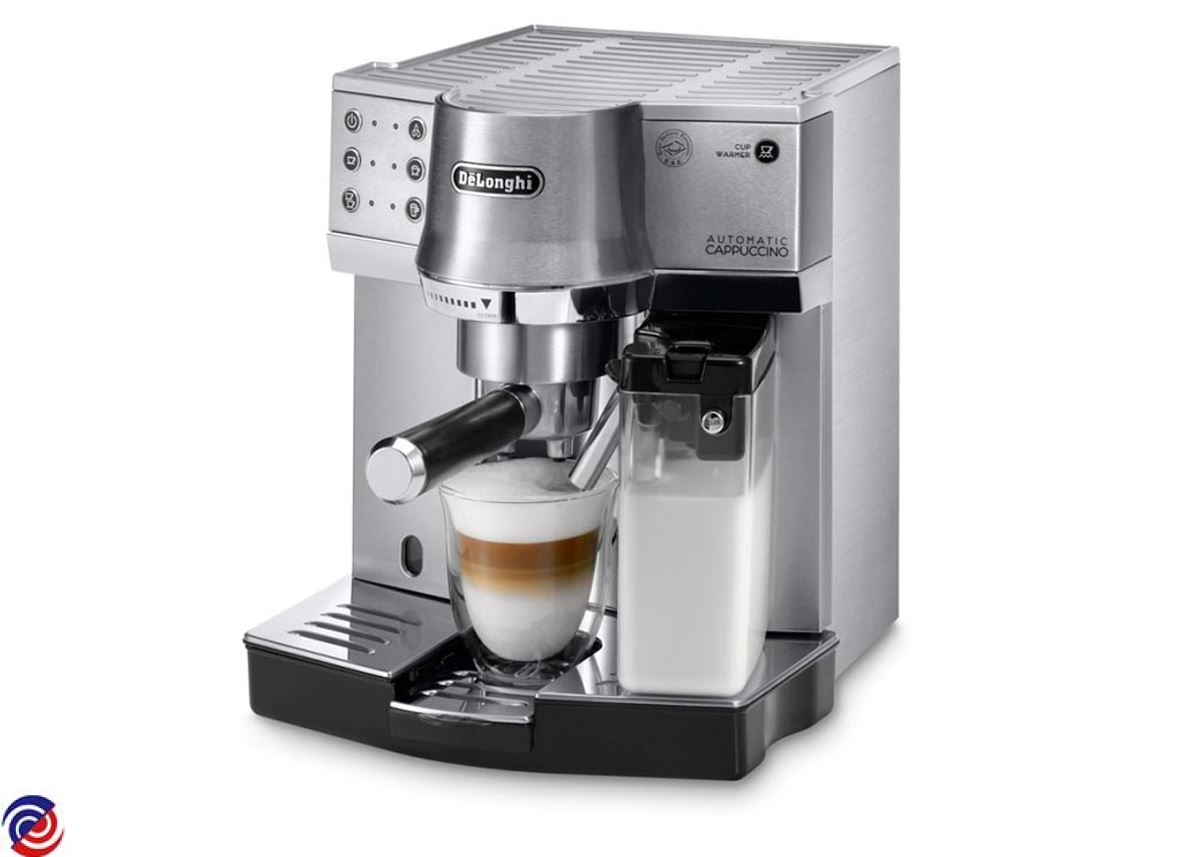

EC860.M — 0132109007
DELONGHI — Coffee Machine

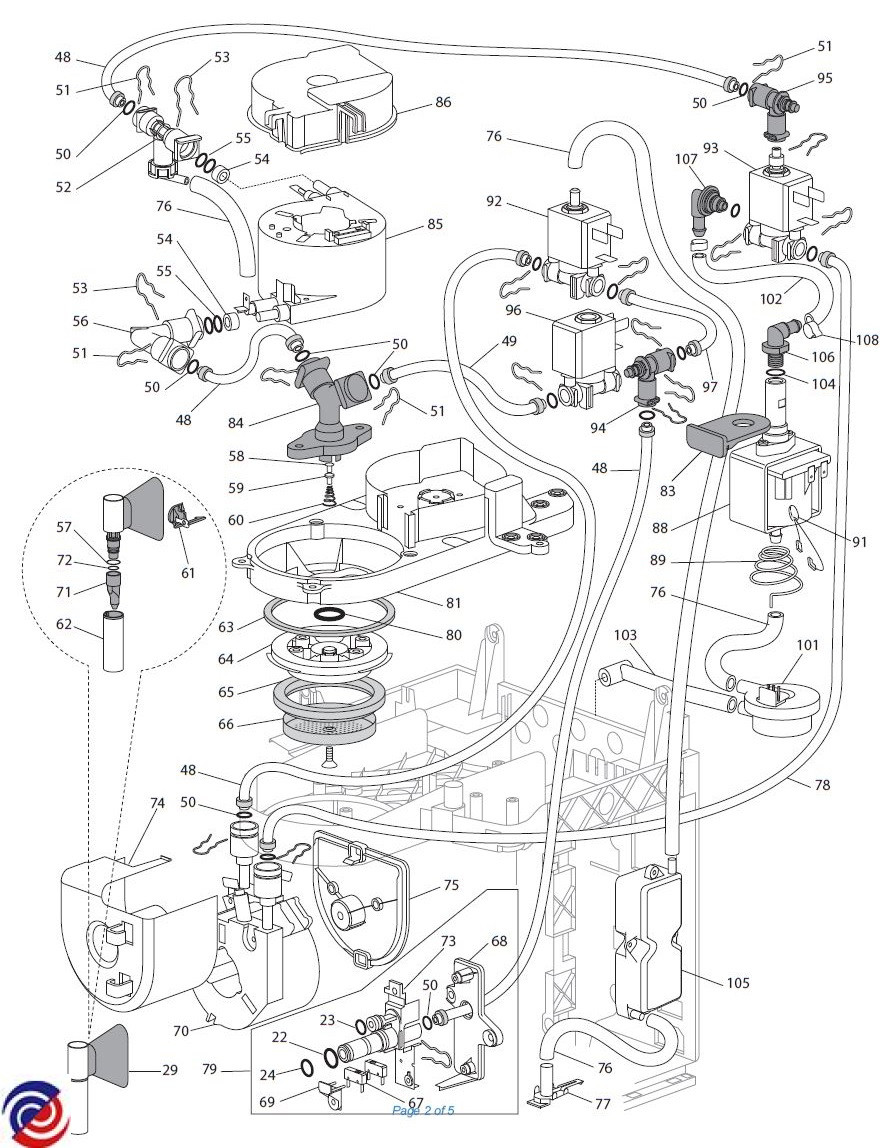

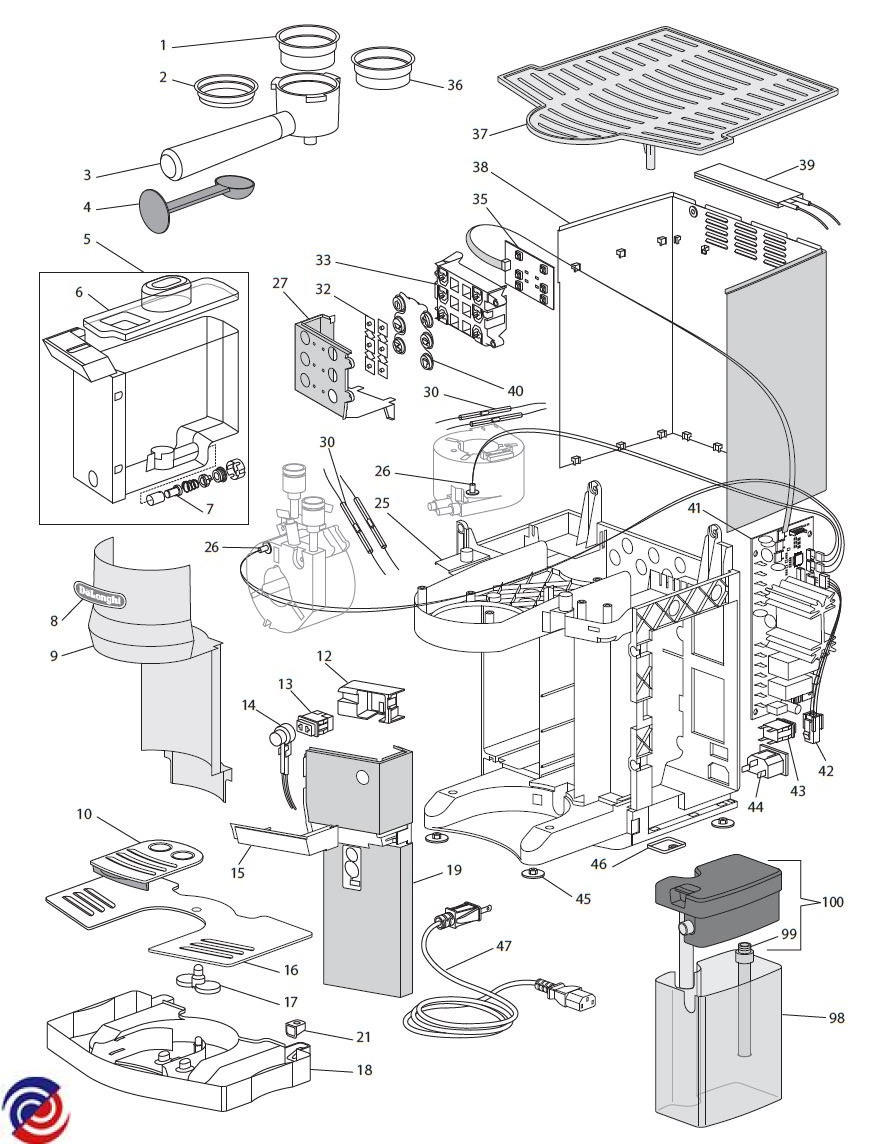

Parts for EC860.M
W0276925 SWITCH
$24.30
W0276940 O-RING (D=6.75 T=1.78)
$11.70
W0276942 MICROSWITCH (250V 85°)
$26.00
W0276945 O-RING (D=6.07 T=1.78)
$8.59
W0276946 LOWER TUBE
$13.00
W0276947 DELONGHI COFFEE MACHINE FROTHER
$20.00
W0276958 SCREW (3.5X12)
$11.70
W0276993 TUBE WITH 2 BUSHES (L270)
$23.30
W0276995 O-RING (D=3.85 T=2)
$12.00
W0276996 SPRING
$12.00
W0276999 PUMP PROTECTOR
$24.80
W0277000 PUMP (ULKA 230V 48W)
$36.00
W0277006 ROUND GENERATOR (230V 1400W F6.3)
W0277008 SPACER
$12.20
W0277009 O-RING D=4,5
W0277011 SAFETY VALVE
$15.20
W0277075 WATER TANK FILTER
$11.70
W0277078 DELONGHI COFFEE MACHINE GASKET
$12.00
W0277091 CONNECTOR
$28.00
W0277182 COFFEE MEASURING SPOON
$14.00
W0277183 ONE CUP EASY CLEAN FILTER
$18.75
W0277184 DELONGHI 2 CUPS EASY CLEAN FILTER
$21.50
W0277213 SPRING
W0277214 VALVE
$6.60
W0277215 RING
$11.90
W0277216 GASKET
$11.70
W0277217 CLOSURE GASKET
$12.88
W0277218 BREWING GASKET SUPPORT
$12.70
W0277219 BOTTOM GASKET
W0277220 DIFFUSER
$12.80
W0277223 SENSOR (NTC L400)
$16.50
W0277225 WIRING WITH CONNECTORS
$16.20
W0277229 CLIP
$12.00
W0277236 TUBE WITH 1 BUSH (L135)
$13.20
W0277238 SPRING
$12.80
W0277239 3-WAY VALVE CONNECTOR
$17.00
W0277240 PORTABLE DIGITAL THERMOMETER, -50 +150°C
$88.90
W0277731 SLIDING BLOCK BLACK(PA66)
W0277750 SUPPORT
$12.30
W0277753 TUBE PTFE DI2-DE4 L=90 2BUSHES
$12.50
W0277854 O-RING
$12.10
W0277879 DOUBLE CONNECTION
$11.70

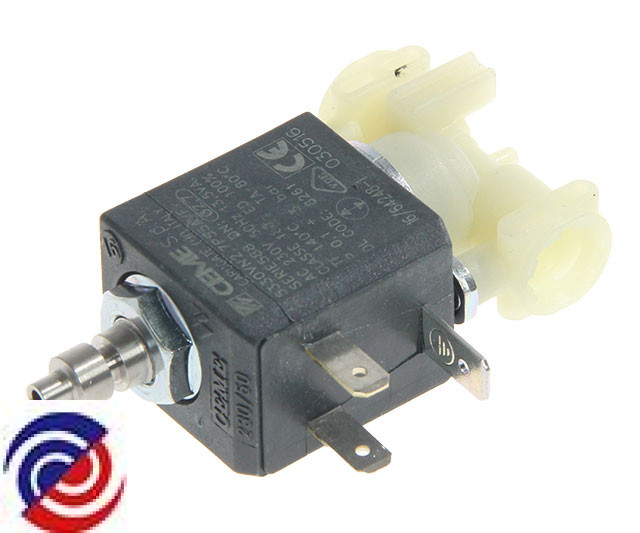

W0277882 SOLENOID VALVE (2VA 230V)
$29.00
.jpg)

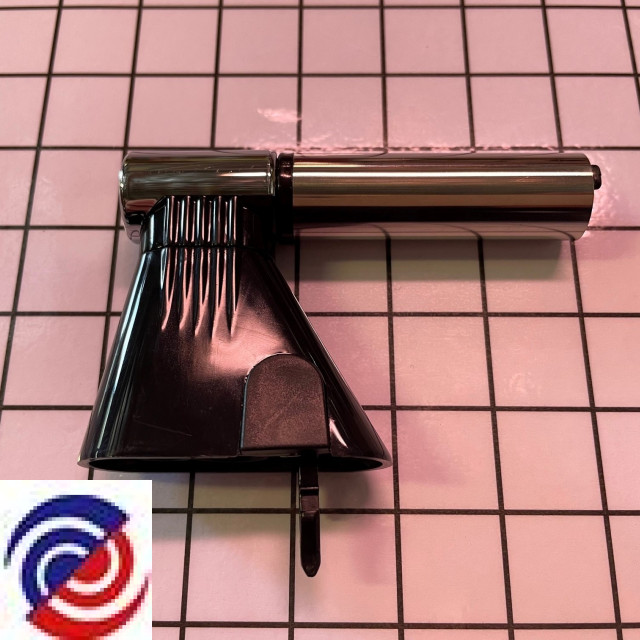

W0320092 DELONGHI HOT WATER SPOUT FROTHER
$17.00
W0277883 COUPLING MICRO SUPPORT (IFD)
W0295044 MILK INTAKE TUBE
$22.90
W0307840 TUBE
W0311496 POWER SUPPLY CORD WITH PLUG (AU)
$16.10
W0312189 SWITCH (10/16A 250V 105°)
$12.50
W0312191 HEATING ELEMENT (PTC 230V)
W0313013 CONTROL BOARD
$19.20
W0313132 SOLENOID VALVE (3VB 230V)
$26.70
W0313142 SOLENOID VALVE (3VA 230V)
$31.00
W0313161 POWER BOARD (SW1.02 230V)
$64.50
W0314931 SOLENOID VALVE CONNECTION
$12.10
W0315008 RIGHT ANGLE AND 45° GENERATOR CONNECTION
$11.90
W0315022 RIGHT ANGLE SOLENOID VALVE CONNECTION
$11.70
W0315130 WATER TANK COVER
$11.70
W0315131 BODY
W0315132 GENERATOR COVER
W0315133 DELONGHI LOGO
W0315135 FLOAT
$11.70
W0315137 CHROMED RIGHT PROFILE
W0315140 KEYBOARD SUPPORT
W0315143 LED COVER
W0315166 TRAY CONNECTOR
W0315167 FRAME
W0315168 DRIP TRAY
$11.70
W0315169 COUPLING SUPPORT (IFD)
W0315170 CONNECTOR COVER
W0315191 GENERATOR COVER
W0315192 GENERATOR SUPPORT
W0315212 RUBBER FOOT PAD
W0315243 RIGHT ANGLE TUBE
$11.70
W0315256 RIGHT ANGLE CONNECTOR
$11.70
W0315286 CUP HOLDER GASKET
$13.00
W0315287 SWITCH HOLDER
$11.70
W0315323 TUBE (L170)
$12.30
W0315334 FROTHER BODY KEY
$11.70
W0317805 O-RING (D=6)
$12.00
W0317945 O-RING
$12.10
W0319645 CARAFE COUPLING
W0319663 TUBE WITH 2 BUSHES (L125)
$11.80
W0319682 EXPANSION CHAMBER
$12.20
W0319693 GENERATOR
$80.40
W0320085 REAR COVER
$26.10
W0320088 CONTROL PANEL
W0320089 CUP HOLDER
$13.10
W0320090 FRONT PANEL
$14.20
W0320091 FRONT CENTRAL PANEL
$14.20
W0321497 CONTROL KEYBOARD
$14.20
W0323283 FILTER RETAINING SPRING (AISI 302)
$13.00
W0324195 COVER
$25.80
W0326214 CARAFE COUPLING
$20.60
W0326215 CUP HOLDER
$19.60
W0326233 PUSH BUTTON WITH LAMP
$14.30
W0326237 WATER TANK
$23.10
W0326298 MILK CARAFE COVER ASSEMBLY
$24.70
W0326304 MILK CARAFE
$16.70
W0326306 FILTER HOLDER SUMP
$42.20
W0327159 CLIP CLAMP (0.4X8.8-10.5)
W0345174 DLSC402 FILTER E.S.E POD
$17.05
