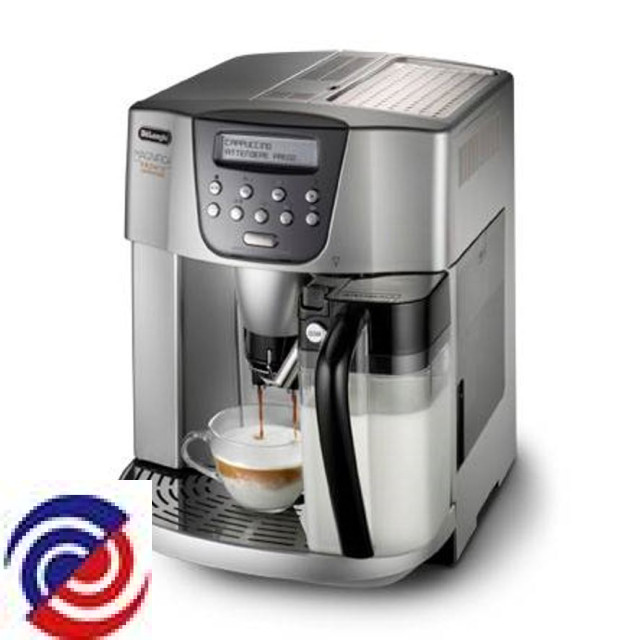

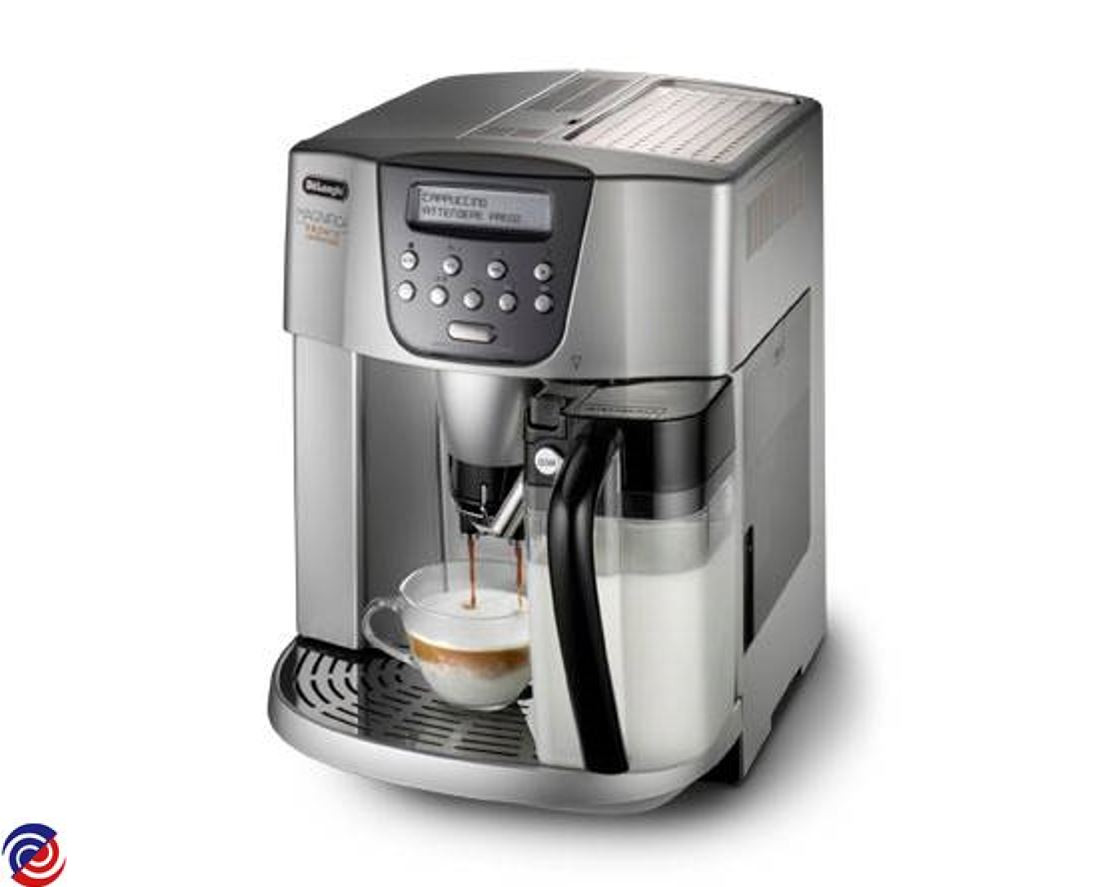

ESAM4500 — 0132215031
DELONGHI — Coffee Machine
Parts for ESAM4500
.jpg)
W0276635 SPOUT PIPETTE
$25.10
W0276942 MICROSWITCH (250V 85°)
$26.00
W0276945 O-RING (D=6.07 T=1.78)
$8.59
W0276958 SCREW (3.5X12)
$11.70
W0276969 STOPPER
$11.70
W0276970 VALVE
$11.70
W0276972 DELONGHI COFFEE MACHINE FILTER O-RING
$12.00
W0276981 MOTOR WITH PULLEY (ECM 230V)
$89.80
W0276982 HALL SENSOR (L620)
$16.10
W0276993 TUBE WITH 2 BUSHES (L270)
$23.30
W0276995 O-RING (D=3.85 T=2)
$12.00
W0276996 SPRING
$12.00
W0277013 MOTOR BELT
$14.00
W0277014 SCRAPER BRUSH WITH BRISTLES
$12.80
W0277015 GREASE TUBE (5GR VERKOFOOD)
$22.90
W0277020 GRINDER ASSEMBLY (2D-DL 230V)
$88.70
W0277022 GASKET
$7.02
W0277098 GRINDER BELLOW GASKET
$13.00
W0277099 REED SENSOR
$33.00
W0277100 FILTER (D.40X2.3 TAI-FENG)
$21.50
W0277149 MEASURING SPOON
W0277196 MICROSWITCH
$13.00
W0277212 DELONGHI COFFEE MACHINE PUMP (ULKA 230V 48W)
$37.95
W0277223 SENSOR (NTC L400)
$16.50
W0277735 VALVE
$6.60
W0277750 SUPPORT
$12.30
W0277761 IMPURITY FILTER
$14.30
W0277830 FIXING BRACKET (TCO)
$13.00
W0277831 SENSOR BRACKET
$13.00
W0277885 FLOWMETER WIRING (L 470)
$24.60
W0278031 FINGER STOP COVER (B)
$12.20
W0278119 MOTOR BOARD (ECM 230V)
$18.00
W0295783 LEVER
$11.70
W0296740 INFUSER
$43.00
W0313562 SAFETY THERMOSTAT (13.5A 318°)
$28.00
W0317798 HOOK
$12.50
W0318028 DRAIN HOSE (90°)
$14.00
W0319778 TUBE WITH NUT AND 1 BUSH (L335)
$16.30
W0319891 DELONGHI SOLENOID VALVE KIT 2 WAY
$38.00
W0319892 SOLENOID VALVE KIT (3VA 230V)
$33.00
.jpg)
W0319918 DELONGHI COFFEE MACHINE CARAFE COUPLING
$21.00
.jpg)
W0319926 DELONGHI GENERATOR WITH MECHANICS VALVE ASSEMBLY (6X1 230V)
$104.00
W0320630 TANK
$35.60
W0321467 GRINDING ADJUSTMENT KNOB
$12.20
W0323782 SOLENOID VALVE SUPPORT (2V)
$12.80
W0323783 SOLENOID VALVE SUPPORT (3V)
$29.00
W0323873 GRID
$14.70
W0325430 DELONGHI COFFEE MACHINE SAFETY VALVE
$14.00
W0273641 SLIDER
$16.00
W0273642 TRANSMISSION ASSEMBLY (CHIAPHUA 230V)
$95.30
W0276983 BELT
$12.20
W0277861 SEE TECNICAL INFORMATION
W0311588 WIRING FOR FLOWMETER (L630)
W0311858 TCO WITH WIRING
$24.70
W0312478 MICROSWITCH (10A/ 250V/ 125°)
$13.60
W0312993 POWER BOARD (SW4.1 230V)
$247.90
W0312995 CONTROL BOARD (SW3.1 )
$63.90
W0313557 PROTECTOR
$25.00
W0314984 SCUFF-PROOF RUBBER PAD
$13.00
W0315042 SOLENOID VALVE SUPPORT
W0315459 GRINDER PANEL
W0317791 FILTER
$12.00
W0317792 PISTON
$26.80
W0317795 SUPPORT
$11.90
W0317796 BUSH
$11.70
W0317797 BUSH
$11.70
W0317806 GASKET
$12.00
W0317808 COVER
$12.80
W0317857 RUNNER FRAME
$12.80
W0317925 COVER
$31.80
W0317926 COVER
$31.80
W0317927 RIGHT SIDE
$41.80
W0317928 LEFT SIDE
$41.80
W0317929 REAR PANEL
$41.80
W0317942 COVER
W0317943 GLASS
W0317944 KEYBOARD
W0317962 PROFILE
$26.50
W0317963 COVER
$13.10
W0317981 PIN
$11.70
W0317984 CUP HOLDER TRAY
$40.00
W0317985 GASKET
$12.20
W0317999 KEY
W0318000 KEY
$13.20
W0318013 SUPPORTO
W0318014 BOTTOM
W0318072 FLOAT
$11.70
W0318077 COVER
$12.00
W0319720 TANK
$23.60
W0320614 CONTROL PANEL
$48.80
W0323186 CUP HOLDER
$24.70
W0323457 SPRING
$11.70
W0323458 SPRING
$11.70
W0323461 SPRING
$11.70
W0323462 SPRING
$11.70
W0323781 POD SUPPORT
$14.30
W0323872 BRACKET
$21.20
W0325345 COVER
W0325437 DOOR ASSEMBLY
$28.30
W0325528 UPPER COVER
$26.20
