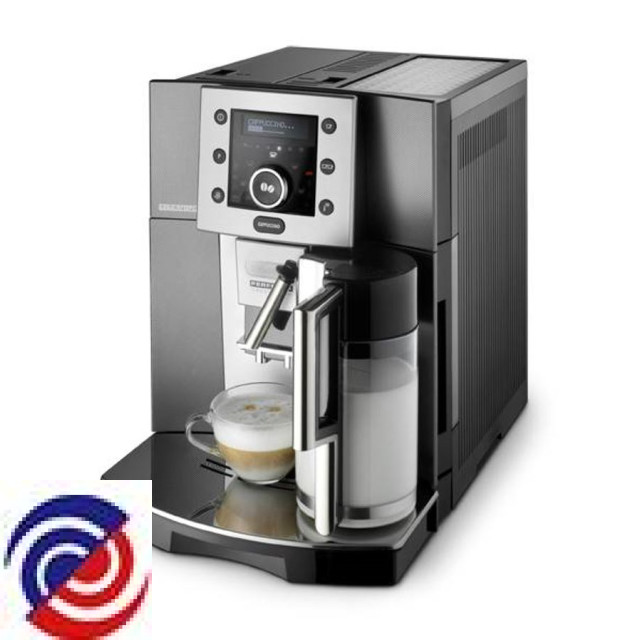

ESAM5500.B — 0132215066
DELONGHI — Coffee Machine

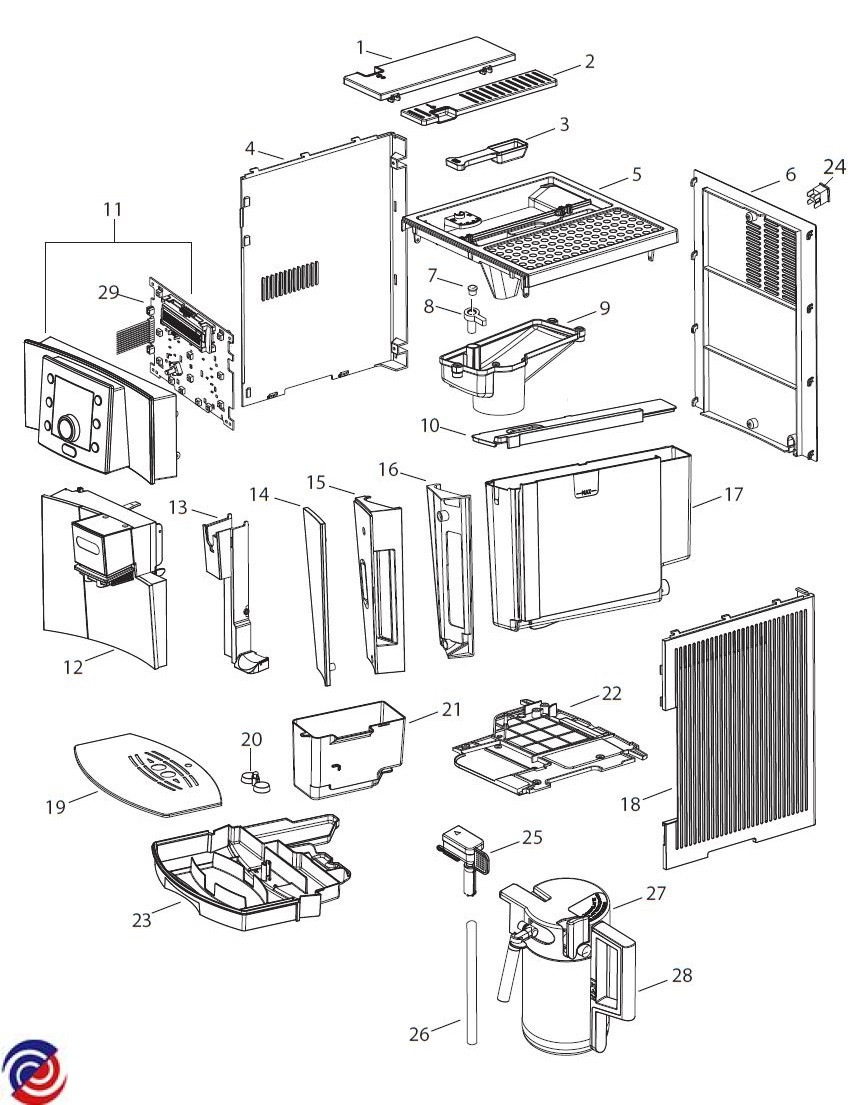

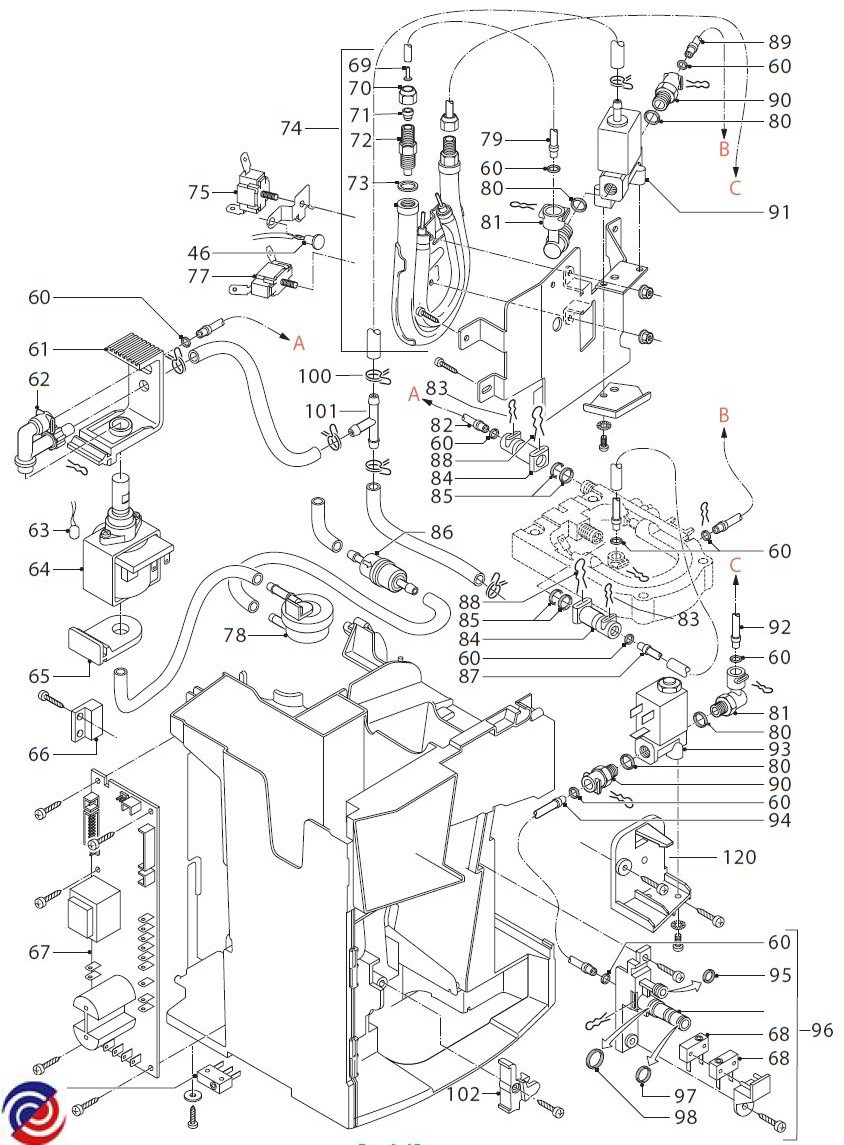

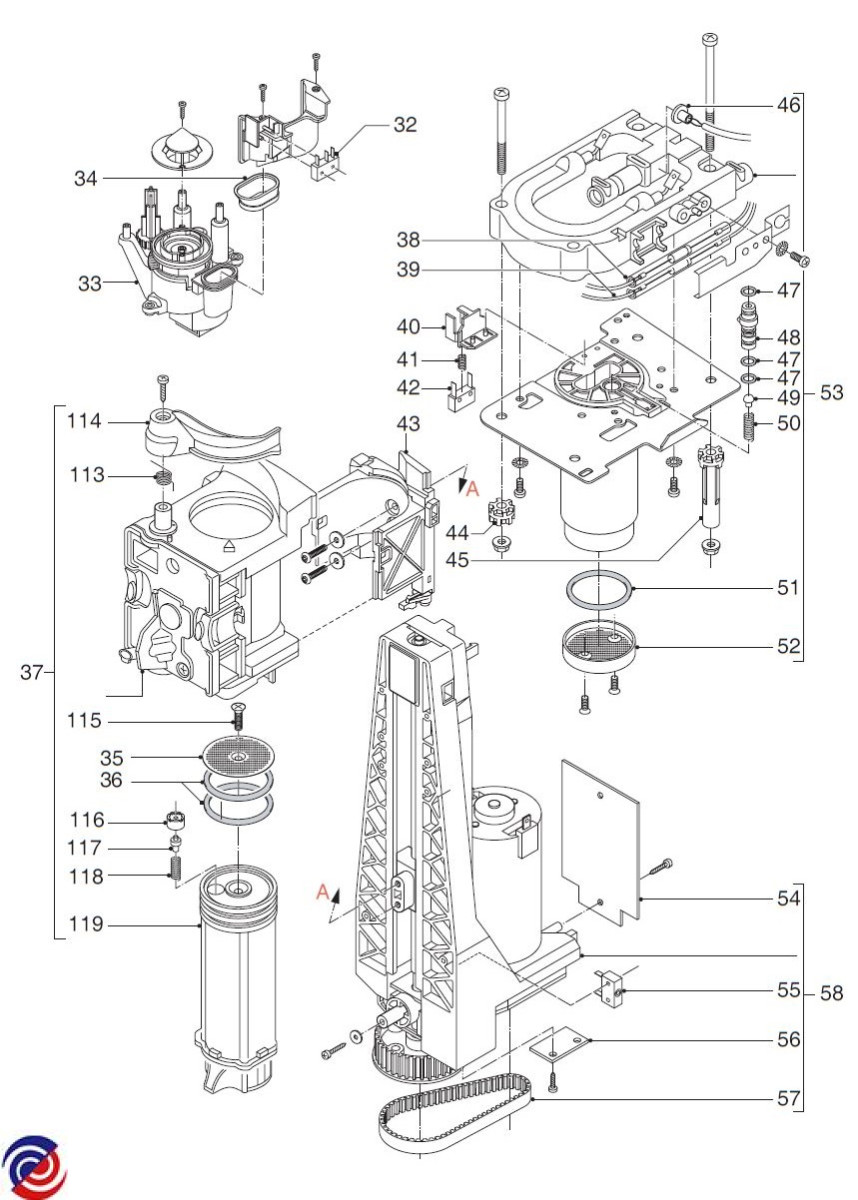

Parts for ESAM5500.B
W0276925 SWITCH
$24.30
W0276940 O-RING (D=6.75 T=1.78)
$11.70
W0276942 MICROSWITCH (250V 85°)
$26.00
W0276945 O-RING (D=6.07 T=1.78)
$8.59
W0276958 SCREW (3.5X12)
$11.70
W0276969 STOPPER
$11.70
W0276970 VALVE
$11.70
W0276971 SPRING
$12.00
W0276972 DELONGHI COFFEE MACHINE FILTER O-RING
$12.00
W0276980 MICROSWITCH
$25.40
W0276981 MOTOR WITH PULLEY (ECM 230V)
$89.80
W0276982 HALL SENSOR (L620)
$16.10
W0276993 TUBE WITH 2 BUSHES (L270)
$23.30
W0276995 O-RING (D=3.85 T=2)
$12.00
W0276996 SPRING
$12.00
W0277010 CLIP (WIRE 1,2 AISI302)
W0277012 CONNECTOR
$12.00
W0277013 MOTOR BELT
$14.00
W0277014 SCRAPER BRUSH WITH BRISTLES
$12.80
W0277020 GRINDER ASSEMBLY (2D-DL 230V)
$88.70
W0277022 GASKET
$7.02
W0277083 TOOTHED BELT
$14.00
W0277098 GRINDER BELLOW GASKET
$13.00
W0277099 REED SENSOR
$33.00
W0277100 FILTER (D.40X2.3 TAI-FENG)
$21.50
W0277114 TUBE WITH 2 BUSHES (L150)
$12.10
W0277212 DELONGHI COFFEE MACHINE PUMP (ULKA 230V 48W)
$37.95
W0277223 SENSOR (NTC L400)
$16.50
W0277735 VALVE
$6.60
W0277747 GASKET
$12.00
W0277750 SUPPORT
$12.30
W0277761 IMPURITY FILTER
$14.30
W0277830 FIXING BRACKET (TCO)
$13.00
W0277831 SENSOR BRACKET
$13.00
W0277854 O-RING
$12.10
W0277885 FLOWMETER WIRING (L 470)
$24.60
W0278070 NUT
$12.00
W0278071 BRASS BUSH
W0278073 RING
$11.90
W0278119 MOTOR BOARD (ECM 230V)
$18.00
W0295781 HOT WATER SPOUT
W0295783 LEVER
$11.70
W0296740 INFUSER
$43.00
W0313562 SAFETY THERMOSTAT (13.5A 318°)
$28.00
W0317798 HOOK
$12.50
W0318028 DRAIN HOSE (90°)
$14.00
W0319778 TUBE WITH NUT AND 1 BUSH (L335)
$16.30
W0319891 DELONGHI SOLENOID VALVE KIT 2 WAY
$38.00
W0319892 SOLENOID VALVE KIT (3VA 230V)
$33.00
.jpg)
W0319927 DELONGHI GENERATOR WITH MECHANICS VALVE (5X0.5 230V)
$107.00
.jpg)
W0321493 FUNCTION KEYBOARD
$14.80
W0323782 SOLENOID VALVE SUPPORT (2V)
$12.80
W0323783 SOLENOID VALVE SUPPORT (3V)
$29.00
W0325430 DELONGHI COFFEE MACHINE SAFETY VALVE
$14.00
W0365410 DELONGHI COUPLING
$18.00
W0273641 SLIDER
$16.00
W0273642 TRANSMISSION ASSEMBLY (CHIAPHUA 230V)
$95.30
W0277861 SEE TECNICAL INFORMATION
W0307707 STOPPER
$12.00
W0308082 CONNECTION
$12.20
W0311588 WIRING FOR FLOWMETER (L630)
W0311858 TCO WITH WIRING
$24.70
W0311859 TCO WITH WIRING
$24.50
W0312478 MICROSWITCH (10A/ 250V/ 125°)
$13.60
W0312978 POWER BOARD (SW2.4 230V)
$81.20
W0313557 PROTECTOR
$25.00
W0314930 GRINDING ADJUSTMENT KNOB
$12.00
W0314934 BLACK REAR PANEL CAP
W0314956 NICHE FRONT PIECE (IFD)
W0314984 SCUFF-PROOF RUBBER PAD
$13.00
W0314992 PUMP SUPPORT
$23.30
W0315031 SUPPORT
$87.90
W0315218 SWITCH HOLDER
W0315459 GRINDER PANEL
W0317791 FILTER
$12.00
W0317792 PISTON
$26.80
W0317795 SUPPORT
$11.90
W0317796 BUSH
$11.70
W0317797 BUSH
$11.70
W0317806 GASKET
$12.00
W0317857 RUNNER FRAME
$12.80
W0317945 O-RING
$12.10
W0317947 CONNECTION
$11.70
W0317948 CONNECTION
$12.10
W0317981 PIN
$11.70
W0318012 BOTTOM
$24.40
W0318015 MEASURING SPOON
$11.70
W0318065 WATER INTAKE TUBE
$12.00
W0318074 FLOAT
$12.00
W0318077 COVER
$12.00
W0318092 TANK COVER
$14.90
W0318094 RIGHT SIDE
$30.60
W0318095 LEFT SIDE
$29.60
W0318097 REAR PANEL
$30.80
W0318098 FROTHER NICHE
$13.30
W0318099 SPACER
$12.90
W0318100 CONTROL PANEL
W0318101 TANK COVER
$13.20
W0318105 SUPPORT
$13.20
W0318106 SUPPORT
$12.90
W0318107 FRONT PIECE
$43.50
W0318108 DISPENSER GLASS
W0318109 DRIP TRAY
$31.20
W0318116 HANDLE
$15.60
W0319598 GROUND COFFEE TANK COVER
$12.90
W0319635 CONTROL BOARD
$125.80
W0319777 TUBE WITH NUT AND 1 BUSH (L135)
$14.00
W0320629 TANK
$12.80
W0321459 SELECTOR KEY
$13.30
W0321460 FUNCTION KEYBOARD
$13.50
W0321461 KEY (IFD)
$12.90
W0323197 CUP HOLDER
$32.80
W0323282 INSERT
$11.70
W0323457 SPRING
$11.70
W0323458 SPRING
$11.70
W0323462 SPRING
$11.70
W0323530 CONNECTION
W0323781 POD SUPPORT
$14.30
W0323872 BRACKET
$21.20
W0325358 MILK CARAFE COVER ASSEMBLY
W0325516 DOOR ASSEMBLY
$75.50
W0325523 UPPER COVER
$48.70
W0325553 CONTROL PANEL ASSEMBLY
$194.90
W0325634 CARAFE ASSMBLY
W0327150 CLIP CLAMP
$12.00
W0342645 SEE TECNICAL INFORMATION
