DEFV908R — C9SDDA100I

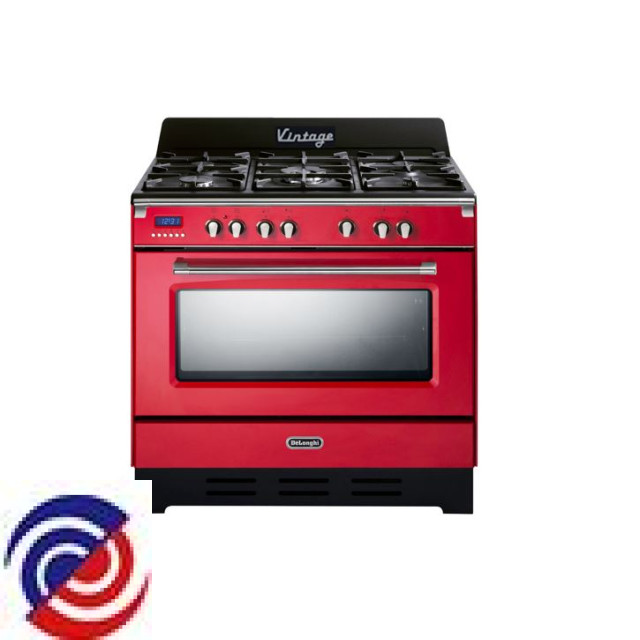

DELONGHI — Cooker Dual Fuel

W0271286 ELEMENT F/F DELONGHI TRIPLE RING SHORT NECK 2500W

$69.00

W0273375 TANGENTIAL FAN

W0273377 FAN MOTOR - 230 V

W0282379 SEAL

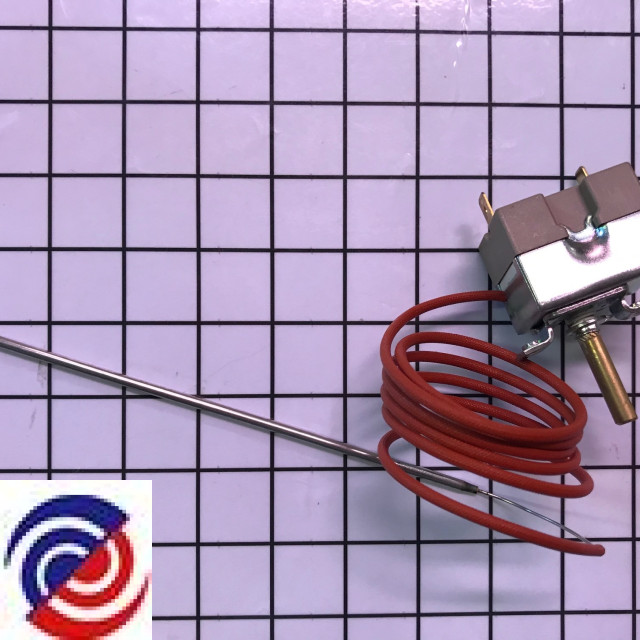

W0294030 OVEN THERMOSTAT

W0303429 DELONGHI GRATE FOR SMALL PANS

$17.60

W0273744 LAMP

$15.20

W0282319 DELONGHI OVEN GRILL ELEMENT 90CM OVENS

W0282320 BOTTOM ELEMENT

$38.90

W0293067 ELECTRONIC PROGRAMMER

$198.00

W0294106 DOOR HINGE (MALE)

W0294253 OVEN SWITCH (SEE TECH BULLETIN AUNZ0155 FOR WIRING CONNECTIONS)

W0299455 SCREW

W0299497 INLET PIPE - REAR RIGHT SR

W0299670 CORD 3X2.5

W0299802 BRACKET

W0299846 FRONT RIGHT COUPLER

W0299847 FRONT LEFT COUPLER

W0299989 LEFT TELESCOPIC RUNNER

W0300122 RIGHT STOPPER

W0300123 LEFT STOPPER

W0300323 ROTISSERIE MOTOR SUPPORT

W0300653 REINFORCEMENT

W0302707 VIS

$12.10

W0302737 SCREW

$12.10

W0302743 STAINLESS STEEL SCREW V

$12.10

W0302746 KNOB SPRING

$12.10

W0302747 CLIP

$12.10

W0302789 TAP FIXING SCREW

$12.20

W0302792 RETAINING RING

$12.20

W0302798 CONTROL LAMP COVER (BLUE)

$12.20

W0302807 PLUG

$12.20

W0302814 IGNITER SPRING

$12.30

W0302824 BUFFER

$12.30

W0302825 SEALING WASHER

$12.30

W0302828 CLIP

$12.30

W0302847 RUBBER

$12.40

W0302867 TAP BRACKET

$12.40

W0302879 FIXING PLATE

$12.40

W0302932 IGNITER SPRING

$12.70

W0302940 TERMINAL BLOCK COVER

$12.60

W0302950 THERMOCOUPLE NUT

$12.70

W0302951 THERMOCOUPLE NUT DUAL

$12.70

W0303020 REAR INSULATION SUPPORT

$12.90

W0303038 INJECTOR DIAM 0.50 - DUAL IN

$13.00

W0303041 INJECTOR DIAM 0.70 - SR

$13.00

W0303042 INJECTOR DIAM 1.17 - SR

$13.00

W0303043 INJECTOR DIAM 0.73 - DUAL OUT

$13.00

W0303044 INJECTOR DIAM 0.76 - DUAL IN

$13.00

W0303045 INJECTOR DIAM 1.54 - R

$13.00

W0303046 INJECTOR DIAM 0.98 - R

$13.00

W0303047 INJECTOR DIAM 1.23 - DUAL OUT

$13.00

W0303048 INJECTOR DIAM 0.92 - A

$13.00

W0303052 INJECTOR DIAM 0.56 - A

$13.00

W0303060 TERMINAL BLOCK 16A-2P PA 44-2FV

$13.00

W0303153 INLET PIPE PLUG

$13.60

W0303157 DOOR HINGE (FEMALE)

$13.60

W0303182 IGNITER L = 350

$13.90

W0303199 SIDE DOOR INSULATION

$14.10

W0303208 REAR HOB SUPPORT RIGHT

$14.20

W0303209 REAR HOB SUPPORT LEFT

$14.20

W0303219 ELECTRONIC TIMER SEAL

$14.30

W0303222 BURNER-CAP A

$14.30

W0303248 IGNITER L = 800

$14.70

W0303271 BURNER-CAP SR

$14.80

W0303291 BUTTON

$15.10

W0303308 TERMINAL BLOCK 25A-3P

$15.20

W0303314 TERMINAL BLOCK

$15.30

W0303334 INLET PIPE - FRONT RIGHT A

$15.50

W0303335 CONTROL LAMP L = 230

$15.50

W0303344 HINGE

$15.50

W0303354 BURNER HEAD A

$15.60

W0303360 BURNER-CUP A

$15.70

W0303396 INLET PIPE - FRONT LEFT R

$16.00

W0303435 INLET PIPE - REAR LEFT SR

$16.20

W0303456 BURNER-CAP R

$16.30

W0303459 BURNER-CUP SR

$16.30

W0303492 INLET PIPE - OUTSIDE DUAL

$16.60

W0303497 CUT-OUT THERMOSTAT 160 DEGREE C

$16.60

W0303510 INLET PIPE - INSIDE DUAL

$16.70

W0303526 CUT-OFF THERMOSTAT 55 DEGREE

$16.80

W0303528 CONICAL ADAPTOR

$16.80

W0303615 BURNER HEAD SR

$17.40

W0303622 BURNER-CUP R

$17.50

W0303625 BURNER-CAP INSIDE DUAL

$17.60

W0303652 IGNITER DUAL - L = 650

$17.90

W0303674 BOTTOM ELEMENT INSULATION

$20.20

W0303691 REAR INSULATION

$30.50

W0303698 OVEN INSULATION

$36.70

W0303699 GRILL-PAN GRID HANDLE

$19.30

W0303777 BURNER HEAD DUAL

$40.80

W0303790 LAMP HOLDER ASSEMBLY

$22.70

W0303823 ROTISSERIE MOTOR

$25.10

W0303838 ROTISSERIE SPEAR (WITHOUT HANDLE)

$25.50

W0303897 GAS PRESSURE REGULATOR 1/2

$35.00

W0303899 TEST POINT ADAPTOR

$26.70

W0303968 TAP DUAL 29-57

$97.10

W0303984 BURNER THERMOCOUPLE L = 600

$19.30

W0303985 BURNER THERMOCOUPLE DU - L = 600

$19.60

W0303986 BURNER THERMOCOUPLE L = 250

$18.30

W0304000 BURNER-CUP DUAL

$93.90

W0304003 SHELF SUPPORT

$19.20

W0304008 ROTISSERIE SUPPORT

$47.60

W0304013 OVEN TRAY SUPPORT

$27.20

W0304014 GRID FOR WOKS

$32.80

W0304020 GRILL-PAN GRID

$30.70

W0304021 PAN-SUPPORT

$56.40

W0304025 CENTRAL PAN SUPPORT

$57.20

W0304050 OVEN SHELF

$39.90

W0304085 CATALYTIC PANELS

$33.40

W0304124 RIGHT TELESCOPIC RUNNER

$48.70

W0304126 BASED PANEL SPRING

$30.30

W0304130 IGNITION SWITCHES

$25.00

W0304163 WIRING

$125.10

W0304186 REAR PANEL

$41.80

W0304207 ANTI TILT BRACKET

$23.80

W0304211 SHIM

$61.10

W0304234 COMPLETE HANDLE

$87.90

W0304235 DOOR HANDLE

$67.00

W0304297 BURNER HEAD R

$19.80

W0304355 KNOB RING

$21.20

W0304364 INNER GLASS

$52.30

W0304379 DOOR GLASS

$213.80

W0304496 BASE PANEL

$47.70

W0304497 LATERAL BASE PANEL

$34.50

W0304498 REAR TRIM

$135.60

W0304502 TAP DIAM 0.28 A

$38.10

W0304503 TAP DIAM 0.33 SR

$38.10

W0304504 TAP DIAM 0.43 R

$40.30

W0304520 BURNER-CAP OUTSIDE DUAL

$24.10

W0304537 DUAL BURNER KNOB RING

$21.20

W0304538 KNOB RING

$21.20

W0304539 BURNER KNOB RING

$21.20

W0304545 BURNER KNOB

$24.80

W0304546 OVEN THERMOSTAT KNOB

$25.30

W0304565 COOKTOP

$131.90

W0304594 MANIFOLD

$37.60

W0304620 CONTROL PANEL

$61.10

W0304695 RIGHT SIDE PANEL

$43.80

W0304701 LEFT SIDE PANEL

$43.80

W0304709 FRONT PANEL

$68.10

W0304726 INSIDE PANEL

$24.70

W0304804 HINGE PROTECTION

$18.80

W0304812 BOTTOM INSULATION SUPPORT

$28.20

W0304814 BOTTOM ELEMENT SUPPORT

$27.50

W0304818 UPPER SHELTER

$34.50

W0304832 OVEN FRAME

$226.70

W0304880 FUNNEL

$37.50

W0304881 AIR CONVEYOR

$29.20

W0304885 FAN DIFFUSER

$47.70

W0304907 OVEN FLOOR

$46.80

W0304914 OVEN TRAY

$44.60

W0304932 RIGHT DOOR TRIM

$27.20

W0304933 LEFT DOOR TRIM

$27.20

W0304974 CONTROL PANEL TRIM

$48.80

W0304975 BURNERS SUPPORT

$19.20

W0304978 TRIM HANDLE

$24.30

W0304981 CROSS-PIECE

$21.80

W0305012 NATURAL GAS CONVERSION KIT

$27.70
