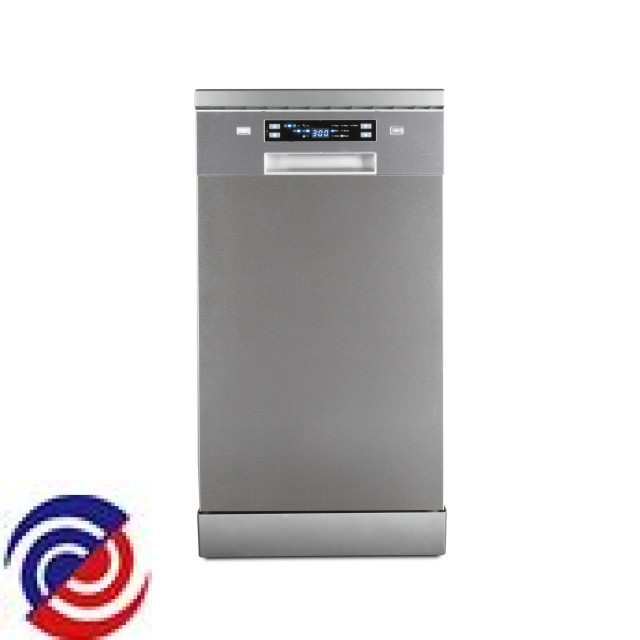

DEDW4510S — 9901590021
DELONGHI — Dishwasher
Parts for DEDW4510S
W0293198 DISHWASHER DISPENSER
W0293272 17176000012008-THERMOSTAT
$28.00
W0293381 12176000008517-CUTLERY SHELF GUIDER LINK STOPPER(BACK)
$12.20
W0293455 DELONGHI AQUA STOP INLET HOSE ASSEMBLY
$135.00
W0278711 12676000000138-DRAIN HOSE ASSEMBLY
W0293190 12176000003629-FRICTION STRIP HOOKING CLAMPING
$12.70
W0293196 12276000001731-LEFT HINGE ASSEMBLY
$15.80
W0293199 12276000001778-RIGHT HINGE ASSEMBLY
$17.50
W0293207 12176000010412-RAIL SUPPORT ASSEMBLY
$12.90
W0293208 12176000008444-CUTLERY SHELF GUIDER SUPPORTING HOLDER
$12.20
W0293209 12176000010336-CUTLERY SHELF RAIL SUPPORT ASSEMBLY
$12.40
W0293224 POWER CORD
$21.10
W0293225 12176000013663-AIR BREAKER NUT
$12.70
W0293236 12876000000050-FLOAT
$12.70
W0293237 12176000003125-OVERFLOW SWITCH SEAT
$14.20
W0293238 17476000001137-OVERFLOW SWITCH
$15.70
W0293252 FILTER HANDLE
$18.54
W0293253 12176000003676-CYLINDER FILTER
$21.00
W0293378 LEFT SIDE PANEL
$32.30
W0293379 RIGHT SIDE PANEL
$37.00
W0293382 12276000001341-SWORD FORK FRAME GUIDER(LEFT)
$15.00
W0293383 12276000001344-SWORD FORK FRAME GUIDER(RIGHT)
$15.00
W0293384 12176000008573-BASKET GUIDER SUPPORTING HOLDER
$12.20
W0293386 12176000008496-BASKET GUIDER LINK STOPPER(BACK)
$12.30
W0293387 12276000001357-UPPER BASKET GUIDER(LEFT)
$15.30
W0293388 12276000001360-UPPER BASKET GUIDER(RIGHT)
$15.30
W0293394 12176000009490-POWER CORD CLASPER
$12.20
W0293396 FOOT
$12.40
W0293397 DOOR ROPE
$13.50
W0293399 12976000001001-ADJUST SCREW OF DOOR SPRING
$100.50
W0293406 12176000003911-AIR BREATHER ASSEMBLY
$94.00
W0293407 12676000000713-AIR BREATHER SEAL
$12.50
W0293409 PUMP SUPPORT ASSEMBLY
$15.20
W0293414 12176000009472-INNER PIPE
$28.10
W0293416 12176000008645-SPRAYER SEAT
$12.40
W0293417 12676000001461-SUMP SEAL
$14.40
W0293420 11001011000449-PERMANENT MAGNET SYNCHRONOUS PUMP
W0293421 12176000016225-SUMPASSEMBLY
$187.61
W0293422 12676000000651-PVC PIPE
$12.40
W0293423 12676000000644-OUTLET HOSE OF SOFTENER
$14.40
W0293446 12976000000308-CLAMP
$12.40
W0293448 17176000000306-TURBIDITY TRANSDUCER
$19.50
W0293764 DISPENSER BRACKET
$11.70
W0293914 LEFT BUTTON
$17.60
W0293915 RIGHT BUTTON
$17.60
W0293916 HANDLE COVER
$13.10
W0293917 CONTROL PANEL
$26.50
W0293918 CONTROL PANEL COVER STICKER
$20.50
W0293919 DISPLAY WINDOW
$18.70
W0293920 OUT DOOR
$37.80
W0293921 BASEBOARD
$21.60
W0293922 DISPLAY PCB BOARD
$73.54
W0293923 DOOR SWICTH ASSEMBLY
$20.10
W0293924 INNER DOOR ASSEMBLY
$42.90
W0293925 HINGE JOIN BOARD
$13.40
W0293926 TOP PANEL ASSEMBLY
$48.40
W0293927 UPPER BACK SUPPORT
$26.20
W0293928 ANTI-NOISE BORAD
$14.60
W0293929 TANK GASKET
$17.70
W0293930 DOOR LOCK HOOK
$12.40
W0293931 DOOR SPRING ASSEMBLY
$15.40
W0293932 BASE COVER
$18.80
W0293933 17476000001222-PRESSURE SWITCH
$55.02
W0293934 MAIN PCB BOARD
$47.90
W0293935 PCB SEAT
$14.40
W0293936 PCB BOX COVER
$13.60
W0293937 LOWER SPRAYER ASSEMBLY
$15.00
W0293938 PLANE FILTER
$19.60
W0293939 396 CLAMP
$12.30
W0293940 WASHING PUMP OUTLET PIPE
$13.50
W0293941 INDUCTION PUMP ASSEMBLY
$84.00
W0293942 HEATING ELEMENTS
$32.10
W0293943 WASHING PUMP INLET PIPE
$14.40
W0293944 DELONGHI INNER DRAIN PIPE
$26.90
W0293945 WIRING HARNESS
$15.10
W0293946 DELONGHI DISHWASHER CUTLERY ASSEMBLY
$123.95
W0293947 UPPER BASKET
$78.50
W0293948 LOWER BASKET ASSEMBLY
$185.00
W0293949 SPRAY ARM
$37.73
W0293950 CUP HOLDER
$12.90
W0293951 WIRING HARNESS
$34.00
