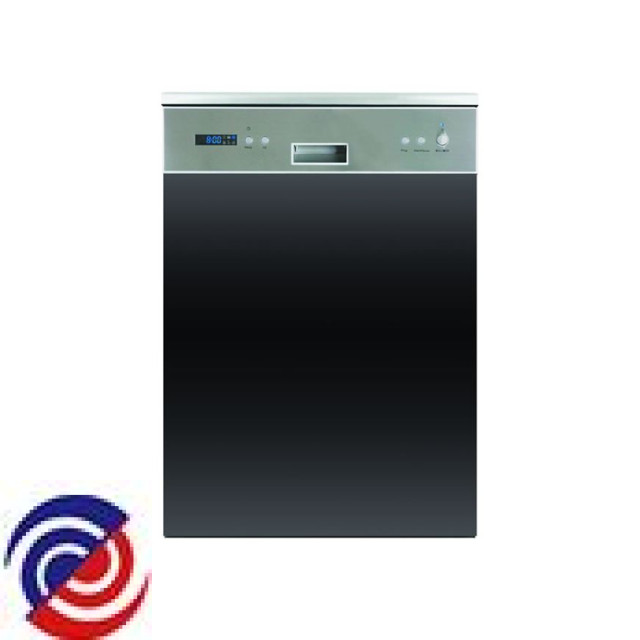

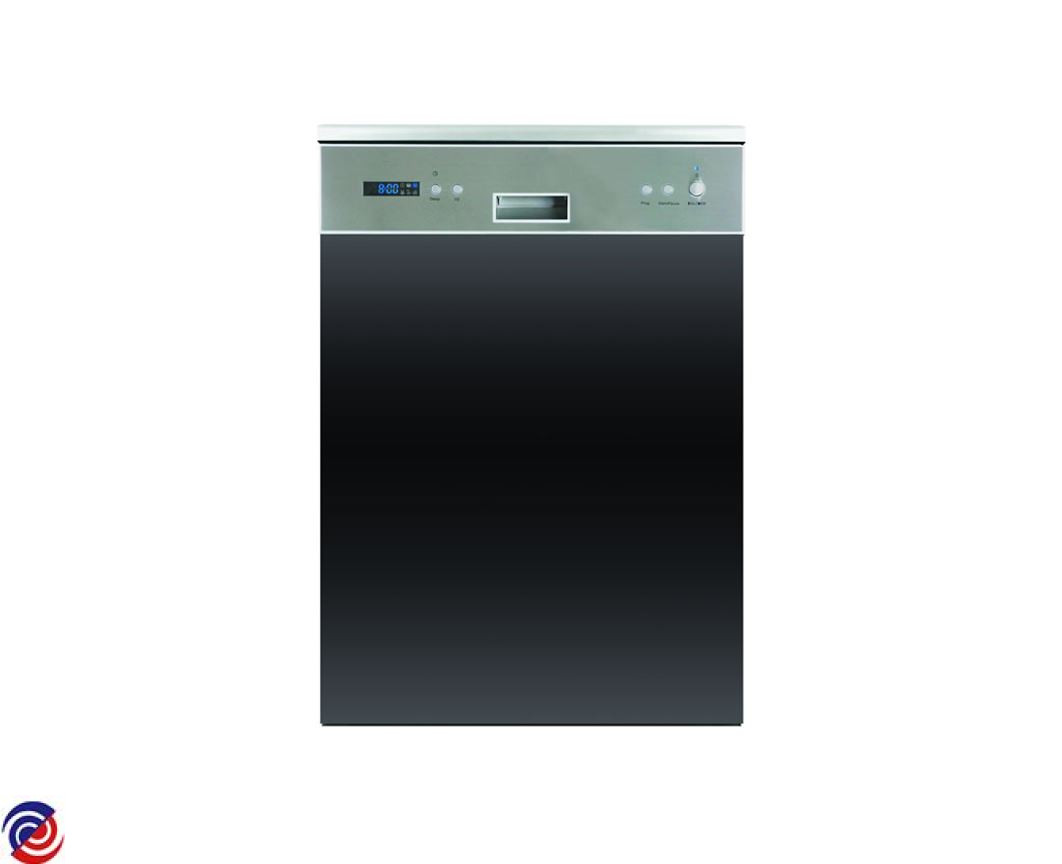

DEDW60SI — 9901590002
DELONGHI — Dishwasher

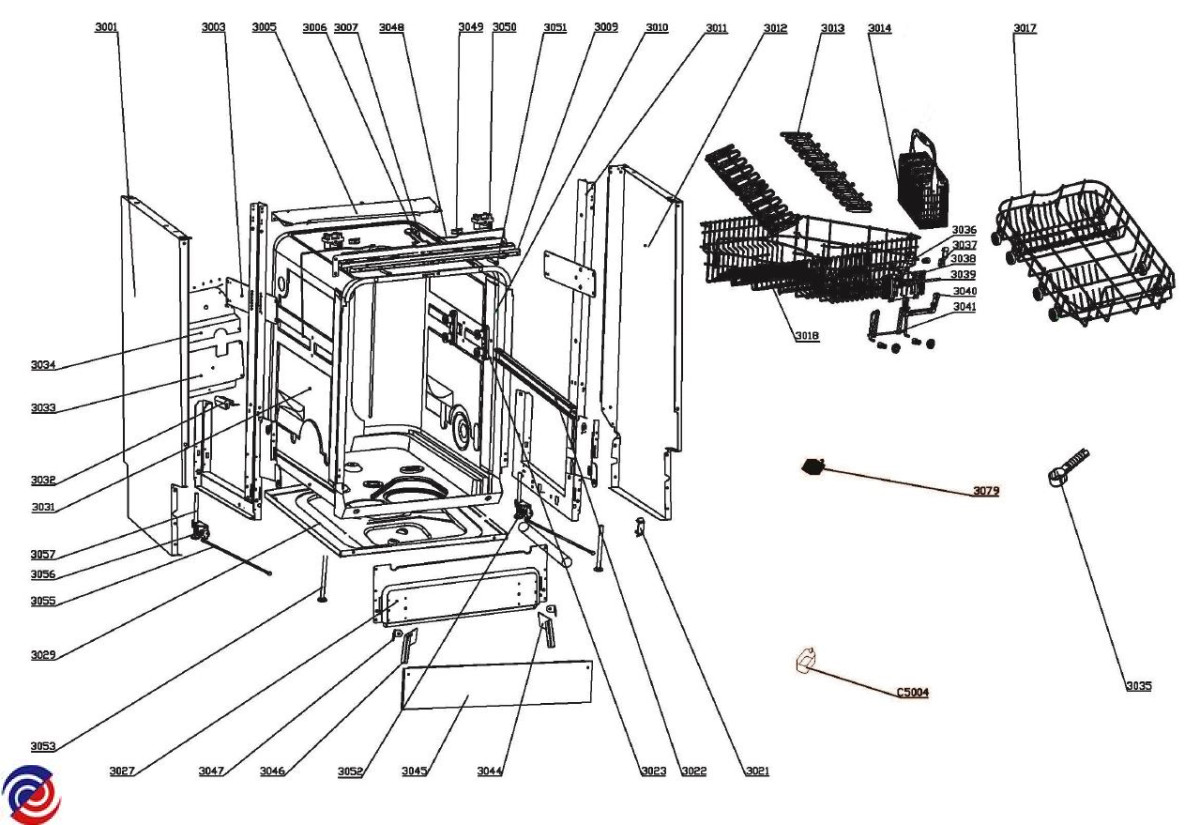

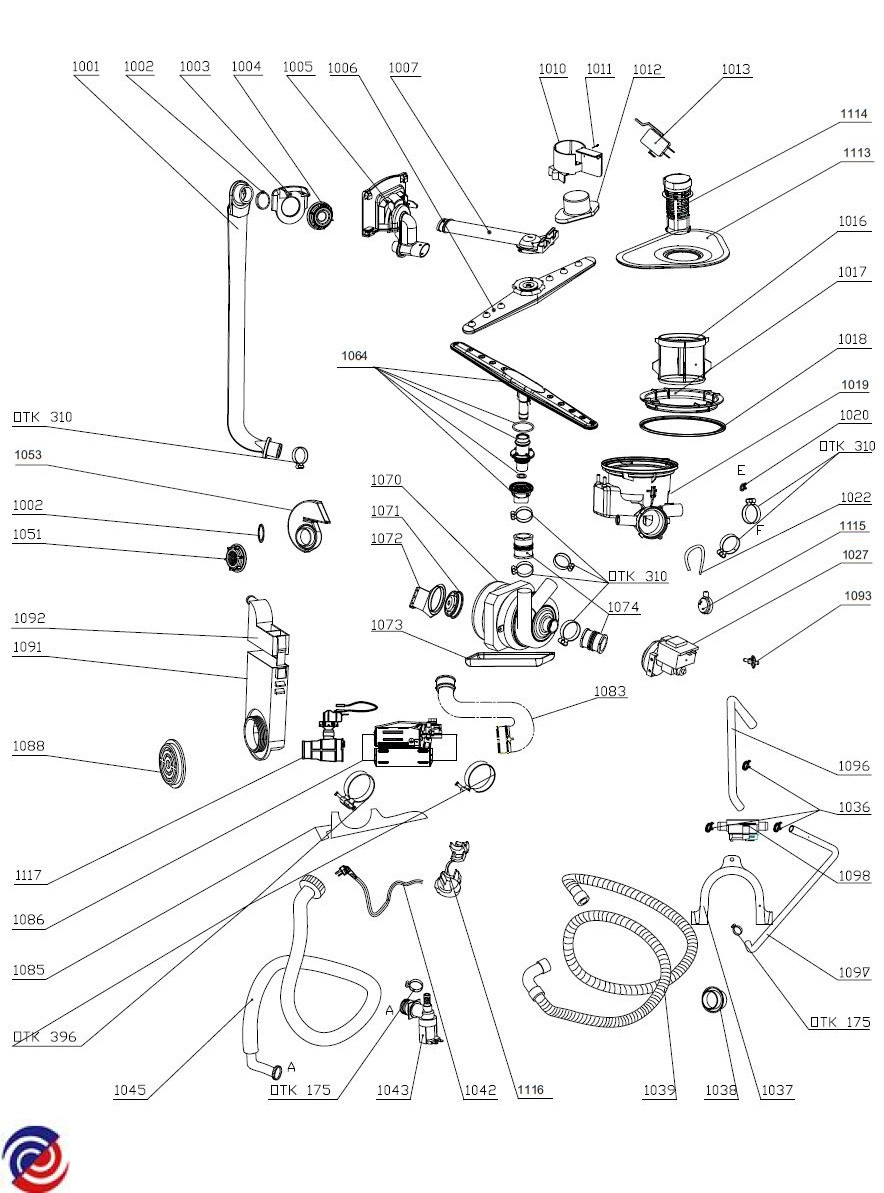

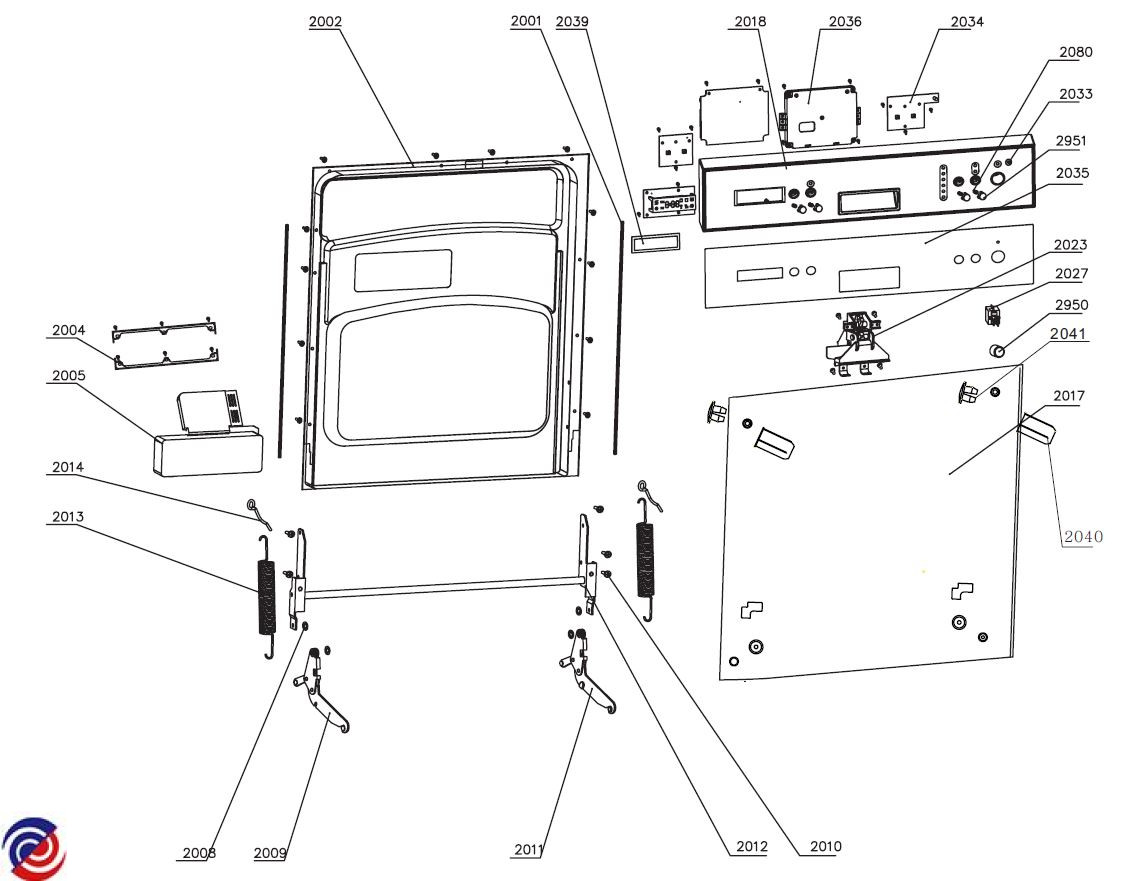

Parts for DEDW60SI
W0273396 WASHING PUMP INCLUDES HALF LOAD
$383.36
W0273422 CUTLERY BASKET ASSEMBLY
W0274085 POWER SWITCH
W0277178 DELONGHI DISHWASHER DETERGENT DISPENSER
$144.00
W0281538 DRAIN PUMP WITHOUT CASING
W0282057 DELONGHI MAIN CONTROL BOARD
$266.85
W0292985 PRESSURE SWITCH 140/120
$21.70
W0292986 RAIL SUPPORT ASSY
$18.50
W0292988 INLET HOSE ASSEMBLY
$58.00
W0293026 EXTERNAL PIPE NUT
$12.30
W0293028 UPPER SPRAYER
W0293045 DRAIN HOSE WITH SMALL RUBBER ELBOW
$19.70
W0293055 HEATING ELEMENTS
W0293062 FLOWMETER - A
W0293100 TANK GASKET

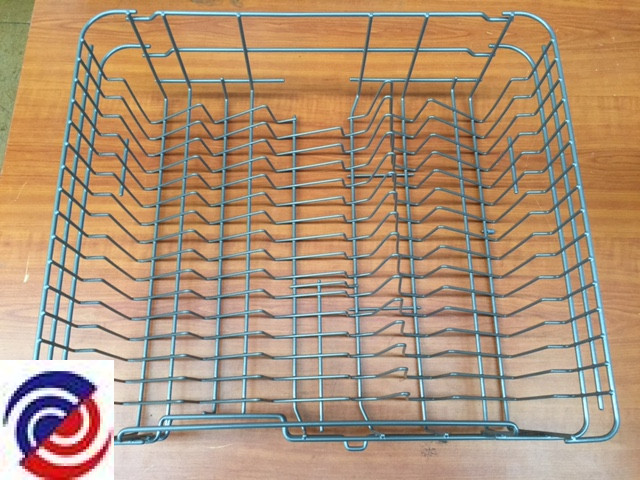

W0293105 UPPER BASKET
$54.10
W0293123 HANDLE
$35.00
W0293124 SLIP BRACKET
W0279017 DOOR SPRING
$11.60
W0281958 SUMP
$12.80
W0281959 SUMP GASKET
$12.90
W0293017 RINSING AGENT CUP
W0293018 OTK 175
$12.30
W0293019 OTK 286
$11.20
W0293020 OTK 310
$12.30
W0293022 OTK 396
$12.30
W0293023 EXTERNAL PIPE
$13.80
W0293024 O RING I 31.5X3.55
$11.20
W0293025 GUIDE CASING
$11.60
W0293027 WATER DISPENSER
$13.80
W0293029 UPPER SPRAYER PIPE
$12.30
W0293030 FLOAT HOLDER
$11.60
W0293031 SCREW ST2.9X22
$11.60
W0293032 FLOAT
$11.20
W0293033 MICRO SWITCH
$15.80
W0293038 MICRO FILTER
$15.80
W0293039 SUMP NUT
$11.80
W0293040 CLAMP 12.7
$12.30
W0293041 PVC HOSE
$11.80
W0293042 CLAMP 14.5
$13.50
W0293043 DRAIN HOSE HOOK
$12.70
W0293044 DRAIN HOSE HOLDER
$11.60
W0293046 INLET VALVE
$21.70
W0293047 AIR BREATHER NUT
$11.20
W0293048 AIR INLET
$11.60
W0293049 LOWER SPRAYER
$17.50
W0293050 MOTOR SUPPORT BRACKET
$12.00
W0293051 MOTOR INSULATION PAN
$11.60
W0293052 CONNECT HOSE
$12.70
W0293053 BEND CONNECT HOSE
$13.50
W0293054 HEATING ELEMENT SUPPORT
$11.60
W0293056 WATER INLET NUT
$11.60
W0293057 WATER INLET
$31.10
W0293058 WATER INLET COVER
$12.40
W0293059 SENSING DEVICE
$13.50
W0293060 INLET HOSE 1
$13.50
W0293061 INLET HOSE 2
$13.50
W0293063 PLANE FILTER
$23.50
W0293064 SCRAN COLLECTION
$14.00
W0293065 POWER SUPPLY LOOM CLAMPING
W0293073 PRESSURE SWITCH ASSY
$19.70
W0293075 DISPENSER BRACKET
$12.00
W0293076 WIRING HARNESS
$29.20
W0293077 LEFT HINGE
$19.70
W0293078 JOINT PIN
$11.20
W0293079 RIGHT HINGE
$21.60
W0293080 DOOR GEMEL ASSEMBLY
$12.30
W0293083 FRONT PANEL
$23.50
W0293084 HANDLE ASSEMBLY
$21.50
W0293085 INDICATOR COVER
$12.70
W0293086 CONTROL PANEL FILM
$28.00
W0293087 CONTROL BOARD BOX
$14.00
W0293088 WINDOW
$12.90
W0293089 BUTTON SPRING
$12.20
W0293090 POWER BUTTON
$12.70
W0293091 PROGRAM KEY
$12.70
W0293093 LEFT UPRIGHTS
$16.20
W0293096 UPPER REAR CROSSPIECE
$16.20
W0293097 DOOR LOCK AND CLAMP
$13.20
W0293101 RIGHT UPRIGHTS
$16.20
W0293103 UPPER BASKET CUP HOLDER
$13.60
W0293104 LOWER BASKET
W0293106 GUIDE RAIL BLOCK
$12.40
W0293107 RAIL
$16.60
W0293112 LOWER FRONT CROSSPIECE
$18.80
W0293115 TANK BAND BRACING BLOCK
$11.80
W0293116 LOWER REAR CROSSPIECE
$16.20
W0293117 MIDDLE REAR CROSSPIECE
$18.80
W0293118 RATION SPOON
$12.70
W0293119 LEFT CLAW
$12.90
W0293120 RIGHT CLAW
$12.90
W0293121 FRAMEWORK SUPPORT
$17.80
W0293122 ORIENTATION POLE
$13.50
W0293125 3 IN 1 TABLET CONTAINER
$15.00
W0293552 TOP BOARD HOOK
$11.60
W0293604 SCREW SLEEVE
$12.30
W0293605 SLEEVE COVER
$11.10
W0293613 BASE BOARD
$18.80
W0293614 RIGHT PIECE OF ADJUSTABLE BASE BOARD
$11.60
W0293615 LEFT PIECE OF ADJUSTABLE BASE BOARD
$12.90
W0293616 ADJUSTABLE BASE BOARD LEFT
$12.90
W0293617 ADJUSTABLE BASE BOARD RIGHT
$12.90
W0293619 ADJUST NUT
$11.20
W0293621 RIGHT ADJUSTER HOLDER ASSEMBLY
$16.20
W0293622 FRONT FOOT
$14.00
W0293623 ADJUSTABLE POLE
$13.50
W0293624 LEFT ADJUSTER HOLDER ASSEMBLY
$17.50
W0293625 BACK FOOT
$11.60
W0300985 LEFT SIDE PANEL
W0300986 RIGHT PANEL
W0300987 OUTER DOOR
W0301096 RING
W0301099 ADJUST SCREW
W0301105 DOOR EDGE GUARD PIECE
W0301106 POWER CORD
W0302832 ADJUST STEEL ROPE
$12.30
W0303441 UPPER FRONT CROSSPIECE
$16.20
W0305183 ADJUSTABLE BASE BOARD
$23.50
W0305185 INNER DOOR
$79.00
W0305190 TANK
$55.20
