DEDW97FI — 9901590005
DELONGHI — Dishwasher

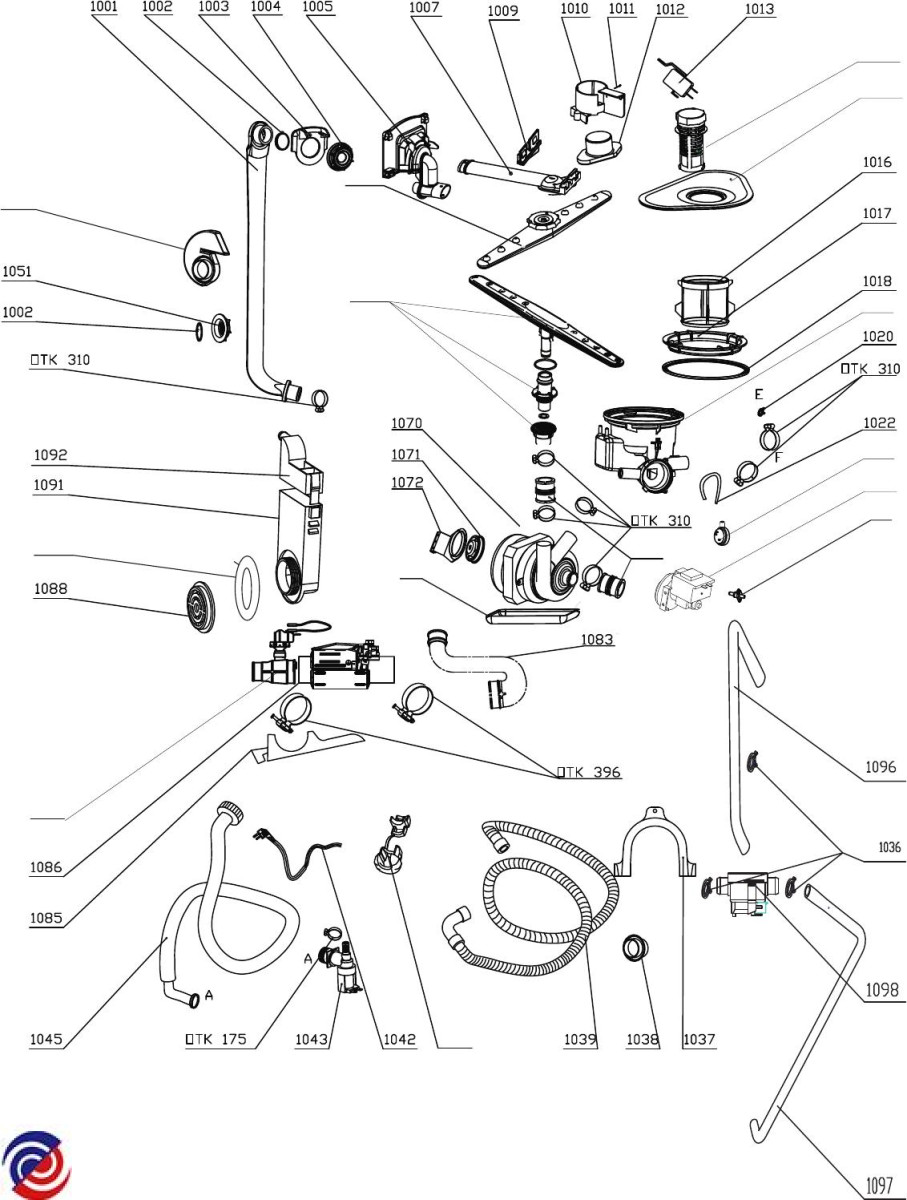

Parts for DEDW97FI
W0273396 WASHING PUMP INCLUDES HALF LOAD
$383.36
W0274085 POWER SWITCH
W0277178 DELONGHI DISHWASHER DETERGENT DISPENSER
$144.00
W0281538 DRAIN PUMP WITHOUT CASING
W0292985 PRESSURE SWITCH 140/120
$21.70
W0292986 RAIL SUPPORT ASSY
$18.50
W0292987 HANDLE ASSY
W0292988 INLET HOSE ASSEMBLY
$58.00
W0293026 EXTERNAL PIPE NUT
$12.30
W0293028 UPPER SPRAYER
W0293045 DRAIN HOSE WITH SMALL RUBBER ELBOW
$19.70
W0293055 HEATING ELEMENTS
W0293062 FLOWMETER - A
W0293100 TANK GASKET
W0293504 UPPER SPRAYER PIPE
W0293541 CUTLERY BASKET ASSEMBLY
$23.20
W0278494 MICRO SWITCH
$13.50
W0281958 SUMP
$12.80
W0281959 SUMP GASKET
$12.90
W0293017 RINSING AGENT CUP
W0293018 OTK 175
$12.30
W0293019 OTK 286
$11.20
W0293020 OTK 310
$12.30
W0293022 OTK 396
$12.30
W0293023 EXTERNAL PIPE
$13.80
W0293024 O RING I 31.5X3.55
$11.20
W0293025 GUIDE CASING
$11.60
W0293027 WATER DISPENSER
$13.80
W0293030 FLOAT HOLDER
$11.60
W0293031 SCREW ST2.9X22
$11.60
W0293032 FLOAT
$11.20
W0293033 MICRO SWITCH
$15.80
W0293038 MICRO FILTER
$15.80
W0293039 SUMP NUT
$11.80
W0293041 PVC HOSE
$11.80
W0293042 CLAMP 14.5
$13.50
W0293043 DRAIN HOSE HOOK
$12.70
W0293044 DRAIN HOSE HOLDER
$11.60
W0293046 INLET VALVE
$21.70
W0293048 AIR INLET
$11.60
W0293050 MOTOR SUPPORT BRACKET
$12.00
W0293051 MOTOR INSULATION PAN
$11.60
W0293052 CONNECT HOSE
$12.70
W0293053 BEND CONNECT HOSE
$13.50
W0293054 HEATING ELEMENT SUPPORT
$11.60
W0293056 WATER INLET NUT
$11.60
W0293057 WATER INLET
$31.10
W0293058 WATER INLET COVER
$12.40
W0293059 SENSING DEVICE
$13.50
W0293060 INLET HOSE 1
$13.50
W0293061 INLET HOSE 2
$13.50
W0293063 PLANE FILTER
$23.50
W0293064 SCRAN COLLECTION
$14.00
W0293065 POWER SUPPLY LOOM CLAMPING
W0293075 DISPENSER BRACKET
$12.00
W0293077 LEFT HINGE
$19.70
W0293078 JOINT PIN
$11.20
W0293079 RIGHT HINGE
$21.60
W0293080 DOOR GEMEL ASSEMBLY
$12.30
W0293087 CONTROL BOARD BOX
$14.00
W0293093 LEFT UPRIGHTS
$16.20
W0293096 UPPER REAR CROSSPIECE
$16.20
W0293101 RIGHT UPRIGHTS
$16.20
W0293103 UPPER BASKET CUP HOLDER
$13.60
W0293112 LOWER FRONT CROSSPIECE
$18.80
W0293115 TANK BAND BRACING BLOCK
$11.80
W0293116 LOWER REAR CROSSPIECE
$16.20
W0293118 RATION SPOON
$12.70
W0293125 3 IN 1 TABLET CONTAINER
$15.00
W0293503 LOWER BASKET FIXED BLOCK
$12.30
W0293505 UPPER SPRAYER HOLDER BLOCK
$11.60
W0293506 LOWER SPRAYER ASSEMBLY
$27.00
W0293507 WATER INLET GASKET
$11.60
W0293508 PRESSURE SWITCH FOR HEATER
$19.90
W0293537 DOOR CLAMP
$12.40
W0293538 DOOR LOCK
$11.60
W0293542 LOWER BASKET
$46.40
W0293544 RAIL BLOCK
$12.40
W0293545 RAIL
$16.60
W0293551 MIDDLE REAR CROSSPIECE
$18.80
W0293592 STEEL WIRE
$12.80
W0293593 BRACKETS AND SCREWS FOR DOOR INSTALLATION (DW97DOORKIT)
$18.00
W0293594 SILVER KICK PLATE
$24.10
W0293595 DOOR EDGE GUARD PIECE
$17.80
W0293596 WIRING HARNESS
$29.20
W0293597 DOOR SPRING
$12.70
W0293598 OUTER DOOR
$33.10
W0293599 FRONT PANEL
$14.30
W0293600 RED PILOT LAMP
$12.30
W0293601 CONTROL BOARD
W0293602 CONTROL PANEL FILM
$23.50
W0293603 WINDOW
$12.90
W0293604 SCREW SLEEVE
$12.30
W0293605 SLEEVE COVER
$11.10
W0293606 COVERS FOR NEW FAN ASSEMBLY (COVER FOR OLD FAN ASSEMBLY IS NOT AVAILABLE)
$71.30
W0293607 CONTROL PANEL COVER
$12.30
W0293608 POWER BUTTON
$12.70
W0293609 PROGRAM KEY
$11.60
W0293610 LEFT SIDE PANEL
$35.00
W0293611 UPPER FRONT CROSSPIECE
$16.20
W0293612 RIGHT SIDE PANEL
$36.90
W0293613 BASE BOARD
$18.80
W0293614 RIGHT PIECE OF ADJUSTABLE BASE BOARD
$11.60
W0293615 LEFT PIECE OF ADJUSTABLE BASE BOARD
$12.90
W0293616 ADJUSTABLE BASE BOARD LEFT
$12.90
W0293617 ADJUSTABLE BASE BOARD RIGHT
$12.90
W0293618 ADJUST STEEL ROPE
$12.30
W0293619 ADJUST NUT
$11.20
W0293620 TOP BOARD HOOK
$11.60
W0293621 RIGHT ADJUSTER HOLDER ASSEMBLY
$16.20
W0293622 FRONT FOOT
$14.00
W0293623 ADJUSTABLE POLE
$13.50
W0293624 LEFT ADJUSTER HOLDER ASSEMBLY
$17.50
W0293625 BACK FOOT
$11.60
