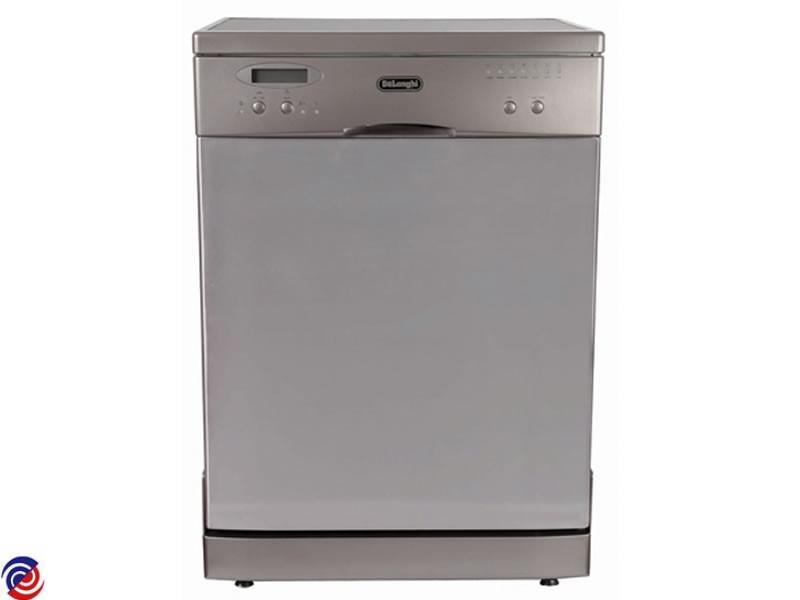

DW47S — 9901590006
DELONGHI — Dishwasher
Parts for DW47S
W0273396 WASHING PUMP INCLUDES HALF LOAD
$383.36
W0273422 CUTLERY BASKET ASSEMBLY
W0277178 DELONGHI DISHWASHER DETERGENT DISPENSER
$144.00
W0292985 PRESSURE SWITCH 140/120
$21.70
W0292986 RAIL SUPPORT ASSY
$18.50
W0292988 INLET HOSE ASSEMBLY
$58.00
W0293026 EXTERNAL PIPE NUT
$12.30
W0293100 TANK GASKET
W0293562 BASKET WHEEL + WHEEL SHAFT
$19.90
W0293665 SENSING DEVICE
$16.90
W0293675 INLET VALVE
W0281792 DRAIN PUMP
$33.10
W0293020 OTK 310
$12.30
W0293081 DOOR SPRING
$23.00
W0293104 LOWER BASKET
W0293177 EXTERNAL PIPE
$14.50
W0293659 O RING I 31.5X3.55
$12.40
W0293660 GUIDE CASING
$12.80
W0293661 WATER DISPENSER
$15.10
W0293662 UPPER SPRAY PIPE
$13.60
W0293663 FLOAT
$12.40
W0293664 SUMP NUT
$13.10
W0293666 SUMP GASKET
$12.80
W0293667 SUMP
$14.50
W0293668 OTK 440
$12.80
W0293669 SALT FILLER
W0293670 SOFTENER
$35.30
W0293671 DRAIN HOSE
$19.72
W0293672 CONNECTION BOX
$13.10
W0293673 POWER WIRE
$15.70
W0293674 DRAIN HOSE HOLDER
$12.50
W0293676 BENT PIPE HEATER
$13.80
W0293677 CONNECT HOSE
$12.80
W0293678 PRESSURE SWITCH (PRESSURE RATING 83/63)
$13.90
W0293679 PVC HOSE
$13.10
W0293680 WASHING MOTOR SUPPORT
$11.80
W0293681 WASHING MOTOR CUSHION
$11.80
W0293682 OUTER TIE-IN
$12.70
W0293683 LOWER SPRAYER AXES
$13.10
W0293684 LOWER SPRAYER NUT
$12.40
W0293685 LOWER SPRAYER
$18.50
W0293686 OTK 175
$12.40
W0293687 AIR BREATHER NUT
$11.20
W0293688 AIR BREATHER
$19.30
W0293689 O RING I
$11.10
W0293690 OTK 310
$12.70
W0293691 INNER TIE-IN
$12.50
W0293692 PUSH BUTTON I
$12.40
W0293693 PHILIPS TAPPING SCREW ST2.9X22
$12.20
W0293694 DOOR SWITCH
$14.10
W0293695 HANDLE ASSY
$16.00
W0293696 CONTROL BOARD
$71.30
W0293697 DISPLAY COVER
$17.60
W0293698 OUTER DOOR
$81.70
W0293699 RING
$12.40
W0293700 JOINT PIN
$12.40
W0293701 DOOR SPRING BOLT
$12.40
W0293702 DOOR HINGE
$17.20
W0293703 RIGHT HINGE
$15.60
W0293704 LEFT HINGE
$15.60
W0293705 INNER DOAR FOAM
$11.20
W0293706 DISPENSER BRACKET
$12.90
W0293707 CEILING BOARD
$49.30
W0293708 STAINLESS STEEL PHILIPS CHAMFER HEAD SCREW M4X16
$11.00
W0293709 SELF-LOCKING NUT M4
$11.00
W0293710 LOCKING HOOK AND COUPLING BLOCK
$12.90
W0293711 CUP RACK
$12.80
W0293712 UPPER BASKET
$44.10
W0293713 RIGHT SIDE BASE BOARD
$27.10
W0293714 GUIDE END
$12.90
W0293715 BASEBOARD
$20.50
W0293716 FLOAT HOSE
$22.80
W0293717 LEFT SIDE BASEBOARD
$27.10
W0293718 PHILIPS TAPPING SCREW ST3.5X9
$11.00
W0293719 BACK COVER BOARD
$12.80
W0293720 V-SHAPE BASKET GUIDE
$14.20
W0293721 FLAT BASKET GUIDE
$16.40
W0293722 GUIDE RAIL BRACKET FLAT
$15.10
W0293723 STRAIGHT CONNECT HOSE
$14.70
W0293724 PUSH BUTTON II
$12.80
W0293725 PUSH BUTTON III
$12.40
W0293726 PUSH BUTTON IV
$12.30
W0293727 LIGHT COVER
$12.10
