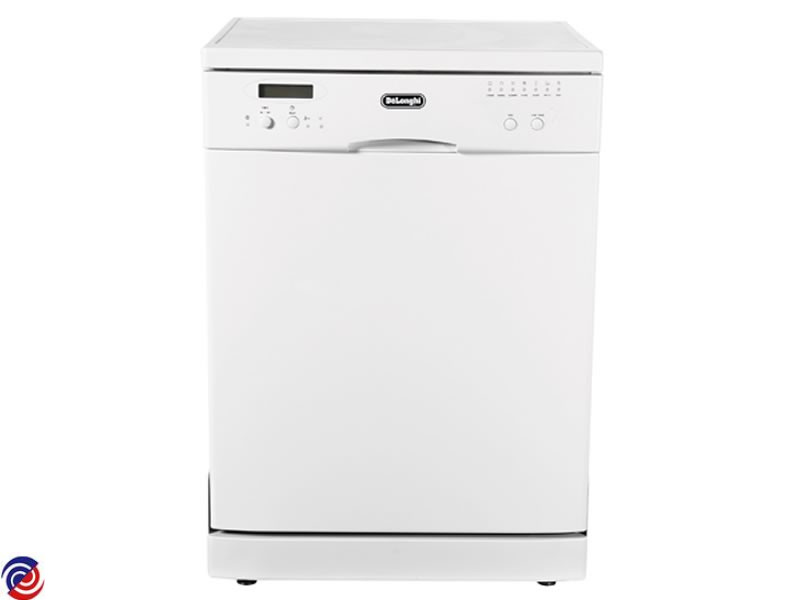

DW47W — 9901590013
DELONGHI — Dishwasher

W0273396 WASHING PUMP INCLUDES HALF LOAD

$383.36

W0273422 CUTLERY BASKET ASSEMBLY

W0277178 DELONGHI DISHWASHER DETERGENT DISPENSER

$144.00

W0292985 PRESSURE SWITCH 140/120

$21.70

W0292986 RAIL SUPPORT ASSY

$18.50

W0292988 INLET HOSE ASSEMBLY

$58.00

W0293026 EXTERNAL PIPE NUT

$12.30

W0293100 TANK GASKET

W0293562 BASKET WHEEL + WHEEL SHAFT

$19.90

W0293665 SENSING DEVICE

$16.90

W0293675 INLET VALVE

W0281792 DRAIN PUMP

$33.10

W0293020 OTK 310

$12.30

W0293081 DOOR SPRING

$23.00

W0293104 LOWER BASKET

W0293177 EXTERNAL PIPE

$14.50

W0293659 O RING I 31.5X3.55

$12.40

W0293660 GUIDE CASING

$12.80

W0293661 WATER DISPENSER

$15.10

W0293662 UPPER SPRAY PIPE

$13.60

W0293663 FLOAT

$12.40

W0293664 SUMP NUT

$13.10

W0293666 SUMP GASKET

$12.80

W0293667 SUMP

$14.50

W0293668 OTK 440

$12.80

W0293669 SALT FILLER

W0293670 SOFTENER

$35.30

W0293671 DRAIN HOSE

$19.72

W0293672 CONNECTION BOX

$13.10

W0293673 POWER WIRE

$15.70

W0293674 DRAIN HOSE HOLDER

$12.50

W0293676 BENT PIPE HEATER

$13.80

W0293677 CONNECT HOSE

$12.80

W0293678 PRESSURE SWITCH (PRESSURE RATING 83/63)

$13.90

W0293679 PVC HOSE

$13.10

W0293680 WASHING MOTOR SUPPORT

$11.80

W0293681 WASHING MOTOR CUSHION

$11.80

W0293682 OUTER TIE-IN

$12.70

W0293683 LOWER SPRAYER AXES

$13.10

W0293684 LOWER SPRAYER NUT

$12.40

W0293685 LOWER SPRAYER

$18.50

W0293686 OTK 175

$12.40

W0293687 AIR BREATHER NUT

$11.20

W0293688 AIR BREATHER

$19.30

W0293689 O RING I

$11.10

W0293690 OTK 310

$12.70

W0293691 INNER TIE-IN

$12.50

W0293693 PHILIPS TAPPING SCREW ST2.9X22

$12.20

W0293694 DOOR SWITCH

$14.10

W0293695 HANDLE ASSY

$16.00

W0293696 CONTROL BOARD

$71.30

W0293697 DISPLAY COVER

$17.60

W0293699 RING

$12.40

W0293700 JOINT PIN

$12.40

W0293701 DOOR SPRING BOLT

$12.40

W0293702 DOOR HINGE

$17.20

W0293703 RIGHT HINGE

$15.60

W0293704 LEFT HINGE

$15.60

W0293705 INNER DOAR FOAM

$11.20

W0293706 DISPENSER BRACKET

$12.90

W0293708 STAINLESS STEEL PHILIPS CHAMFER HEAD SCREW M4X16

$11.00

W0293709 SELF-LOCKING NUT M4

$11.00

W0293710 LOCKING HOOK AND COUPLING BLOCK

$12.90

W0293711 CUP RACK

$12.80

W0293712 UPPER BASKET

$44.10

W0293713 RIGHT SIDE BASE BOARD

$27.10

W0293714 GUIDE END

$12.90

W0293716 FLOAT HOSE

$22.80

W0293717 LEFT SIDE BASEBOARD

$27.10

W0293718 PHILIPS TAPPING SCREW ST3.5X9

$11.00

W0293719 BACK COVER BOARD

$12.80

W0293720 V-SHAPE BASKET GUIDE

$14.20

W0293721 FLAT BASKET GUIDE

$16.40

W0293722 GUIDE RAIL BRACKET FLAT

$15.10

W0293723 STRAIGHT CONNECT HOSE

$14.70

W0293727 LIGHT COVER

$12.10

W0293728 FRONT PANEL

$100.30
