DW67S — 9901590009
DELONGHI — Dishwasher

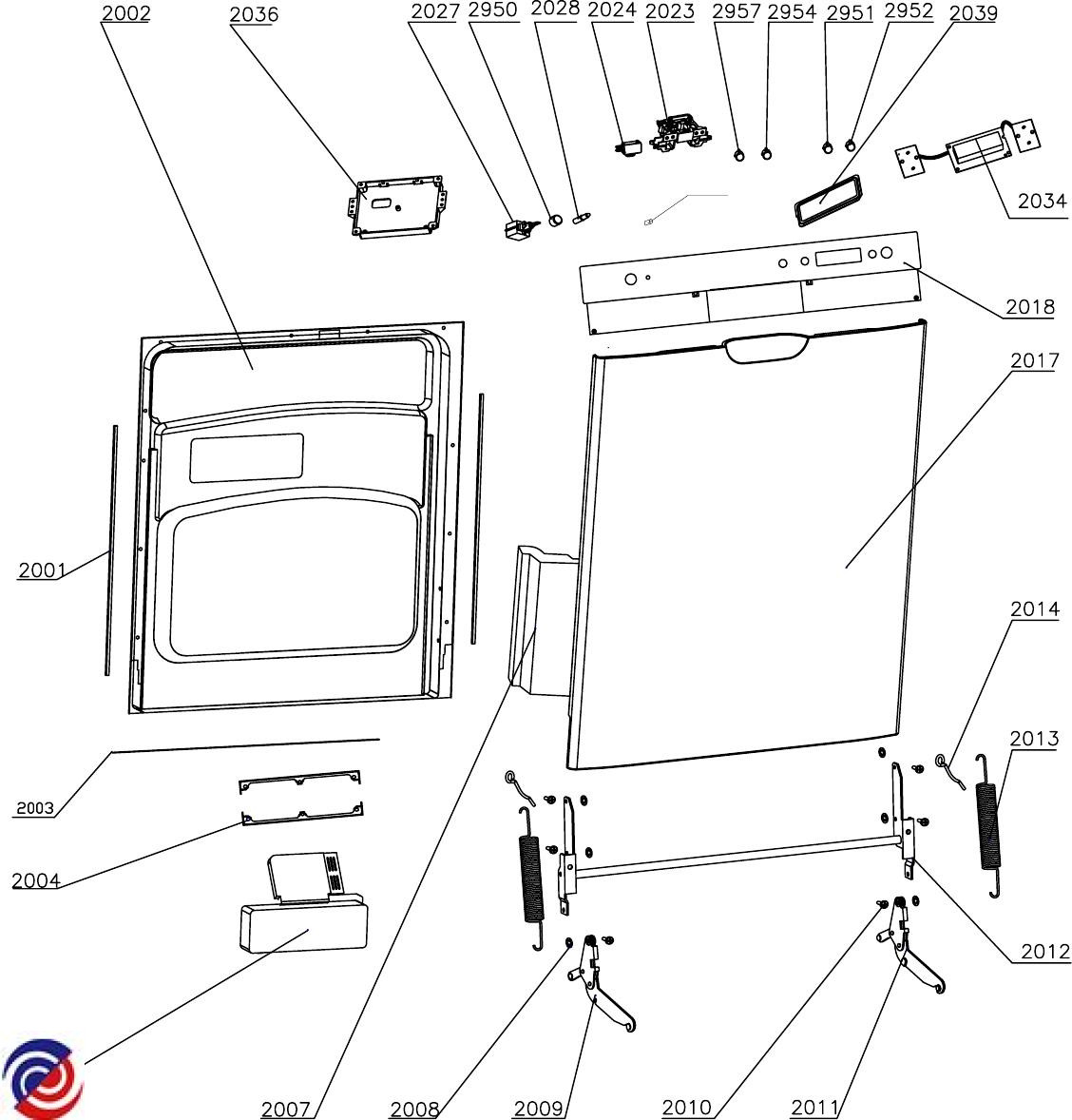

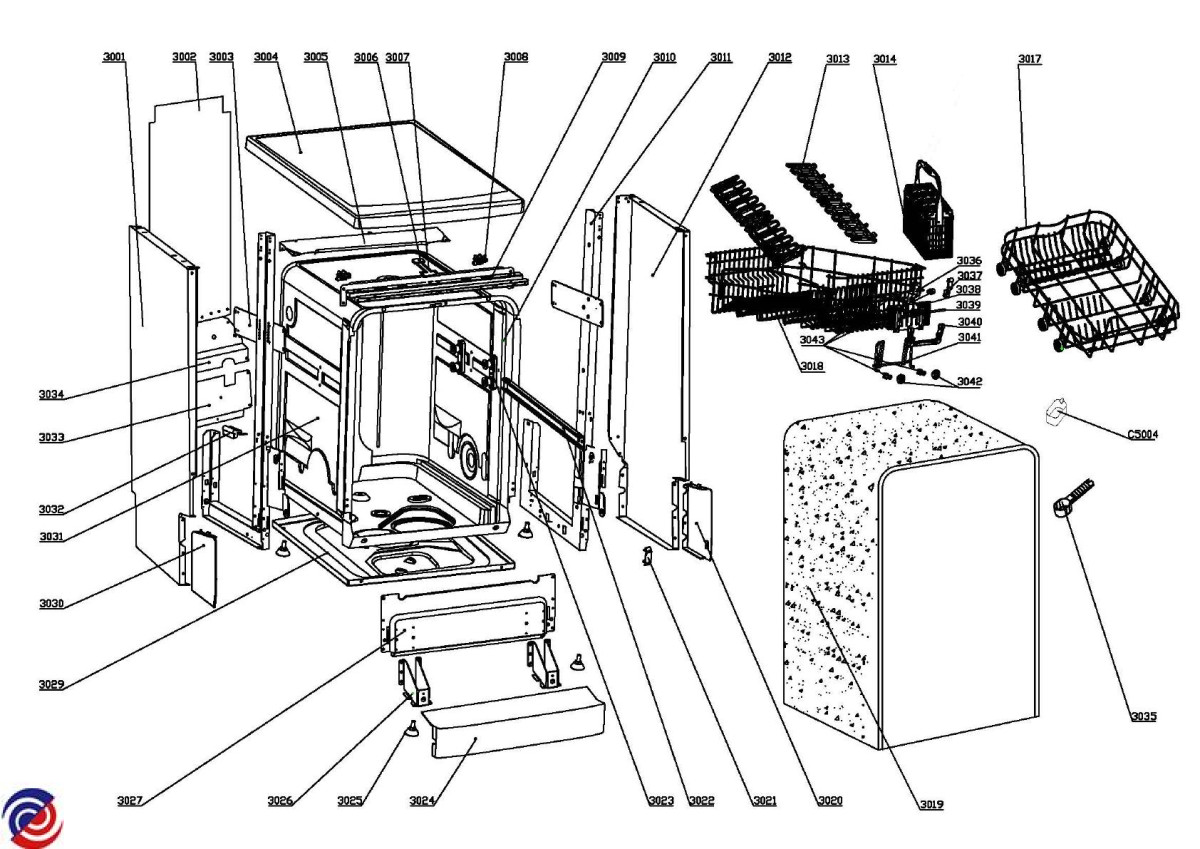

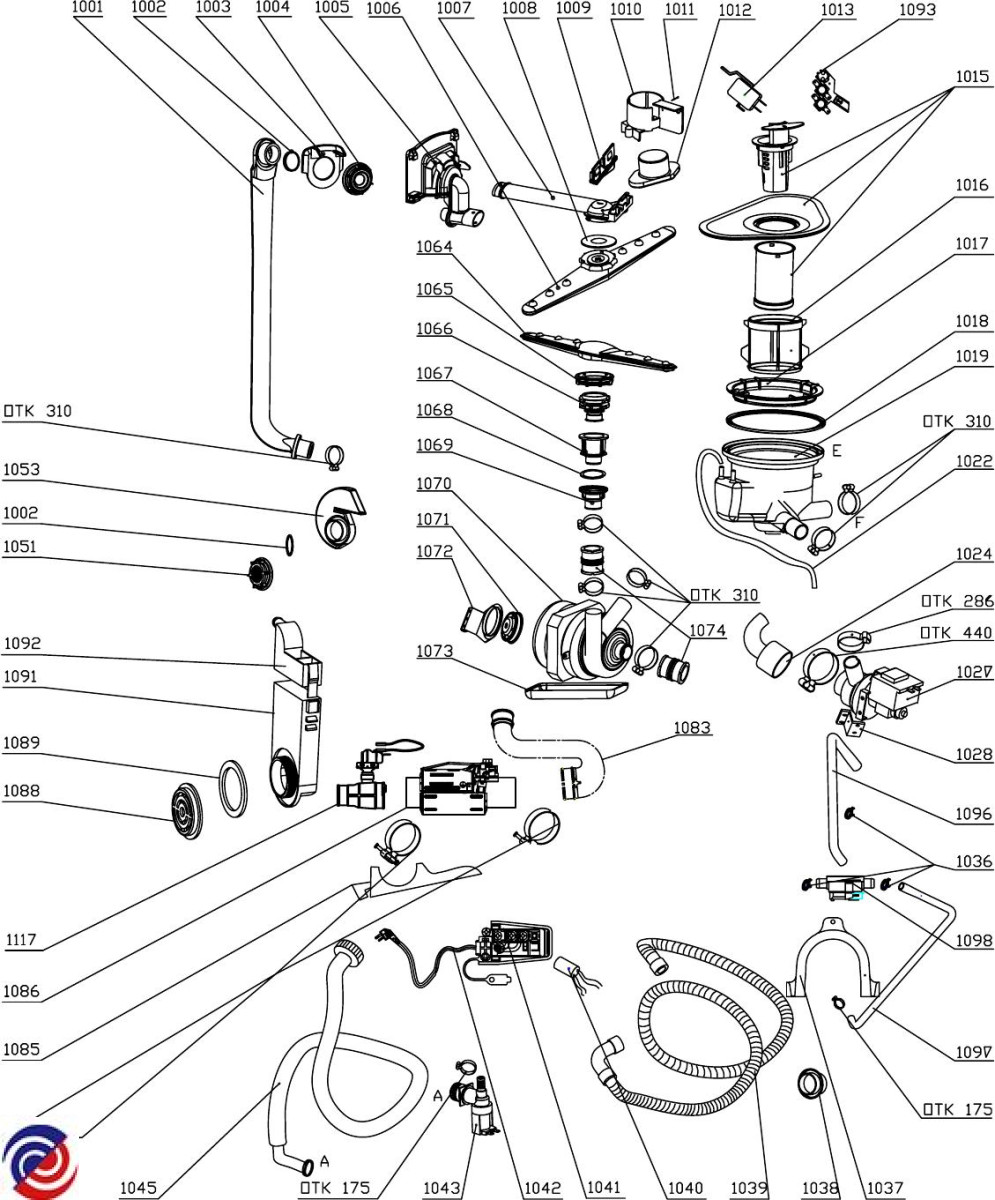

Parts for DW67S
W0273396 WASHING PUMP INCLUDES HALF LOAD
$383.36
W0273422 CUTLERY BASKET ASSEMBLY
W0274085 POWER SWITCH
W0277178 DELONGHI DISHWASHER DETERGENT DISPENSER
$144.00
W0292986 RAIL SUPPORT ASSY
$18.50
W0292987 HANDLE ASSY
W0293026 EXTERNAL PIPE NUT
$12.30
W0293055 HEATING ELEMENTS
W0293062 FLOWMETER - A
W0293100 TANK GASKET
W0293562 BASKET WHEEL + WHEEL SHAFT
$19.90
W0293665 SENSING DEVICE
$16.90
W0293675 INLET VALVE
W0281792 DRAIN PUMP
$33.10
W0293050 MOTOR SUPPORT BRACKET
$12.00
W0293053 BEND CONNECT HOSE
$13.50
W0293073 PRESSURE SWITCH ASSY
$19.70
W0293081 DOOR SPRING
$23.00
W0293102 RIGHT SIDE PANEL
$35.00
W0293104 LOWER BASKET
W0293106 GUIDE RAIL BLOCK
$12.40
W0293547 ADJUSTABLE FOOT
$13.20
W0293659 O RING I 31.5X3.55
$12.40
W0293660 GUIDE CASING
$12.80
W0293662 UPPER SPRAY PIPE
$13.60
W0293663 FLOAT
$12.40
W0293664 SUMP NUT
$13.10
W0293666 SUMP GASKET
$12.80
W0293671 DRAIN HOSE
$19.72
W0293672 CONNECTION BOX
$13.10
W0293683 LOWER SPRAYER AXES
$13.10
W0293684 LOWER SPRAYER NUT
$12.40
W0293685 LOWER SPRAYER
$18.50
W0293686 OTK 175
$12.40
W0293699 RING
$12.40
W0293700 JOINT PIN
$12.40
W0293701 DOOR SPRING BOLT
$12.40
W0293703 RIGHT HINGE
$15.60
W0293704 LEFT HINGE
$15.60
W0293711 CUP RACK
$12.80
W0293716 FLOAT HOSE
$22.80
W0293720 V-SHAPE BASKET GUIDE
$14.20
W0293722 GUIDE RAIL BRACKET FLAT
$15.10
W0293729 WATER INLET NUT
$11.70
W0293730 OTK 396
$12.40
W0293731 OTK 440
$12.40
W0293732 EXTERNAL PIPE
$14.20
W0293733 WATER DISPENSER
$15.00
W0293734 RING NUT GASKET FOR UPPER SPRAYER
$12.40
W0293735 UPPER SPRAYER HOLDER BLOCK
$12.80
W0293736 SCREW ST2.9X22
$12.40
W0293737 MICRO SWITCH
$13.90
W0293738 CENTRAL FILTER ASSEMBLY
$23.50
W0293739 MICRO FILTER
$12.50
W0293740 SUMP
$14.50
W0293741 CONNECT DUCT OF DRAIN PIPE
W0293742 DRAIN HOSE HOOK
$11.70
W0293743 DRAIN HOSE HOLDER
$11.70
W0293744 ANTI-DISTURBANCE CONTROL
$15.50
W0293745 INLET HOSE ASSEMBLY
$22.00
W0293746 RING NUT AIR BREATHER
$12.40
W0293747 AIR INLET
$11.70
W0293748 OUTER TIE-IN
$12.40
W0293749 INNER TIE-IN O RING
$12.40
W0293750 INNER TIE-IN
$11.30
W0293751 MOTOR VIBRATION-PROOF PAD
$13.20
W0293752 MOTOR INSULATION PAN
$11.70
W0293753 CONNECT HOSE
$12.90
W0293754 HEATING ELEMENT SUPPORT
$11.70
W0293755 WATER INLET GASKET
$11.70
W0293756 WATER INLET
$13.10
W0293757 WATER INLET COVER
$12.00
W0293758 INLET HOSE 1
$23.80
W0293759 INLET HOSE 2
$15.60
W0293760 NEW FLOWMETER CONNECTOR
$14.00
W0293761 DOOR EDGE GUARD PIECE
$19.30
W0293762 INNER DOOR
$75.10
W0293763 INNER DOOR GASKET
$14.70
W0293764 DISPENSER BRACKET
$11.70
W0293765 WIRING HARNESS
$48.20
W0293766 INNER DOOR FOAM
$23.80
W0293767 DOOR HINGE
$25.90
W0293768 SCREW M5 X 10
$11.30
W0293769 NUT M5
$11.30
W0293770 OUTER DOOR
$101.10
W0293771 INDICATOR COVER
$12.80
W0293772 CONTROL BOARD
$90.40
W0293773 CONTROL BOARD BOX
$13.50
W0293774 POWER BUTTON
$12.40
W0293775 PROGRAM KEY
$11.70
W0293776 START/PAUSE KEY
$12.80
W0293777 DELAY KEY
$11.70
W0293778 HALF LOAD KEY
$12.80
W0293779 LEFT SIDE PANEL
$72.40
W0293780 BACK COVER BOARD
$23.80
W0293781 LEFT FRAME
$27.10
W0293782 UPPER REAR CROSSPIECE
$27.80
W0293783 COUPLING BLOCK
$12.80
W0293784 DOOR LOCK HOOK
$12.80
W0293785 UPPER FRONT CROSSPIECE
$27.80
W0293786 RIGHT FRAME
$27.80
W0293787 UPPER BASKET (INCLUDES WHEELS)
$54.80
W0293788 CEILING/SIDE SOUND-PROOF FELT
$29.90
W0293789 GUIDE RAIL
$14.20
W0293790 BASEBOARD
$19.30
W0293791 FOOT REST
$12.00
W0293792 LOWER FRONT CROSSPIECE
$31.90
W0293793 TRAY ASSEMBLY
$27.80
W0293794 TANK ASSEMBLY
$100.80
W0293795 TANK BAND BRACING BLOCK
$13.10
W0293796 LOWER REAR CROSSPIECE
$27.80
W0293797 MIDDLE REAR CROSSPIECE
$22.80
W0293798 MEASURABLE SPOON
$11.70
W0293799 LEFT CLAW
$13.10
W0293800 RIGHT CLAW
$13.10
W0293801 FRAMEWORK SUPPORT
$19.30
W0293802 ORIENTATION POLE
$13.90
W0293803 ADJUSTABLE BASKET HANDLE
$12.80
W0293804 SLIP BRACKET
$12.80
