DW87S — 9901590011
DELONGHI — Dishwasher

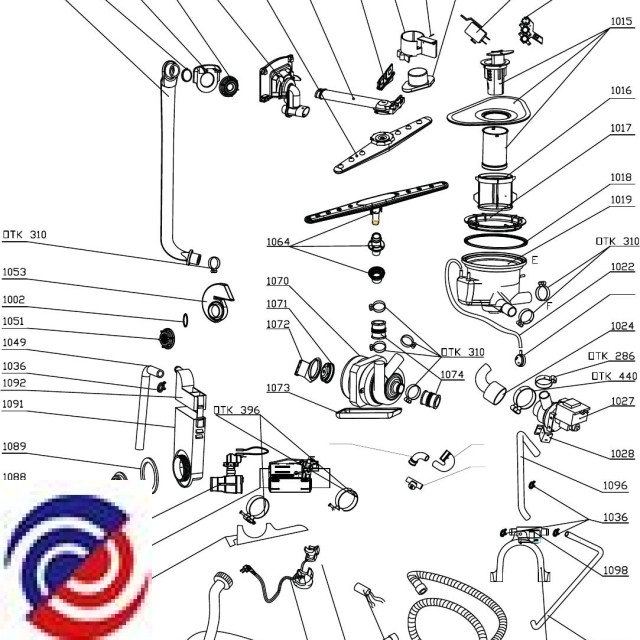

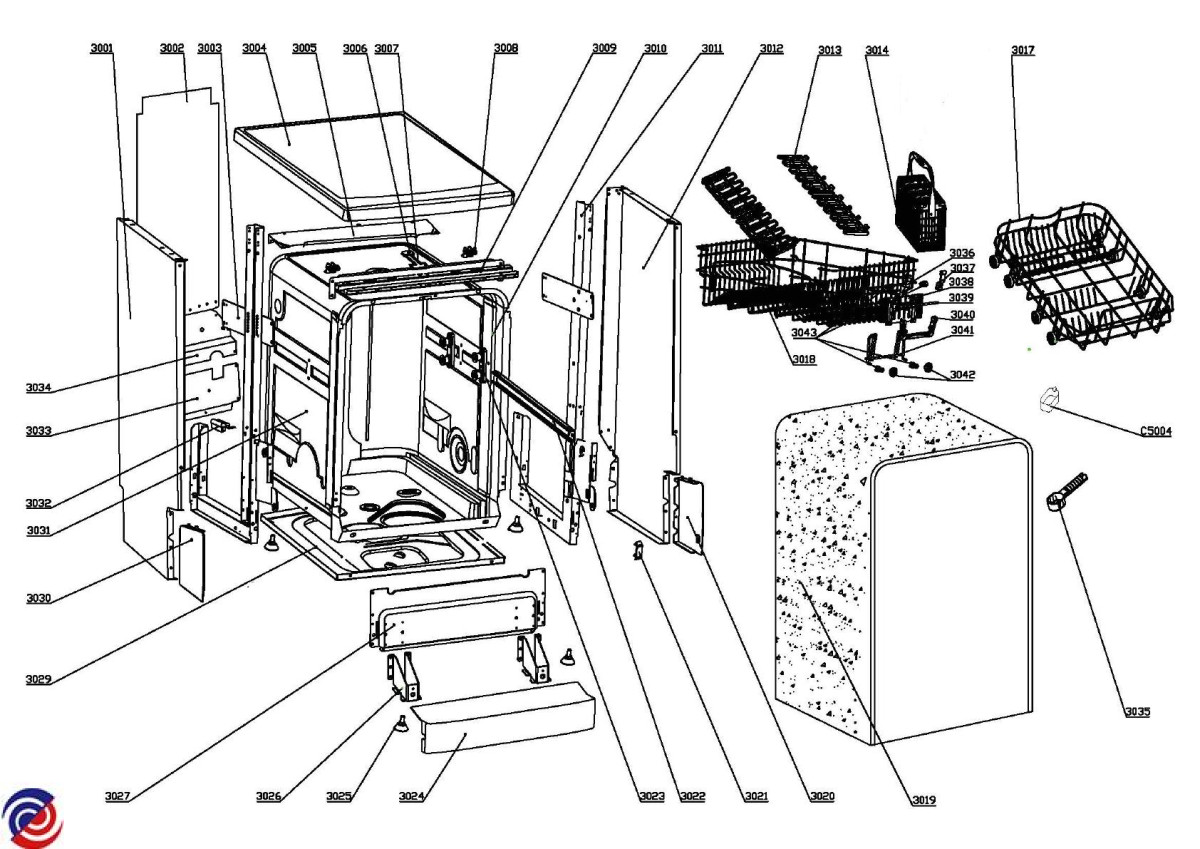

Parts for DW87S
W0273396 WASHING PUMP INCLUDES HALF LOAD
$383.36
W0273422 CUTLERY BASKET ASSEMBLY
W0274085 POWER SWITCH
W0292985 PRESSURE SWITCH 140/120
$21.70
W0292986 RAIL SUPPORT ASSY
$18.50
W0292987 HANDLE ASSY
W0293026 EXTERNAL PIPE NUT
$12.30
W0293028 UPPER SPRAYER
W0293045 DRAIN HOSE WITH SMALL RUBBER ELBOW
$19.70
W0293055 HEATING ELEMENTS
W0293062 FLOWMETER - A
W0293100 TANK GASKET
W0293159 UPPER BASKET WHEEL SHAFT (SHAFT ONLY)
$12.40
W0293198 DISHWASHER DISPENSER
W0293562 BASKET WHEEL + WHEEL SHAFT
$19.90
W0293665 SENSING DEVICE
$16.90
W0293675 INLET VALVE
W0279017 DOOR SPRING
$11.60
W0281792 DRAIN PUMP
$33.10
W0282396 LOWER BASKET
$40.60
W0293033 MICRO SWITCH
$15.80
W0293052 CONNECT HOSE
$12.70
W0293106 GUIDE RAIL BLOCK
$12.40
W0293118 RATION SPOON
$12.70
W0293177 EXTERNAL PIPE
$14.50
W0293506 LOWER SPRAYER ASSEMBLY
$27.00
W0293508 PRESSURE SWITCH FOR HEATER
$19.90
W0293525 HANDLE
$42.70
W0293527 CONTROL PANEL
$18.80
W0293547 ADJUSTABLE FOOT
$13.20
W0293659 O RING I 31.5X3.55
$12.40
W0293660 GUIDE CASING
$12.80
W0293663 FLOAT
$12.40
W0293664 SUMP NUT
$13.10
W0293666 SUMP GASKET
$12.80
W0293671 DRAIN HOSE
$19.72
W0293679 PVC HOSE
$13.10
W0293686 OTK 175
$12.40
W0293699 RING
$12.40
W0293700 JOINT PIN
$12.40
W0293701 DOOR SPRING BOLT
$12.40
W0293703 RIGHT HINGE
$15.60
W0293704 LEFT HINGE
$15.60
W0293711 CUP RACK
$12.80
W0293722 GUIDE RAIL BRACKET FLAT
$15.10
W0293729 WATER INLET NUT
$11.70
W0293730 OTK 396
$12.40
W0293731 OTK 440
$12.40
W0293733 WATER DISPENSER
$15.00
W0293735 UPPER SPRAYER HOLDER BLOCK
$12.80
W0293736 SCREW ST2.9X22
$12.40
W0293738 CENTRAL FILTER ASSEMBLY
$23.50
W0293739 MICRO FILTER
$12.50
W0293740 SUMP
$14.50
W0293742 DRAIN HOSE HOOK
$11.70
W0293743 DRAIN HOSE HOLDER
$11.70
W0293745 INLET HOSE ASSEMBLY
$22.00
W0293746 RING NUT AIR BREATHER
$12.40
W0293747 AIR INLET
$11.70
W0293754 HEATING ELEMENT SUPPORT
$11.70
W0293755 WATER INLET GASKET
$11.70
W0293759 INLET HOSE 2
$15.60
W0293763 INNER DOOR GASKET
$14.70
W0293768 SCREW M5 X 10
$11.30
W0293769 NUT M5
$11.30
W0293771 INDICATOR COVER
$12.80
W0293780 BACK COVER BOARD
$23.80
W0293782 UPPER REAR CROSSPIECE
$27.80
W0293785 UPPER FRONT CROSSPIECE
$27.80
W0293789 GUIDE RAIL
$14.20
W0293791 FOOT REST
$12.00
W0293792 LOWER FRONT CROSSPIECE
$31.90
W0293793 TRAY ASSEMBLY
$27.80
W0293795 TANK BAND BRACING BLOCK
$13.10
W0293799 LEFT CLAW
$13.10
W0293800 RIGHT CLAW
$13.10
W0293801 FRAMEWORK SUPPORT
$19.30
W0293802 ORIENTATION POLE
$13.90
W0293803 ADJUSTABLE BASKET HANDLE
$12.80
W0293804 SLIP BRACKET
$12.80
W0293819 UPPER SPRAYER PIPE
$13.90
W0293820 CONNECT DUCT OF DRAIN PIPE
$12.00
W0293821 DRAIN PUMP WITH SMALL CONNECTION
$28.10
W0293822 ANTI-DISTURBANCE CONTROLLER
$15.00
W0293823 POWER CORD
$15.00
W0293824 MOTOR SUPPORT BRACKET
$12.30
W0293825 MOTOR INSULATION PAN
$11.70
W0293826 WATER INLET
$13.10
W0293827 INLET HOSE 1
$23.80
W0293828 BEND CONNECT HOSE A
$25.90
W0293829 BEND CONNECT HOSE B
$25.90
W0293830 TURBIDITY SENSOR
$29.30
W0293831 INNER DOOR
$47.70
W0293832 DISPENSER BRACKET
$11.70
W0293833 WIRING DIAGRAM
$37.00
W0293834 DOOR HINGE
$17.40
W0293835 OUTER DOOR
$101.10
W0293836 DOOR SWITCH
$13.90
W0293837 WINDOW
$12.50
W0293838 POWER SWITCH FILM
$12.80
W0293839 WINDOW A
$12.00
W0293840 POWER BUTTON
$12.80
W0293841 PROGRAM KEY
$12.80
W0293842 DELAY KEY
$12.80
W0293843 HALF LOAD KEY
$12.80
W0293844 LEFT PANEL
$72.40
W0293845 LEFT UPRIGHTS
$27.10
W0293846 DOOR CLAMP
$12.80
W0293847 DOOR LOCK
$12.80
W0293848 RIGHT UPRIGHTS
$27.80
W0293849 RIGHT PANEL
$72.40
W0293850 UPPER BASKET
$54.10
W0293851 SOUND-PROOF FELT
$29.90
W0293852 RIGHT SIDE BASEBOARD
$40.00
W0293853 BASEBOARD
$27.80
W0293854 LEFT SIDE BASEBOARD
$29.90
W0293855 TANK ASSEMBLY
$100.80
W0293856 LOWER REAR CROSSPIECE
$31.90
W0293857 MIDDLE REAR CROSSPIECE
$31.90
