DSF6106X — 911519241 00
DISHLEX — Dishwasher
Parts for DSF6106X
W0015350 DISHLEX IKEA SIMPSON DISHWASHER UPPER SPRAY ARM DARK GREY
$98.00
W0017618 BASKET UPPER DISHWASH ASSY
W0017624 SENSOR TEMPERATURE TURBIDITY
W0017627 PUMP DRAIN 50HZ.
W0017634 SUMP WATER ASSEMBLY / AIR TRAP
$121.00
W0017639 VALVE NON-RETURN FLAP SUMP
$30.00
W0017642 SPRAY ARM LOWER DARK GREY
$98.00
W0018964 FOOT ADJUSTABLE X 36MM LONG
W0025858 ROLLER KIT LOWER PKT 8
W0071723 CAPAC 3UF MOTOR DISHWASHER
$48.00
W0071935 SUPPORT SPRAY ARM LOWER DRK GR
$33.00
W0077043 DISHLEX SIMPSON DISHWASHER INLET WATER HOSE x 1500mm LONG
$68.00
W0090747 GASKET DOOR LOWER BLK L=550
$31.00
W0116461 CLIP FIXING STUD (PKT 4)
$5.50
W0274336 DISHLEX ELECTROLUX DISHWASHER DOOR GASKET 1730MM 1171265448
$45.00
W0274391 AEG ELECTROLUX DISHWASHER PRESSURE SWITCH
$51.00
W0274395 AEG ELECTROLUX DISHLEX WESTINGHOUSE DISHWASHER INLET VALVE 2.5L/MIN
$47.00

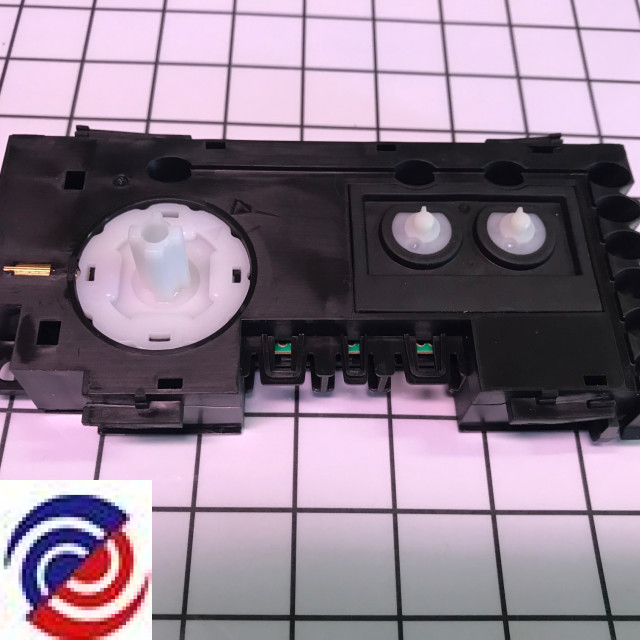

W0278518 ELECTROLUX DISHLEX SIMPSON PCB USER INTERFACE EDW500 140000423594
$99.00
W0282854 GRATE CUTLERY BASKET DK GREY
$31.00
W0015342 BRACKET STIFFENING
$34.50
W0015367 TRAP SUMP PUMP RECIRC - BLACK
$13.00
W0015368 O-RING SUMP
$18.00
W0015713 HOLDER PLINTH
W0017614 HOSE SUMP TO TANK X370MM
$11.00
W0017622 BRACE CROSSBAR FRONT LOWER
W0017637 TRAY BOTTOM SPILLAGE
$55.00
W0017649 TUBE MANIFOLD INNER DARK GREY
$59.05
W0017650 COVER ELEC CONTROL BOX
$44.00
W0017652 DISPENSER DETERGENT
$116.00
W0017654 SUPPORT CUP GREY
$13.00
W0017665 CORD SERVICE AU 2.15M
$48.00
W0017670 PUMP RECIRCULATION ASYNC 90W
$279.00
W0017677 HEATER WITH O-RING 230V/1800W
W0017679 COVER HEATER
$20.00
W0017683 KNOB INOX
$39.00
W0017687 BUTTON PUSH - LEFT INOX
$18.60
W0017689 BUTTON PUSH - RIGHT INOX
$14.50
W0017691 HANDLE GREY
$42.00
W0017693 MOUNTING HANDLE GREY
W0017831 HOOK BASKET UPPER DISPENSER
$4.00
W0017917 SEAL O-RING HEATER-PUMP RECIRC
$16.00
W0018958 SPRING KNOB
$9.00
W0018963 STOP BASKET UPPER FRONT D/GREY
$9.00
W0018989 COVER WIRING PROTECTION
$11.00
W0019024 VENT VAPOUR OUTLET
$21.00
W0019180 TOP WORKING ASSEMBLY INOX
W0019182 CHANNEL FEED UPPER SPRAYARM
$52.00
W0024199 KIT OVERFLOW HOSE
$150.00
W0024257 SUPPORT ROLLER KIT (PKT 4)
$58.00
W0024476 KIT ROLLER BASKET ADJUSTMENT
$58.00
W0026672 STOP BASKET UPPER REAR D/GREY
$10.00
W0026945 PLINTH INOX
$121.00
W0026989 PLUG DRAIN HOSE
$12.10
W0027046 HARNESS PCB HEATER
$72.00
W0027059 FOOT ADJUSTABLE M8 X 48MM LONG
$18.90
W0027129 CLAMP DRAIN HOSE Ï30MM
$9.00
W0027130 CLAMP CIRC PUMP FLOW REG Ï36MM
$21.00
W0027131 CLAMP CIRCULATION PUMP-SUMP
$11.00
W0027161 COVER MOTOR DRIP PREVENTION
$26.05
W0027237 FILTER FLAT + INDICATOR
$69.00
W0027266 PANEL CONTROL INOX DSF6106X
$163.00
W0027356 BASKET LOWER COMPLETE ASSY
W0072705 CONTAINER CUP SMALL
W0072941 SUPPORT MOTOR RUBBER
$14.30
W0076863 SUPPORT SPIKES RUBBER - GREY
W0077065 SWITCH & FLOAT ASSY
$42.00
W0077167 HOSE DRAIN X 2230MM
W0090280 TIE HINGE
W0090413 SEAL CHANNEL DRAINAGE
W0090612 CLAMP HOSE
W0090657 TRIM TUB BLACK
$30.00
W0090966 PANEL OUTER DOOR INOX
$168.00
W0129222 SEAL AIR CHAMBER
W0147302 FILTER DRAIN ASSEMBLY - FINE
W0274102 TUBE,CONTAINER CUP,DECALCIFIER
$27.00
W0274723 RAIL BASKET UPPER - SHAPED
$15.00
W0282386 BOARD PCB PROGRAMMED DSF6106 140006214088B
W0282457 BRACE REAR UPPER
$19.00
W0282694 PANEL DOOR INNER
$132.00
W0282770 HARNESS PCB PUMP (A)
$73.45
W0282771 HARNESS PCB DOOR (B)
$36.60
W0283141 RUBBER BUFFER 10 PIECE
$4.25
W0283152 SCREW HINGE KIT 10 X T20 10MM
$5.50
W0283177 HINGE KIT LEFT-RIGHT
$97.00
W0284106 LATCH
W0284280 DOOR LOCK WITHOUT DOOR OPENER
$49.00
W0284480 PANEL SIDE LEFT - INOX
$137.00
W0284481 PANEL SIDE RIGHT - ZINC PLATED
$139.00
