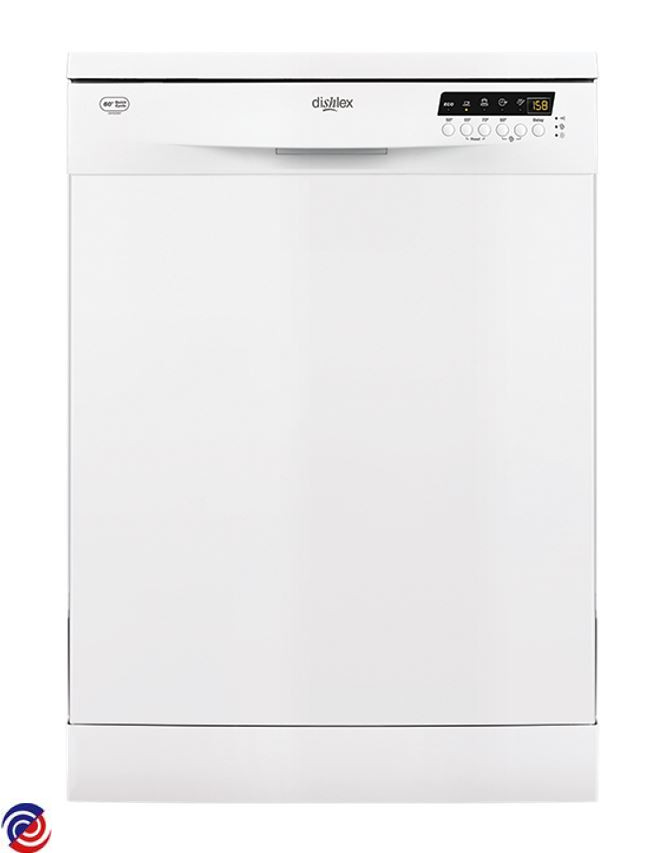

DSF6206W — 911516340 00
DISHLEX — Dishwasher

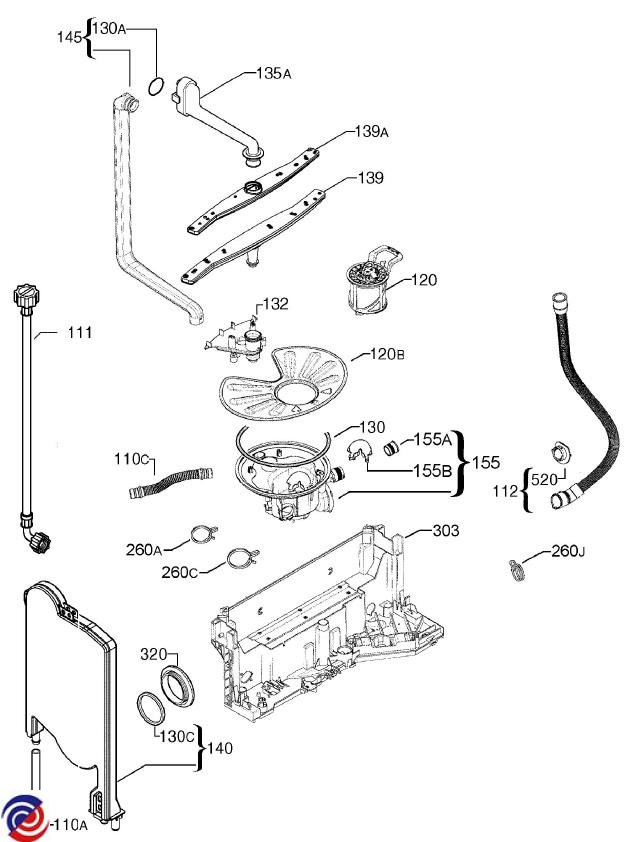

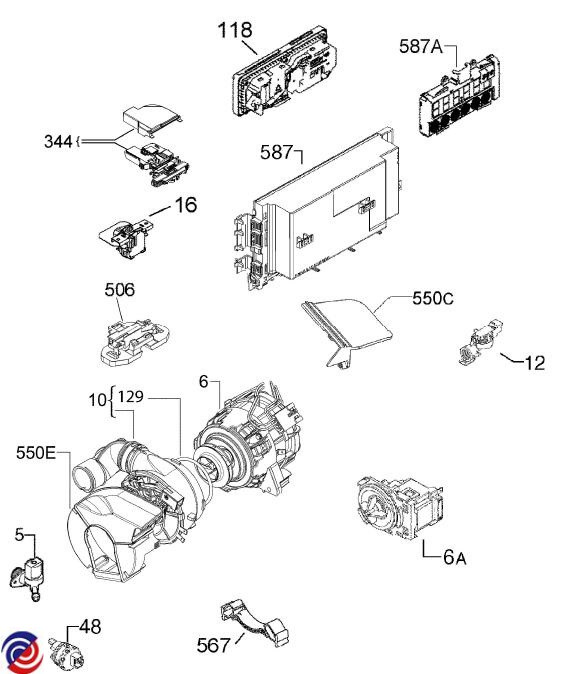

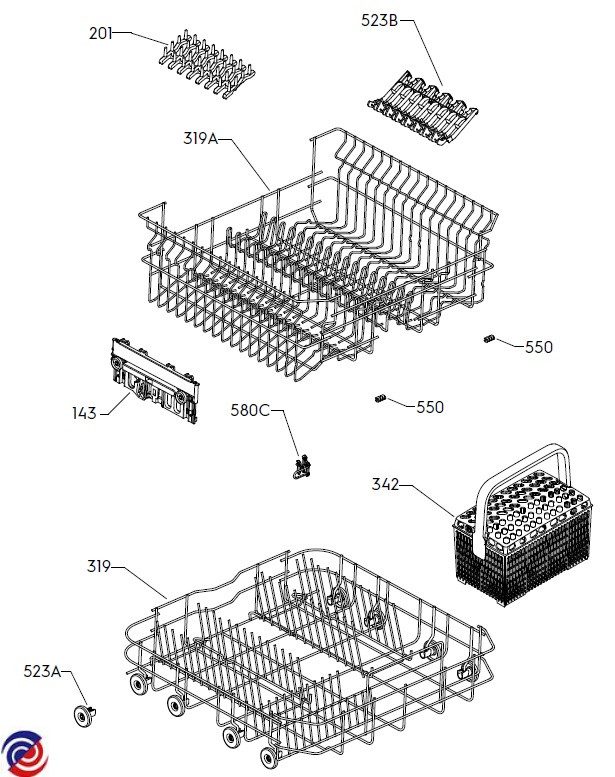

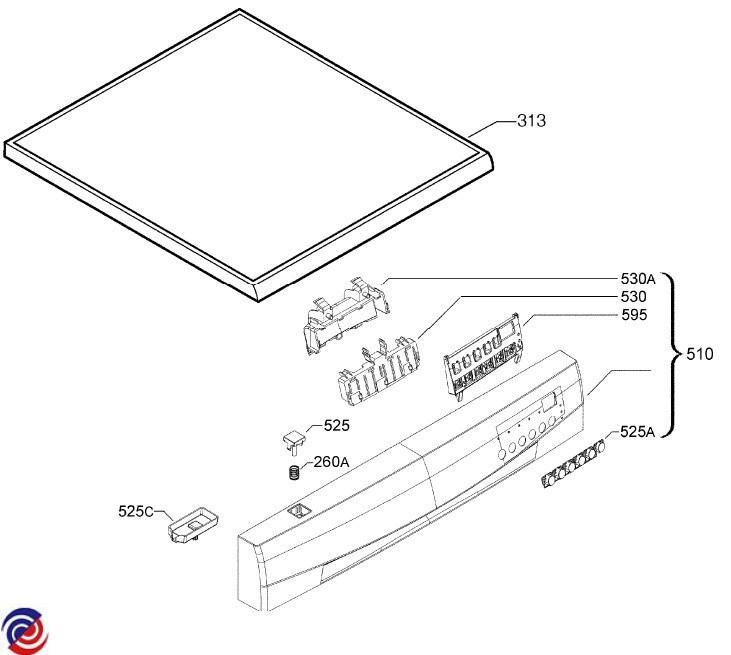

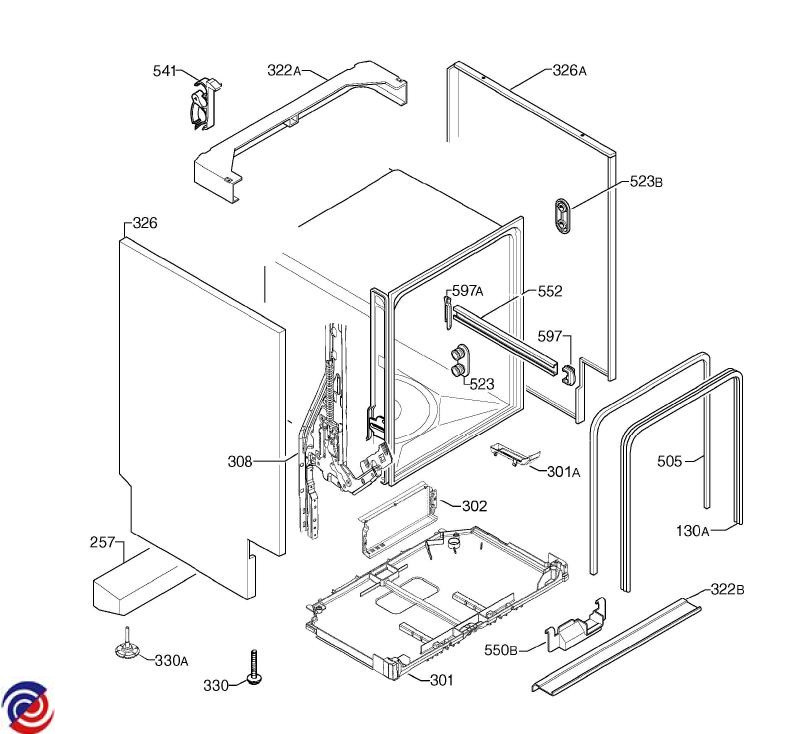

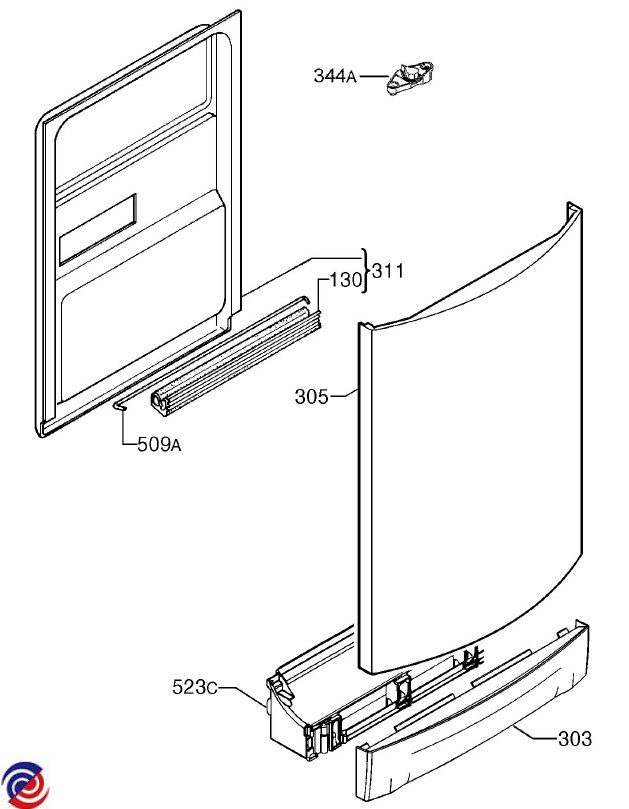

Parts for DSF6206W
W0015350 DISHLEX IKEA SIMPSON DISHWASHER UPPER SPRAY ARM DARK GREY
$98.00
W0017618 BASKET UPPER DISHWASH ASSY
W0017624 SENSOR TEMPERATURE TURBIDITY
W0017627 PUMP DRAIN 50HZ.
W0017634 SUMP WATER ASSEMBLY / AIR TRAP
$121.00
W0017639 VALVE NON-RETURN FLAP SUMP
$30.00
W0017642 SPRAY ARM LOWER DARK GREY
$98.00
W0018964 FOOT ADJUSTABLE X 36MM LONG
W0019066 ROLLER BASKET RH QUIK LIFT
$40.00
W0019067 ROLLER BASKET LH QUIK LIFT
$40.00
W0025858 ROLLER KIT LOWER PKT 8
W0071935 SUPPORT SPRAY ARM LOWER DRK GR
$33.00
W0077043 DISHLEX SIMPSON DISHWASHER INLET WATER HOSE x 1500mm LONG
$68.00
W0090747 GASKET DOOR LOWER BLK L=550
$31.00
W0116461 CLIP FIXING STUD (PKT 4)
$5.50
W0274336 DISHLEX ELECTROLUX DISHWASHER DOOR GASKET 1730MM 1171265448
$45.00
W0274391 AEG ELECTROLUX DISHWASHER PRESSURE SWITCH
$51.00
W0274395 AEG ELECTROLUX DISHLEX WESTINGHOUSE DISHWASHER INLET VALVE 2.5L/MIN
$47.00
W0274397 AEG ELECTROLUX DISHWASHER PUMP RECIRCULATION 90W
$179.00
W0282854 GRATE CUTLERY BASKET DK GREY
$31.00
W0015342 BRACKET STIFFENING
$34.50
W0015367 TRAP SUMP PUMP RECIRC - BLACK
$13.00
W0015368 O-RING SUMP
$18.00
W0015713 HOLDER PLINTH
W0015828 SPRING ON/OFF BUTTON
$13.00
W0017614 HOSE SUMP TO TANK X370MM
$11.00
W0017622 BRACE CROSSBAR FRONT LOWER
W0017637 TRAY BOTTOM SPILLAGE
$55.00
W0017649 TUBE MANIFOLD INNER DARK GREY
$59.05
W0017650 COVER ELEC CONTROL BOX
$44.00
W0017652 DISPENSER DETERGENT
$116.00
W0017654 SUPPORT CUP GREY
$13.00
W0017665 CORD SERVICE AU 2.15M
$48.00
W0017677 HEATER WITH O-RING 230V/1800W
W0017679 COVER HEATER
$20.00
W0017690 HANDLE WHITE
$78.00
W0017692 MOUNTING HANDLE - WHITE
$27.00
W0017697 BUTTON PUSH SET OF 6 - WHITE
$17.60
W0017699 SUPPORT BUTTON PUSH SET6
$27.50
W0017831 HOOK BASKET UPPER DISPENSER
$4.00
W0017917 SEAL O-RING HEATER-PUMP RECIRC
$16.00
W0018963 STOP BASKET UPPER FRONT D/GREY
$9.00
W0018989 COVER WIRING PROTECTION
$11.00
W0019024 VENT VAPOUR OUTLET
$21.00
W0019179 WORKTOP - WHITE
$160.00
W0019182 CHANNEL FEED UPPER SPRAYARM
$52.00
W0024199 KIT OVERFLOW HOSE
$150.00
W0024257 SUPPORT ROLLER KIT (PKT 4)
$58.00
W0026672 STOP BASKET UPPER REAR D/GREY
$10.00
W0026946 PLINTH WHITE
$73.00
W0026989 PLUG DRAIN HOSE
$12.10
W0027059 FOOT ADJUSTABLE M8 X 48MM LONG
$18.90
W0027129 CLAMP DRAIN HOSE Ï30MM
$9.00
W0027130 CLAMP CIRC PUMP FLOW REG Ï36MM
$21.00
W0027131 CLAMP CIRCULATION PUMP-SUMP
$11.00
W0027161 COVER MOTOR DRIP PREVENTION
$26.05
W0027237 FILTER FLAT + INDICATOR
$69.00
W0027269 PANEL CONTROL WHITE DSF6206W
$284.00
W0027356 BASKET LOWER COMPLETE ASSY
W0072705 CONTAINER CUP SMALL
W0072894 SUPPORT BRACKET MOTOR RUBBER
W0072945 ON/OFF BUTTON WHITE
$20.00
W0076863 SUPPORT SPIKES RUBBER - GREY
W0077065 SWITCH & FLOAT ASSY
$42.00
W0077167 HOSE DRAIN X 2230MM
W0090280 TIE HINGE
W0090413 SEAL CHANNEL DRAINAGE
W0090612 CLAMP HOSE
W0090657 TRIM TUB BLACK
$30.00
W0090683 TUBE AIR CHAMBER
W0090967 PANEL DOOR OUTER - WHITE
$205.00
W0129222 SEAL AIR CHAMBER
W0147302 FILTER DRAIN ASSEMBLY - FINE
W0274723 RAIL BASKET UPPER - SHAPED
$15.00
W0282103 PCB programmed PB150- DSF6216X 140059122121B
W0282104 USER INTERFACE BOARD EDW1500 140020148056
$132.00
W0282457 BRACE REAR UPPER
$19.00
W0282675 SWITCH MAIN LOW VOLTAGE
$31.00
W0282694 PANEL DOOR INNER
$132.00
W0282740 PANEL SIDE RIGHT WHITE
$195.10
W0282755 HARNESS PCB - DOOR ( B )
$71.05
W0282756 HARNESS BASE ( A )
$82.05
W0282798 PROTECTION PUSH BUTTON ON/OFF
$7.45
W0283141 RUBBER BUFFER 10 PIECE
$4.25
W0283152 SCREW HINGE KIT 10 X T20 10MM
$5.50
W0283177 HINGE KIT LEFT-RIGHT
$97.00
W0283244 HARNESS PCB . HEATER ( C )
$28.00
W0284106 LATCH
W0284280 DOOR LOCK WITHOUT DOOR OPENER
$49.00
W0284479 PANEL SIDE LEFT WHITE
$132.00
