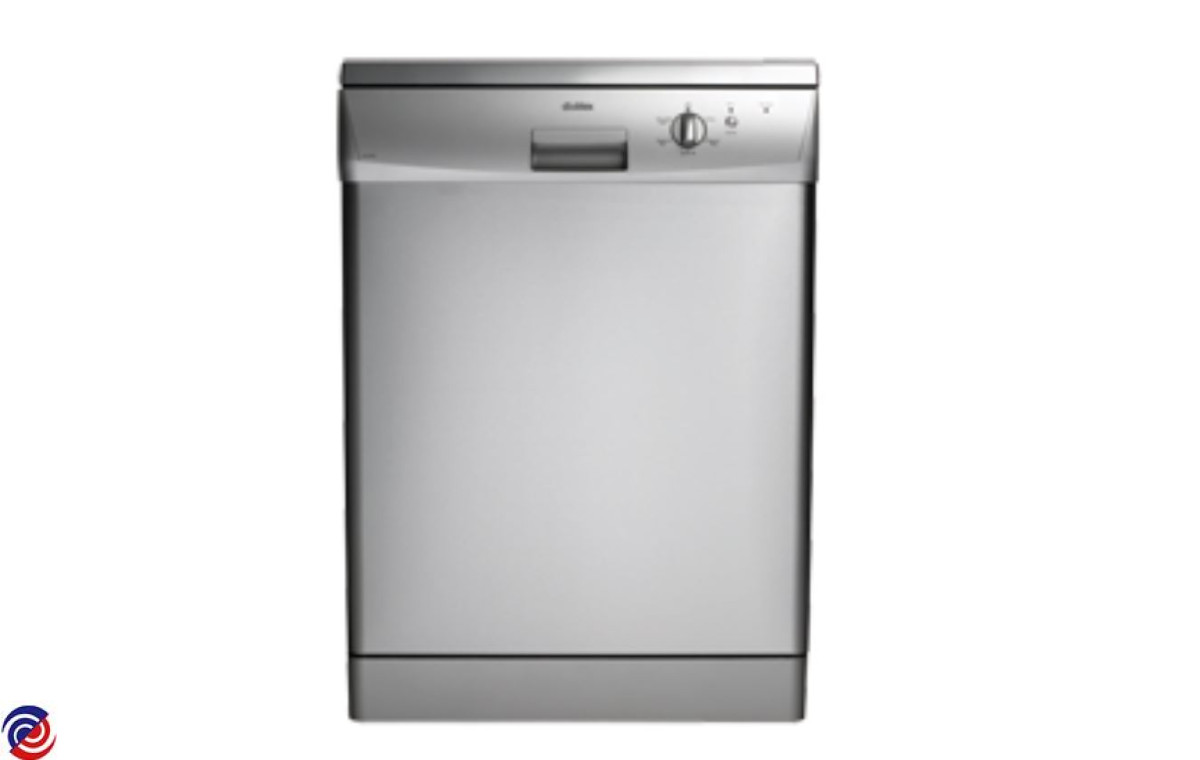

DX103SK — 911519032 00
DISHLEX — Dishwasher

Parts for DX103SK

W0015351 SPRAY ARM LOWER LIGHT GREY
W0015721 MOUNT PRESSURE SWITCH
$50.00
W0019073 DISHLEX DISHWASHER BASKET CUP RACK
W0025858 ROLLER KIT LOWER PKT 8
W0025859 ROLLER KIT UPPER PKT 8
$37.00
W0071719 SENSOR TEMPERATURE
$50.00
W0071893 SPRAY ARM UPPER LIGHT GREY
W0090546 BASKET CUTLERY
W0090623 HOSE OUTLET COMPLETE L=1930
W0090747 GASKET DOOR LOWER BLK L=550
$31.00
W0090932 DISHLEX DISHWASHER PC BOARD ASSY EDW500 1560116-20/2
W0128067 CHANNEL DRAINAGE. COMPLETE
W0149911 STOP BASKET REAR DK GREY
No image available
W0015301 HOSE DRAIN DRUM DRAIN PUMP
$55.00
No image available
W0015353 MANIFOLD VERTICAL
$46.90
No image available
W0015712 PLINTH GREY
$100.95
No image available
W0015713 HOLDER PLINTH
No image available
W0018988 LATCH DOOR LOCK
No image available
W0019019 TUBE AIR CHAMBER
No image available
W0019021 SUPPRESSOR INTERFERENCE
$28.00
No image available
W0019023 VENT VAPOUR OUTLET
$14.90
No image available
W0019034 CORD POWER AUSTRALIA
No image available
W0025927 SWITCH MICRO DOOR
$35.00
No image available
W0071567 WASHING MOTOR 2800RPM
No image available
W0071807 HOSE DRAIN TUB CIRCULATION
No image available
W0071820 SEAL TEMPERATURE SENSOR
No image available
W0071856 RUBBER DAMPER.CIRCULATION PUMP
No image available
W0071887 HOLDER COLUMN LOWER SPRAY ARM
$14.30
No image available
W0071888 PIPE UNION HEATING ELEMENT
No image available
W0071890 PIPE UNION HEATING ELEMENT
No image available
W0071898 SUMP
$50.00
No image available
W0071907 BASKET UPPER
No image available
W0071910 BASKET LOWER INCLUDES ROLLERS
No image available
W0071912 FILTER
$40.00
No image available
W0072601 PANEL DOOR INOX DIVA/60-SOFT
No image available
W0072604 BASEMENT
No image available
W0072605 DOOR INNER
No image available
W0072670 PANEL SIDE LH
$189.90
No image available
W0072671 PANEL SIDE RH
$170.00
No image available
W0072685 TUBE PRESSURE SWITCH SAFETY
No image available
W0072687 TUBE PRESSURE SWITCH LEVEL
No image available
W0072696 TANK WATER SHORT ELECTRONIC
$50.00
No image available
W0072778 WORK TOP DX103SK
No image available
W0074296 SEAL
No image available
W0090280 TIE HINGE
No image available
W0090294 STOPPER. FRONT. DARK GREY
No image available
W0090299 RAIL BASKET UPPER
No image available
W0090303 FOOT ADJUSTABLE
$10.00
No image available
W0090331 BRACKET ROLLER REAR SIFFENING
No image available
W0090380 COVER WIRING
No image available
W0090413 SEAL CHANNEL DRAINAGE
No image available
W0090423 NUT SPEED CLIP
No image available
W0090475 GASKET DOOR 17300MM
No image available
W0090568 BOTTOM CABINET
No image available
W0090573 CROSSBAR. REAR. UPPER
No image available
W0090585 CAPACITOR ESL9163
No image available
W0090590 SWITCH PRESSURE. LEVEL 65/45
No image available
W0090593 SWITCH PRESSURE. SAFETY 123/98
No image available
W0090597 LATCH BRIDGING PLUG COMP
No image available
W0090611 PLUG BRIDGING
$4.50
No image available
W0090612 CLAMP HOSE
No image available
W0090614 VALVE FILL
No image available
W0090636 COVER LATCH HOLE
No image available
W0090642 DRAIN FILTER. COMPLETE
No image available
W0090648 SPRING. HINGE ESL6143
No image available
W0090683 TUBE AIR CHAMBER
No image available
W0090697 ADAPTOR FLANGE DISCHARGE PIPE
$12.00
No image available
W0090716 BRACE FRONT UPPER
No image available
W0090720 STIFFENING DOOR 60 SOFT
No image available
W0090726 CROSSBAR FRONT BOTTOM
No image available
W0090746 PLUG DRAIN HOSE
No image available
W0090790 LEG ADJUSTABLE FRONT 10MM
$18.90
No image available
W0090809 KNOB GREY
$35.55
No image available
W0090822 BUTTON PUSH GREY
$16.00
No image available
W0090919 SIDE PLATE CONTROL PANEL
No image available
W0090930 CONTROL PANEL DX103SK
No image available
W0090934 HARNESS
No image available
W0127959 HOSE INLET X 1500 LONG
No image available
W0128041 HEATER. 230V/2000W 32MM O/LETS
$85.40
No image available
W0128097 CLIP FIXING STUD (PKT 4)
$4.50
No image available
W0128103 SUPPORT ROLLER KIT PKT 4
$55.35
No image available
W0128149 KIT. DISPENSER. DETERGENT
No image available
W0128168 HINGE KIT DOOR RIGHT-LEFT
No image available
W0128207 DRAIN PUMP 50HZ
No image available
W0129222 SEAL AIR CHAMBER
No image available
W0129236 RING LOCKING KNOB
No image available
W0149895 O RING SUMP
No image available
W0149912 COVER CAP ESL9163
