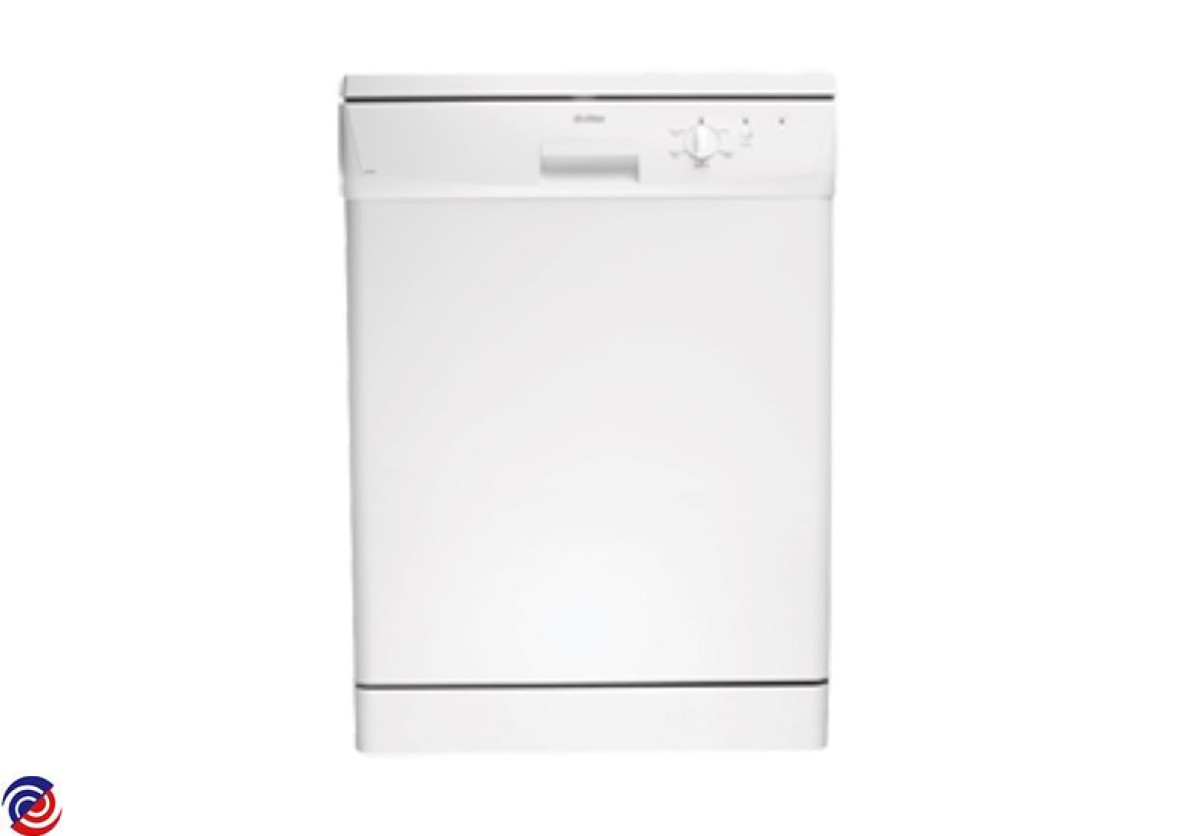

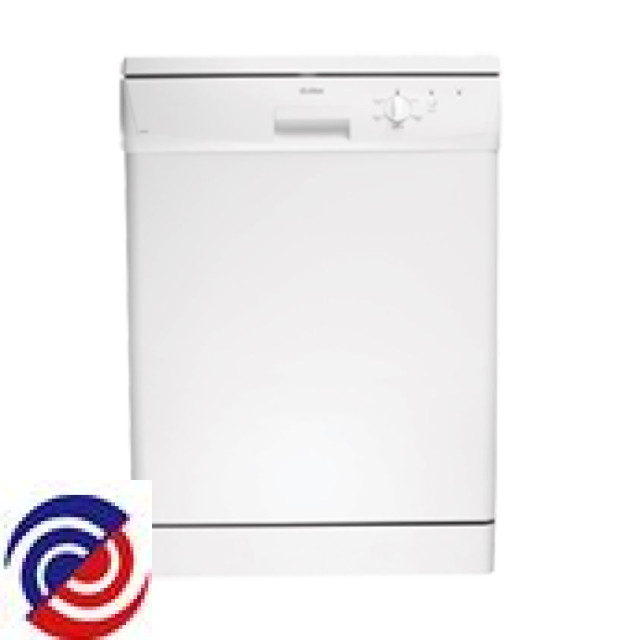

DX103WK — 911519031 08
DISHLEX — Dishwasher
Parts for DX103WK
W0015188 LATCH DOOR LOCK
$70.00
W0015349 HOLDER COLUMN LOWER SPRAY ARM
$28.00
W0015351 SPRAY ARM LOWER LIGHT GREY
W0015710 DOOR WHT
W0015729 TUBE PRESURE SWICH LEVEL 525MM
$21.00
W0018964 FOOT ADJUSTABLE X 36MM LONG
W0019073 DISHLEX DISHWASHER BASKET CUP RACK
W0019161 WORKTOP WHT
$160.00
W0019171 SUMP
$50.00
W0019175 ROLLER BASKET ADJUSTMENT FRNT
$16.00
W0019176 ROLLER BASKET ADJUSTMENT REAR
$16.00
W0025858 ROLLER KIT LOWER PKT 8
W0025958 AEG DISHLEX ELECTROLUX WESTINGHOUSE DISHWASHER DRAIN PUMP DRAIN ASSY 50293177-00/7
$89.00
W0071723 CAPAC 3UF MOTOR DISHWASHER
$48.00
W0071889 PIPE UNION HEATING ELEMENT
W0071893 SPRAY ARM UPPER LIGHT GREY
W0090295 CLIP BASKET STOP FRONT
$11.15
W0090546 BASKET CUTLERY
W0090747 GASKET DOOR LOWER BLK L=550
$31.00
.JPG)
W0090799 SWITCH PRESSURE LEVEL 65/45
.JPG)
W0090800 SWITCH PRESSURE SAFETY 123/98
.JPG)
W0090927 DISHLEX DISHWASHER CONTROL PANEL WHITE DX103WK
$111.00
W0090956 ELEMENT INLINE 230V/2000W 32MM
$96.00
W0090962 BASKET UPPER
$154.90
W0116461 CLIP FIXING STUD (PKT 4)
$5.50
W0116859 AEG WESTINGHOUSE DISHWASHER DISPENSER DETERGENT
.JPG)
W0128336 FILTER DRAIN
W0149911 STOP BASKET REAR DK GREY
W0015206 TEMPERATURE/TURBIDITY SENSOR
$67.00
W0015342 BRACKET STIFFENING
$34.50
W0015353 MANIFOLD VERTICAL
$46.90
W0015711 PLINTH WHT
$46.05
W0015713 HOLDER PLINTH
W0015714 BASEPLATE BASEMENT
$115.50
W0015715 DOOR PANEL INNER
$175.00
W0015733 TANK WATER SHORT ELECTRONIC
$50.00
W0015742 RAIL BASKET UPPER
W0015751 CORD POWER AUST/NZ 10A
$40.00
W0015774 MOUNT PRESSURE SWITCH
$25.00
W0018988 LATCH DOOR LOCK
W0019019 TUBE AIR CHAMBER
W0019021 SUPPRESSOR INTERFERENCE
$28.00
W0019023 VENT VAPOUR OUTLET
$14.90
W0019030 BASE CABINET
$47.50
W0019089 BUTTON PUSH WHT
$17.00
W0019159 HARNESS
$99.90
W0019162 COUNTERWEIGHT DISHWASHER
W0019170 BRACE FRONT UPPER
$35.05
W0019181 CHANNEL FEED UPPER SPRAY ARM
$42.00
W0023582 KIT FIXING STUD L/R
$46.20
W0023864 HINGE KIT DOOR LH/RH
$121.00
W0071563 WASHING MOTOR 2800RPM
W0071891 PIPE UNION HEAT ELEM-WASH PUMP
W0071910 BASKET LOWER INCLUDES ROLLERS
W0071913 FILTER PLASTIC
$69.00
W0072593 PANEL SIDE LEFT - WHITE
$150.00
W0072595 PANEL SIDE RH - WHITE
$147.35
W0072639 BRACE REAR UPPER
W0072686 TUBE PRESSURE SWITCH SAFETY
W0072806 VALVE FILL 4.5L/MIN
W0072894 SUPPORT BRACKET MOTOR RUBBER
W0074296 SEAL
W0090280 TIE HINGE
W0090380 COVER WIRING
W0090413 SEAL CHANNEL DRAINAGE
W0090423 NUT SPEED CLIP
W0090475 GASKET DOOR 17300MM
W0090510 GRATE CUTLERY BASKET GREY
W0090636 COVER LATCH HOLE
W0090656 TRIM TUB CAB L=1710 BLK
$30.00
W0090683 TUBE AIR CHAMBER
W0090702 COVER HOLE TUB
W0090726 CROSSBAR FRONT BOTTOM
W0090790 LEG ADJUSTABLE FRONT 10MM
$18.90
W0090808 KNOB WHT
W0090851 FIXING CLAMP SENSOR
W0090865 BRACKET STIFFENING
$6.60
W0090918 PANEL SIDE FOR CONTROL PANEL
W0090939 HOSE DRAIN X 2230MM
W0127959 HOSE INLET X 1500 LONG
W0128246 SUPPORT ROLLER KIT PKT 4
W0129222 SEAL AIR CHAMBER
W0129236 RING LOCKING KNOB
W0149895 O RING SUMP
W0149952 BUFFER DISHWASHER BASKET
$8.00
W0153262 PCB PROGRAMMED EDW500
