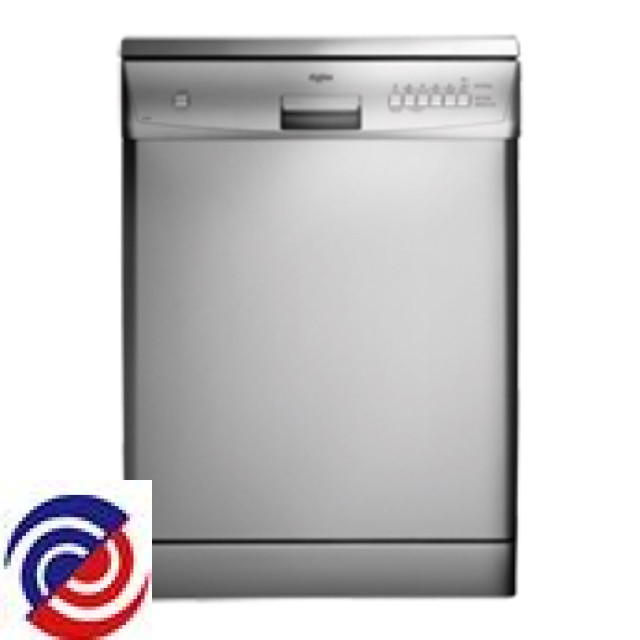

DX203SK — 911515040 07
DISHLEX — Dishwasher
Parts for DX203SK
.JPG)
W0012668 FERRULE HOSE JOINER 19MM
$6.00
W0013692 UNIVERSAL WASHING MACHINE & DISHWASHER DRAIN HOSE STRAIGHT CUFFS 2M
$45.00
W0015188 LATCH DOOR LOCK
$70.00
W0015349 HOLDER COLUMN LOWER SPRAY ARM
$28.00
W0015351 SPRAY ARM LOWER LIGHT GREY
W0015729 TUBE PRESURE SWICH LEVEL 525MM
$21.00
W0018964 FOOT ADJUSTABLE X 36MM LONG
W0019070 BUTTON PUSH
W0019073 DISHLEX DISHWASHER BASKET CUP RACK
.JPG)
W0019167 PANEL CONTROL GREY
$189.00
W0019171 SUMP
$50.00
W0019175 ROLLER BASKET ADJUSTMENT FRNT
$16.00
W0019176 ROLLER BASKET ADJUSTMENT REAR
$16.00
W0025858 ROLLER KIT LOWER PKT 8
W0025958 AEG DISHLEX ELECTROLUX WESTINGHOUSE DISHWASHER DRAIN PUMP DRAIN ASSY 50293177-00/7
$89.00

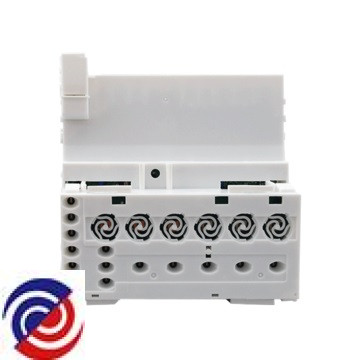

W0028884 DISHLEX DISHWASHER PC BOARD PROGRAMMED EDW1100 973911515039072
$169.00
W0032198 HOSE DRAIN KIT (1M)
$69.00
W0071723 CAPAC 3UF MOTOR DISHWASHER
$48.00
W0071889 PIPE UNION HEATING ELEMENT
W0071893 SPRAY ARM UPPER LIGHT GREY
W0072845 GASKET DOOR 1730MM
W0077072 VALVE FILL 2.5L/MIN
W0090295 CLIP BASKET STOP FRONT
$11.15
W0090546 BASKET CUTLERY
W0090747 GASKET DOOR LOWER BLK L=550
$31.00
.JPG)
W0090799 SWITCH PRESSURE LEVEL 65/45
.JPG)
W0090800 SWITCH PRESSURE SAFETY 123/98
W0090956 ELEMENT INLINE 230V/2000W 32MM
$96.00
W0090963 BASKET UPPER NO ROLLERS
W0116461 CLIP FIXING STUD (PKT 4)
$5.50
W0116859 AEG WESTINGHOUSE DISHWASHER DISPENSER DETERGENT
.JPG)
W0128336 FILTER DRAIN
W0128355 MOTOR WASH 2800RPM
$237.00
W0149911 STOP BASKET REAR DK GREY
W0015206 TEMPERATURE/TURBIDITY SENSOR
$67.00
W0015342 BRACKET STIFFENING
$34.50
W0015353 MANIFOLD VERTICAL
$46.90
W0015712 PLINTH GREY
$100.95
W0015713 HOLDER PLINTH
W0015714 BASEPLATE BASEMENT
$115.50
W0015715 DOOR PANEL INNER
$175.00
W0015717 BUTTON ON/OFF INOX
W0015733 TANK WATER SHORT ELECTRONIC
$50.00
W0015742 RAIL BASKET UPPER
W0015751 CORD POWER AUST/NZ 10A
$40.00
W0015774 MOUNT PRESSURE SWITCH
$25.00
W0018988 LATCH DOOR LOCK
W0019019 TUBE AIR CHAMBER
W0019023 VENT VAPOUR OUTLET
$14.90
W0019030 BASE CABINET
$47.50
W0019153 MAT SUPPORT PLINTH
$14.30
W0019162 COUNTERWEIGHT DISHWASHER
W0019165 CORD POWER AUSTRALIAN
$34.90
W0019170 BRACE FRONT UPPER
$35.05
W0019172 LEG ADJUSTABLE FRONT X 61MM
$16.35
W0019181 CHANNEL FEED UPPER SPRAY ARM
$42.00
W0023582 KIT FIXING STUD L/R
$46.20
W0023864 HINGE KIT DOOR LH/RH
$121.00
W0032293 TAPE FOIL KIT STEAM PROTECTION
W0047345 FILTER EMC
W0050183 SEAL NTC TURBIDITY
W0071886 FILTER MAIN INOX
$40.00
W0071891 PIPE UNION HEAT ELEM-WASH PUMP
W0071910 BASKET LOWER INCLUDES ROLLERS
W0072600 DOOR INOX
W0072639 BRACE REAR UPPER
W0072670 PANEL SIDE LH
$189.90
W0072671 PANEL SIDE RH
$170.00
W0072685 TUBE PRESSURE SWITCH SAFETY
W0072894 SUPPORT BRACKET MOTOR RUBBER
W0072937 BRACKET FIXING TOP
$10.00
W0074296 SEAL
W0090280 TIE HINGE
W0090300 BRACKET SWITCH
$7.00
W0090380 COVER WIRING
W0090413 SEAL CHANNEL DRAINAGE
W0090423 NUT SPEED CLIP
W0090510 GRATE CUTLERY BASKET GREY
W0090636 COVER LATCH HOLE
W0090657 TRIM TUB BLACK
$30.00
W0090683 TUBE AIR CHAMBER
W0090702 COVER HOLE TUB
W0090726 CROSSBAR FRONT BOTTOM
W0090844 BUTTON WASH MODE - INOX
$23.20
W0090865 BRACKET STIFFENING
$6.60
W0090918 PANEL SIDE FOR CONTROL PANEL
W0090938 WORKTOP GREY
W0090939 HOSE DRAIN X 2230MM
W0090950 HARNESS COMPLETE
$140.00
W0090960 HOOK UPPER BASKET DISPENSER
$4.50
W0127959 HOSE INLET X 1500 LONG
W0127972 NAMEPLATE DOOR
W0128246 SUPPORT ROLLER KIT PKT 4
W0129222 SEAL AIR CHAMBER
W0149895 O RING SUMP
W0149952 BUFFER DISHWASHER BASKET
$8.00
