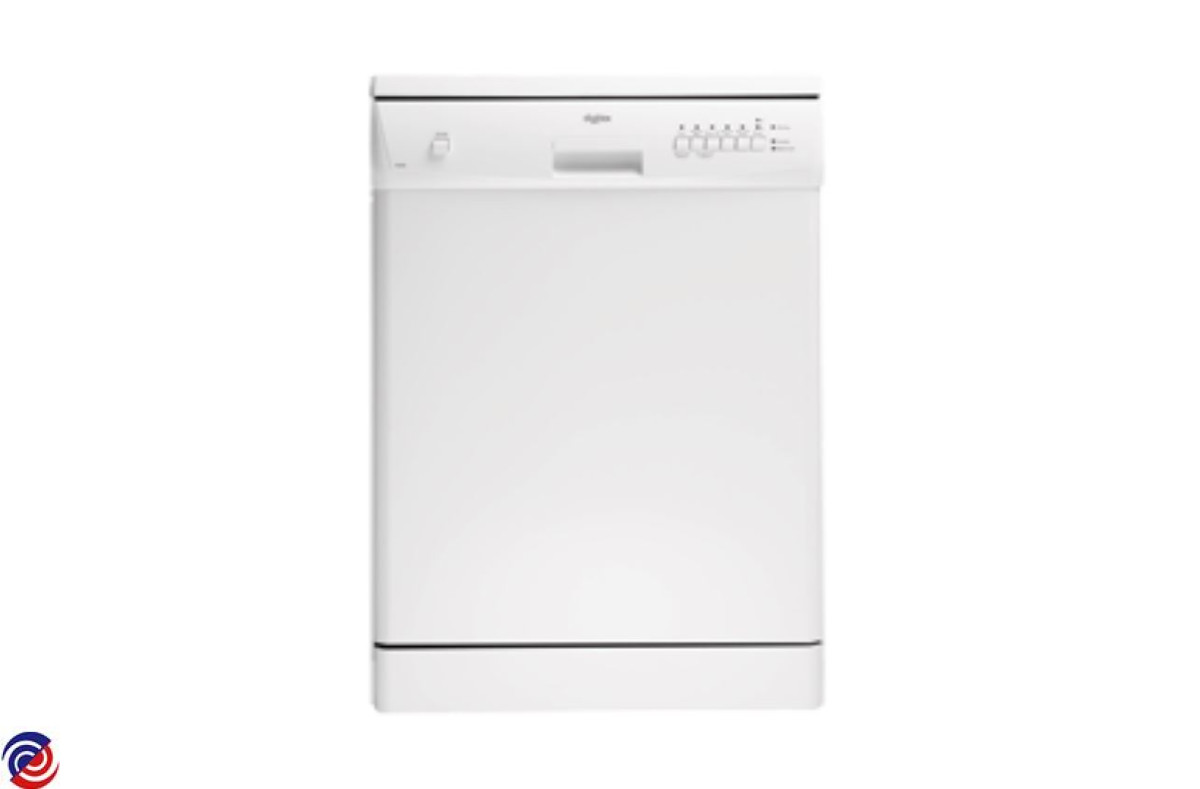

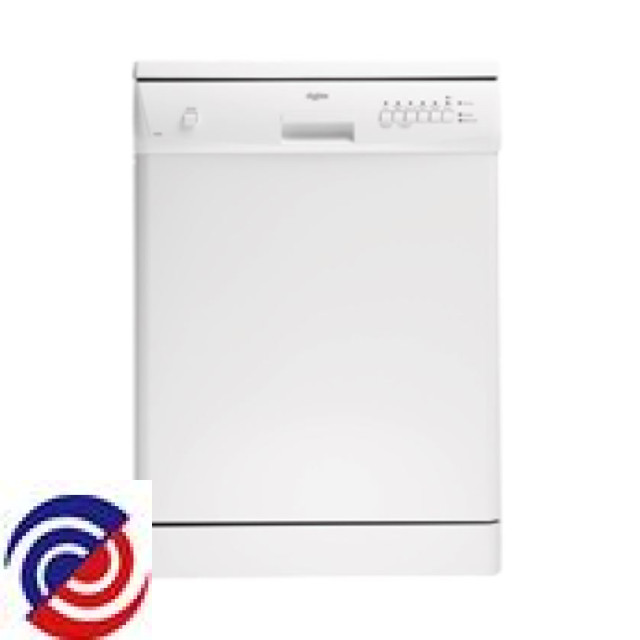

DX203WK — 911515039 02
DISHLEX — Dishwasher

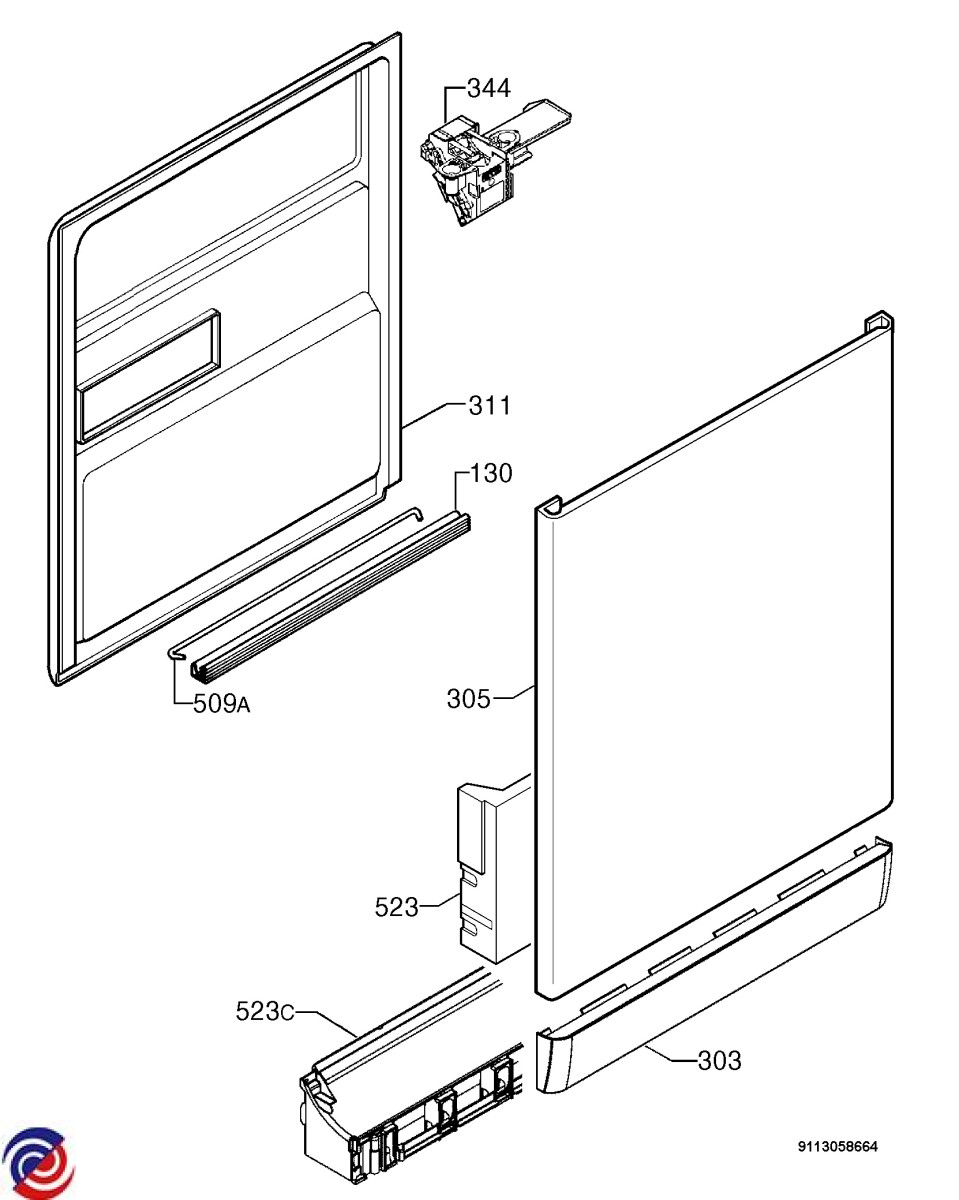

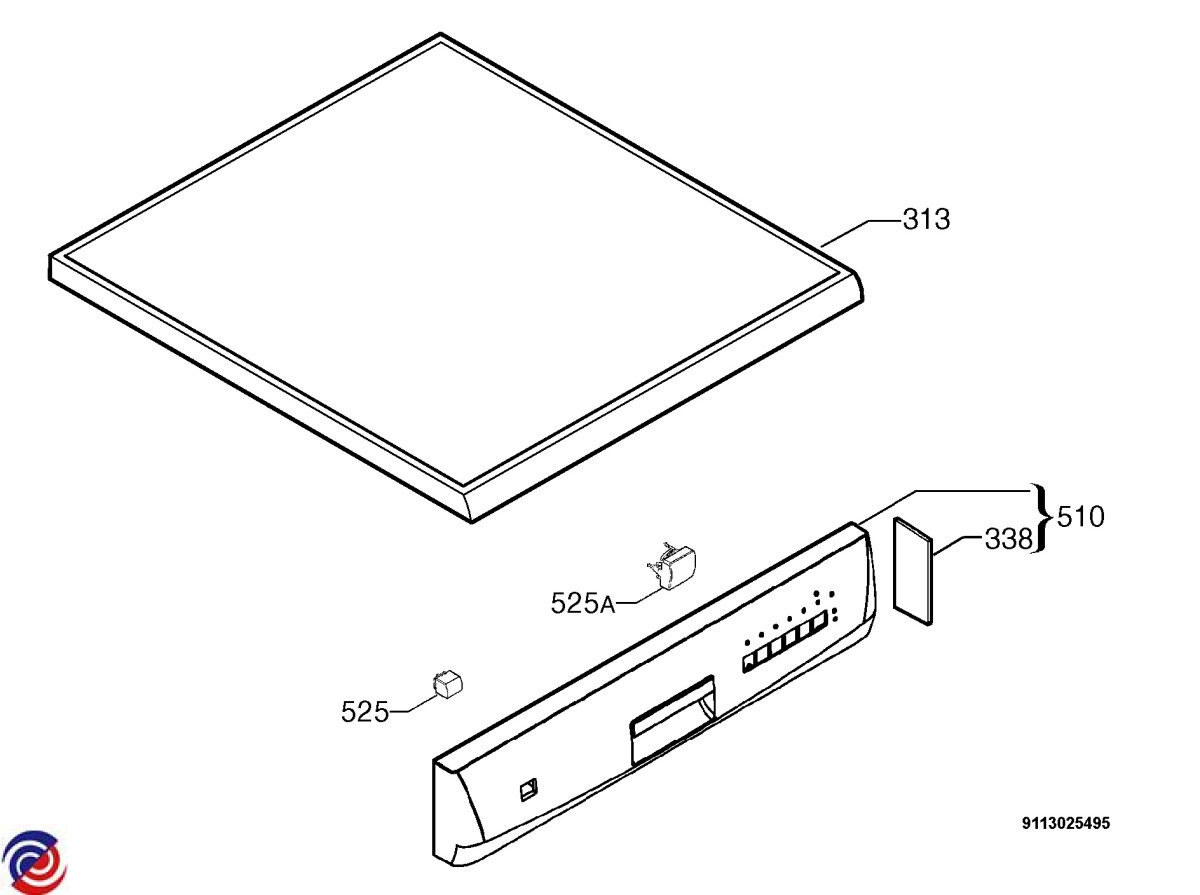

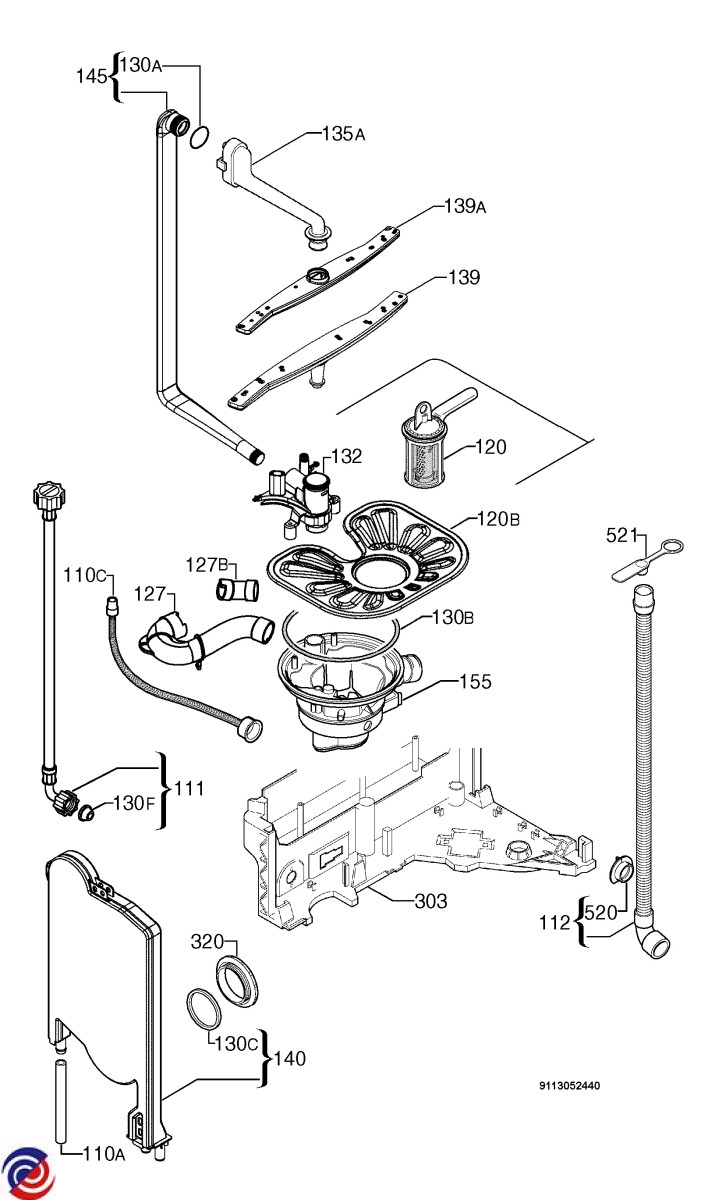

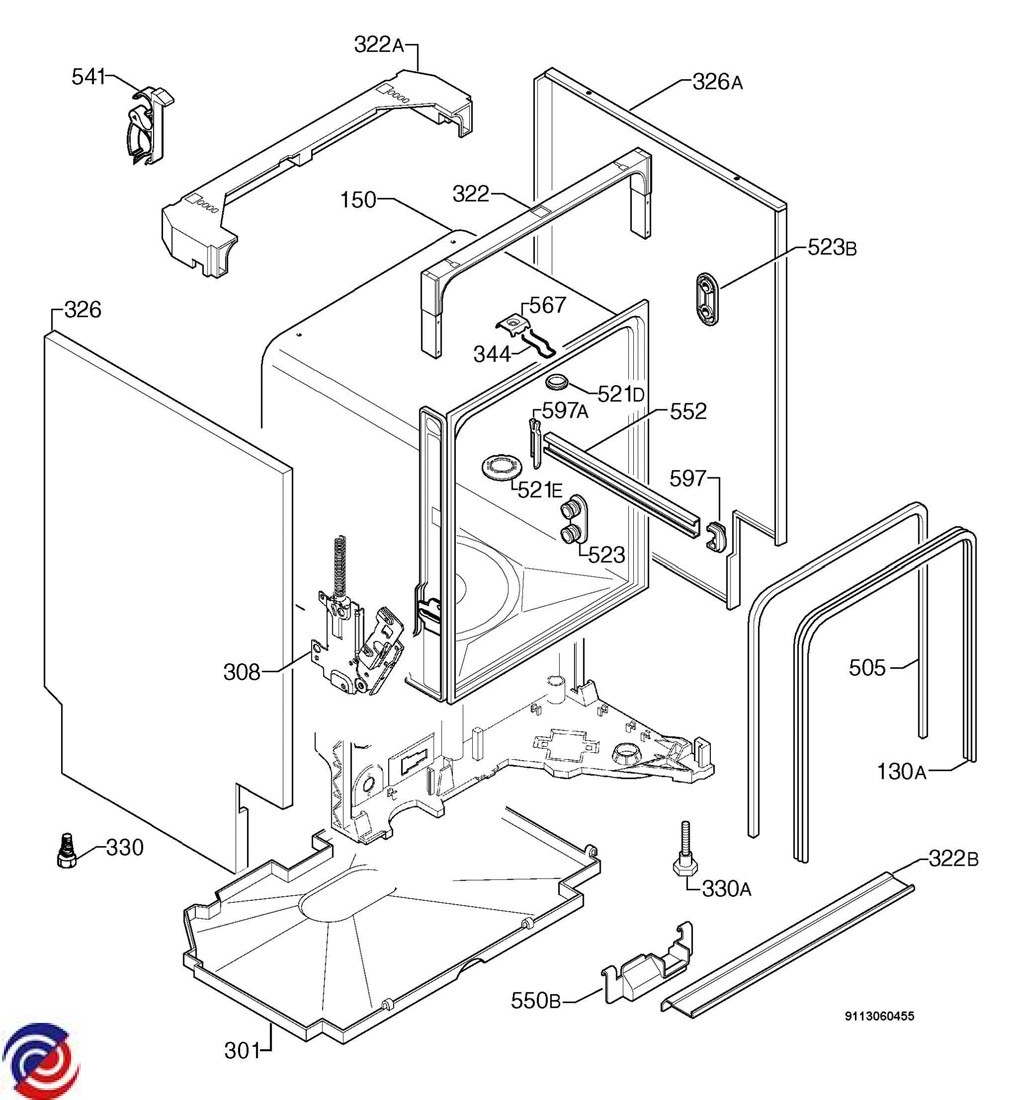

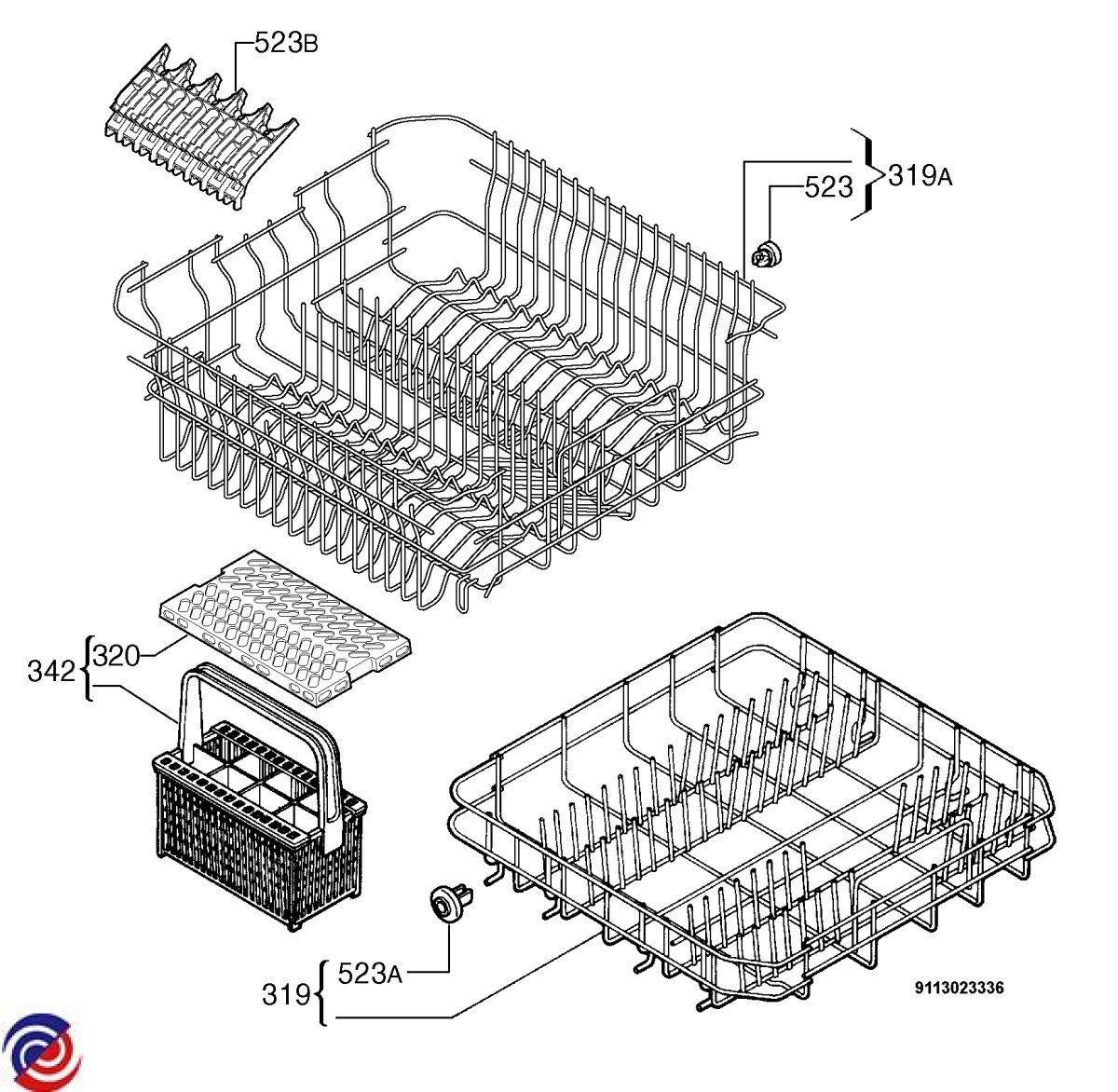

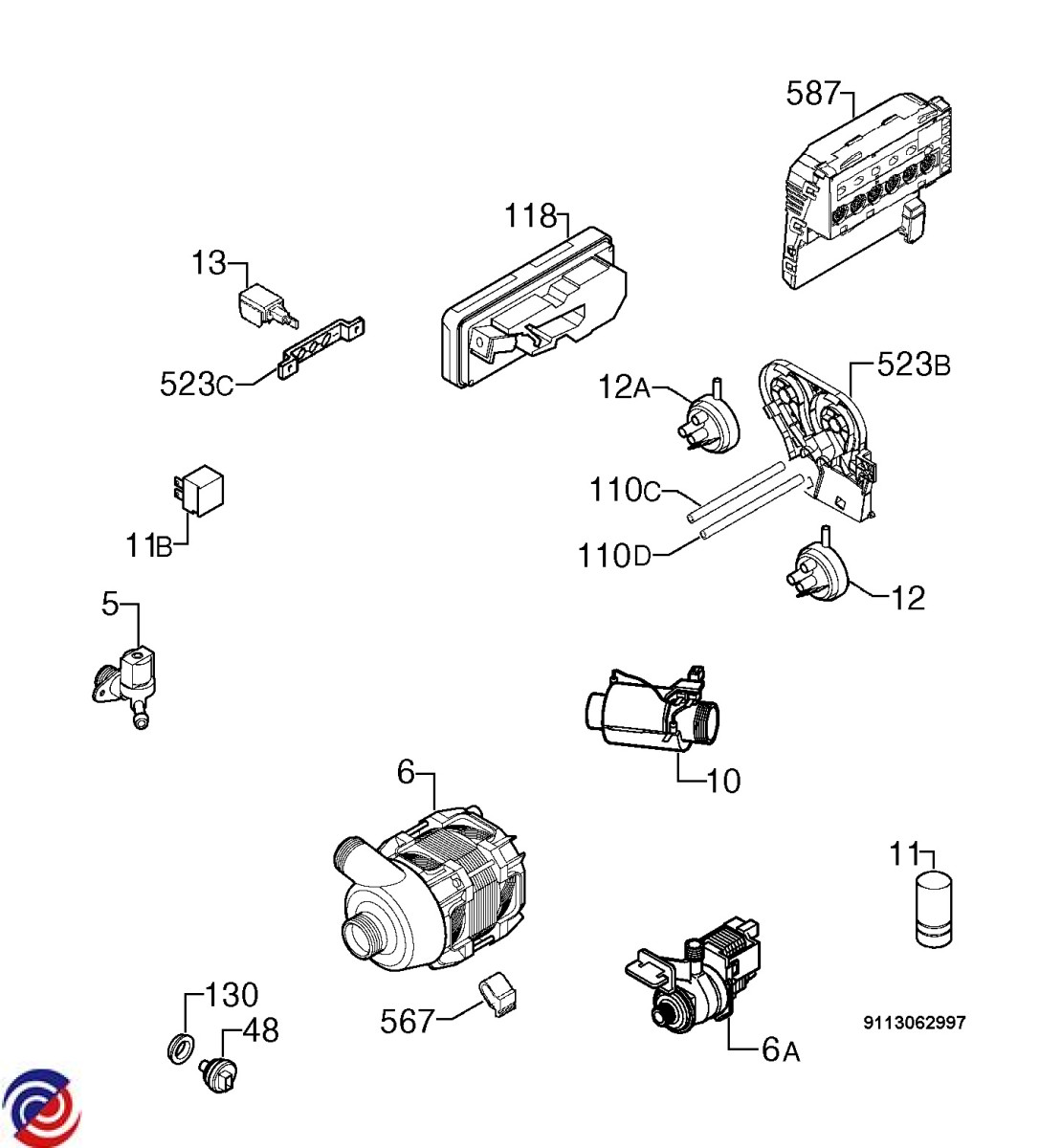

Parts for DX203WK
.JPG)
W0012668 FERRULE HOSE JOINER 19MM
$6.00
W0013692 UNIVERSAL WASHING MACHINE & DISHWASHER DRAIN HOSE STRAIGHT CUFFS 2M
$45.00
W0015349 HOLDER COLUMN LOWER SPRAY ARM
$28.00
W0015351 SPRAY ARM LOWER LIGHT GREY
W0015710 DOOR WHT
W0015729 TUBE PRESURE SWICH LEVEL 525MM
$21.00
W0018964 FOOT ADJUSTABLE X 36MM LONG
W0019070 BUTTON PUSH
W0019073 DISHLEX DISHWASHER BASKET CUP RACK
W0019161 WORKTOP WHT
$160.00
W0019166 DISHLEX DISHWASHER CONTROL PANEL WHITE
W0019171 SUMP
$50.00
W0023474 HINGE KIT DOOR LH/RH
$135.05
W0025858 ROLLER KIT LOWER PKT 8
.JPG)
W0025859 ROLLER KIT UPPER PKT 8
$37.00
.JPG)
W0028883 BOARD CONFIGURED EDW1100 973911515039031
$195.00
W0032198 HOSE DRAIN KIT (1M)
$69.00
W0071719 SENSOR TEMPERATURE
$50.00
W0071889 PIPE UNION HEATING ELEMENT
W0071893 SPRAY ARM UPPER LIGHT GREY
W0090295 CLIP BASKET STOP FRONT
$11.15
W0090546 BASKET CUTLERY
W0090747 GASKET DOOR LOWER BLK L=550
$31.00
.JPG)
W0090799 SWITCH PRESSURE LEVEL 65/45
.JPG)
W0090800 SWITCH PRESSURE SAFETY 123/98
W0090956 ELEMENT INLINE 230V/2000W 32MM
$96.00
W0116461 CLIP FIXING STUD (PKT 4)
$5.50
W0116859 AEG WESTINGHOUSE DISHWASHER DISPENSER DETERGENT
.JPG)
W0128067 CHANNEL DRAINAGE. COMPLETE
.JPG)
W0128336 FILTER DRAIN
W0128355 MOTOR WASH 2800RPM
$237.00
W0149911 STOP BASKET REAR DK GREY
W0015187 LATCH DOOR LOCK
$23.00
W0015342 BRACKET STIFFENING
$34.50
W0015353 MANIFOLD VERTICAL
$46.90
W0015711 PLINTH WHT
$46.05
W0015713 HOLDER PLINTH
W0015714 BASEPLATE BASEMENT
$115.50
W0015715 DOOR PANEL INNER
$175.00
W0015716 BUTTON ON/OFF WHT
W0015733 TANK WATER SHORT ELECTRONIC
$50.00
W0015742 RAIL BASKET UPPER
W0015751 CORD POWER AUST/NZ 10A
$40.00
W0015774 MOUNT PRESSURE SWITCH
$25.00
W0018988 LATCH DOOR LOCK
W0019019 TUBE AIR CHAMBER
W0019023 VENT VAPOUR OUTLET
$14.90
W0019030 BASE CABINET
$47.50
W0019153 MAT SUPPORT PLINTH
$14.30
W0019165 CORD POWER AUSTRALIAN
$34.90
W0023582 KIT FIXING STUD L/R
$46.20
W0032293 TAPE FOIL KIT STEAM PROTECTION
W0035505 CLAMP HOSE - WORM DRIVE
W0047345 FILTER EMC
W0050178 SEAL SUMP
W0050183 SEAL NTC TURBIDITY
W0071642 DRAIN PUMP 50HZ
W0071724 CAPACITOR RUNNING 3UF
W0071886 FILTER MAIN INOX
$40.00
W0071891 PIPE UNION HEAT ELEM-WASH PUMP
W0071909 BASKET UPPER INCLUDES ROLLERS
W0071910 BASKET LOWER INCLUDES ROLLERS
W0072592 PANEL SIDE LH
$160.00
W0072594 PANEL SIDE RH
W0072611 BRACKET FIXING TOP
W0072639 BRACE REAR UPPER
W0072685 TUBE PRESSURE SWITCH SAFETY
W0072806 VALVE FILL 4.5L/MIN
W0072842 SEALING OUTER X 1730 LONG
W0072893 BUMPER MOTOR
W0074296 SEAL
W0090280 TIE HINGE
W0090300 BRACKET SWITCH
$7.00
W0090380 COVER WIRING
W0090413 SEAL CHANNEL DRAINAGE
W0090423 NUT SPEED CLIP
W0090612 CLAMP HOSE
W0090636 COVER LATCH HOLE
W0090656 TRIM TUB CAB L=1710 BLK
$30.00
W0090683 TUBE AIR CHAMBER
W0090702 COVER HOLE TUB
W0090716 BRACE FRONT UPPER
W0090726 CROSSBAR FRONT BOTTOM
W0090791 ADJUSTABLE FOOT FRONT 10MM
W0090843 BUTTON WASH MODE - WHT
$14.50
W0090865 BRACKET STIFFENING
$6.60
W0090918 PANEL SIDE FOR CONTROL PANEL
W0090939 HOSE DRAIN X 2230MM
W0090949 HARNESS COMPLETE
W0127959 HOSE INLET X 1500 LONG
W0128246 SUPPORT ROLLER KIT PKT 4
W0129222 SEAL AIR CHAMBER
