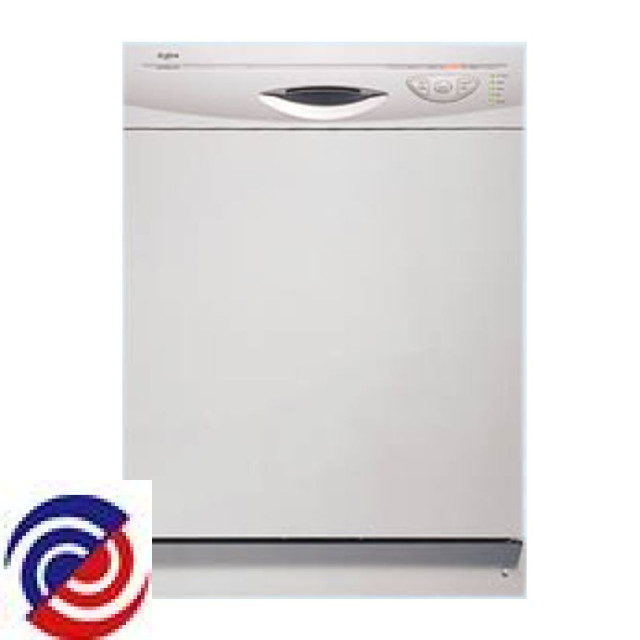

DX300WA*01
DISHLEX — Dishwasher

W0012238 SUPPORT SPRING

W0012668 FERRULE HOSE JOINER 19MM

$6.00

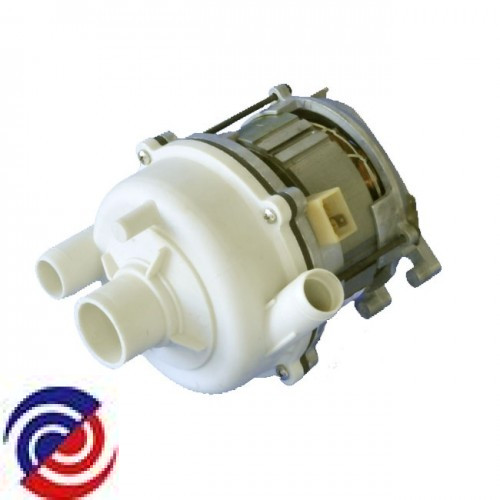

W0012768 MOTOR ASSY 3 OUTLETS

$304.55

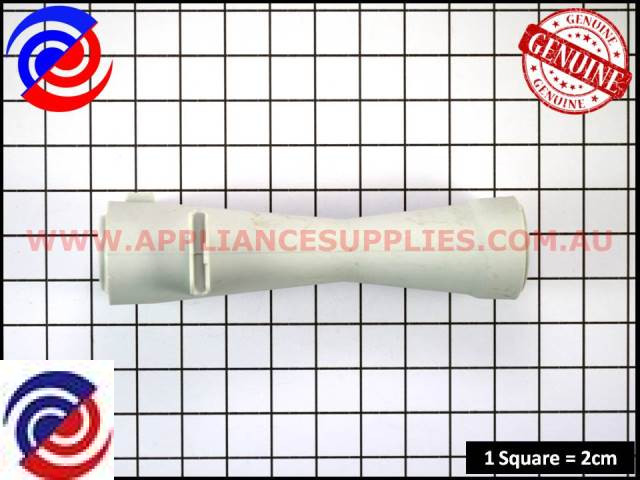

W0031410 FUNNEL VENTURI ASSY UPPER

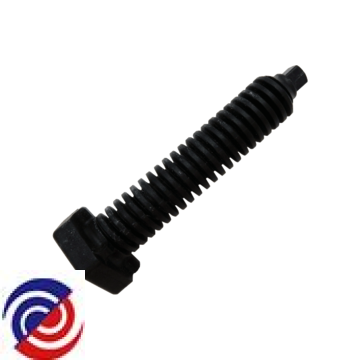

W0039106 LEG ADJUSTABLE

$10.00

W0045455 WASHER HOSE 1/2 X 1

W0060483 DISHWASHER HOSE 2M 90DEG NUT/TAIL BTH

$39.55

W0147162 FILTER HOSE INLET RUBBER

$8.45

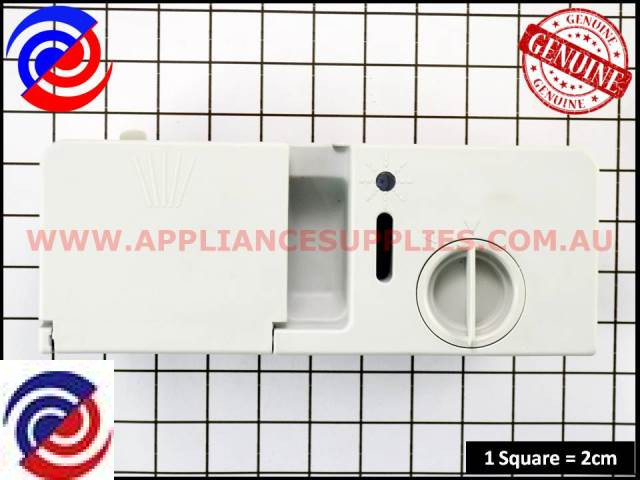

W0149367 DISPENSER DETERGENT 240/50HZ

W0149451 HOSE WASH PUMP OUTLET LOWER

$11.95

W0149472 GROMMET SPRAY NOZZLE

$3.00

W0149495 PUMP DRAIN 240V/50HZ

W0149554 BASKET CUTLERY

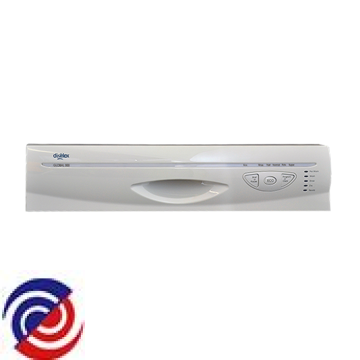

W0149683 PANEL CONTROL WHT

$316.35

W0155945 HANDLE & BRACKET ASSY WHT

W0156451 FILTER CUP DRAIN

W0156464 SPRAY ARM UPPER

W0170402 TIE CABLE MINIATURE

$4.00

W0013883 TAIL ELBOW 10MM 90 DEGREE

W0013936 LINER ASSY

W0035505 CLAMP HOSE - WORM DRIVE

W0035600 CLAMP SERVICE CORD

W0035619 CLAMP-TRIDON MH-005 11-18MM

W0035747 CAP SCREW (WHITE)

W0036236 SUPPORT FRAME ASSY L/H

W0036245 SUPPORT FRAME ASSY R/H

W0036248 SUPPORT PRESSURE SWITCH TUBE

W0036330 DAMPER MOTOR MOUNTING

$5.50

W0038987 BRACKET DISPENSER

W0038992 BRACKET RETAINING I/VALVE

W0041710 PANEL SUPPORT FRONT

W0041712 PANEL SUPPORT REAR

W0041720 PANEL JUNCTION BOX (AUST)

W0041723 PANEL COVER J BOX

W0041726 PANEL FRONT COVER

W0041728 PANEL DOOR INNER

W0041729 PANEL BASE

W0041735 PANEL BACK (COREX)

W0041811 PANEL DOOR OUTER (WHITE)

W0041836 PANEL WRAP (WHITE)

W0041858 PANEL K/PLATE TOP (ADJ)(WHITE)

W0041864 PANEL K/PLATE BTM (ADJ)(WHITE)

W0042443 HINGE KIT DOOR LH

W0042444 HINGE KIT DOOR RH

W0042567 VENT AIR (PG)

W0042668 SUPPORT CHANNEL LINER (REAR)

W0042670 CHANNEL SPILLWAY

W0042671 SUPPORT CHANNEL LINER FRONT

W0043662 TUBE PRESSURE SWITCH (865MM)

W0043902 STUD HINGE PIVOT

W0044087 NUT WHITE

W0044120 NUT M5 X 0.8

W0044125 NUT M6 HEX ZN

W0044240 SPANNER LEVELLING LEG

W0045463 WASHER SEALING

W0045864 SPRING HINGE

W0046298 ELEMENT

W0046454 SPEED CLIP DISHWASHER

$4.50

W0046462 CLIP REAR PANEL

W0046549 SLEEVE SPRING

W0046682 DOME ASSY AIR

W0047004 HOUSING SUMP (3 OUTLETS)

W0047499 SCREW 7_19 X 1/2 HI LO ZC PAN

W0047605 SCREW 3/16 X 1/2 BSW CSK

W0047607 SCREW NO 6 T25 X 3/8 CSK SS

W0047613 SCREW M4 X 10MM PN HD

W0047615 SCREW M5 X 12 MM TRUSS HD

W0047626 SCREW M5 X 12MM CS TAP TITE

W0047628 SCREW SUMP PLATE

W0047631 SCREW NO 7-19*8 FLNG HD HI-LO

W0047638 SCREW #8*11 AB C/S #6 HD

W0047654 SCREW DOOR LATCH

W0048156 BAFFLE DOOR INNER

W0048158 BAFFLE DOOR (OUTER)

W0048587 WIRE GLASS SUPPORT

W0048940 TERMINAL SINGLE (FREESTYLE)

W0049257 GASKET AIR VENT

W0049781 BASKET LOWER INCLUDES ROLLERS

W0049783 BASKET UPPER

W0050091 SEAL THERMOSTAT

W0050097 SEAL O RING

W0050100 SEAL ELEMENT

W0050125 O RING SEAL

W0050166 SEAL & IMPELLER KIT

W0050169 SEAL DOOR BOTTOM

W0050170 SEAL DOOR

W0050172 SEAL FOAM

W0050764 INLET WATER

W0050768 DELIVERY TUBE TOP SPRAY

W0052806 GUIDE DOOR L/H

W0052807 GUIDE DOOR R/H

W0053631 RETAINER DOOR SEAL (LH)

W0053633 RETAINER DOOR SEAL (RH)

W0053635 RETAINER MOTOR MOUNTING

W0054682 INSULATION ACOUSTIC DOOR

W0054684 INSULATION ACOUSTIC BLANKET

W0055249 CONE DOOR GUIDE (X2)(FLAT)

W0055559 RACK DISH LOWER BASKET

W0055560 RACK CUTLERY LOWER BASKET

W0056046 FILLER PANEL CONTROL (LH) WH

W0056048 FILLER PANEL CONTROL (RH) WH

W0057409 SWITCH PRESSURE

$20.00

W0057828 THERMOSTAT 85C 2 POLE

W0059408 TRIM CABINET RH SS

W0059410 TRIM CABINET LH SS

W0059465 TRIM CABINET TOP SS

W0059995 HARNESS DOOR

W0060003 HARNESS BASE

W0060004 HARNESS DOOR

W0060487 HOSE 10MM (PER METRE)

W0060505 HOSE DRAIN 1.8M

W0060524 HOSE INLET TO SYPHON BREAK

$44.00

W0061320 PAD GUARD D/HINGE LH

W0061322 PAD GUARD D/HINGE RH

W0061599 PLATE SUMP (3 OUTLETS)

W0062779 TAIL STRAIGHT 10MM

$22.00

W0062795 CORD SERVICE

W0063279 BAG ASSY ACCESS PACK

W0064747 NUT HEX 3/16 BSW

$4.50

W0064785 NUT CAGE 10 UNF

W0064938 WASHER 5/32 INT S/P

W0069882 CLAMP HOSE W DRIVE 1/2 X 3/4

W0110584 SWITCH

$15.20

W0111507 SCREW NO 8 X 3/8 WAFER ZNC

W0111663 WASHER SHAKE PROOF

W0137372 CLAMP PLATE ELEMENT

W0148023 SCREW 7/19 HI LO C/S S/S 18

W0148025 SCREW NO 7 19 LONG

W0148834 LEVER SWITCH MICRO HANDLE

W0148843 SPRING HANDLE DOOR C/R/L

W0148854 AXLE GUIDE WHEEL

W0148866 WASHER GUIDE RAIL

W0149123 BRACKET THERMISTOR

$22.00

W0149340 HOSE SUMP TO W/PUMP INLET

W0149343 CLAMP HOSE 31_3MM DIA

W0149344 CLAMP HOSE DIA 37_2 MM

W0149345 CLAMP HOSE DIA 44_4 MM

W0149346 CLAMP HOSE 14_8MM DIA GOLD

W0149348 CLAMP HOSE DIA 27_5

W0149352 CLAMP HOSE DIA 28_7 MM

W0149353 SCREW KICKPLATE

W0149361 CLAMP HOSE 15.5MM BLK

$1.80

W0149365 SCREW SUMP

W0149368 VALVE INLET 240V/50HZ 4.0L/MIN

W0149402 SEAL DRAIN PUMP

W0149416 COLLECTOR OVERFILL

W0149439 FILTER LH S/S REMOVABLE

W0149445 RETAINER SUMP P/GREY

W0149487 HOSE DRAIN 2M

W0149489 FLAP VALVE DRAIN PUMP

W0149522 CAPAC 6UF 400V 2PIN CLIP

W0149536 GUIDE ADJUSTABLE KICKPLATE

W0149542 SPRING ADJUSTABLE KICKPLATE

W0149625 HOSE W/PUMP TO BYPASS FILTER

W0149630 CLIP GLASS SUPPORT P/GREY

W0149636 FILTER RH S/S WITH CUTOUT

W0149666 LENS PROGRESS INDICATOR

W0154704 S/CLIP M10430/4 CLEAR ZN FINI

W0154705 HOSE PUMP OUTLET UPP FEED PIPE

W0154706 FLOAT OVERFILL UNDER SUMP

W0155947 CONTROL BOARD

W0156422 STOP GUIDE RAIL P/GREY

W0156423 GUIDE RAIL BASKET UPPER

W0156425 WHEEL & AXLE G/RAIL

W0156442 RACK CUP HINGED

W0156443 WHEEL & AXLE U/BASKET

W0156449 WHEEL & AXLE L/BASKET

W0156454 FILTER BARREL MICROMESH

W0156455 SPRAY ARM LOWER

W0156456 VENTURI ASSY LOWER

W0156457 BREATHER FILTER

W0156459 SEAL SUMP

W0156463 SWITCH MICRO & PIN UNDER SUMP

W0156467 SPRAY NOZZLE & GASKET

W0156489 BRACKET RH/LH KICKPLATE

W0156612 FILTER BYPASS

W0156771 CLIP COLLAR LOWER VENTURI

W0157983 KIT FLOOR MOUNTING

W0170317 SCREW #7X12MM LG FLANGE HD PH
