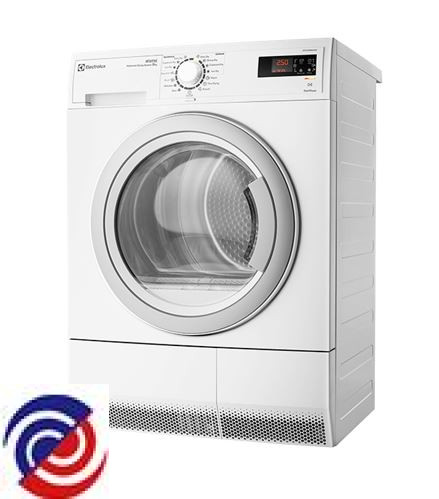

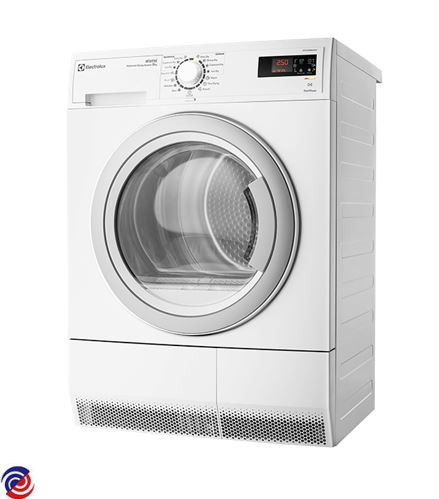

EDC2086GDW — 916097790 00
ELECTROLUX — Clothes Dryer
Parts for EDC2086GDW
.png)
W0014777 PROGRAM SELECTOR TC2/3
W0016685 HOSE DRAIN KIT DRYER 2.5M
W0016701 BUSH SUPPORT ROLLER
$8.00
W0016717 CAPAC 4UF 425V 2PIN MOT&FAN
W0017333 USER INTERFACE BOARD,TC3
$284.00
W0017357 RACK DRYING SAHARA
$65.00
W0017372 FLUFF FILTER
$52.00
W0017380 HUMIDITY SENSOR
$37.00
W0017400 HOSE DRAIN
$19.00
W0017403 GASKET FILTER
$37.00
W0017408 SPRING, DOOR, PLINTH
$13.00
W0017409 PIVOT DOOR HINGE
$10.00
W0017432 AEG ELECTROLUX DRYER HEATER 240V 1400 + 600W
$153.00
W0017433 MOTOR,230-240V,50HZ,167W
W0017435 DOOR LOCK
$30.00
.png)
W0017445 MICROSWITCH, FLOAT
$31.00
W0017476 AEG ELECTROLUX DRYER DOOR HINGE
W0017477 HINGE BUSHING
$8.00
W0017522 OUTER DOOR, PLINTH
$113.40
W0017523 PLINTH, TIR
$125.05
W0017541 KNOB ASSY,WHITE, TIR
$39.60
.png)
W0027060 DRUM, LIFTER
$14.30
W0049534 PULLEY IDLER
W0074438 THERMISTOR NTC PROBE LOWER
W0074876 CAPACITOR, MOTOR, DRUM 7UF
W0074941 AEG DRYER CONDENSATION PUMP
$87.00
W0076579 AEG ELECTROLUX CONDENSOR DRYER DRUM ROLLER
$39.00
W0076582 GASKET DRUM BACK
$35.00
W0076610 GASKET FRONT, LARGE OPENING
$37.00
W0076617 DOOR SWITCH
$37.00
W0076689 GASKET FRONT
W0150019 LEG ADJUSTABLE
W0016608 SEAL TEMPERATURE SENSOR
$23.20
W0016656 BUFFER (MOTOR)
$8.00
W0016657 BUSH MAIN MOTOR
W0016659 GASKET FRONT HEAT EXCHANGER
W0017234 BUTTON SILVER ON/OFF
$14.50
W0017345 SIDE PANEL,WITH INSULATION
$170.05
W0017361 PANEL REAR
$170.50
W0017367 REINFORCEMENT, TOP
$44.00
W0017369 REINFORCEMENT, MIDDLE,TOP
$27.50
W0017370 SUPPORT, TANK
$58.00
W0017371 TANK, UPPER
$51.00
W0017376 SUPPORT,BUTTON, DOOR
$9.00
W0017377 COVER, HEATING ELEMENT
$58.05
W0017378 PROTECTION, HEATING ELEMENT
$27.00
W0017379 TANK. CONNECTOR
$22.90
W0017383 BELT DRIVE L=1791
W0017384 TUBE HOLDER
$14.30
W0017386 COVER, REAR PANEL, PLASTIC
$25.05
W0017387 COVER SCROLL FRONT
$15.00
W0017388 COVER SCROLL BACK
$16.50
W0017389 BRACKET FIXING MOTOR FRONT
$19.00
W0017390 IMPELLER, COOLING
$27.50
W0017391 BRACKET HARNESS
$27.50
W0017393 BRACKET FIXING MOTOR REAR
$16.00
W0017395 SUPPORT, PUMP
$16.00
W0017396 SUPPORT, WIRING, CONNECTOR
$27.50
W0017399 SEALING,BASEMENT,AIR DUCT
$21.00
W0017401 SUPPORT, HUMIDITY SENSOR
$20.00
W0017404 COVER, PUMP, FLOAT
$13.00
W0017405 GASKET BASEMENT HEATER
$17.60
W0017406 BUSH TANK
$10.00
W0017407 GASKET, DOOR, BASEMENT
$35.00
W0017412 COVER, PLATE, DOOR LOCK
$5.50
W0017414 DOOR, CONDENSER,BASEMENT
$30.00
W0017417 FAN WHEEL, FRONT
$55.00
W0017428 BOARD MAIN EDR10621 LOW
W0017430 COVER ELECTRONIC BOARD
$13.05
W0017434 CLAMP CABLE
$7.15
W0017443 WORK TOP ASSEMBLY
$125.00
W0017463 COVER PLATE, BOTTOM
$59.40
W0017466 CONE, BASE
$36.00
W0017480 TAPPET DOOR
W0017524 HINGE, DOOR, PLINTH
$17.60
W0017526 CONE
$34.00
W0017527 SUPPORT, INNER DOOR
$14.30
W0017528 DIFFUSER, KNOB
$20.00
W0017531 OUTER DOOR FRAME
$70.05
W0017532 OUTER DOOR INSERT RING
$61.00
W0017533 GASKET COVER DOOR WHITE
$20.60
W0017534 OUTER DOOR GLASS
$132.00
W0017539 STEAM CONDENSER, ASSEMBLY
$184.00
W0017803 DOOR INNER PLASTIC
$94.00
W0017909 CONTROL PANEL, HANDLE,COMPLETE
$90.05
W0023730 BUTTON PUSH
$12.60
W0024132 DOOR HANDLE, ASSY,WHITE SILVER
$54.00
W0025696 BUSH KIT (MOTOR)
W0072033 HINGE PIN
$17.60
W0074344 SCREW. MOTOR
$13.20
W0074914 TENSION SPRING, MOTOR, ENV06
W0076588 PANEL FRONT HP NIAGRA P10
$133.00
W0076597 DUCT, AIR, FRONT
$138.00
W0076599 DRUM, COMPLETE
$197.65
W0076603 OVERFLOW HOSE. L=1040
$22.90
W0076606 HOSE. PUMP.TANK. L=1130
W0076611 HANDLE, STEAM ASSY
$36.30
W0076618 POWER CABLE, AUS, 2600MM
$70.00
W0076650 HINGE,PORTHOLE,REINFORCEMENT
$20.00
W0076652 RING LOCKING DOOR
$14.90
W0076666 DIFFUSER, LUMINOUS DIODE.SUPP
$28.55
