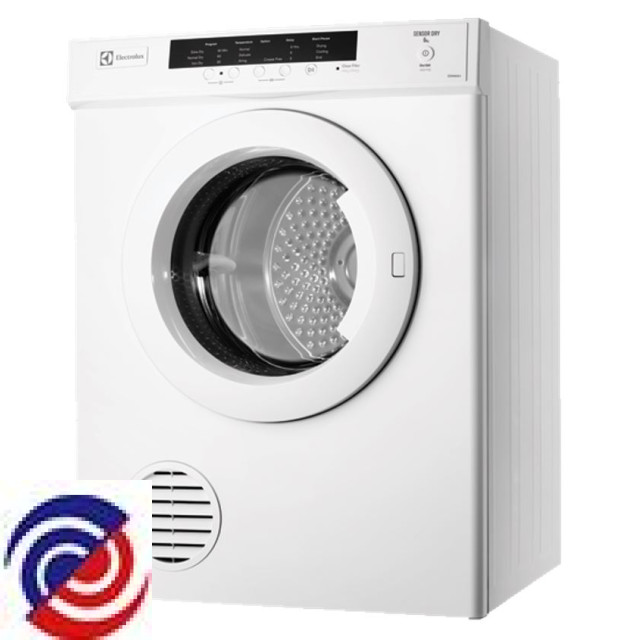

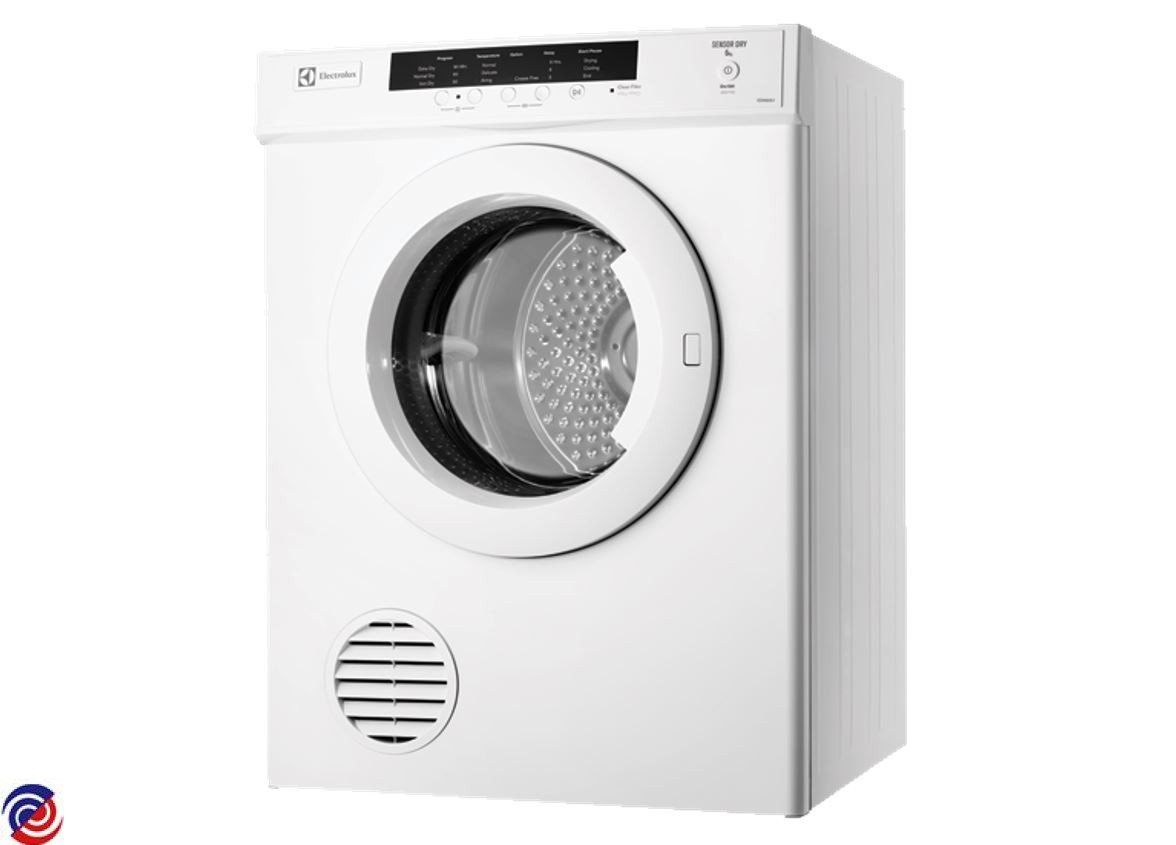

EDV6051 — 916002062 01
ELECTROLUX — Clothes Dryer

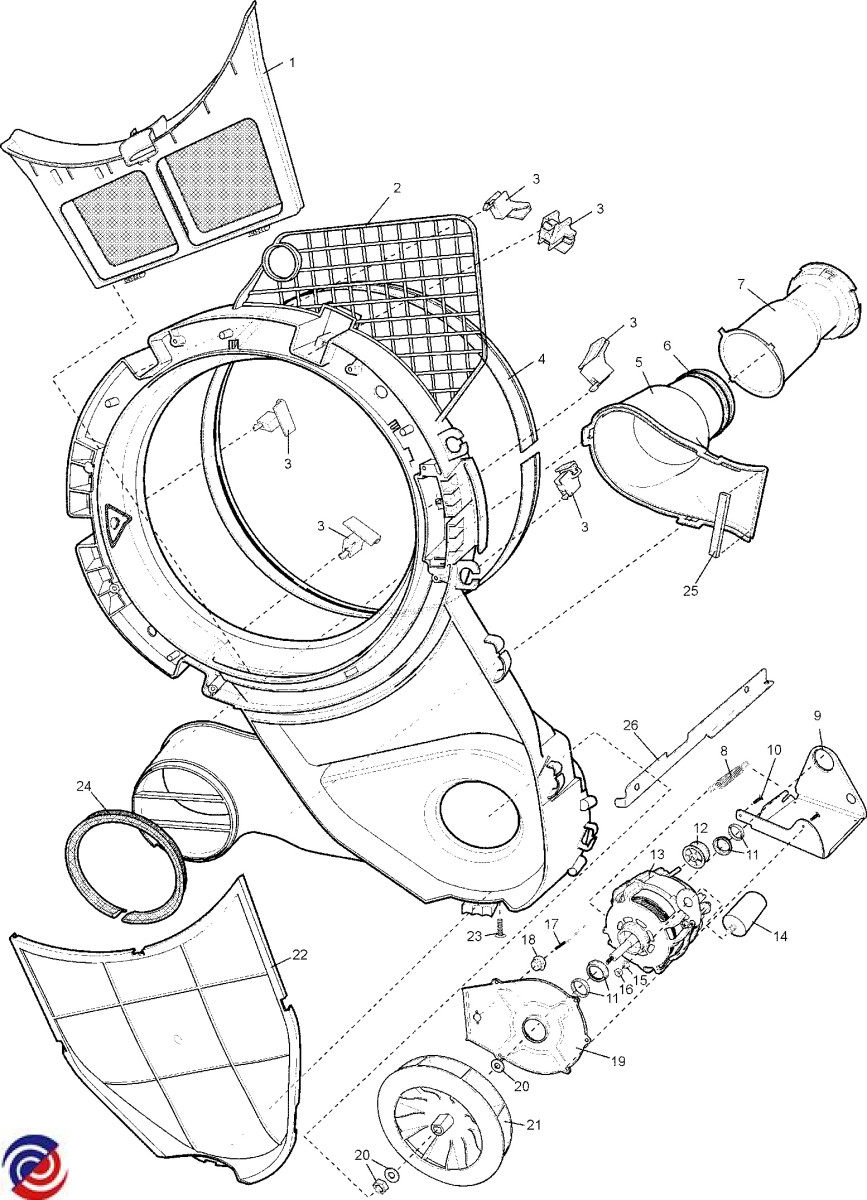

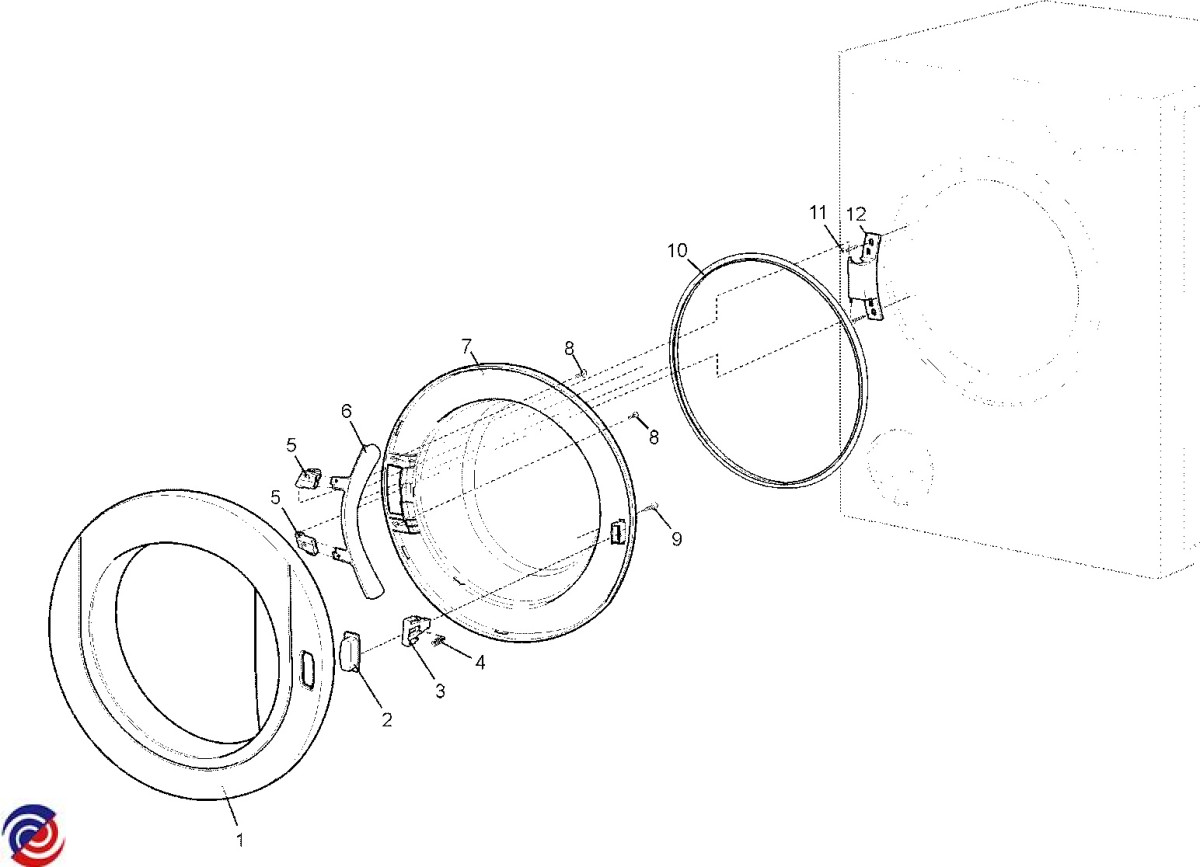

Parts for EDV6051
W0011300 ELECTROLUX SIMPSON DRYER FAN BLADE BLOWER
W0011332 ELECTROLUX SIMPSON WESTINGHOUSE DRYER COVER DOOR SWITCH ASSY 0028300024
W0011333 COVER EXHAUST
$5.40
W0012228 SPRING DOOR LATCH
W0012502 FILTER ASSY
W0012663 HARNESS WIRING
W0012767 MOTOR KIT
W0013000 ELECTROLUX SIMPSON DRYER SPACER FOR WALL MOUNT
$9.90
W0013272 ELEMENT & THERMO ASSY
W0013457 GRILLE EXHAUST COVER WHITE
W0016718 CAPACITOR 8UF WITH NUT
W0017300 ELECTROLUX SENSOR DRYER CONTROL PCB EDV5051 EDV6051 133300130
W0022222 COVER BEARING ELEM CARRIER
W0029248 TRIM INSERT REVERSE BLACK
$34.90
W0042416 HINGE DOOR
$25.00
W0049534 PULLEY IDLER
W0050693 CORD SERVICE
W0057973 ELECTROLUX SIMPSON WESTINGHOUSE DRYER REAR DRUM BEARING
W0060075 STRIKER DOOR LATCH
W0011288 RING KIT MOTOR MOUNT
W0011901 COVER CORNER RH
W0011998 NUT & WASHER KIT
W0012229 SPRING DOOR LATCH
W0012525 SCREW NO 6 X 12MM HEX HD
$4.00
W0012740 SEAL KIT DRUM
W0012796 GREASE MOLYKOTE 25ML
$57.05
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0017284 NUT M8 22441-518
$4.50
W0017289 BEARING KIT DRUM
W0017303 BUTTON DOOR WHT
W0027274 BUTTON PUSH PROGRAM SELECTION
W0029238 COVER DOOR EXTERNAL WHT
$25.90
W0029240 LIGHTPIPE - ELUX (OASIS)
$4.00
W0029245 BADGE NAMEPLATE
$8.70
W0029246 BUTTON ON/OFF
$14.50
W0029247 TRIM INSERT BLACK
W0029260 HOUSING & COVER ASSY
$31.90
W0035919 DOOR WINDOW
W0038226 COVER DUCT HOUSING
W0038230 COVER ASSY BACK PANEL
W0038926 BRACKET DOOR SWITCH
W0038939 BRACKET DOOR HINGE
W0038942 BRACKET KIT WALL
W0041581 PANEL REAR
W0042415 BEARING HINGE
$7.00
W0042790 COVER CORNER LH
W0045848 SPRING BELT TENSION
W0045851 SPRING ON/OFF BUTTON
W0047526 SCREW ST 10 X 1/2 HEX W/HD
W0047555 SCREW NO 8 X 1/2 CSK PD
W0047556 SCREW NO 8 X 12MM
W0047561 SCREW M4 PLASTITE X 14MM PAN
W0047567 SCREW M4 PLASTITE X 14MM HEX
W0047568 SCREW M4 PLASTITE X 20MM PAN
W0047569 SCREW M4 TAPTITE X 18MM PAN
W0049588 BELT DRUM DRIVE
W0050080 GASKET DOOR
W0050088 SEAL BLOWER HOUSING
W0050089 SEAL HOUSING DUCT COVER
W0057365 SWITCH ON/OFF
W0059846 DUCT EXTENSION
W0060077 STRIKER DOOR SWITCH
W0063166 INSTRUCTION SHEET WALL BKT
W0076305 TRIM INSERT SUPPORT-ETOSHA
$7.00
W0076315 DRUM ASSY 6KG SS - ETOSHA
W0099490 SWITCH MICRO DOOR CATCH
W0153982 PANEL CONTROL
$46.90
