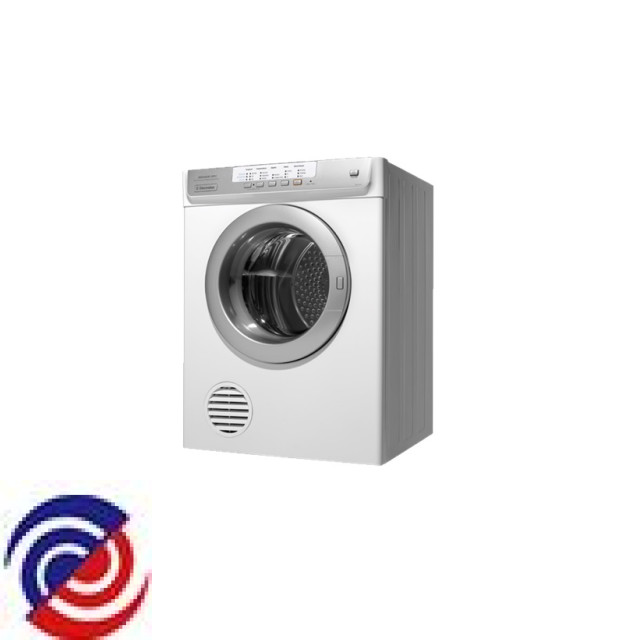

EDV605S — 916002031 00
ELECTROLUX — Clothes Dryer

W0011300 ELECTROLUX SIMPSON DRYER FAN BLADE BLOWER

W0011332 ELECTROLUX SIMPSON WESTINGHOUSE DRYER COVER DOOR SWITCH ASSY 0028300024

W0011333 COVER EXHAUST

$5.40

W0012228 SPRING DOOR LATCH

W0012502 FILTER ASSY

W0012663 HARNESS WIRING

W0012767 MOTOR KIT

W0013000 ELECTROLUX SIMPSON DRYER SPACER FOR WALL MOUNT

W0013272 ELEMENT & THERMO ASSY

W0013457 GRILLE EXHAUST COVER WHITE

W0013609 BEARING KIT INC FRONT SEAL

W0022222 COVER BEARING ELEM CARRIER

W0030801 BRACKET STACKING KIT

$33.00

W0031970 VENT KIT THRU WALL

$51.00

W0031971 VENT KIT FLEXI DUCT

W0038938 ELECTROLUX SIMPSON DRYER WALL BRACKET INCLUDING 2 SPACERS FOR WALL

$50.00

W0042416 HINGE DOOR

$25.00

W0049534 PULLEY IDLER

W0050693 CORD SERVICE

W0057973 ELECTROLUX SIMPSON WESTINGHOUSE DRYER REAR DRUM BEARING

W0060075 STRIKER DOOR LATCH

W0061437 CAPAC 8UF 400V 2PIN SPIGOT

W0011288 RING KIT MOTOR MOUNT

W0011901 COVER CORNER RH

W0011998 NUT & WASHER KIT

W0012229 SPRING DOOR LATCH

W0012455 HOUSING & COVER ASSY

W0012525 SCREW NO 6 X 12MM HEX HD

$4.00

W0012740 SEAL KIT DRUM

W0012796 GREASE MOLYKOTE 25ML

$57.05

W0017293 LIGHTPIPE - ELUX (ETOSHA)

$11.00

W0017294 TRIM CONTROL PANEL WHT

W0017295 TRIM CONTROL PANEL REV WHT

W0017296 COVER TRIM INSERT WINDOW

$11.90

W0017302 BUTTON PUSH PROGRAM SELECTION

$7.70

W0017305 BUTTON ON/OFF

$14.50

W0017306 BADGE NAMEPLATE

$4.50

W0017315 PANEL CONTROL SILVER

$41.80

W0035919 DOOR WINDOW

W0038226 COVER DUCT HOUSING

W0038230 COVER ASSY BACK PANEL

W0038926 BRACKET DOOR SWITCH

W0038939 BRACKET DOOR HINGE

W0038942 BRACKET KIT WALL

W0041581 PANEL REAR

W0042415 BEARING HINGE

$7.00

W0042790 COVER CORNER LH

W0044104 NUT M8 PREVAILING TORQUE

W0045848 SPRING BELT TENSION

W0045851 SPRING ON/OFF BUTTON

W0047526 SCREW ST 10 X 1/2 HEX W/HD

W0047555 SCREW NO 8 X 1/2 CSK PD

W0047556 SCREW NO 8 X 12MM

W0047561 SCREW M4 PLASTITE X 14MM PAN

W0047567 SCREW M4 PLASTITE X 14MM HEX

W0047568 SCREW M4 PLASTITE X 20MM PAN

W0047569 SCREW M4 TAPTITE X 18MM PAN

W0049588 BELT DRUM DRIVE

W0050080 GASKET DOOR

W0050088 SEAL BLOWER HOUSING

W0050089 SEAL HOUSING DUCT COVER

W0057365 SWITCH ON/OFF

W0059846 DUCT EXTENSION

W0060077 STRIKER DOOR SWITCH

W0063166 INSTRUCTION SHEET WALL BKT

W0076305 TRIM INSERT SUPPORT-ETOSHA

$7.00

W0076311 COVER DOOR EXTERNAL SILVER

W0076313 BUTTON DOOR SILVER

W0076315 DRUM ASSY 6KG SS - ETOSHA

W0076316 CONTROL ASSY ELEC - ETOSHA

W0099490 SWITCH MICRO DOOR CATCH
