EE600X — 947727006 00
ELECTROLUX — Coffee Machine

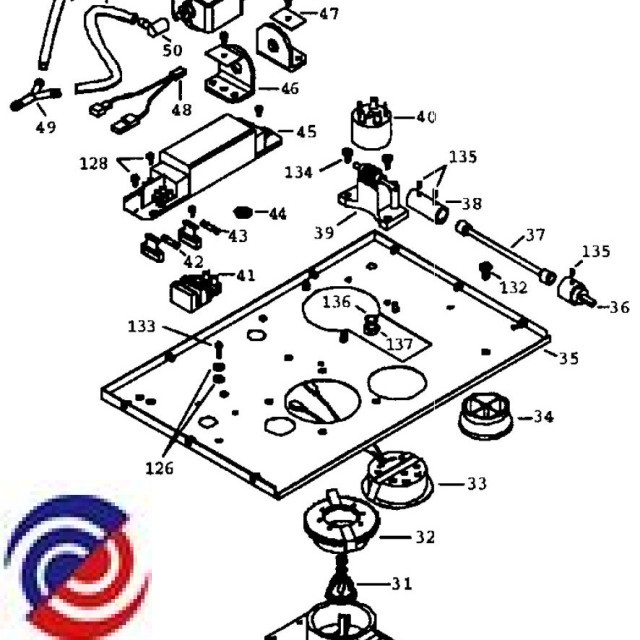

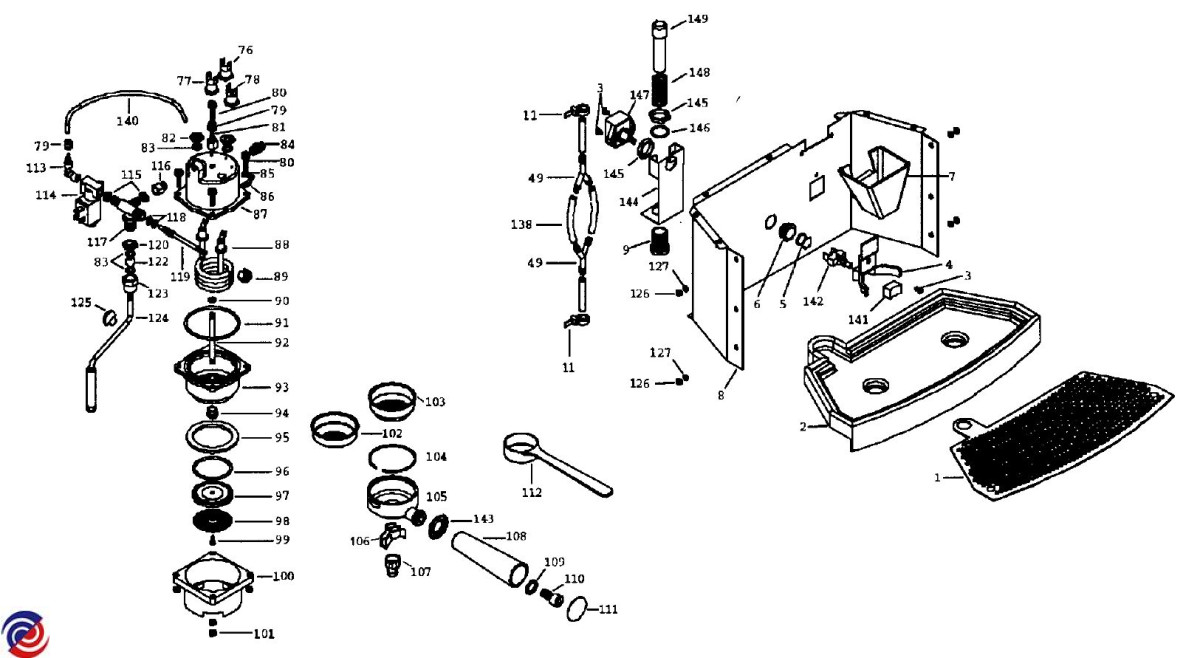

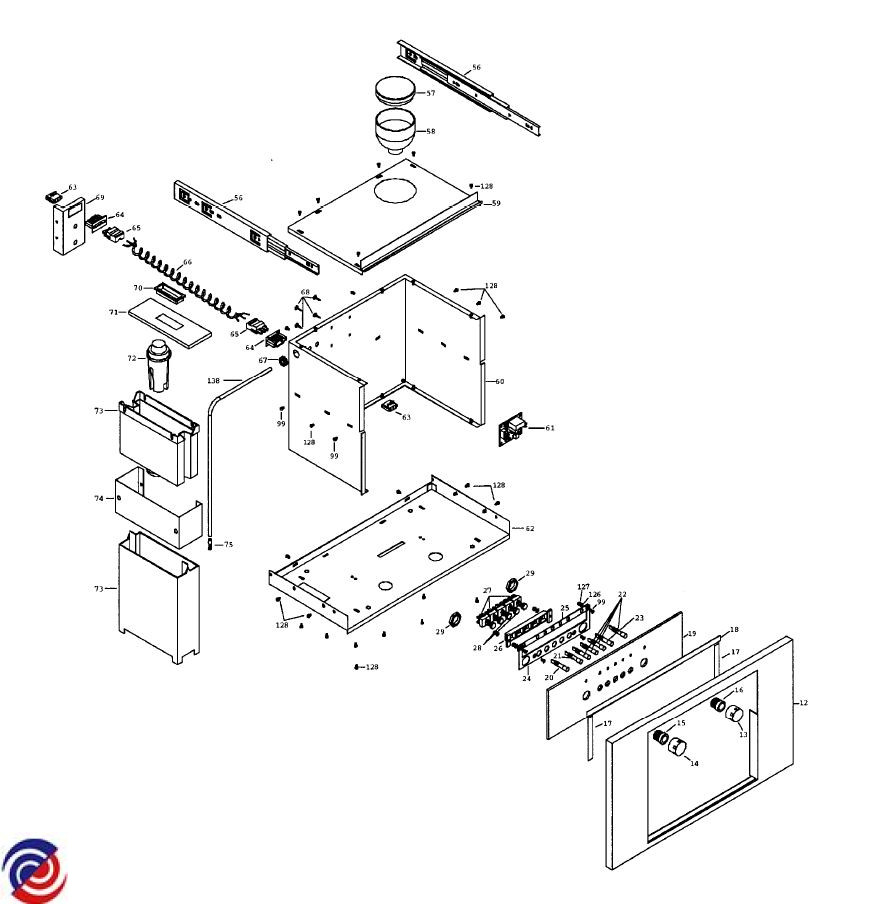

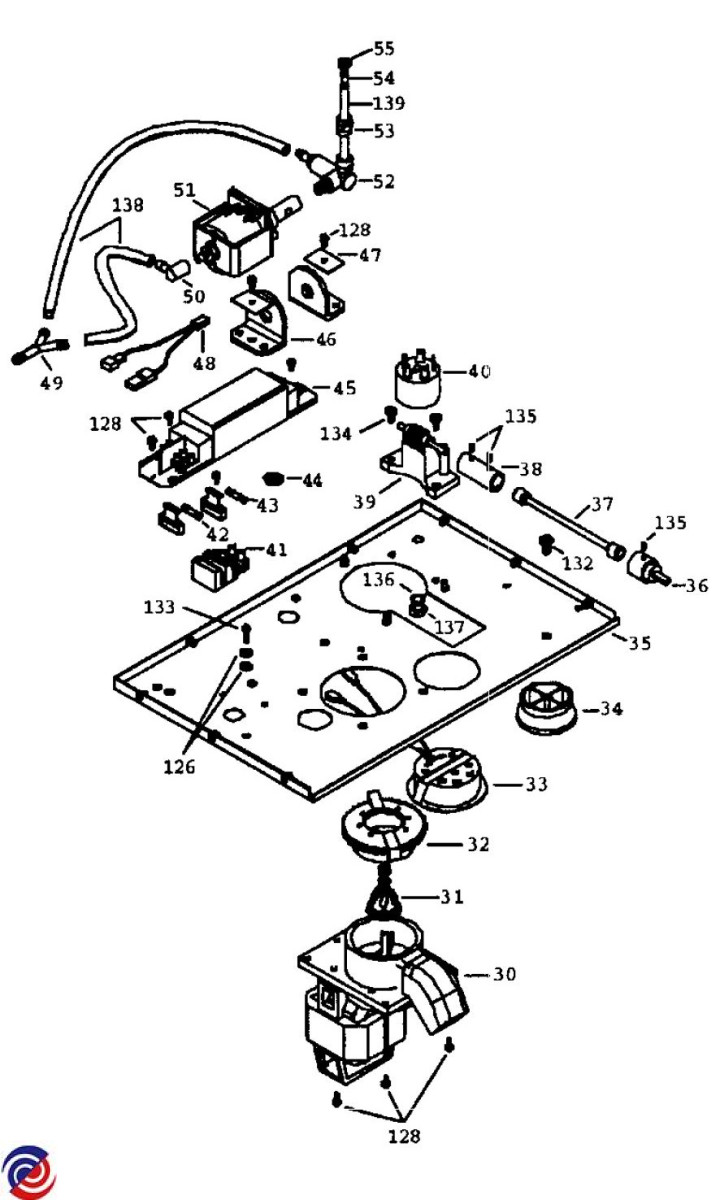

Parts for EE600X
W0025734 SURROUND COLLAR FLANGE
$99.00
W0013368 TAPE 3M #4950 VHB 10MM X 50MM
W0025523 CONVEYOR BLACK
W0025524 STEAM KNOB BLACK
$18.00
W0025525 DISTANCE PIECE CHROME PLATED
W0025526 DISTANCE PIECE CHROME PLATED
W0025527 PLATE BRACKET SWITCH
W0025528 PLATE BRACKET CONTROL LAMP
W0025529 HEXAGON NUT CHROME PLATED
W0025530 CLUSTER BRACKET INOX
W0025531 WHEEL SHAFT NICKEL PLATED
W0025532 SHAFT STEEL FLEXIBLE
W0025533 CABLE BLOCK COMPLETE
W0025534 CUSHION
W0025535 PLAQUE INOX
W0025536 PROTECTOR THERMAL
W0025537 CONNECTOR PLASTIC
W0025538 PUMP ULKA 230V/50HZ
$253.00
W0025539 KIT LEFT BY PASS
$21.15
W0025542 CLUSTER CHASSIS INOX
W0025543 STAND INOX BOTTOM
W0025544 SCREW
$4.95
W0025546 FIXING BRACKET TRAY INOX
W0025547 COUPLING CONNECTOR INJECTOR
$18.15
W0025548 AMP TAG METAL
W0025549 INJECTOR FOR BOILER DIAM.6X70
$41.80
W0025550 CONNECTOR BRASS
$22.00
W0025552 SPOUT 2 WAYS FILTER HOLDER
$68.05
W0025553 CAP BLACK KNOB
$18.70
W0025555 VALVE ELECTRIC
$165.00
W0025556 DISTANCE PIECE BRASS 14MM
W0025558 VALVE LH
$44.00
W0025559 PLUNGER STEAM BRASS L=90MM
$65.25
W0025560 GRIP VAPOUR HOSE
W0025561 SCREW BLACK TC PARK 3,5X9,5
W0025562 NUT CONNECTOR BRASS NICKLE
$33.00
W0025563 O RING FOR INJECTOR D 6.07
$7.15
W0025564 GASKET FOR BOILER D.71
$17.45
W0025565 HEXAGON NUT BRASS,17 H.4MM
W0025566 NUT BRASS D 12,4 H.10,7
W0025567 HEXAGON NUT COCK STEAM 17MM
W0025568 WASHER ZINC - PLATED D INT.4
W0025570 SCREW ZINC PLATED T.C.6X16
W0025571 SCREW BRASS T.C.M4X10
W0025572 SCREW ZINC PLATED T.C.4X20
W0025573 SCREW M4 X 5
W0025616 BUTTON INOX
W0025617 SUPPORT PLATE INOX INNER
W0025619 BOW INOX CARRIER
W0025621 HEXAGON NUT NICKEL PLATED DIAM
W0025623 WASHER NICKEL PLATED DIAM.24
W0025625 SPRING FOR LOCK
W0025686 SEAL COLLAR
W0025736 COLLAR CLUSTER HELIX
$110.00
W0127603 GRATE INOX
W0127604 DRIP TRAY
W0127605 HOLDER BLACK
W0127606 BUTTON ONE POLE COMPLETE
W0127607 TIE CABLE COLLAR NYLON WHITE
W0127608 FRONT INOX 304 10/10
W0127609 KNOB BLACK
W0127610 CONTROL LAMP RED COMPLETE
W0127611 CONTROL LAMP ORANGE COMPLETE
W0127612 CONTROL LAMP GREEN COMPLETE
W0127613 CONTROL LAMP GREEN COMPL 12V
W0127614 BRACKET BLACK 5 POS
W0127615 SWITCH TWO POLE
W0127616 BUTTON TWO POLE FASTON 90
W0127617 MOTOR MAIN KIT 230V
W0127618 SET OF 2 GRATER DRUM D.38
W0127619 RECEPTACLE HELIX
$44.00
W0127620 HALOGEN LAMP COMPLETE
W0127621 PRESSURE PLASTIC BLACK CAFFE
W0127622 SHAFT PIN FOR ADJUSTMENT
W0127623 RECEPTACLE SCROLL
W0127624 REGULATOR CURRENT D
W0127625 FUSE 5X20 - 500MA
W0127626 FUSE 5X20 - 10A
W0127627 TRANSFORMER ELECTROMECHANIC
W0127628 CONNECTOR PLASTIC D 6X9
W0127629 RE-ENFORCEMENT FOR CONNECTOR
W0127630 GUIDANCE
W0127634 ELECTRONIC MODULE 12V
W0127635 FEMALE CONNECTOR WHITE 3 P.
W0127636 ADAPTOR BLIND PANEL WHITE
W0127637 CONNECTOR MALE WHITE 3 P.
W0127638 CABLE GROMMET.0833 CA01
W0127639 BRACKET
W0127640 HANDLE BLACK
W0127641 COVER TRAY INOX
W0127642 FILTER FOR TRAY H.20
$96.80
W0127643 TANK SIDE
$240.00
W0127645 SIEVE D EST 8 H.26 ( FILTER )
W0127646 TEMPERATURE REGULATOR 90
W0127647 TEMPERATURE REGULATOR 140
W0127648 OVERHEAT PROTECTION THERMO 165
W0127649 COUPLING CONNECTOR 6-1/8
W0127650 COLLAR UPPER
W0127651 HEATER COMPLETE
$106.70
W0127652 BELL BOTTOM
W0127653 GASKET OUTER BOILER
$17.60
W0127654 DISC DIFFUSER BRASS
W0127655 FILTER D.52
W0127657 FLUFF FILTER CUP 1
$35.20
W0127658 FILTER CUP 2
$41.80
W0127659 FIXING SPRING FILTER CUP
W0127660 FILTER HOLDER CUP CHROME PLATE
W0127661 SPOUT FOR FILTER HOLDER 1 VIA
W0127662 KNOB FILTER HOLDER BLACK
W0127663 MEASURING TUBE
W0127665 KIT VAPOUR HOSE M6X0.75 L=8MM
W0127666 PIPE. SILICONE. 7X4 EE600X
W0127667 PIPE. TEFLON TPFE 6X4 9.5CM
W0127669 LIST ADHESIVE 12X1.5CM
W0127671 LIST ADHESIVE 43.5X1.5CM
W0127672 NUT FOR CONNECTOR
W0127673 SUPPLY CABLE BLACK MT.3X0.75
W0127674 SCREW ZINC PLATED TE M5X30
W0127675 HEX NUT FOR HEATER M10X1 FE ZN
W0127676 O RING SILICONE 9X2.2 R.70
W0127677 WASHER ZINC PLATED DIAM INT.5
W0127678 NUT COFFEE M/COCK DIAM.14X1.25
W0127679 SCREW INOX T.S.P.M4X10
W0127680 NUT M5 HEX ZINC PLATED
W0127681 WASHER ZINC PLATED DIA 10
W0127682 SCREW ZINC PLATED T.C.E.I.M 10
W0127683 HEXAGON NUT 13X3.7 1/8
W0127684 GASKET VAPOUR HOSE OR2025
W0127685 HEXAGON NUT ZINC PLATED M4
W0127686 SCREW ZINC PLATED T C M4X10
W0127687 WASHER ZINC PLATED DIAM.INT.8
W0127688 HEXAGON NUT ZINC PLATED M8
W0127722 NUT FOR CONNECTOR DIAM 6
W0127725 PIPE TEFLON 5X2 12CM
W0127806 ELEMENT BRASS INOX
W0127807 ELEMENT NICKLE PLATED DIAM.25
W0127808 ELEMENT NYLON BLACK DIAM
W0127810 LOCK.9291 A/15
W0127820 PUSH BUTTON FOR SWITCH
W0127836 BRACKET STAY
W0127837 BRACKET MOUNTING
W0127838 TAB MOUNTING EE600X
W0127903 FRONT LAMINA BLACK SILKSCREENE
W0127904 WASHER BLACK
W0127925 PIPE UNION. NOZZLE. DIAM.6
W0127926 PIPE UNION. BRASS. M6/4 1/8
W0127927 TEFLON PIPE ASSY EE600X
W0127963 COVER FUNNEL D=120MM
W0127964 PANEL UPPER INOX
W0128079 FUNNEL TRANSPARENT D= 120MM
W0128216 THERMOSTAT 140C
$50.60
W0128217 THERMOSTAT 95C
$50.60
W0128231 THERMOSTAT 165C
$55.00
