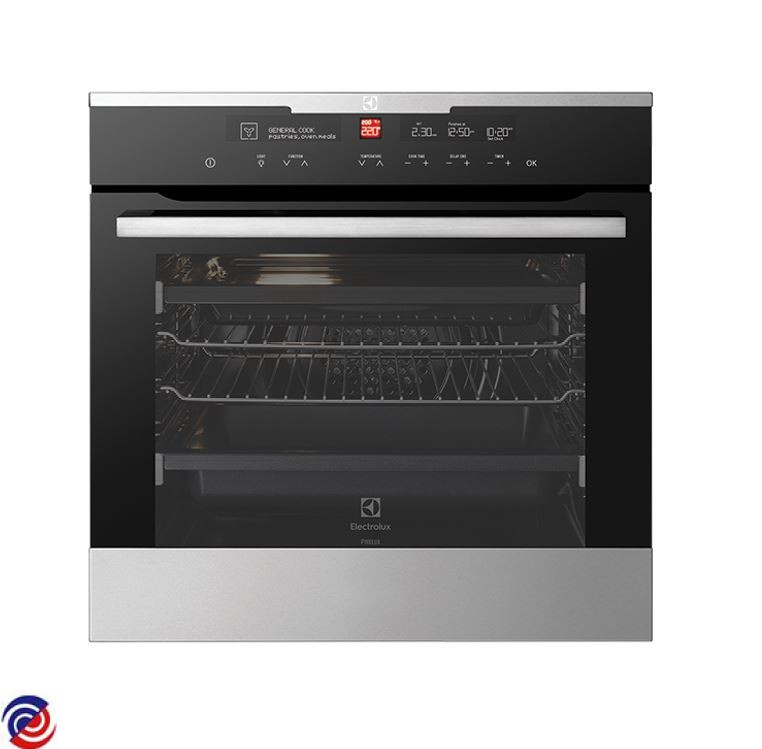

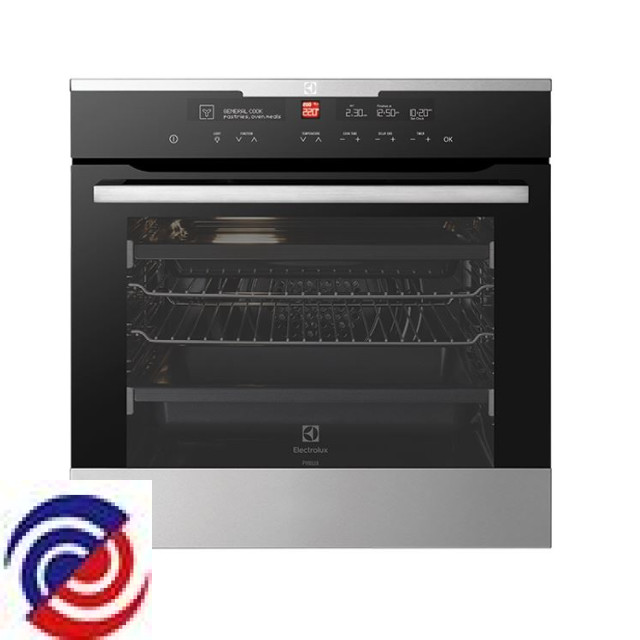

EVEP616SC — 944031731 34
ELECTROLUX — Cooker Electric
Parts for EVEP616SC
.JPG)
W0011297 BLADE FAN
W0011319 COVER GRILL DISH
W0011401 DISH GRILL ENAM F/WIDTH BIOS
W0011995 NUT M6 LH FAN MOTOR
W0012261 ELEMENT G/BOOST 3000W - PYRO
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0013450 LOCK DOOR ASSY CAST PYRO NGP
.JPG)
W0013581 CHERRY SWITCH D4KS-Y5AA N/O
.JPG)
W0013597 THERMAL CUTOUT 120 DEG N/C 16A
W0013629 TRIM VENT DOOR ASSY NGP UB
$53.20
W0023144 POWERBOARD OVC3000 - EOS
$271.70
W0023201 HOLDER LAMP REAR HALOGEN BIOS
W0030467 CONTROL IOI GEN3 PRG EVEP616SC
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
W0053514 SHELF OVEN
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011321 COVER BASE PANEL SHIELD BIOS
$29.70
W0011345 BRACKET KRONOS PROBE MOUNT BIO
$12.60
W0011356 BRACKET DOOR SWITCH NGD
$14.50
W0011368 BRACKET HINGE SUPT APOLLO
$22.90
W0011479 PANEL TOP PYRO NGP
$43.20
W0011515 PANEL COVER WIRE UB 40MM
$24.20
W0011666 COVER FAN & ELEMENT
$95.75
W0011857 SUPPORT ELEMENT
$12.80
W0011882 CHANNEL FRONT NGP UB RH
$16.90
W0011926 HANDLE DOOR RUBY
W0012325 RETAINER PYRO CATALYSE NGP
$11.30
W0012639 SENSOR CABLE - 500MM
W0012863 GLASS OVEN DOOR INNER PYRO NGP
W0012864 GLASS OVEN DOOR MID PYRO NGP
W0012993 SPACER HANDLE RUBY PREM 40MM
W0012997 SPACER RUBBER GLASS NGP
$8.15
W0013260 SHIELD WIRING
$11.95
W0013344 INSULATION OVEN WRAP PYRO NGP
W0013345 INSULATN INSERT BACK PYRO BIOS
$14.30
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013570 LEVER SWITCH DOOR LIGHT MICRO
$42.95
W0013630 TRIM SURROUND C/P 40MM NGP
W0013666 DUCT PLATE TOP PYRO NGP
$14.85
W0013667 DUCT PLATE BOTTOM PYRO NGP
W0013730 BUMPER STOP BLK
$6.55
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014041 SCREW #8 x1/2 PH2 MUSH WASHER
$4.50
W0014134 SCREW, M4X0.7X53 PAN HEAD
W0023148 FOOD PROBE MODULE STEAM
$72.00
W0026349 HOUSING CENTRERING HELP
W0026362 RUNNER TELESCOPIC FULL 2LV
W0027300 COOLING FAN MOTOR ASSEMBLY
W0027397 HARNESS ADAPTOR DOOR LOCK OVC3
$15.95
W0029631 CAP MOUNT F/FRAME 40MM RUBY LH
$4.50
W0029632 CAP MOUNT F/FRAME 40MM RUBY RH
$17.00
W0029801 PLUNGER DOOR SWITCH NGD
$7.05
W0030433 RECEPTACLE ASSY FOOD PROBE
$30.95
W0030457 PANEL SIDE UB BIOS RH
$49.15
W0030458 PANEL SIDE UB BIOS LH
$49.15
W0030466 F/FRONT ENAM 40MM PYRO UB FP
$143.95
W0030507 WIRE HARNESS K16 FOODPROBE MOD
$13.20
W0030544 PANEL OV DR OUT ASSY PYRO 40MM
W0030817 THERMOMETER MEAT BLACK 480MM
W0038118 COVER RETAINING LATCH
$10.95
W0039242 TRAY BAKING PREMIUM ENAM BIOS
W0042653 CHANNEL FRONT NGP UB LH
W0042768 PLUG DOME MDP16
W0052284 GLASS & TAPE EVE616SA RUBY
W0064627 SCREW #4 X16 T25 W/HD PHIL#2
W0103157 SWITCH DOOR LIGHT MICRO
W0105875 FILTER CATALYST
W0114700 SENSOR TEMPERATURE PT500
W0154101 DISH BAKING CAST BIOS
W0283441 COVER CLEAN HEAT
$9.65
W0284107 HINGE STD 8.8-9.5 KG 4 LAY BI
W0284299 HINGE SC 8.8 - 9.5 KG 4 LAY BI
$59.00
W0284429 RACK PACK ELUX W100
W0284441 ELEMENT BASE 1000W E100
W0284726 RACK SIDE OVN W/HOUSE STEAM RH
$39.00
