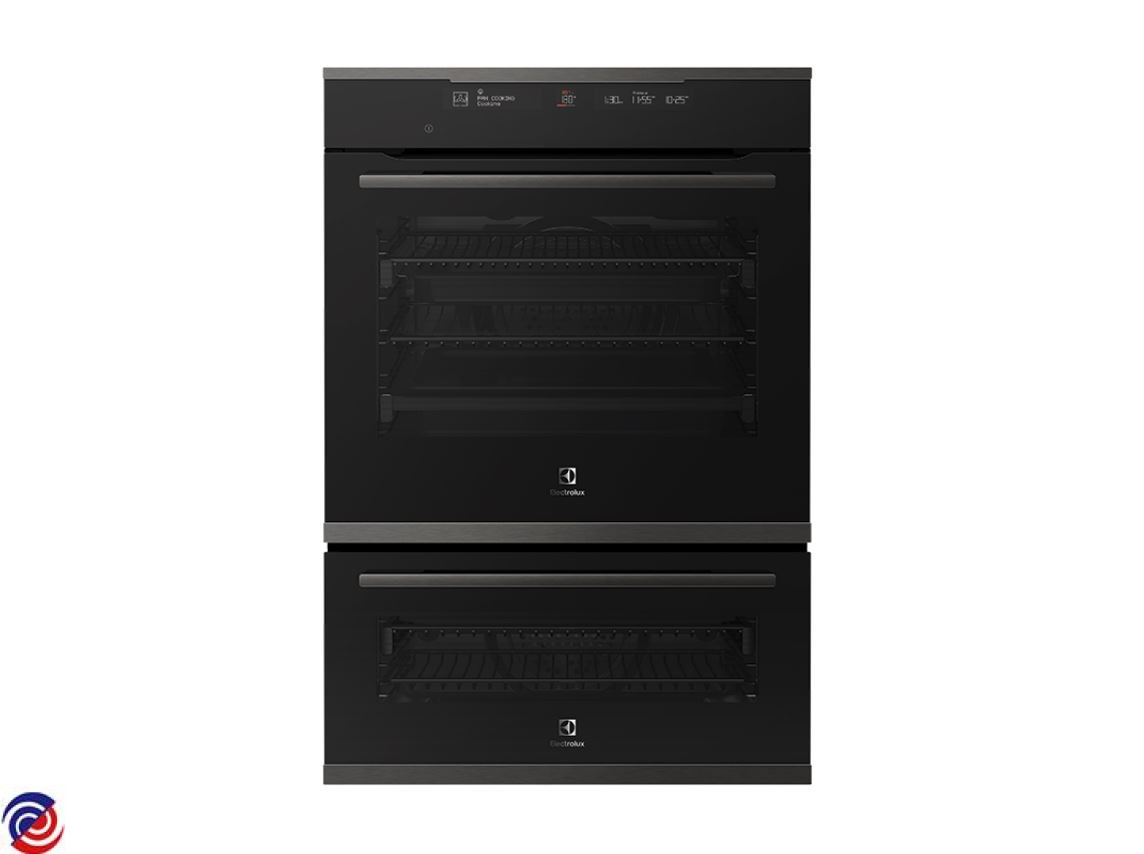

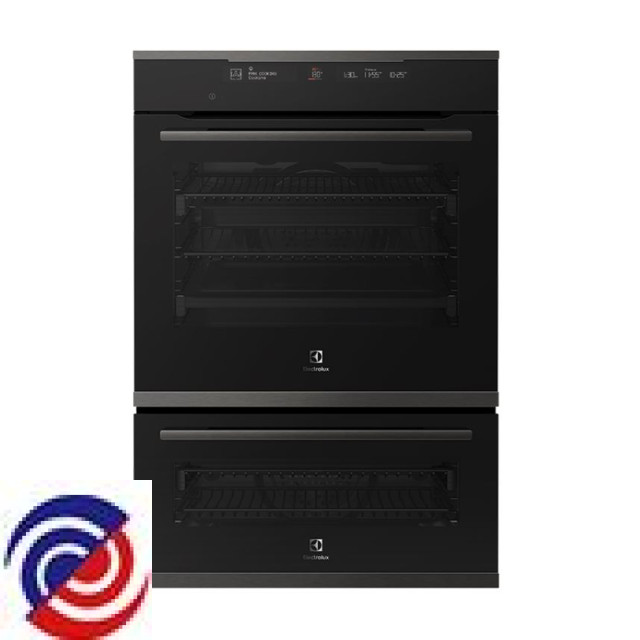

EVEP626DSD — 944031799 01
ELECTROLUX — Cooker Electric
Parts for EVEP626DSD
W0011995 NUT M6 LH FAN MOTOR
W0012261 ELEMENT G/BOOST 3000W - PYRO
W0012262 ELEMENT FAN RING 2200W
.JPG)
W0012326 CLIP MOUNTING ELEMENT
W0013450 LOCK DOOR ASSY CAST PYRO NGP
.JPG)
W0013581 CHERRY SWITCH D4KS-Y5AA N/O
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
.JPG)
W0013597 THERMAL CUTOUT 120 DEG N/C 16A
W0013629 TRIM VENT DOOR ASSY NGP UB
$53.20
W0013970 RELAY 30A SINGLE POLE 240V
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
_1.JPG)
W0050403 MOTOR FAN OVEN
W0271174 IMPELLER OVEN FAN 160 MM
W0274167 SENSOR TEMPERATURE PT500 575MM
W0275063 LAMP OVEN ROUND PYRO BIOS
W0275069 SENSOR TEMPERATURE PT500 980MM
$44.05
W0284628 POWERBOARD - OVC2000 DUAL CAV
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011345 BRACKET KRONOS PROBE MOUNT BIO
$12.60
W0011356 BRACKET DOOR SWITCH NGD
$14.50
W0011368 BRACKET HINGE SUPT APOLLO
$22.90
W0011380 BRKT ASSY LWR SWITCH & DR LOCK
$33.65
W0011382 BRKT LWR DOOR LOCK MOTOR
$38.00
W0011666 COVER FAN & ELEMENT
$95.75
W0011686 PANEL FAN COVER DUO PYRO RUBY
$59.55
W0011857 SUPPORT ELEMENT
$12.80
W0011883 CHANNEL FRONT DUO RH
W0012129 COUPLING D SHAPE 6MM DIA
W0012325 RETAINER PYRO CATALYSE NGP
$11.30
W0012419 HOUSING DR LOCK CAST PYRO NGP
$30.45
W0012643 HARNESS K2 INTERFACE 783/883
$4.50
W0012726 SEAL OVEN DOOR PYRO BIOS
W0012731 SEAL GRILL DOOR PYRO BIOS
$59.70
W0012758 MOTOR ASSY DOOR LOCK NGP
$63.85
W0012863 GLASS OVEN DOOR INNER PYRO NGP
W0012864 GLASS OVEN DOOR MID PYRO NGP
W0012875 GLASS DUO INR PYRO RUBY
$296.65
W0012876 GLASS GR DR MID PYRO DUO
$166.90
W0012997 SPACER RUBBER GLASS NGP
$8.15
W0013260 SHIELD WIRING
$11.95
W0013324 INSUL OVEN BACK DUO PYRO NGP
$18.70
W0013343 INSULATION OVEN BACK PYRO BIOS
W0013461 BRACE OVEN REAR B/I BIOS
$24.85
W0013570 LEVER SWITCH DOOR LIGHT MICRO
$42.95
W0013630 TRIM SURROUND C/P 40MM NGP
W0013666 DUCT PLATE TOP PYRO NGP
$14.85
W0013730 BUMPER STOP BLK
$6.55
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0014041 SCREW #8 x1/2 PH2 MUSH WASHER
$4.50
W0026349 HOUSING CENTRERING HELP
W0027300 COOLING FAN MOTOR ASSEMBLY
W0027398 HARNESS ADPTR DR LOCK UPR OVC2
$19.15
W0027399 HARNESS ADPTR DR LOCK LWR OCV2
$22.35
W0029304 RETAINER PYRO CATALYSE DUO NGP
$7.70
W0029305 CATALYSER 77DIA,12.5H, 64 CSI
$23.10
W0029631 CAP MOUNT F/FRAME 40MM RUBY LH
$4.50
W0029632 CAP MOUNT F/FRAME 40MM RUBY RH
$17.00
W0029801 PLUNGER DOOR SWITCH NGD
$7.05
W0030433 RECEPTACLE ASSY FOOD PROBE
$30.95
W0030473 F/FRONT ENAM PYRO DUO NGP
$140.00
W0030490 PANEL TOP
$44.90
W0030494 PANEL BASE BIOS 0.5MM
$38.35
W0030817 THERMOMETER MEAT BLACK 480MM
W0038118 COVER RETAINING LATCH
$10.95
W0042655 CHANNEL FRONT NGP DUO LH
W0047182 ROD DOOR LOCK PYRO
W0063371 CLIP STANDOFF POWERBOARD
W0064477 SCREW CSK PH 6AB X 25MM BLK
$4.50
W0064627 SCREW #4 X16 T25 W/HD PHIL#2
W0103157 SWITCH DOOR LIGHT MICRO
W0105875 FILTER CATALYST
W0275331 SCREW M4 X 50 PAN GENESYS
$5.50
W0275662 INSULATN INSERT BACK PYRO BIOS
$14.30
W0275782 CONTROL IOI GEN3 PRG EVEP626SD
$381.65
W0282425 DUCT GRILL PYRO DUO ASSY UPPER
W0282426 DUCT GRILL PYRO DUO ASSY UPPER
W0283328 WIRE HARNESS DOOR UPPR OVC2000
$18.55
W0283401 PANEL SIDE SGWO R/H NGD
W0283402 PANEL SIDE SGWO L/H NGD
$43.10
W0283403 WIRE HARNESS OVC2K FPM MODUL
$11.65
W0283425 HINGE SC 5 - 5.3 KG 4 LAY BI
$72.00
W0283440 COVER CLEAN HEAT DUO
W0283441 COVER CLEAN HEAT
$9.65
W0283475 SPACER HANDLE E100 DARK S/S
W0283479 HANDLE PAD E100
$4.50
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0283532 RACK SHELF OVEN ELUX E100
W0283546 INSULATION GRILL WRAP PYROE100
$53.40
W0283547 PNL DUO DR OUT PYRO E100
$130.55
W0283645 PANEL C/WIRE DUO E100
$47.75
W0283732 HOLDER LAMP SIDE ASSY G9 PYRO
W0283785 HARNESS OVC2000 FPM ADAPTER
W0283803 OVC2000 FPM INTERFACE BOARD
$20.35
W0284064 CLIP SIDEGRIDS
$4.50
W0284107 HINGE STD 8.8-9.5 KG 4 LAY BI
W0284238 FOOD PROBE MODULE OVC2000
$42.95
W0284299 HINGE SC 8.8 - 9.5 KG 4 LAY BI
$59.00
W0284314 HINGE STD 5 - 5.3 KG 4 LAY BI
$69.00
W0284338 HANDLE DOOR E100 DARK S/S
$50.00
W0284351 DISH GRILL ENAM E100
$78.10
W0284352 TRAY BAKING PREMIUM ENAM E100
$58.05
W0284369 INSULATION OVEN WRAP PYRO E100
$59.95
W0284423 RACK PACK ELUX
$109.50
W0284424 RACK PACK DUO ELUX
W0284441 ELEMENT BASE 1000W E100
W0284447 GLASS & TAPE EVEP626DSD
W0284462 PANEL OV DR OUT ASSY PYRO E100
W0284491 SLIDE DOUBLE EXT 1 SET
$115.00
W0359284 SLIDE DOUBLE EXT 1 SET SACA
W0361895 DISH BAKING CAST E100
$190.05
