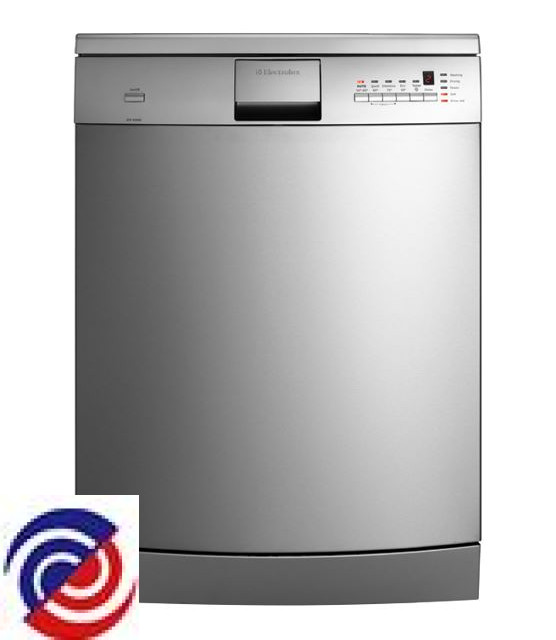

ESF65060X — 911915621 01
ELECTROLUX — Dishwasher
Parts for ESF65060X
W0015721 MOUNT PRESSURE SWITCH
$50.00
W0015729 TUBE PRESURE SWICH LEVEL 525MM
$21.00
W0019083 MANIFOLD OUTER
W0023474 HINGE KIT DOOR LH/RH
$135.05
W0025858 ROLLER KIT LOWER PKT 8
W0072845 GASKET DOOR 1730MM
W0090295 CLIP BASKET STOP FRONT
$11.15
W0090412 COUPLING MANIFOLD LIGHT GREY
W0090747 GASKET DOOR LOWER BLK L=550
$31.00
.JPG)
W0090799 SWITCH PRESSURE LEVEL 65/45
.JPG)
W0090800 SWITCH PRESSURE SAFETY 123/98
W0128335 ELEMENT INLINE 230V/2000W 32MM
.JPG)
W0128336 FILTER DRAIN
W0128355 MOTOR WASH 2800RPM
$237.00
W0149911 STOP BASKET REAR DK GREY
W0015142 SWITCH MAIN ON/OFF
W0015341 PIPE UNION HEATING ELEMENT
$18.90
W0015742 RAIL BASKET UPPER
W0015751 CORD POWER AUST/NZ 10A
$40.00
W0018981 FOOT ADJUSTABLE
$18.90
W0018988 LATCH DOOR LOCK
W0019023 VENT VAPOUR OUTLET
$14.90
W0019081 FOOT ADJUSTABLE FRONT 60MM
$18.90
W0024540 ROLLER BASKET UPPER
$11.00
W0025794 O RING
W0025927 SWITCH MICRO DOOR
$35.00
W0036250 SUPPORT SPRAY LOWER
W0047345 FILTER EMC
W0050178 SEAL SUMP
W0050183 SEAL NTC TURBIDITY
W0071618 SENSOR TEMPERATURE & TURBIDITY
W0071777 SPRAY ARM BOTTOM INCL VENTURI
W0071801 BASKET CUTLERY DARK GREY
W0071869 BUTTON WASH MODE INOX
W0071880 RACK CUP - DK GREY
W0071883 SPACER - DK GREY
W0071896 SPRAY ARM UPPER DARK GREY
W0072639 BRACE REAR UPPER
W0072645 LATCH.BRIDGING PLUG.COMPLETE
W0072653 CHANNEL DRAINAGE DARK GREY
W0072656 HOLDER PLINTH
W0072657 STIFFENING DOOR
W0072661 PANEL DOOR INOX ARCHED
W0072667 PANEL SIDE LH SILVER
W0072669 SIDE PANEL RIGHT SILVER
W0072685 TUBE PRESSURE SWITCH SAFETY
W0072689 D/WASH BASKET UPPER DK GREY
W0072693 HANDLE BRACKET
W0072694 CONTAINER CUP SMALL ELECTRONIC
$50.00
W0072725 SPONGE DRAIN PUMP 'L
$4.50
W0072732 BASKET LOWER SILVER
W0072812 SPRING DOOR HANDLE
$10.00
W0072850 AIR GUIDE - ACTIVE DRY
W0072883 WORKTOP
W0072886 CONTROL PANEL SILK SCREENED
W0072894 SUPPORT BRACKET MOTOR RUBBER
W0072897 PLINTH INOX
W0072903 MANIFOLD HORIZONTAL DK GREY
$70.00
W0072904 SEAL BELLOWS CHANNEL DRAINAGE
$18.00
W0072906 FUNNEL FILLING D/W SALT TRANS
$6.00
W0072907 ROLLER BASKET ADJUSTMENT
W0072923 HANDLE CONTROL PANEL INOX
W0090280 TIE HINGE
W0090328 GASKET. DECALCIFIER
W0090332 BRACKET ROLLER REAR SIFFENING
$10.00
W0090380 COVER WIRING
W0090402 SEALING STRIP
W0090423 NUT SPEED CLIP
W0090522 CROSSBAR FRONT UPPER
W0090545 PLATE SIDE - GREY
W0090563 BASEPLATE BASEMENT
W0090569 PANEL BASE
W0090606 STOPPLE. DECALCIFIER ESL9163
W0090611 PLUG BRIDGING
$4.50
W0090612 CLAMP HOSE
W0090621 RING NUT. DECALCIFIER
W0090622 GASKET ANTI OVERFLOW
W0090626 DISCHARGE PIPE COMP X 2230MM
W0090627 GROMMET, DECALCIFIER ESL9163
$4.50
W0090636 COVER LATCH HOLE
W0090653 TRIM TUB CAB L=1710 WHT
W0090658 PIPE UNION. DECALCIFIER. SUMP
W0090726 CROSSBAR FRONT BOTTOM
W0090752 MICROSWITCH. ANTIOVERFLOW
W0090753 PIN HANDLE
W0090765 SPRING SIDE HANDLE
W0090773 HARNESS COMPLETE
W0090775 HOSE AIR DRYING L=680
W0090785 SUMP PIPE UNION COMPLETE
W0090807 PUMP DRAIN
W0090831 BUTTON ON/OFF INOX
W0090835 VALVE SOLENOID WATER SOFTENER
W0090838 SALT SENSOR. DECALCIFIER. T&P
W0090839 FILTER MESH STAINLESS
$40.00
W0090851 FIXING CLAMP SENSOR
W0090859 DIFFUSER DISPLAY
W0116439 SERVICE KIT ELECTRIC CABLE
W0116854 HANDLE SIDE COMPLETE
W0127221 O RING MANIFOLD INNER
W0127972 NAMEPLATE DOOR
W0128097 CLIP FIXING STUD (PKT 4)
$4.50
W0128149 KIT. DISPENSER. DETERGENT
W0128153 NUT WATER DISTRIBUTOR
W0128154 DECALCIFIER COMPLETE ASSEMBLY
W0128208 CAPAC 3UF 450V 2PIN SPIGOT
$20.30
W0128257 INNER DOOR COMPLETE
$232.00
W0128314 HOSE INLET WATER BLOCK L=1800
W0128334 KIT SUPPORT FLOAT
$17.80
W0128356 SUPPORT ROLLER KIT PKT 4
$58.00
W0129222 SEAL AIR CHAMBER
W0149952 BUFFER DISHWASHER BASKET
$8.00
W0153282 BOARD CONFIGURED EDW1500
$219.00
